antena smc pacman circular mimo my idea

[acri 24]

50 minutes ago, Admin said:

Acri brother, please excuse me that I did not pay too much attention to this type of MiMo antenna, but now I think this is the best option...

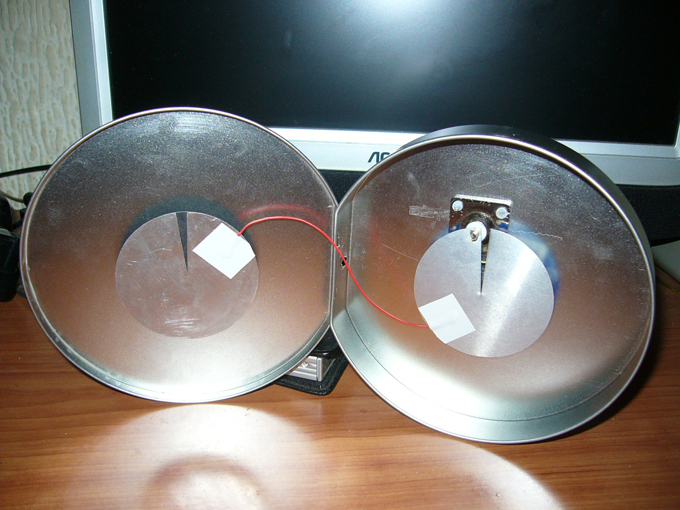

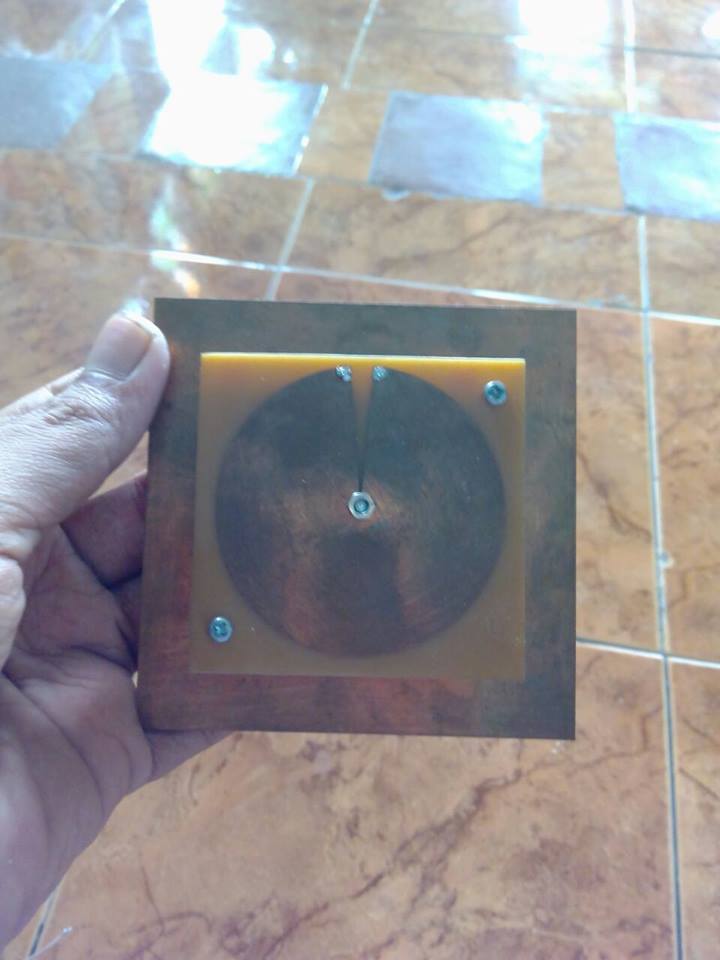

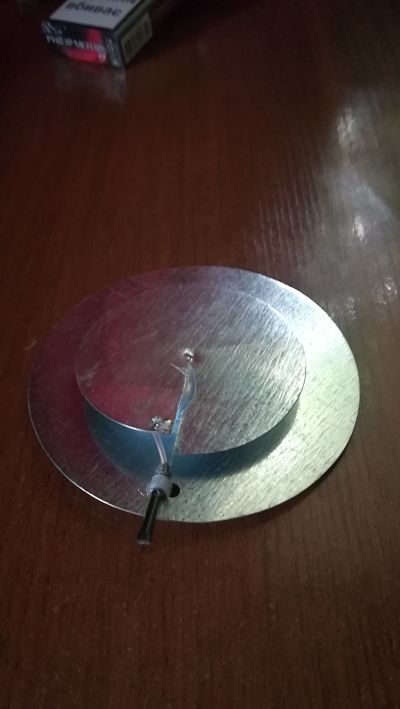

this is my first pacman mimo antenna ....

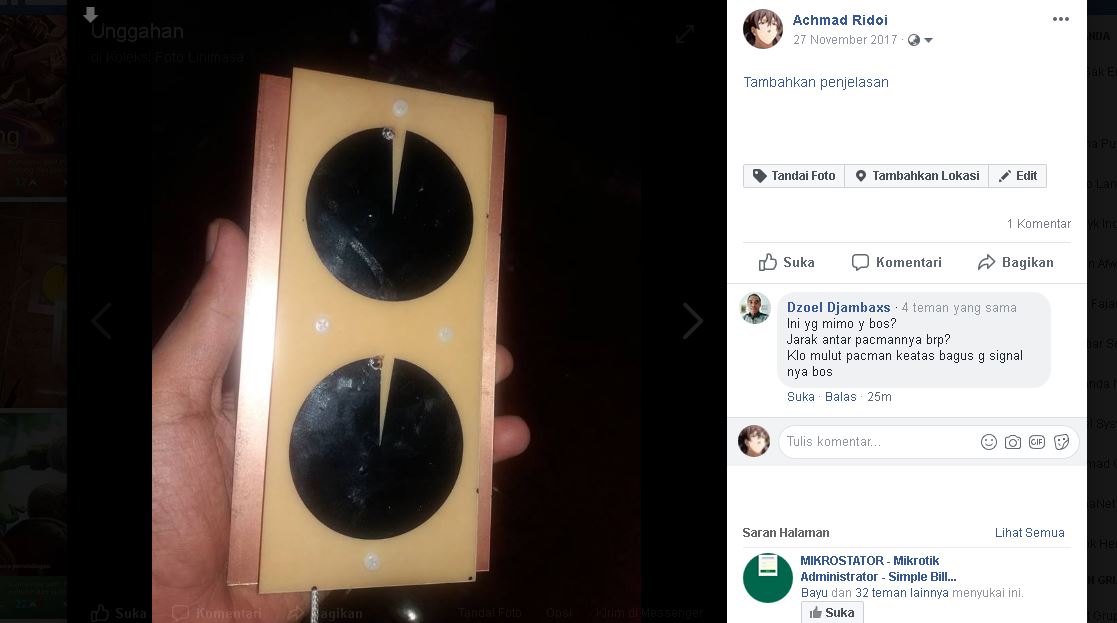

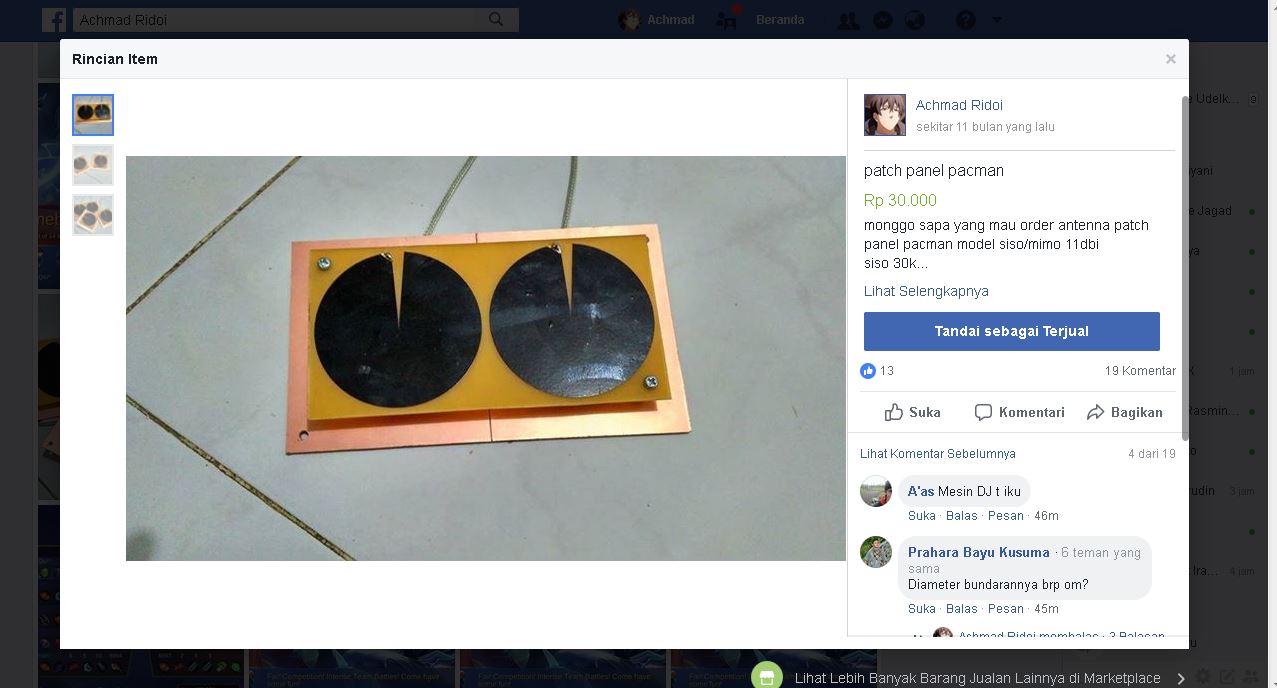

posting on the forum is my idea so i can save the material but generate mimo antenna

[acri 24]

its my idea

[Admin 2545]

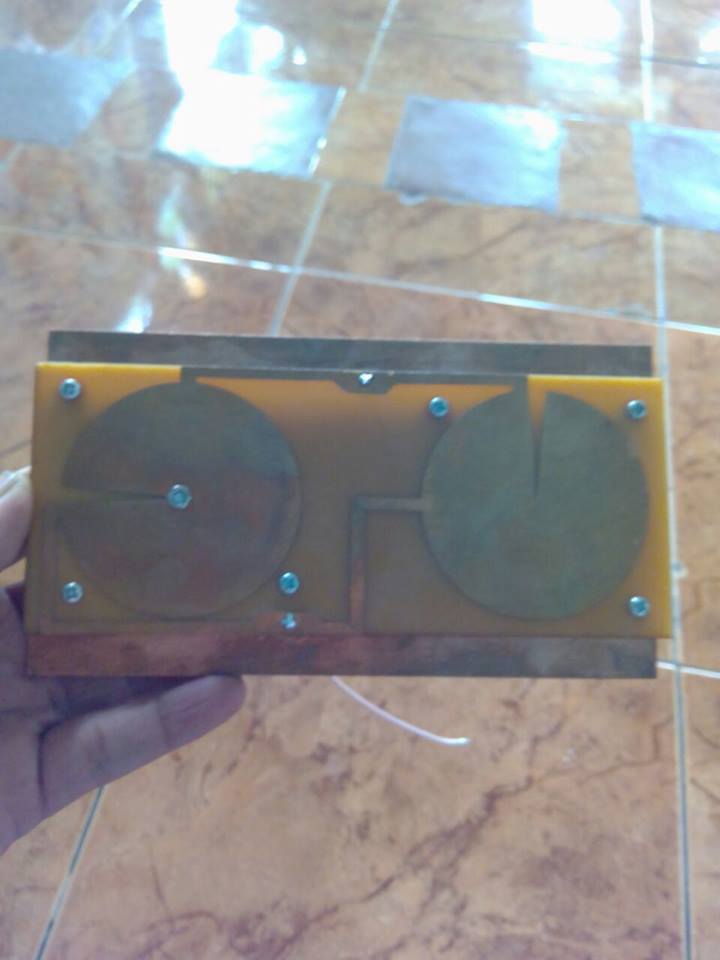

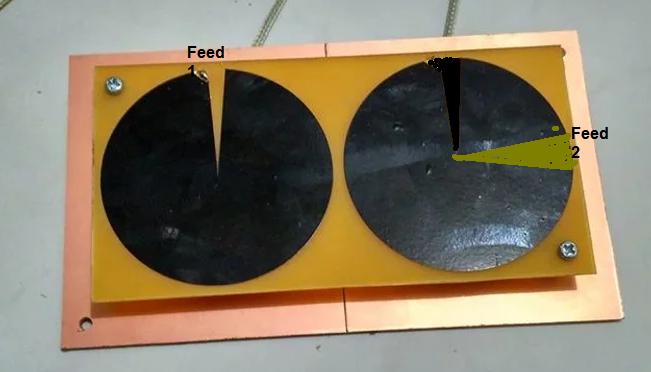

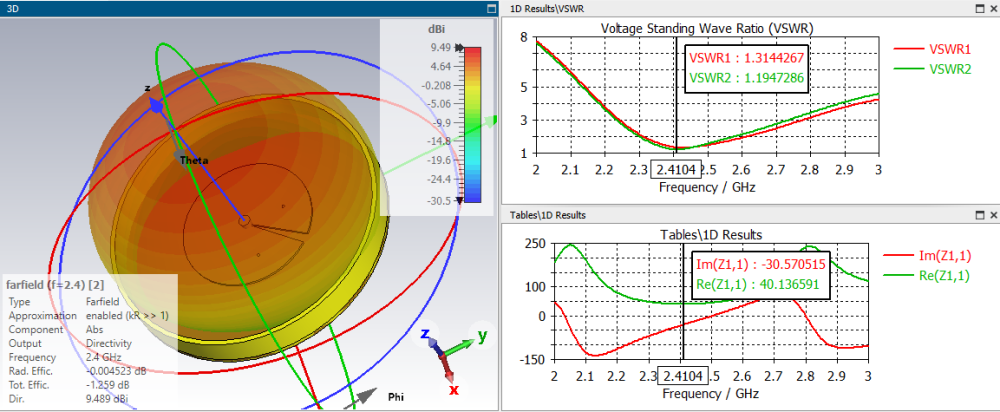

,,,,something like that...


[acri 24]

40 minutes ago, Admin said:

,,,,something like that...


I never made a thing like this but I never photographed because my smartphone was stolen

but now I focus on making my own antennas, but there's a word "plagiarized"

[Serg_ 0]

On 13.01.2018 at 11:01 PM, Admin said:

And all these lies are ...

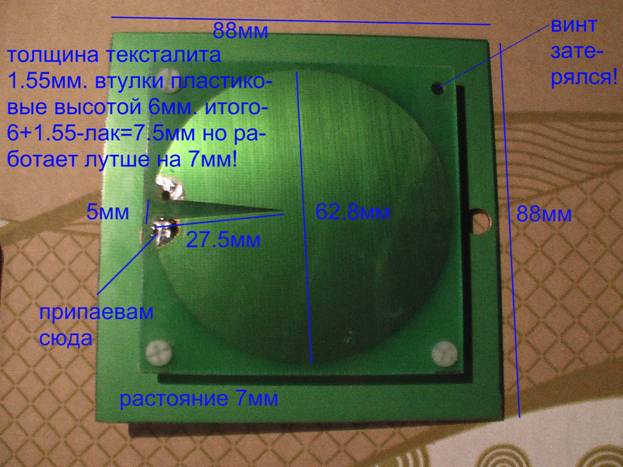

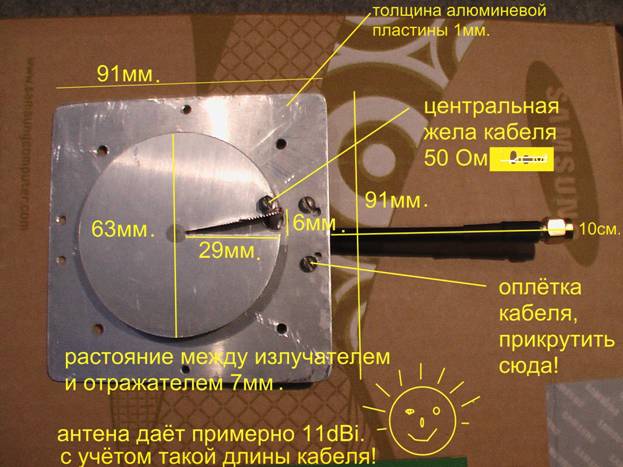

Hi! J**my! Judging by the picture, it is from the LAN23 forum =) And you can give a link to that page, I would be very grateful. Or the full dimensions of the antenna. Because in the picture, not all sizes are indicated (

[Admin 2545]

,,,hi buddy...!!!

,,, and yet, what dimensions are missing ...?

[Serg_ 0]

On 14.12.2020 at 9:48 AM, Admin said:

,,,hi buddy...!!!

,,, and yet, what dimensions are missing ...?

Hi, how far from the edge of the "patch" is the cable soldered?

[Admin 2545]

3/3 mm from the corner

[Serg_ 0]

thx!!!

[Admin 2545]

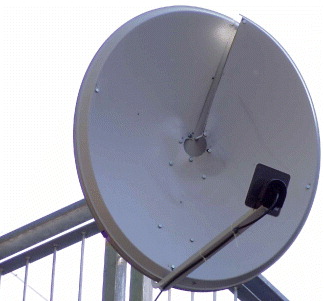

,,, to put in the focus of a parabolic offset...

[clanon 246]

Off course it is CIRCULAR POLARIZATION , the only path left for the energy to conduct due to the sector CUT OUT

Andrew  Screw the pooch sometimes and he NEVER correct himself...(delete comments that  contradict him , even if they ARE RIGHT)

[clanon 246]

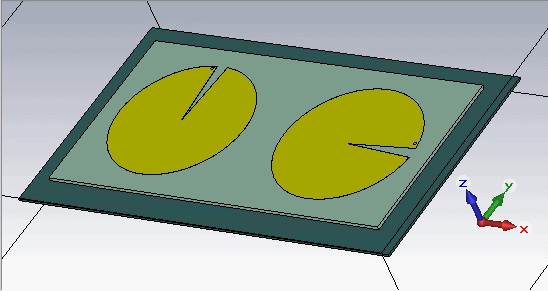

Original SMCANT-DIFP11 dimensions

[Harry36 140]

On 26.12.2021 at 6:45 PM, Admin said:

,,, to put in the focus of a parabolic offset...



https://iopscience.iop.org/article/10.1088/1367-2630/14/3/033001

[Admin 2545]

,,, yes, I think this topic was discussed on a forum...offset helicoidal parabolic antenna....radio vorticity:

[tomasbj 5]

On 20/7/2018 at 10:18 PM, Admin said:

,,,,something like that...


Hi Guys, Why not one on top each other as gnss antennas. I mean, to make more compact this idea?
