UMO-3F MIMO 2x2-4G/3G

[Admin 2561]

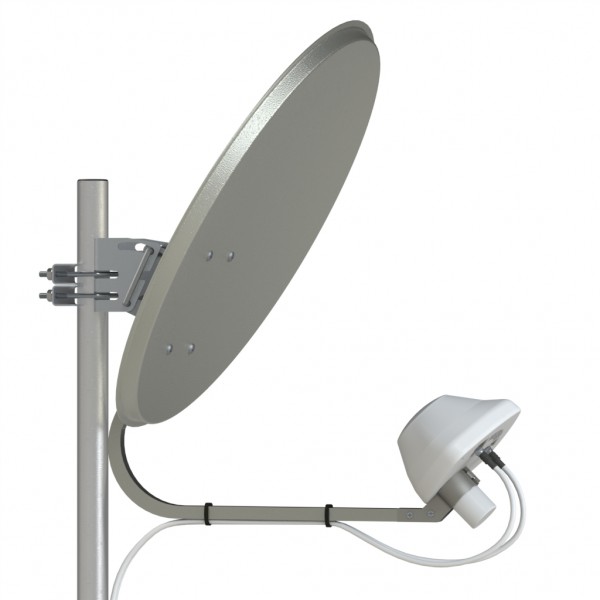

Universal 3G / 4G MIMO 2x2 irradiator for parabolic reflector ("plates"). F=1700-2700 MHz. It works in the LTE1800, DC-HSPA+, LTE2600, and WIFI2400 standards. Equipped with F-female connectors. KY=9dBi.

Own the coefficient of the radiator, dBi 8÷10

Polarisation -Vertical/ horizontal / inclined

Width of the bottom of the irradiator in the plane of the vector E at the level of -10dB, deg-86 - 130

Width of the bottom of the irradiator in the plane of the vector H at the level of -10dB, deg-104 - 116

Input impedance, Ohms-75

Decoupling between inputs in the operating range, dB-More than 28

SWR in the operating frequency range, max.1,8

Permissible power, 10W

Overall dimensions, mm 140 x 140 x 140

Weight, g350

Connector 2 x F-female

Material of the protective cover Polycarbonate+ABS

Antenna material galvanized steel

Protective coating powdered polymer paint





[Admin 2561]

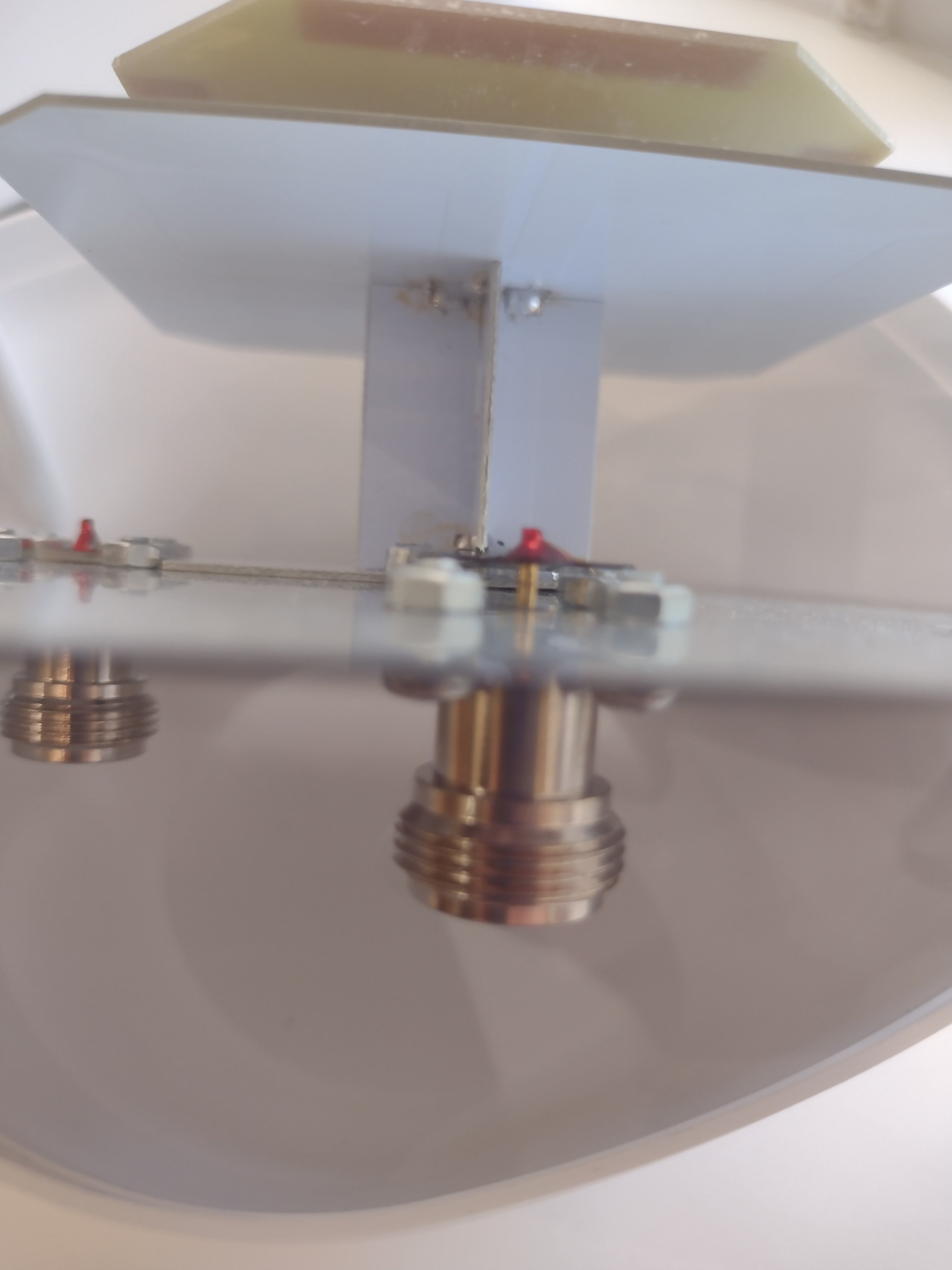

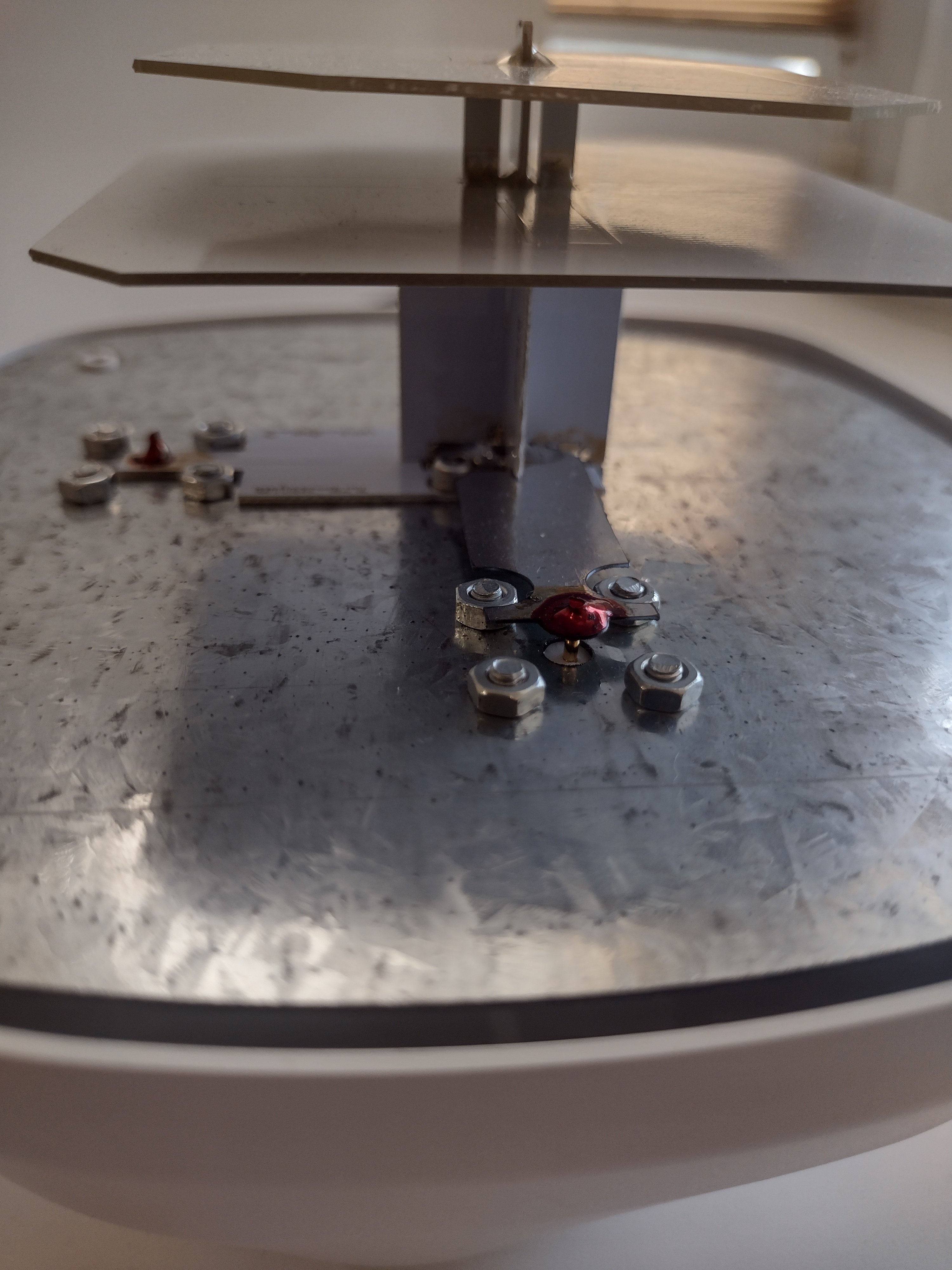

,,, that's what it would look like ... !!!

,,,by o_pylypenko...!!!





[Harry36 142]

3 hours ago, Admin said:

,,, that's what it would look like ... !!!

This is 50 Ohm version.

[Harry36 142]

[Harry36 142]

[Admin 2561]

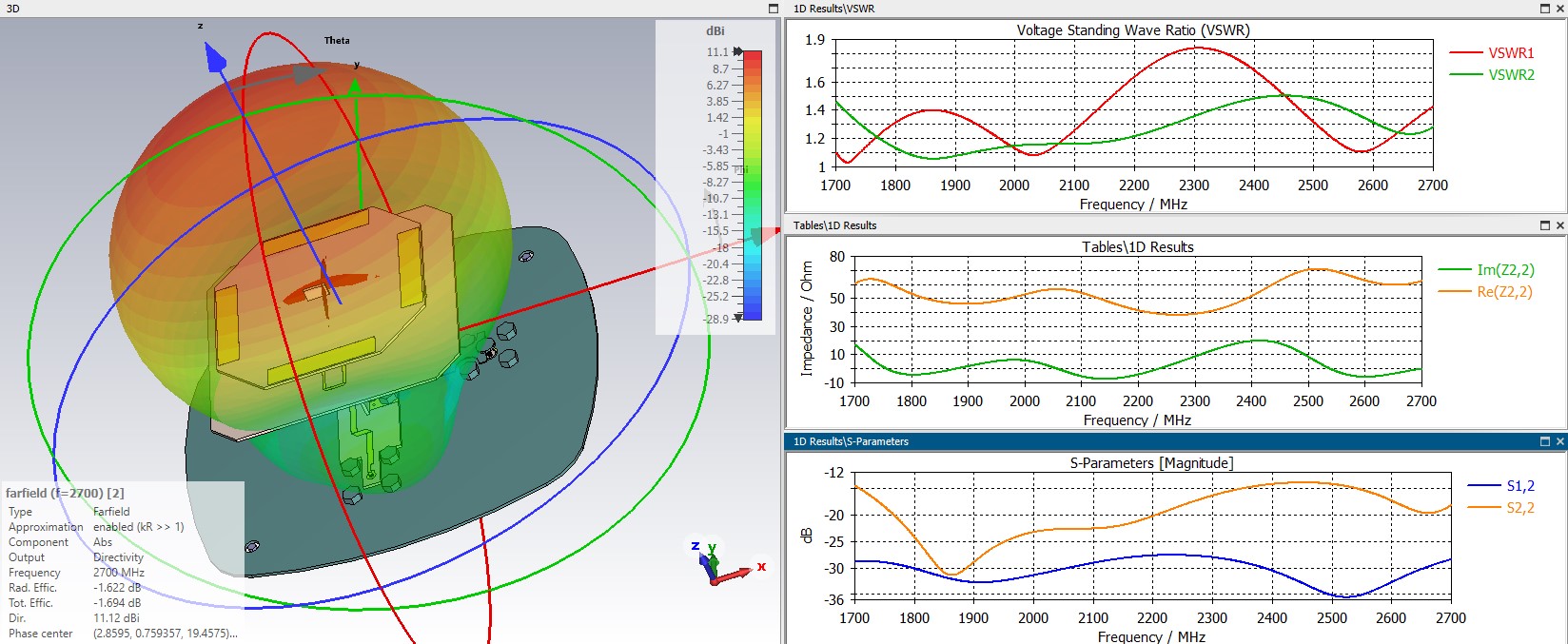

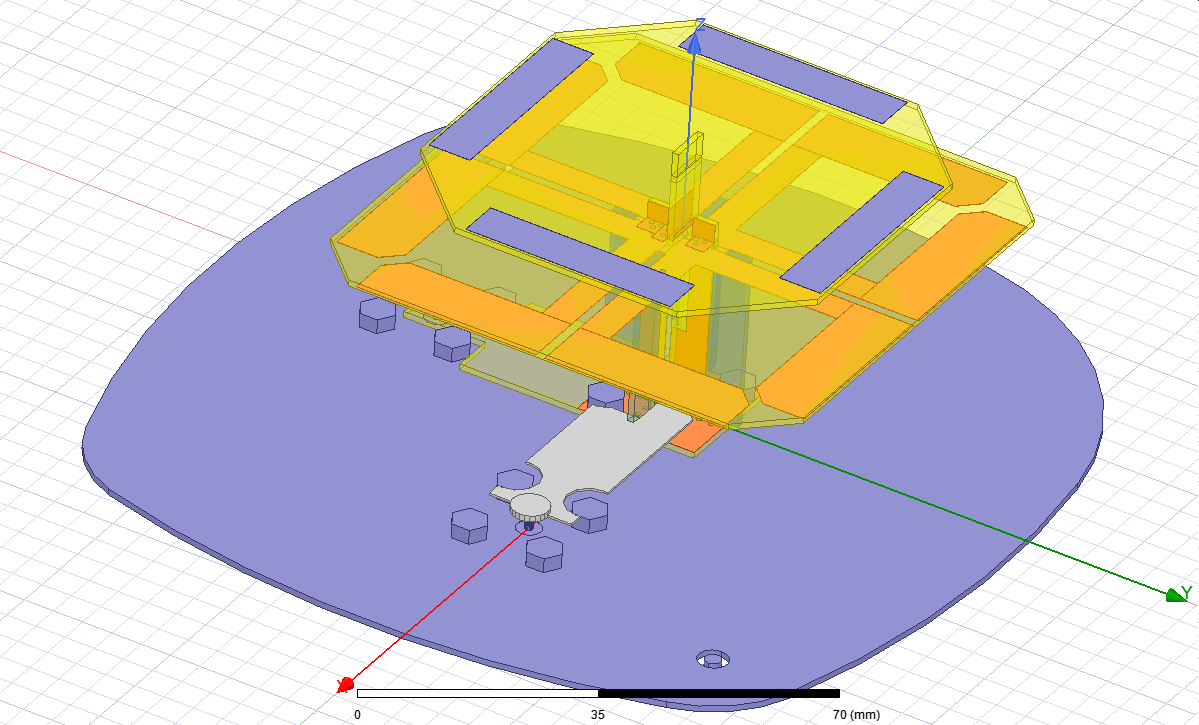

,,, Harry36,dimensions or CST simulation...!!!

[ABERIC 0]

Please share cst file, very thanks.
