BESTER BDM-2 MIMO 4G/LTE ANTENNA, 15-17 DB

[Admin 2545]

,,,try and you will see...with PCB you need other dimensions...!!!

[Noob anten 1]

3 minutes ago, Admin said:

,,,try and you will see...with PCB you need other dimensions...!!!

Can I add more directors for more gain.or it starts to lose it?

[Admin 2545]

Yes of course...!!

[Noob anten 1]

Just now, Admin said:

Yes of course...!!

Thanks....

[Radik 6]

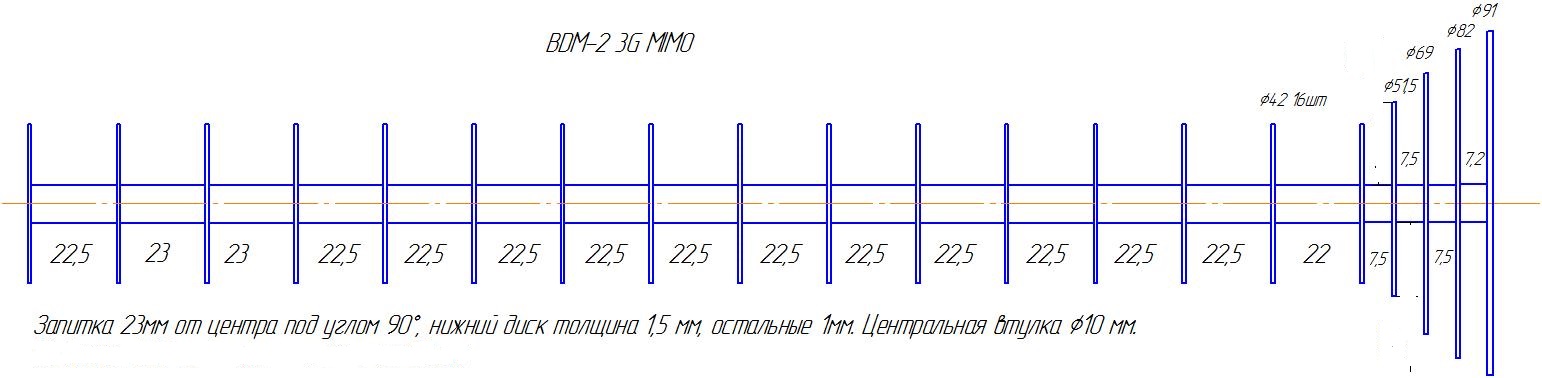

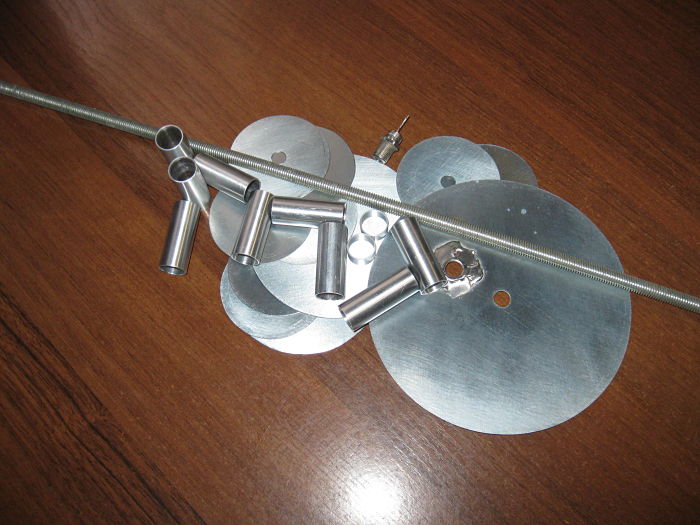

This antenna is BDM-2 3g,4g mimo 2100MHz.  Central feed from the center 23mm at an angle of 90 ° tube diameter 10mm

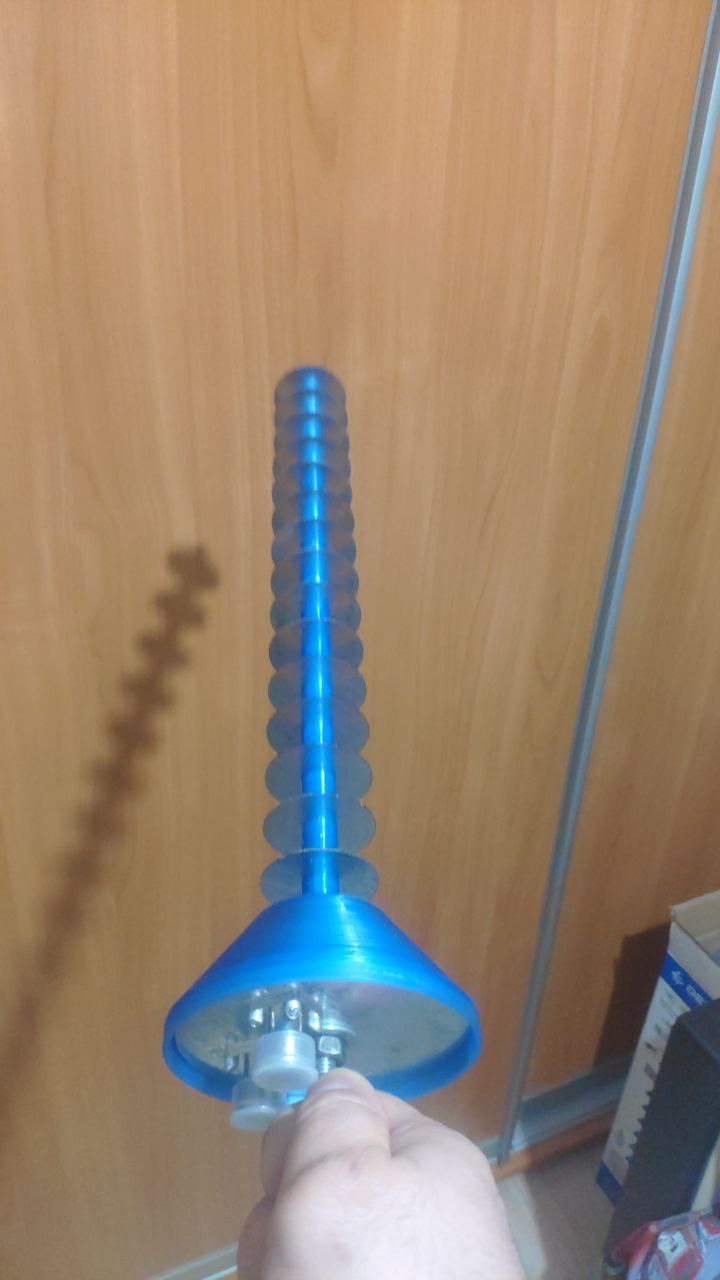

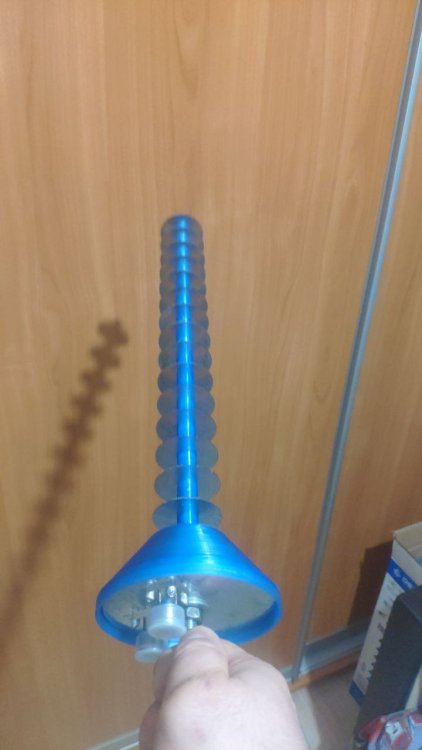

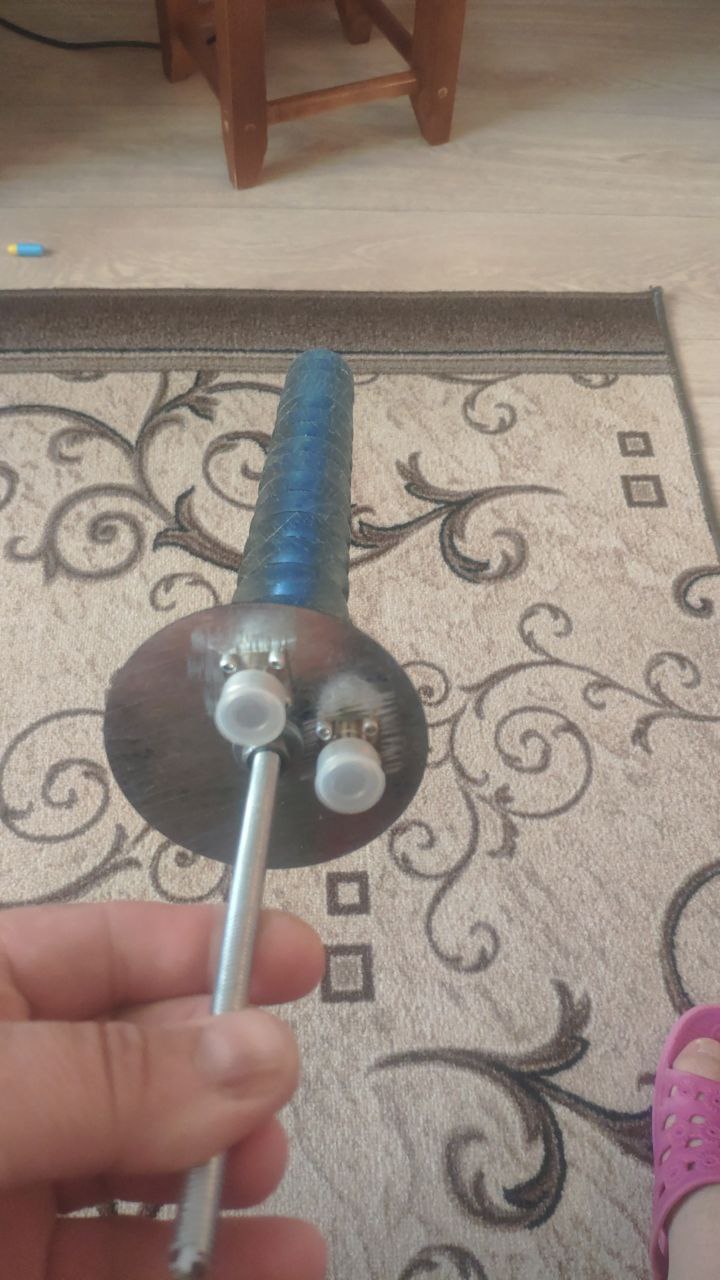

I did mine a little wrong, instead of tubes I used plastic bushings, it was impossible to do that.  I ask the Admin to check the performance of this antenna HFSS.







[farad84 0]

Hello. Who has the correct drawing with dimensions for bdm 1800-2100 mimo and 50 ohm cable?

[Harry36 140]

10 hours ago, farad84 said:

Hello. Who has the correct drawing with dimensions for bdm 1800-2100 mimo and 50 ohm cable?

bester did not produce such an antenna

[Admin 2545]

300 MHz...???,,,, the frequency bandwidth is rather large...!!!!

[Harry36 140]

7 minutes ago, Admin said:

300 MHz...???,,,, the frequency bandwidth is rather large...!!!!

1800 - 1700...1900

2100 - 1900...2200

500 MHz





But...

[Admin 2545]

,,,,but ....only with three elements...!!!!

,,,and with ARINST Measuring equipment, something completely different comes out...!!!

[Harry36 140]

34 minutes ago, Admin said:

,,,and with ARINST Measuring equipment, something completely different comes out...!!!

without knowing the size and method of feeding, it is not necessary to talk about it.

[Admin 2545]

,,, well, then you answer "farad84"...!!!!

[alsamman80 3]

On 2/23/2020 at 7:40 PM, sa3500 said:

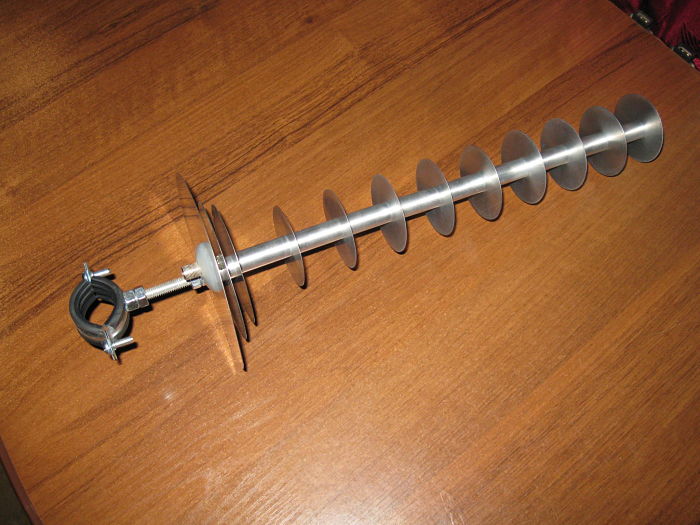

Construction in metal. Works good.



Hi, any isolation applied somewhere?

[Admin 2545]

,,, without insulation between the elements of the antenna...!!!

[EvgenijK 0]

Hello. Who has the correct drawing with dimensions for bdm 1800-2100 mimo and 75 ohm cable?

[EvgenijK 0]

https://www.youtube.com/watch?v=5HE45OnfMtM



Edited April 29, 2023 by EvgenijK

[Admin 2545]

59 minutes ago, EvgenijK said:

Hello. Who has the correct drawing with dimensions for bdm 1800-2100 mimo and 75 ohm cable?

I will try to make a simulation for a 75 Ohm cable..!!

[Admin 2545]

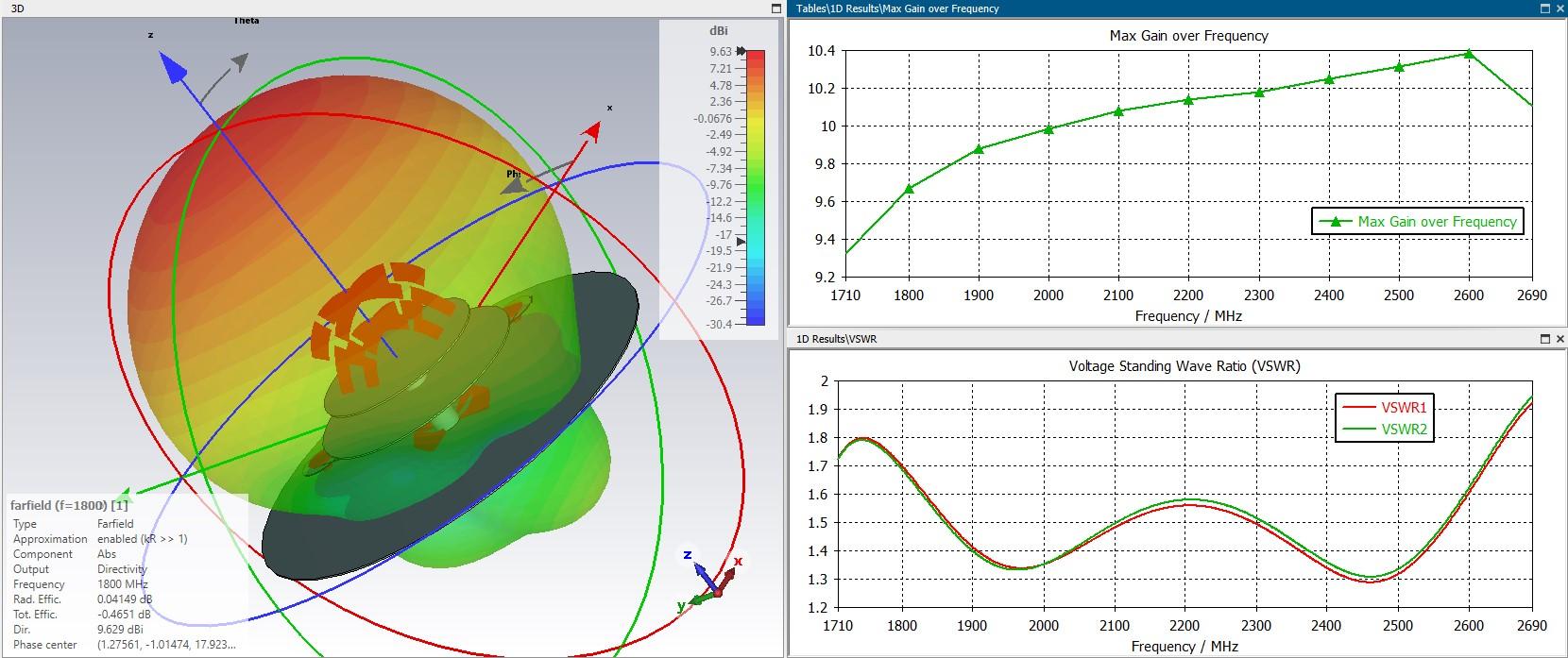

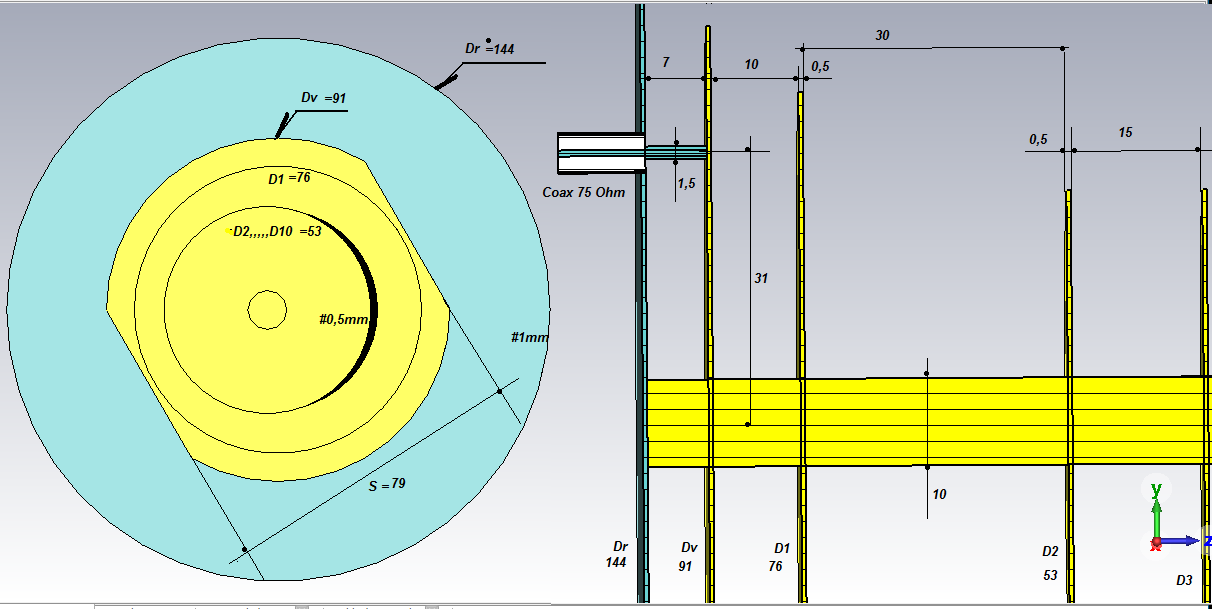

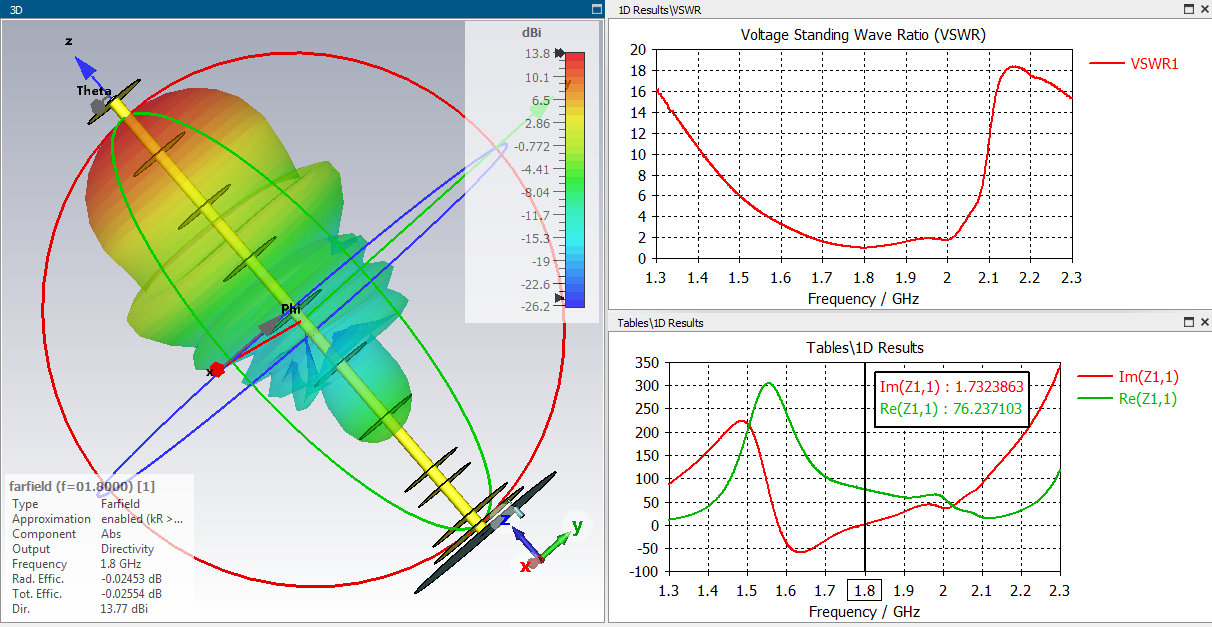

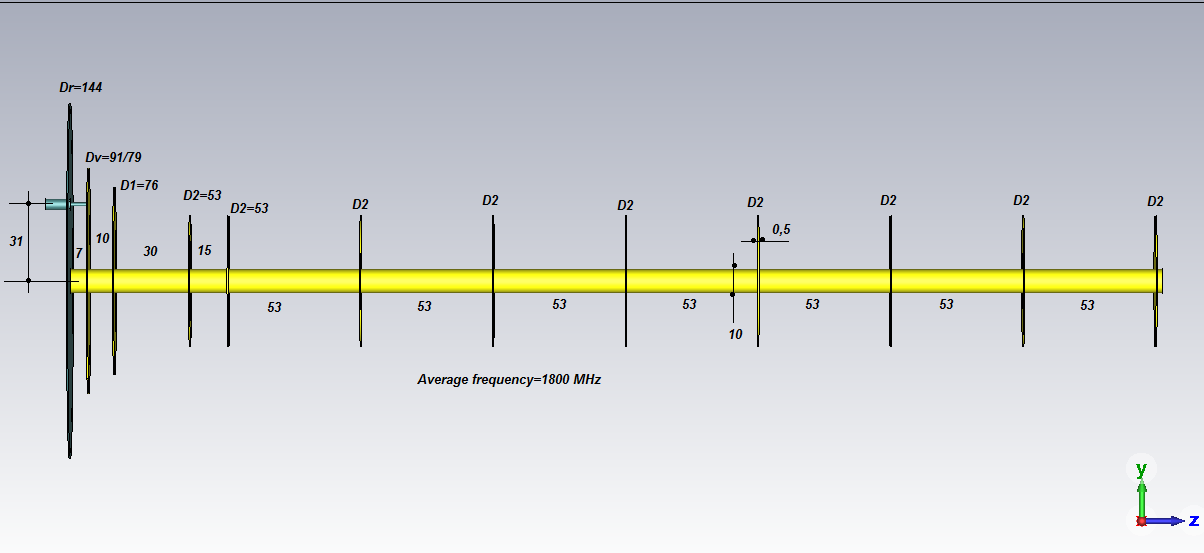

,,, this would be the antenna for 75 ohm input impedance....!!!

[DavidER 2]

 Who has the correct drawing with dimensions for bdm 2600 mimo and 75 ohm cable?

[Admin 2545]

9 hours ago, DavidER said:

 Who has the correct drawing with dimensions for bdm 2600 mimo and 75 ohm cable?

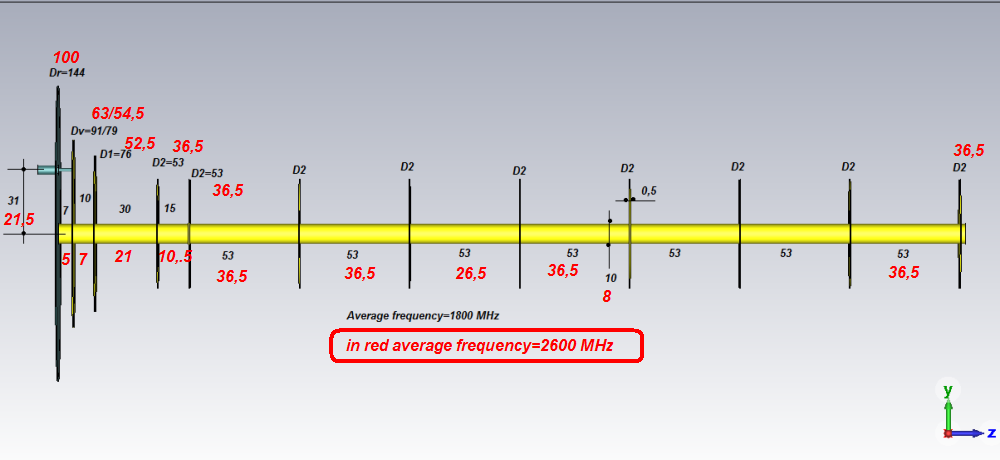

,,,do you want something like that...???

[DavidER 2]

2 hours ago, Admin said:

,,,do you want something like that...???

Yes

[Admin 2545]

DavidER

,,, something like these would be...

[DavidER 2]

How many kilometers does such an antenna take?

[Admin 2545]

11 hours ago, DavidER said:

How many kilometers does such an antenna take?

I don't know, maybe a maximum of 6km with a height of 3m and with direct visibility....???!!!!

[Dr. Pepper 58]

Direct visibility is key for range. We tested 15y ago our cantennas in the field and it was no problem to establish a stable connection.
