Broadband Dual Circularly Polarized MDAntenna

Magnetoelectric dipole antennas (MEDAs) with broad-band and symmetrical, stable unidirectional radiation pat-terns have been widely investigated and some designs for circular polarization have been reported recently. A MEDA formed by two bowtie patch antennas and two electric dipoles achieved an impedance bandwidth of 41% and a 3-dB AR bandwidth of 33% . A crossed dipole loaded with a magnetoelectric dipole can exhibit an impedance bandwidth of 60% and a 3-dB AR bandwidth of 27% . An antenna composed of two cross-placed magnetoelectric dipoles and a feeding network comprising a wideband 90degrees Schiffman phase shifter achieved a 10-dB return loss bandwidth of 85.7% and a 3-dB AR bandwidth of 61.5% . A MEDA fed by a single Γ-shaped probe attained an impedance bandwidth of 73.3% and a 3-dB AR bandwidth of 47.7% . A dual linearly polarized (LP) MEDA, excited by a power divider and a broadband 90∘ phase shifter, obtained an impedance bandwidth of 90% and a 3-dB AR bandwidth of 82% . A 60 GHz aperture coupled MEDA fed by a transverse slot etched on the broad wall of a section of shorted-end substrate integrated waveguide (SIW) showed an impedance bandwidth of 28.8% and a 3-dB AR bandwidth of 25.9% . However, these MEDA designs mentioned above are all based on single circular polarization.



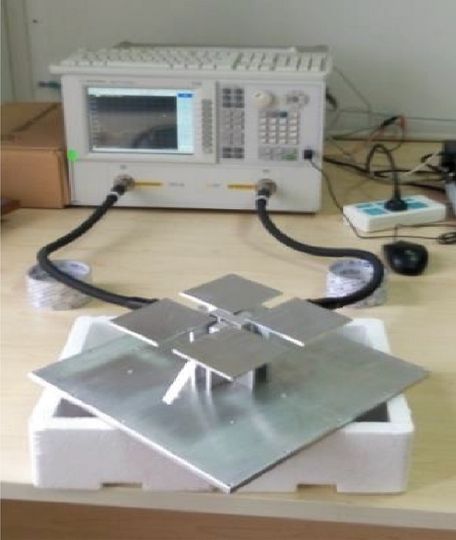

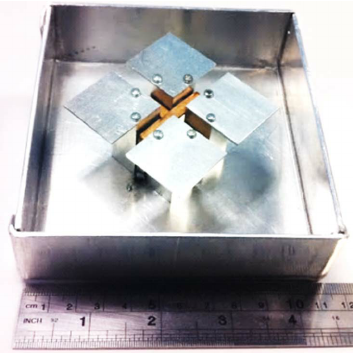

490.jpgFigure-7-Simulated-and-measured-SWRs-and-gains-of-the-dual-polarized-antenna.png




1 person likes this

Share this post


Link to post
Share on other sites

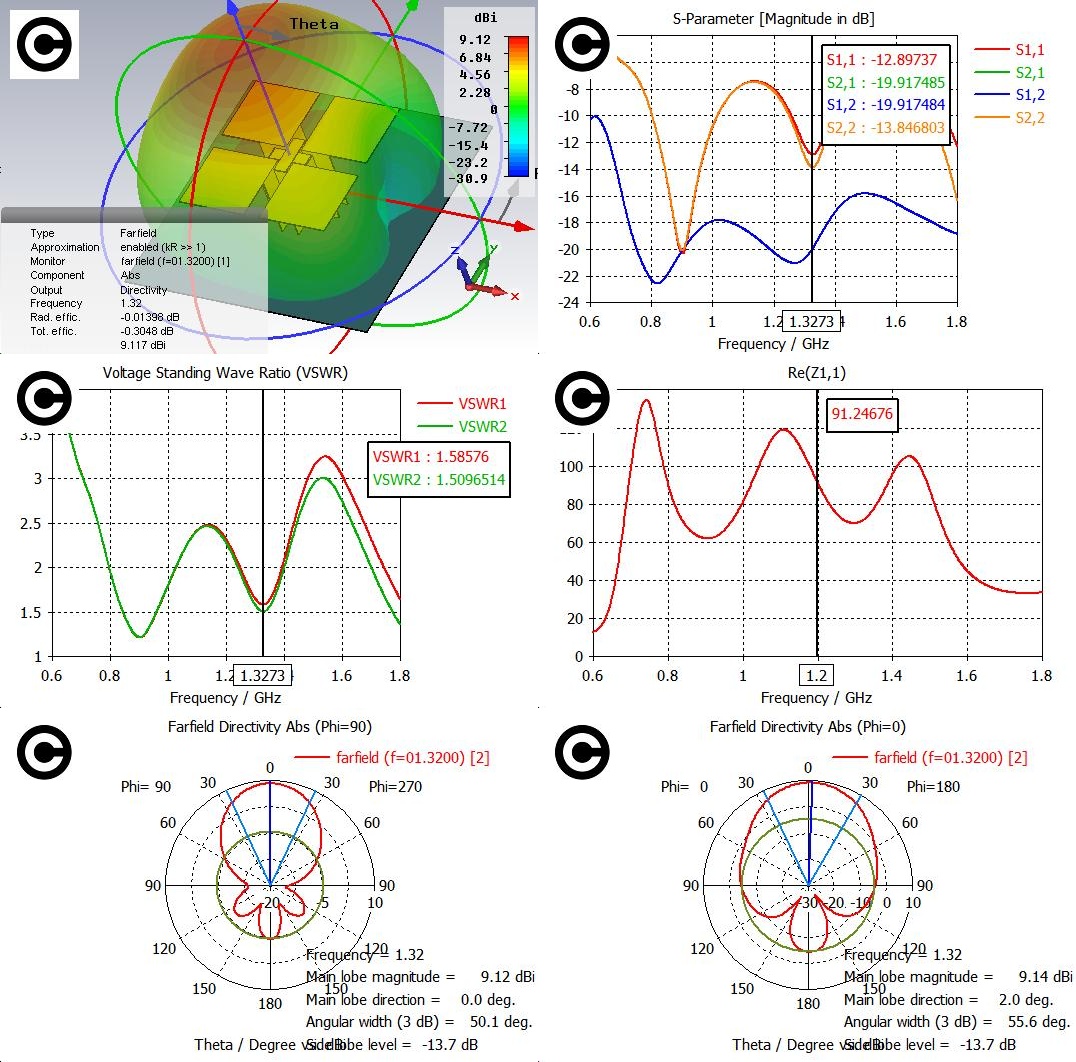

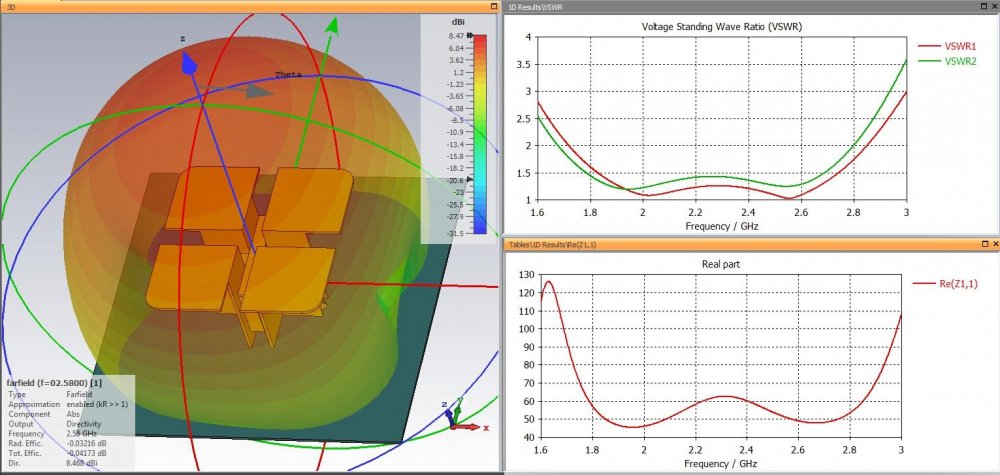

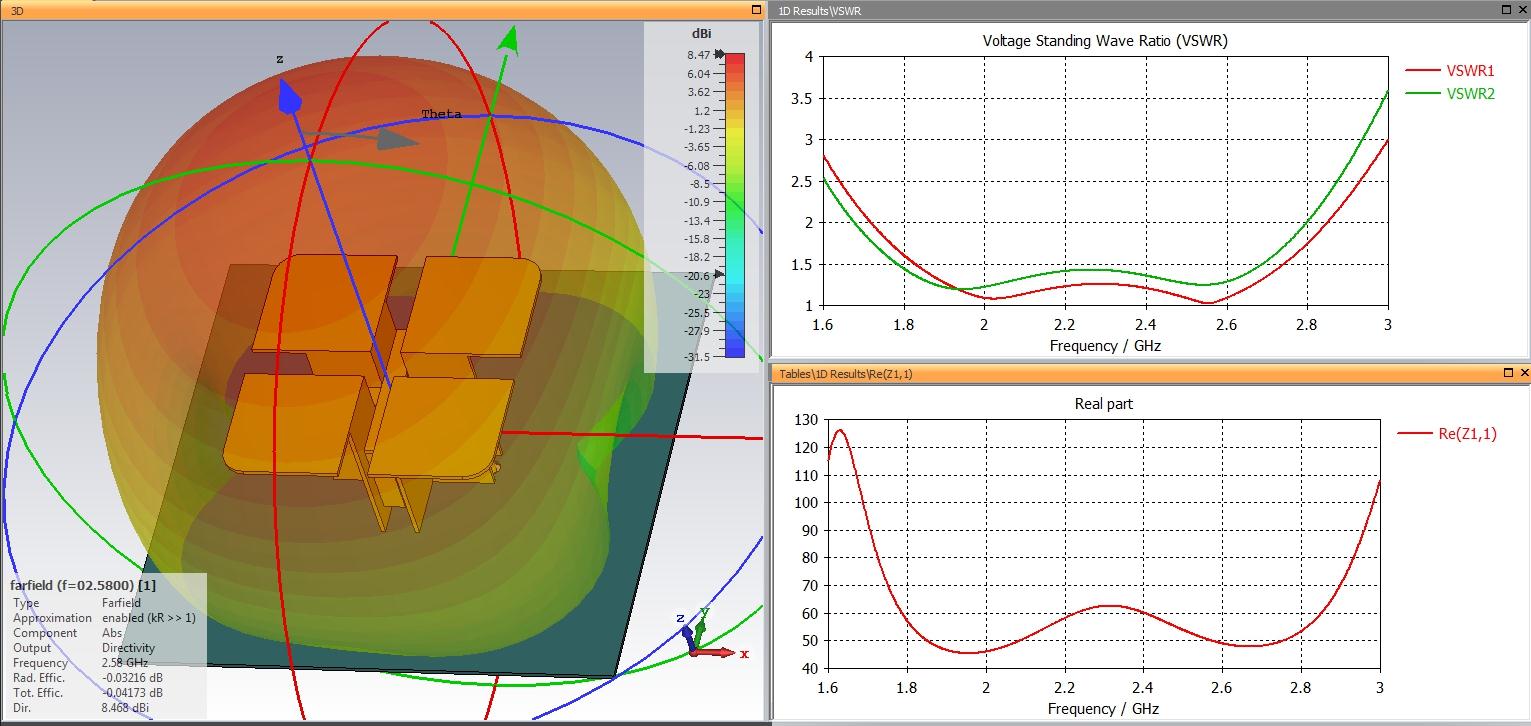

,,,,these are the results of a first simulation,
impedance adjustment for 50 ohm has to be done...


MEDA is powered by 50 ohm SMA connectors


3 people like this

Share this post


Link to post
Share on other sites

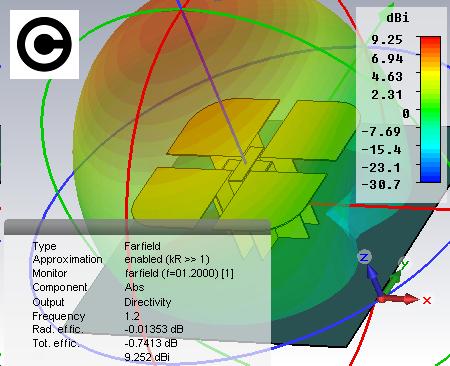

,,, it is advisable to round off the corners of the patches...


Share this post


Link to post
Share on other sites

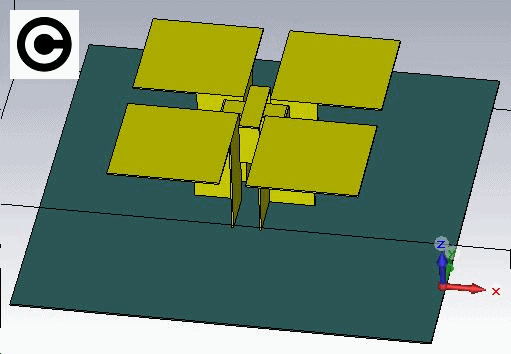

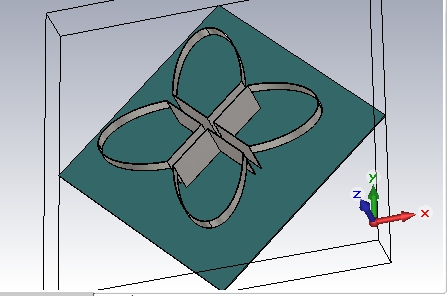

And yet, an ideal form would be this...


,,,or this...


Share this post


Link to post
Share on other sites

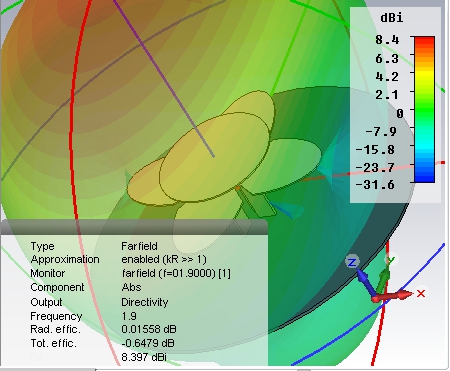

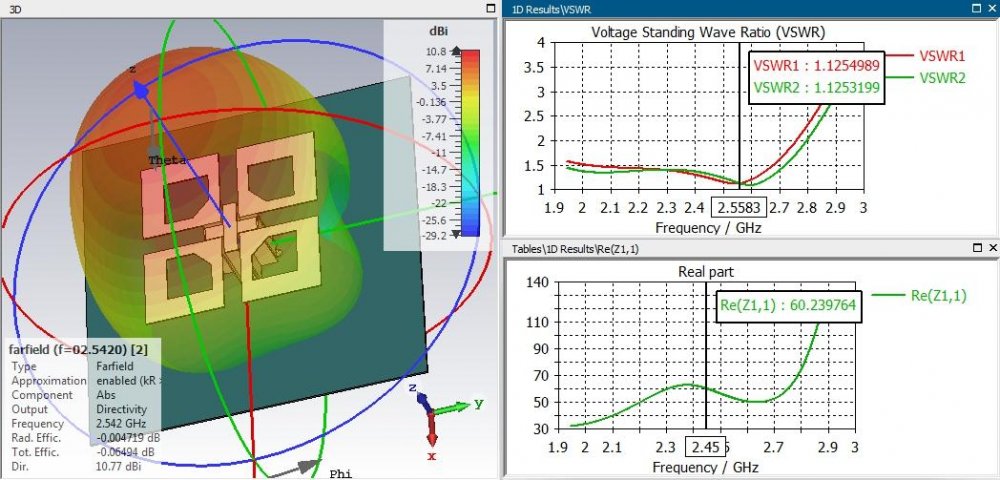

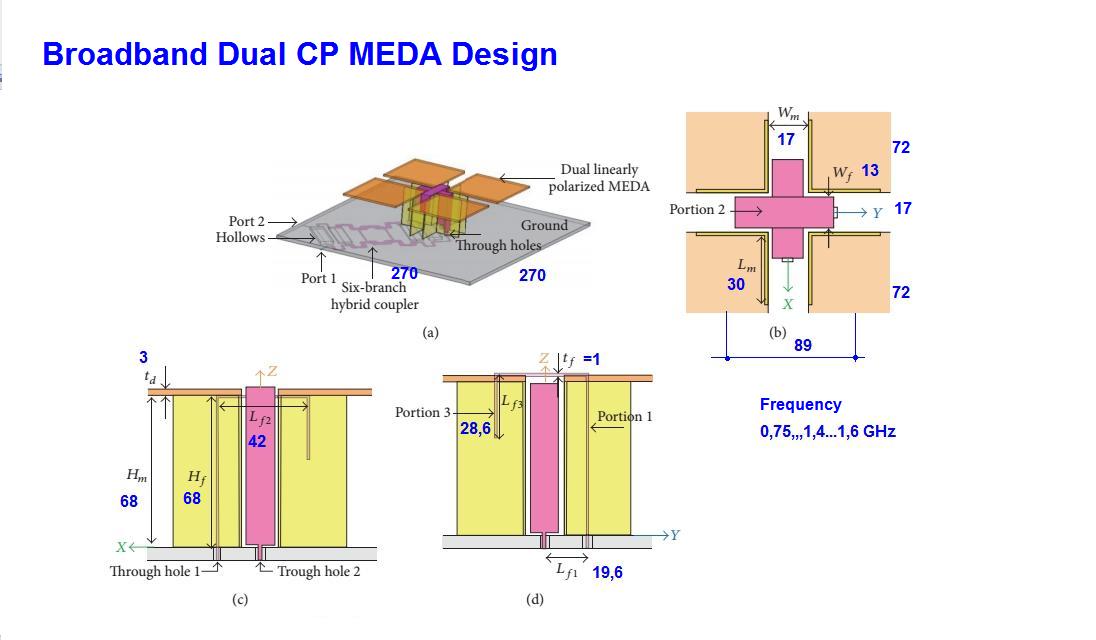

,,,by modifying the antenna geometry a wider bandwidth can be obtained...




1 person likes this

Share this post


Link to post
Share on other sites
On 31/1/2018 at 9:10 AM, Admin said:

,,, it is advisable to round off the corners of the patches...


is it like that

TDJ-X2327BKC

 in lan23...?

1 person likes this

Share this post


Link to post
Share on other sites

is it COMPLICATED to do an 6 or 4 ARRAY (Z adapters for sure)...and how much Gain could be attained...?



Share this post


Link to post
Share on other sites

GAIN dBi 12-4 array ,14-6 array .

1 person likes this

Share this post


Link to post
Share on other sites

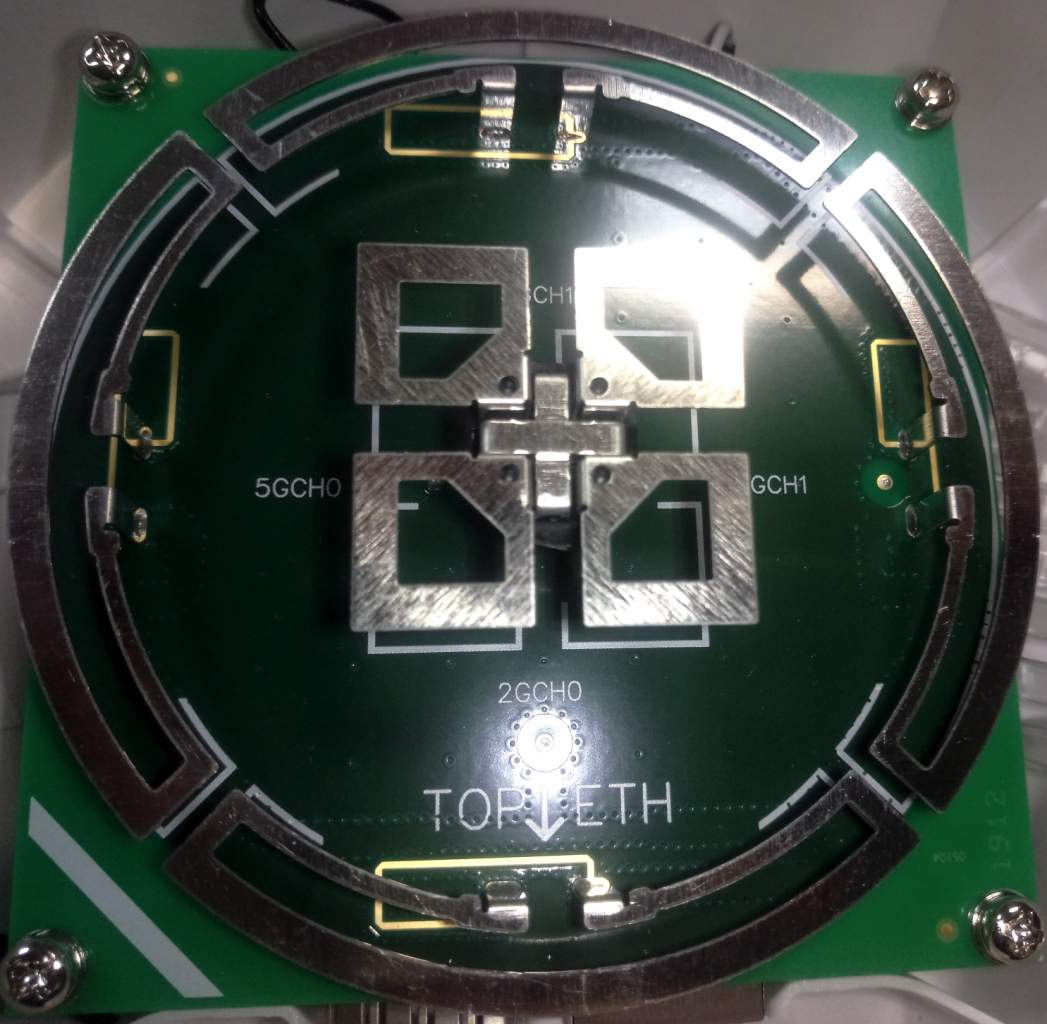

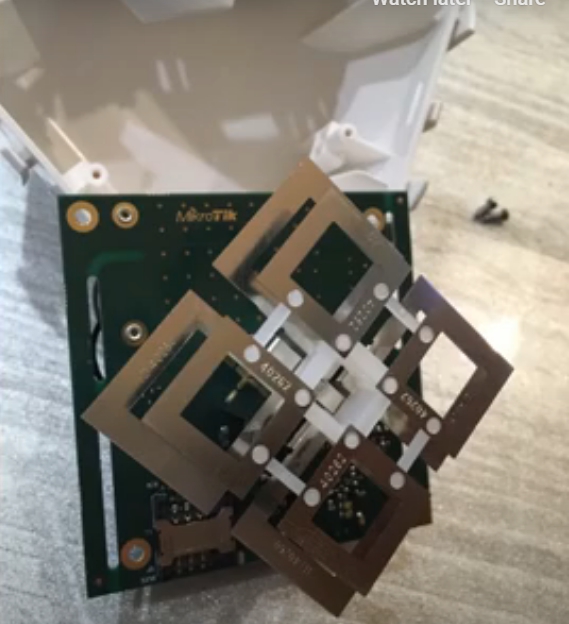

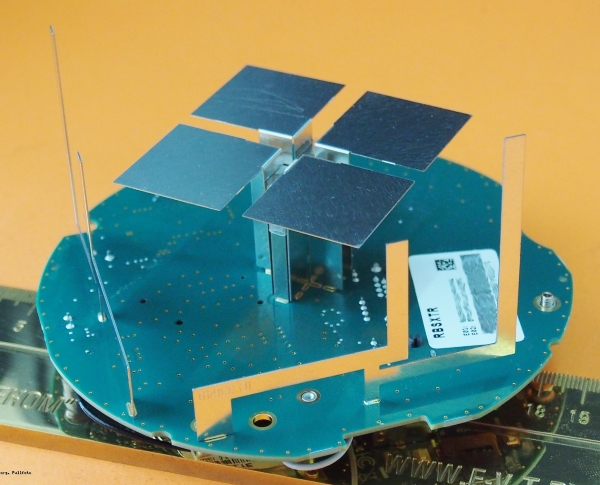

,,, yes, those 4 curved dipoles are for lower frequencies..and they seem to have adaptive loops on the PCB.!!!

1 person likes this

Share this post


Link to post
Share on other sites

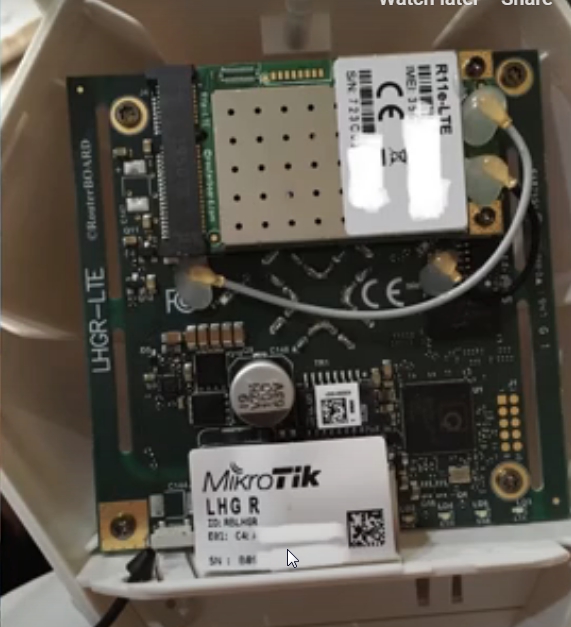

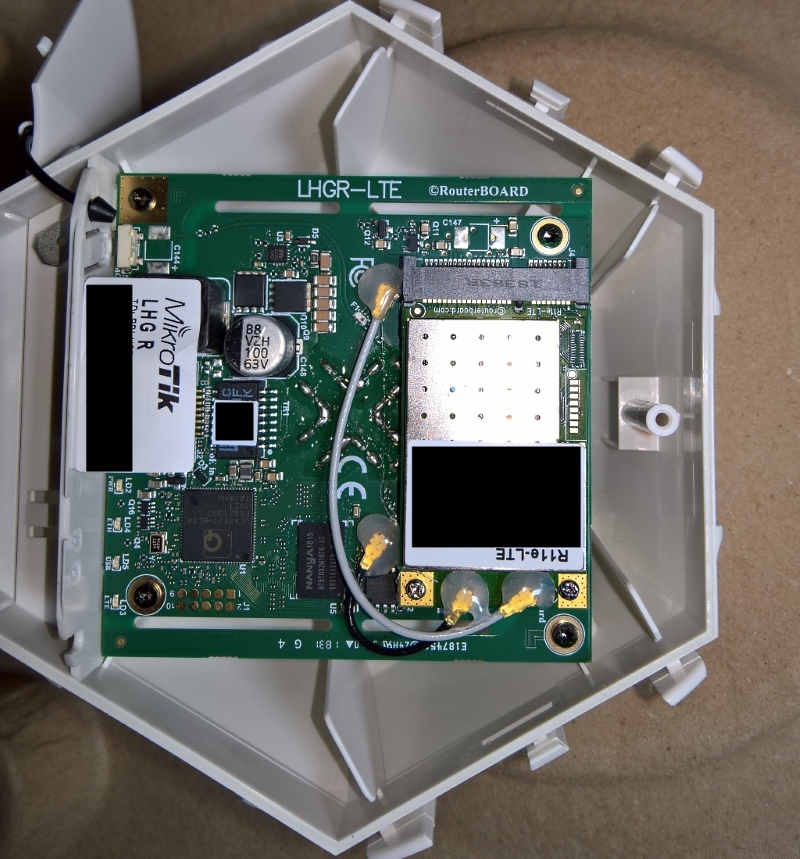

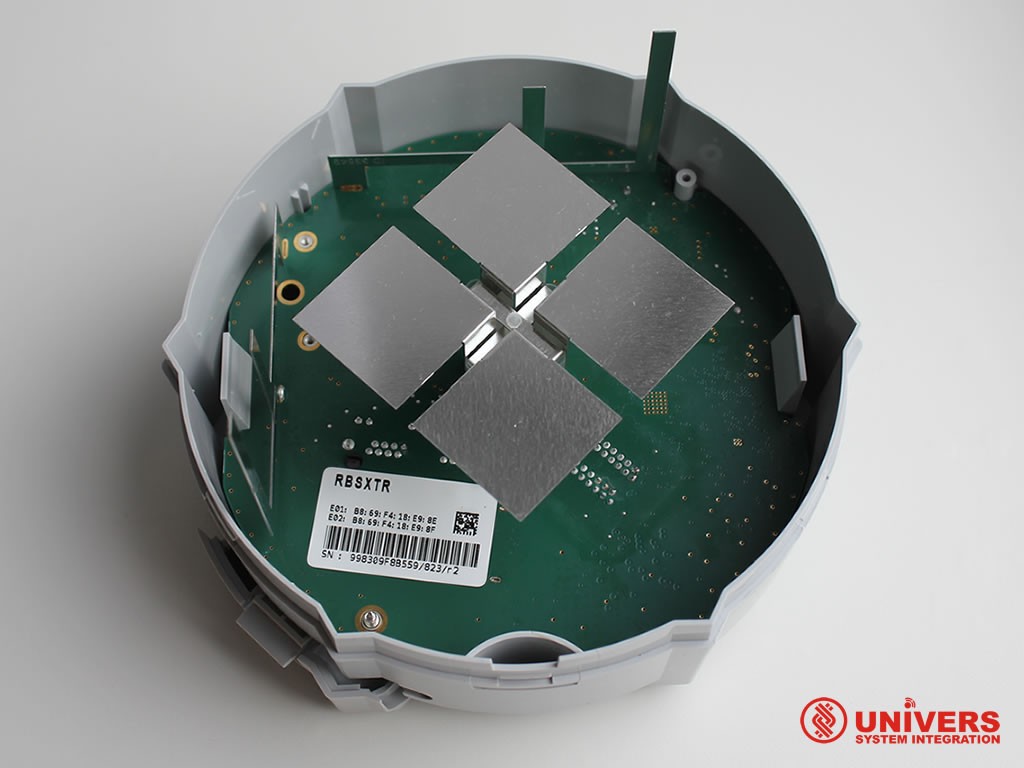

MikroTik SXT LTE6 kit... it"s 802.3af/at compliant

Details

2G Category Class12

3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)

LTE Category6  (300Mbit/s Downlink, 50Mbit/s Uplink)

LTE FDD bands  1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)

LTE TDD    bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

2G bands   2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)

3G bands   1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)





1 person likes this

Share this post


Link to post
Share on other sites

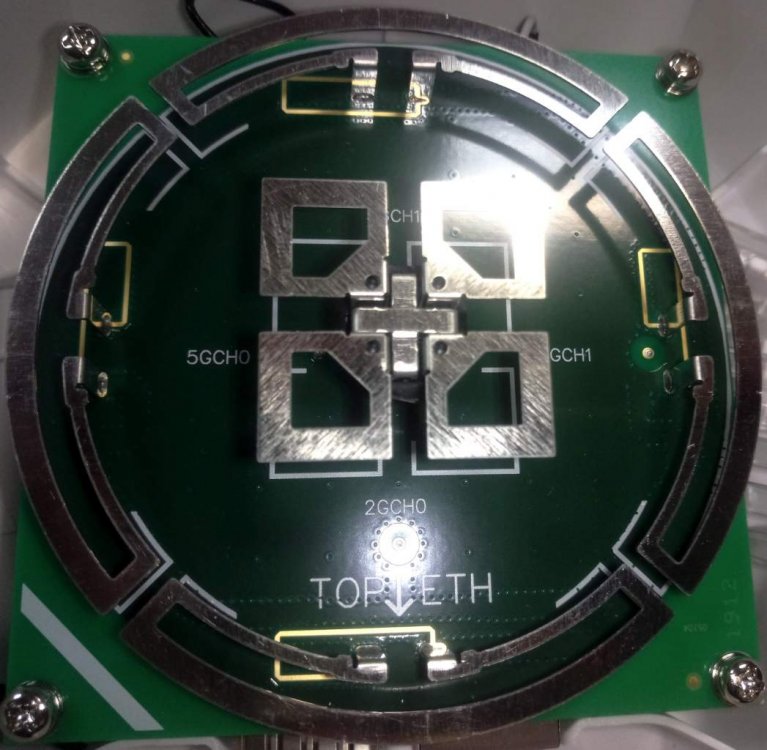

Here is a real broadband antenna. It would be reduced to a size acceptable for home use. can you reduce?

I wonder what is her gain coefficient?



source link




Edited by Sl4va
add text
1 person likes this

Share this post


Link to post
Share on other sites

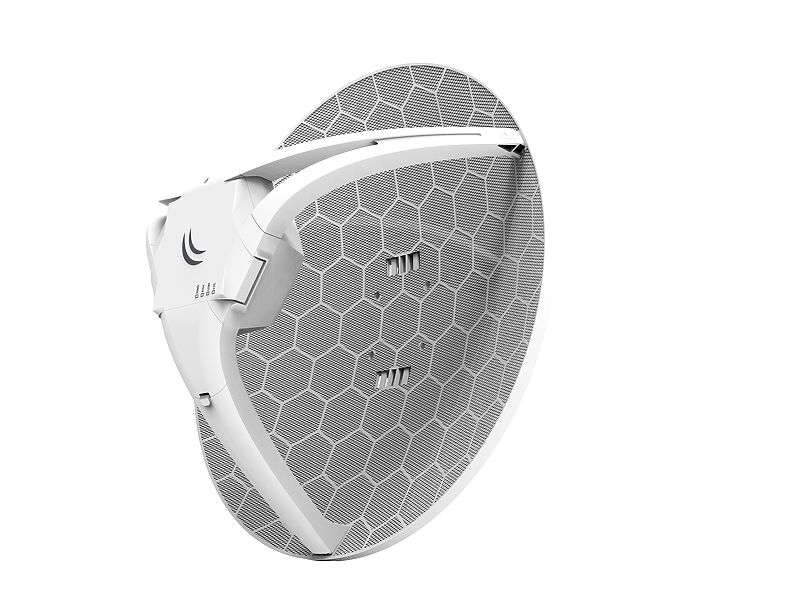

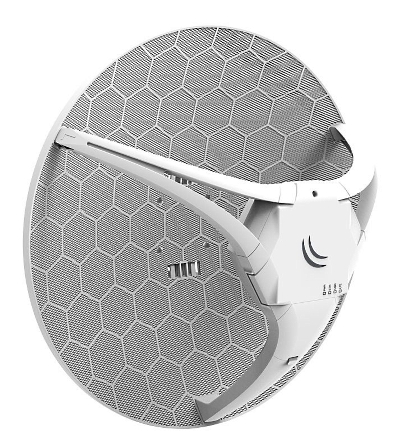

MikroTik LHG LTE6 Kit \ LDF LTE6 Kit antenna...

Mobile network

Category 2GClass 12

3G categoryR7 (link down 21 MB / s, link up 5.76 MB / s)/ R8 (link down 42.2 MB/ s, link up 5.76 MB / s)

LTE category6 (link transmitting 300 Mbps, link sending 50 Mbps)

LTE FDD bands1 (2100 MHz)/ 2 (1900 MHz)/ 3 (1800 MHz)/ 7 (2600 MHz)/ 8 (900 MHz)/ 20 (800 MHz)/ 5 (850 MHz)/ 12 (700 MHz)/ 17 (700 MHz)/ 25 (1900 MHz)/ 26 (850 MHz)

LTE TDD bands38 (2600 MHz)/ 40 (2300 MHz)/ 39 (1900 MHz)/ 41n (2500 MHz)

2G commands2 (1900 MHz)/ 3 (1800 MHz)/ 5 (850 MHz)/ 8 (900 MHz)

3G bandwidth capacity1 (2100 MHz)/ 2 (1900 MHz)/ 5 (850 MHz)/ 8 (900 MHz)

Set contentsLHG LTE6
Power supply unit 24 V, 0.38 A
Iniektor PoE
2 metal, clamp
mounting Kit K-LHG kit








1 person likes this

Share this post


Link to post
Share on other sites
On 7/17/2020 at 3:32 AM, Sl4va said:

Here is a real broadband antenna. It would be reduced to a size acceptable for home use. can you reduce?

I wonder what is her gain coefficient?



source link

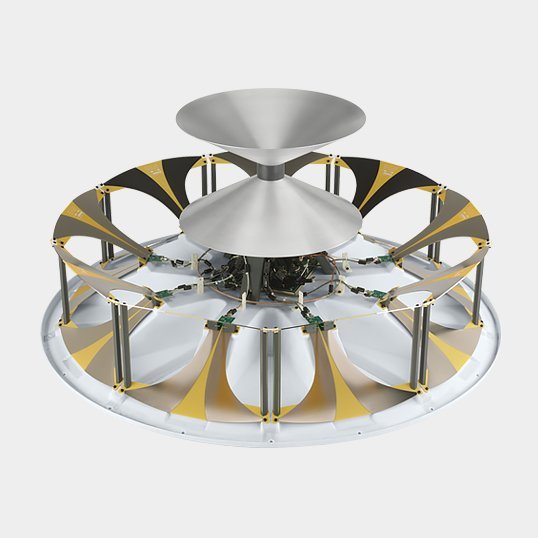

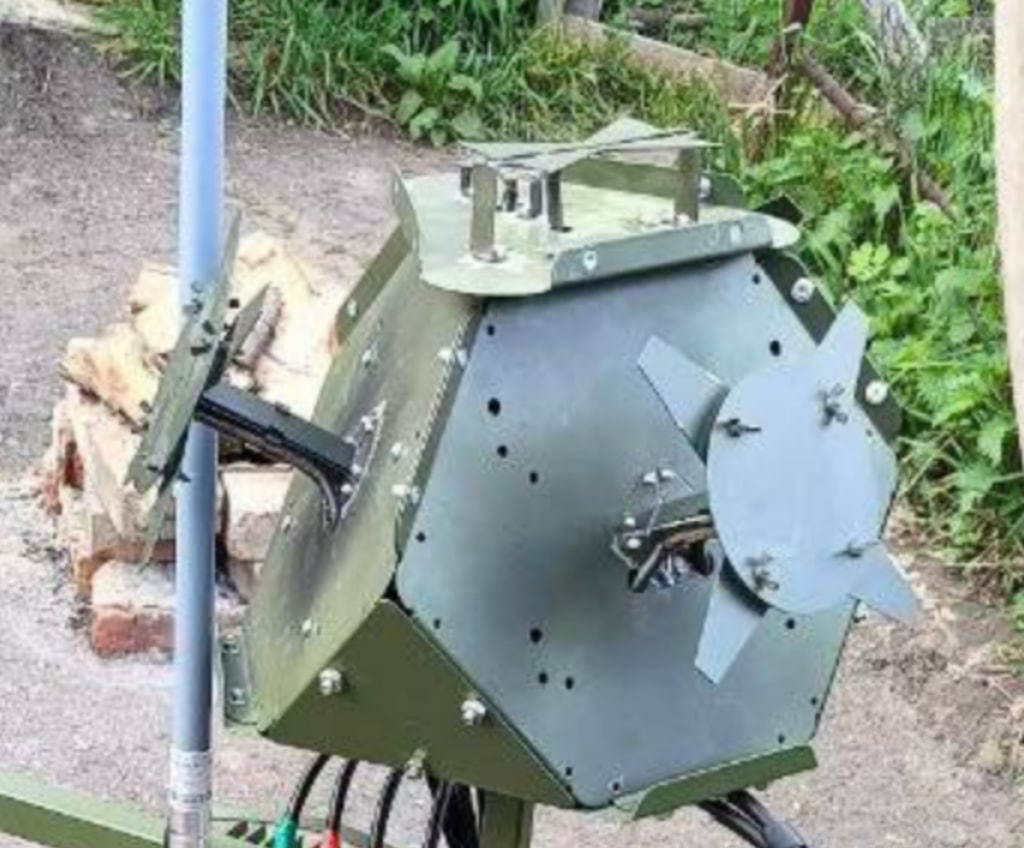

Dual VIVALDIs ...with...dual cone ...diffuser...?

Share this post


Link to post
Share on other sites

Hi, did you build this antenna...???

I see that it has several types of antennas...!!!
