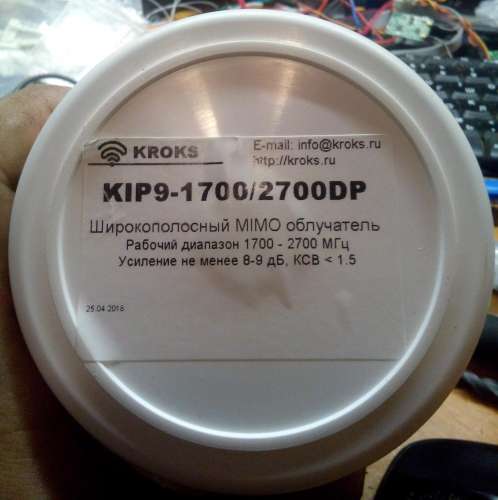

Broadband MIMO irradiator KIP9-1700/2700 DP for satellite dish

[Admin 2545]

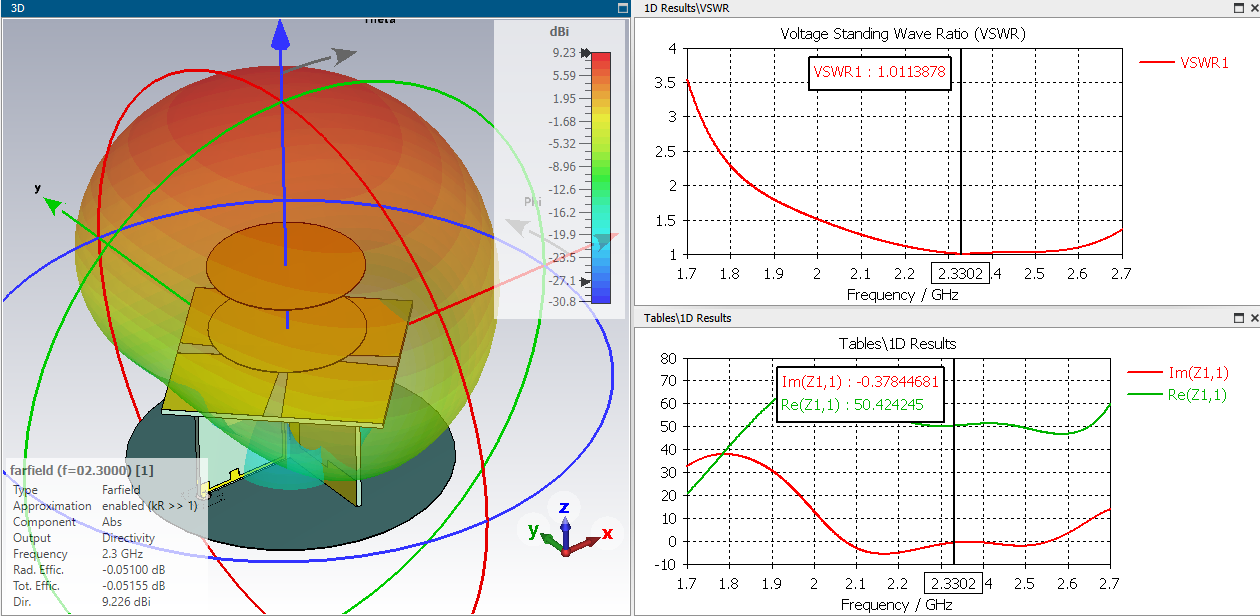

The feed offset parabolic antenna KIP9-1700/2700DP MIMO 2x2 is designed for use with 3G/4G/WiFi modems and routers. The radiator supports standards LTE1800, UMTS2100, LTE2600 and WiFi(2.4 GHz) 802.11 b/g/PS 2x2 MIMO in the frequency range of 1700-2700 MHz. If you have a 4G modem, and Internet speed and signal strength are not satisfied, then the use of bundles 4G irradiator plate surely will boost the signal. Because of MIMO standard doubles the bandwidth of the channel.

Amplification up to 35 dB.

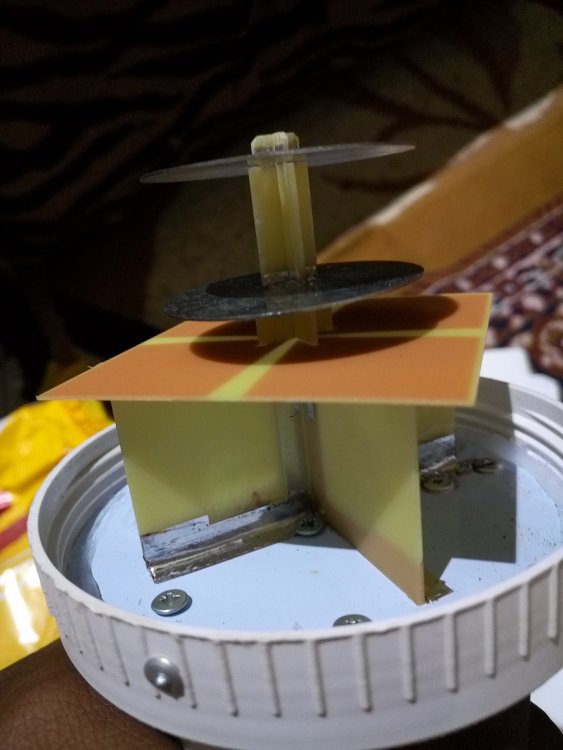

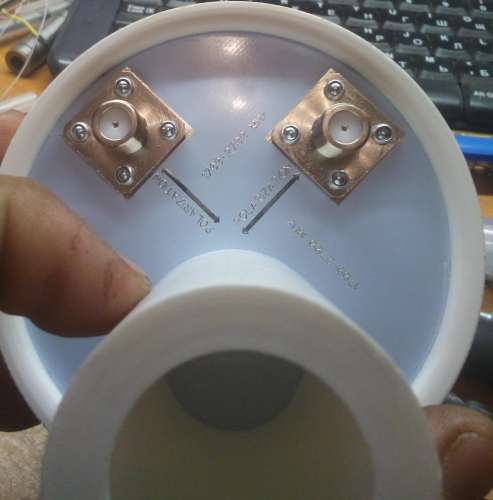

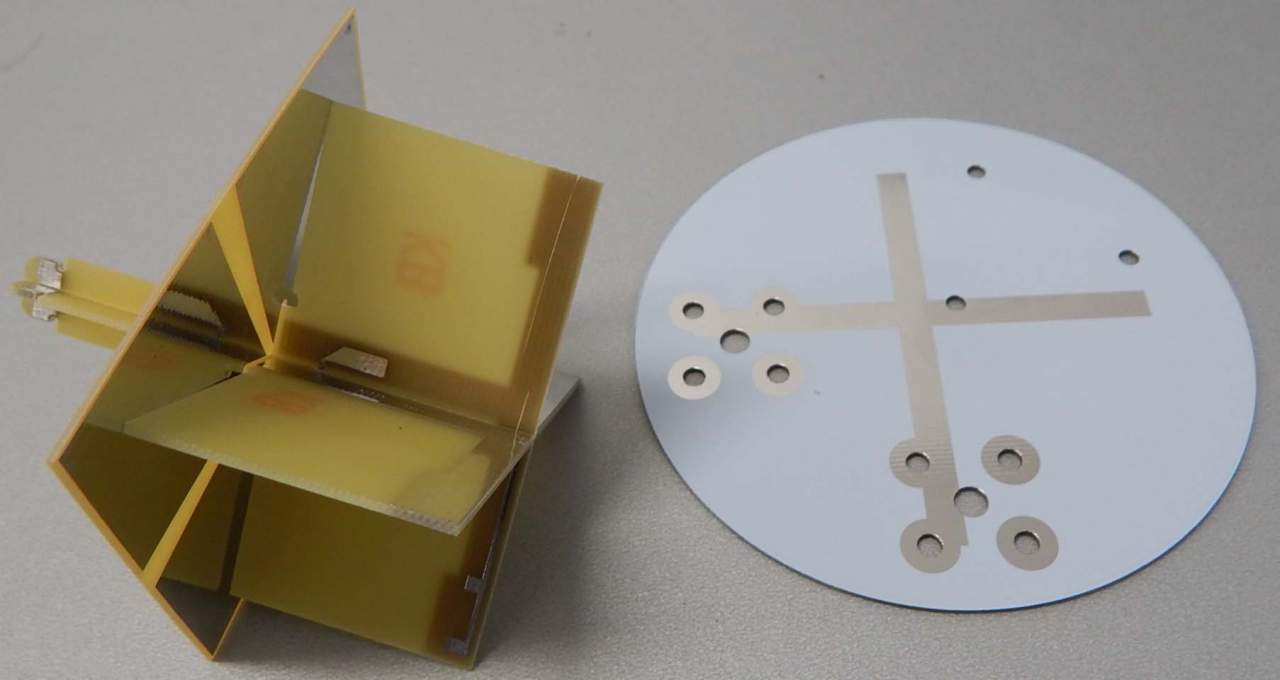

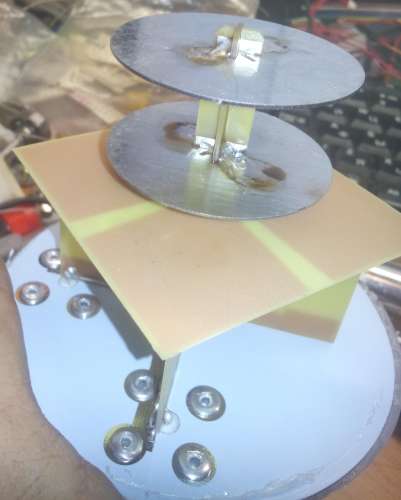

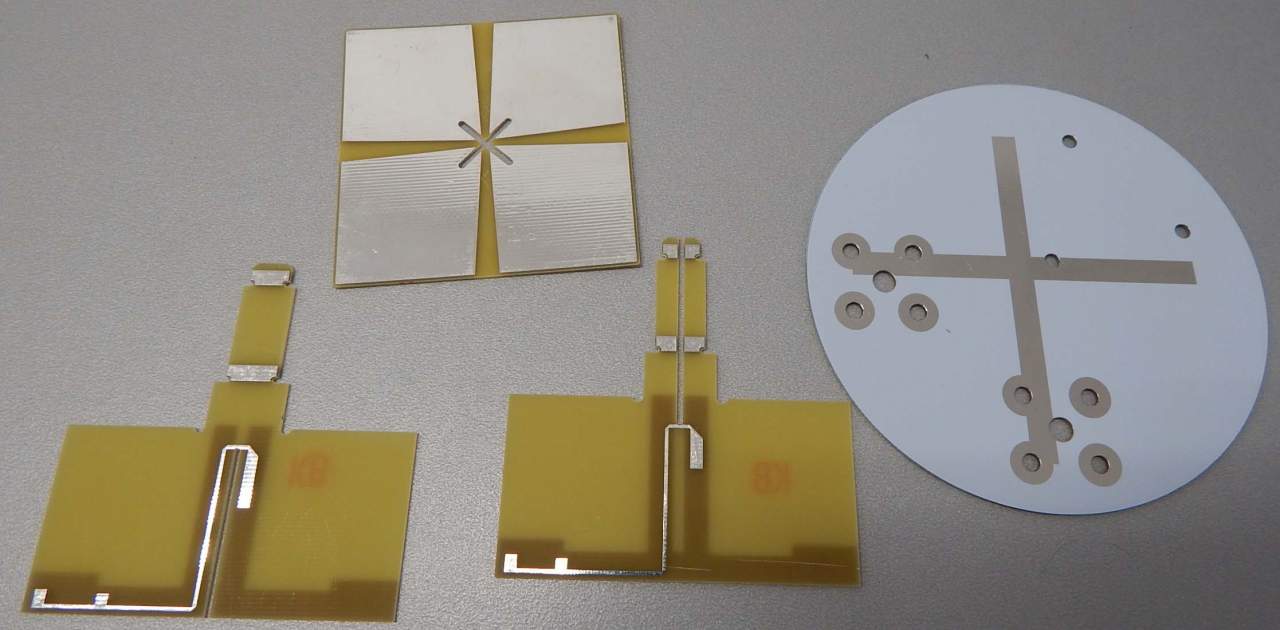

and inside...



[Admin 2545]

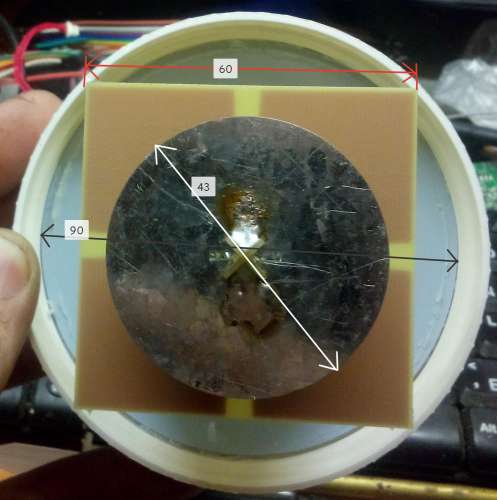

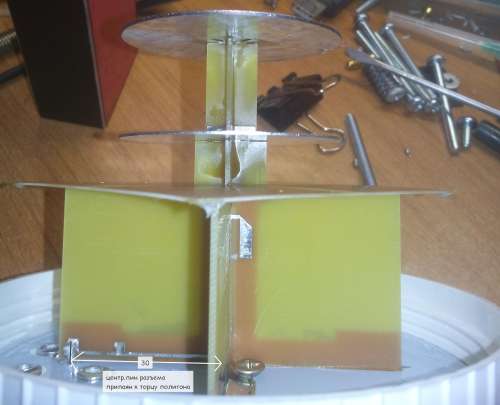

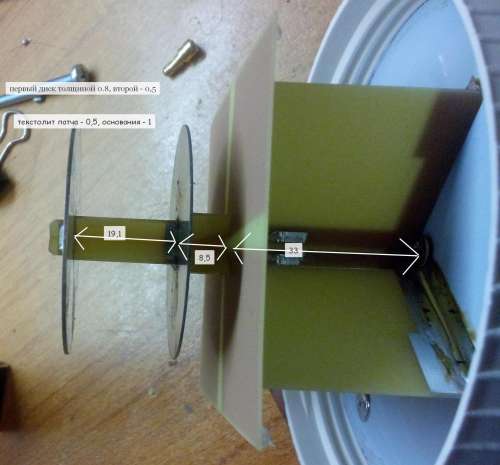

,,, some dimensions ...

[Admin 2545]

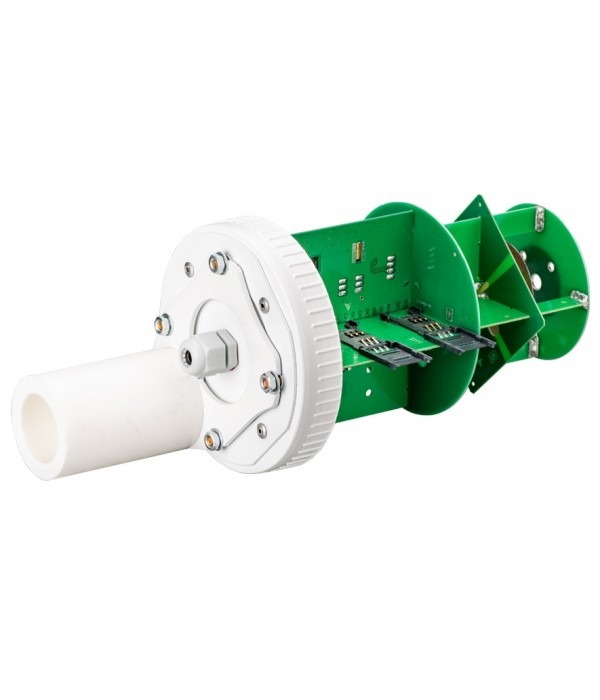

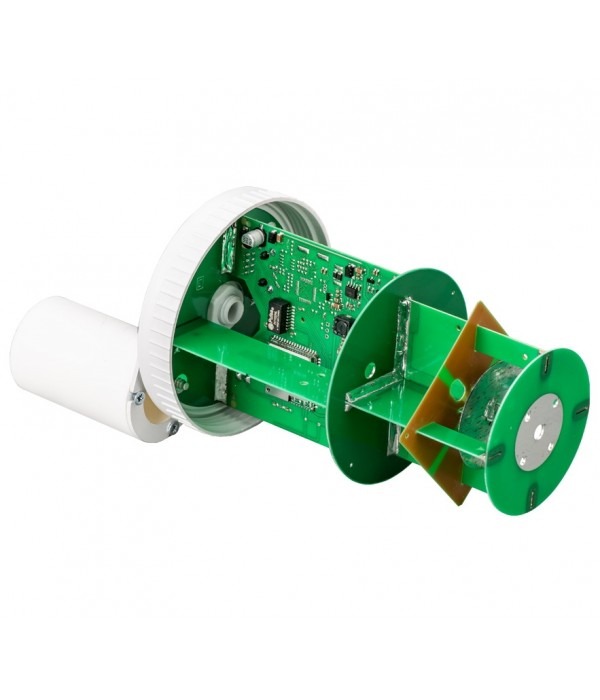

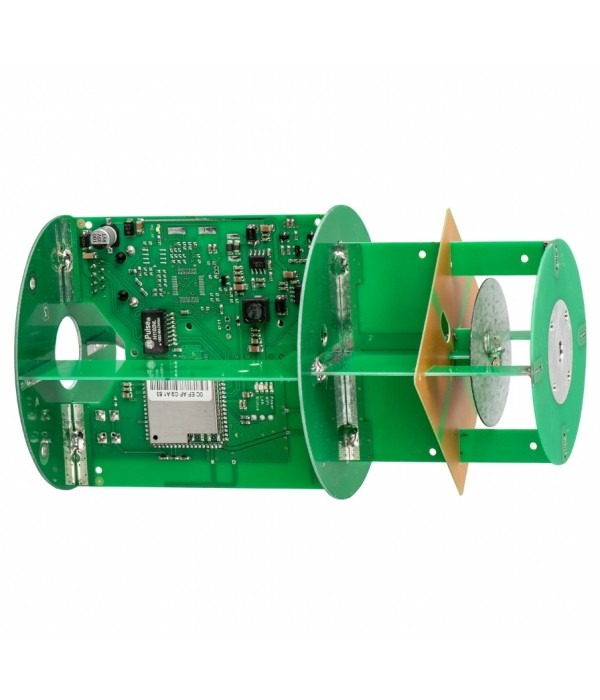

Kroks Rt-Pot sHw DS modem Huawei E3372, built-in antenna

 For installation in offset dish on a mast on the wall or on the window sill. Built-in WiFi antenna 2.4 GHz. 4G speed up to 70 Mbps, 3G up to 35 Mbit/s Power DC 24V twisted-pair.

Kroks Rt-Pot sHw DS is a router with 4G the modem and the illuminator built into one housing. The router has several types of mounts included in the package. Private gain of the radiator is 8-9 dB. The operating frequency is in the range of 1700-2700 MHz. MIMO technology supported by the irradiator in the entire frequency range, dual channel bandwidth. The device is running OpenWRT operating system that provides bandwidth allocation (QoS), firewall, user access control and many other features.

mPCI modem allows you to get the maximum possible speed 4G Internet that may not always provide a USB modem.
Built-in WiFi antenna, support 2.4 GHz standards 802.11 b/g/n and provide communications range up to 50 meters in open range.

[Svktaurus 0]

Hello.  Any more detailed drawings?

[Admin 2545]

,,,on YouTube...
