LevelOne WAP-1001 12dbi Directional Antenna

Started by croxmanz,

Posted

Dear fellow friend,

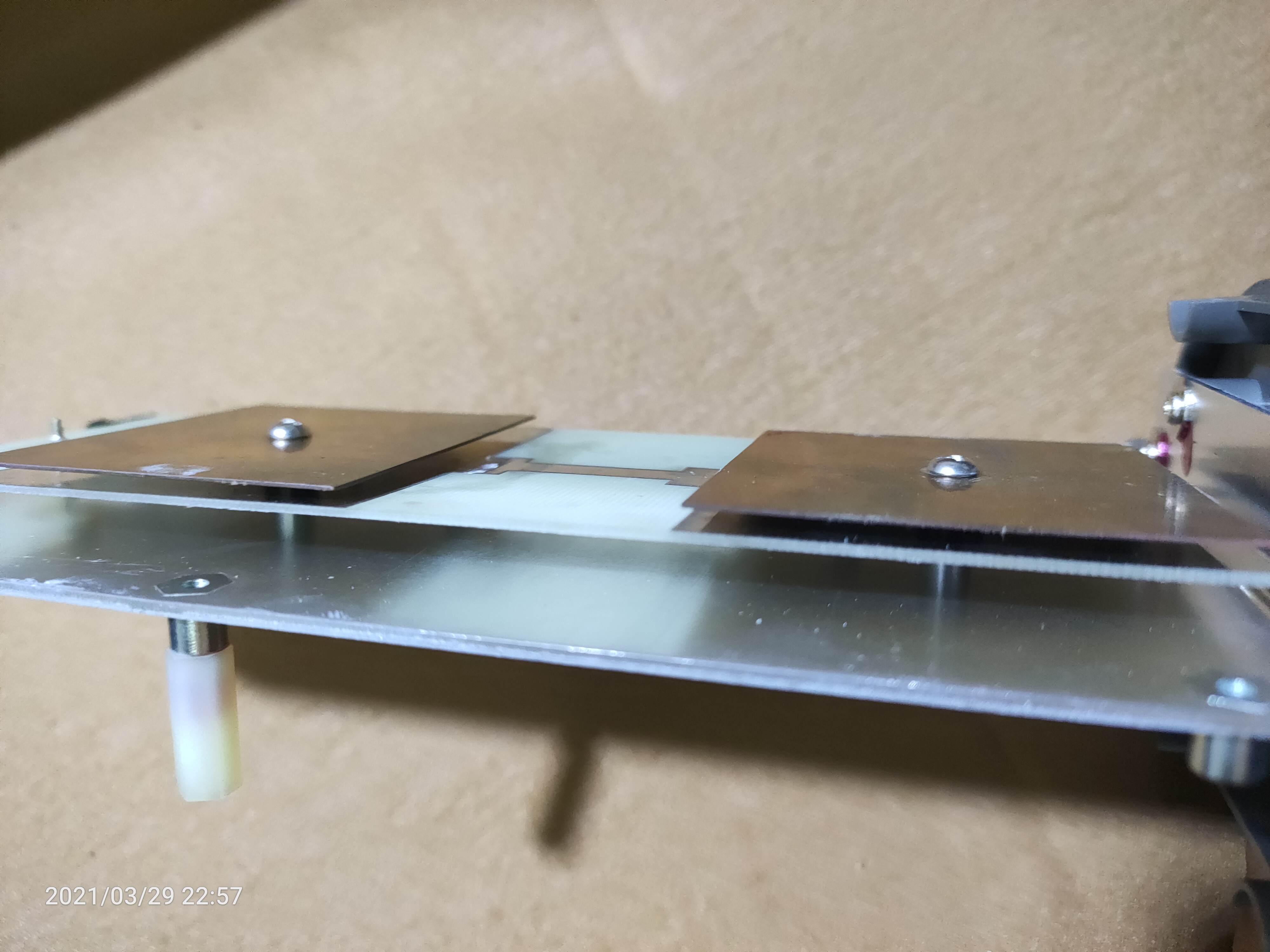

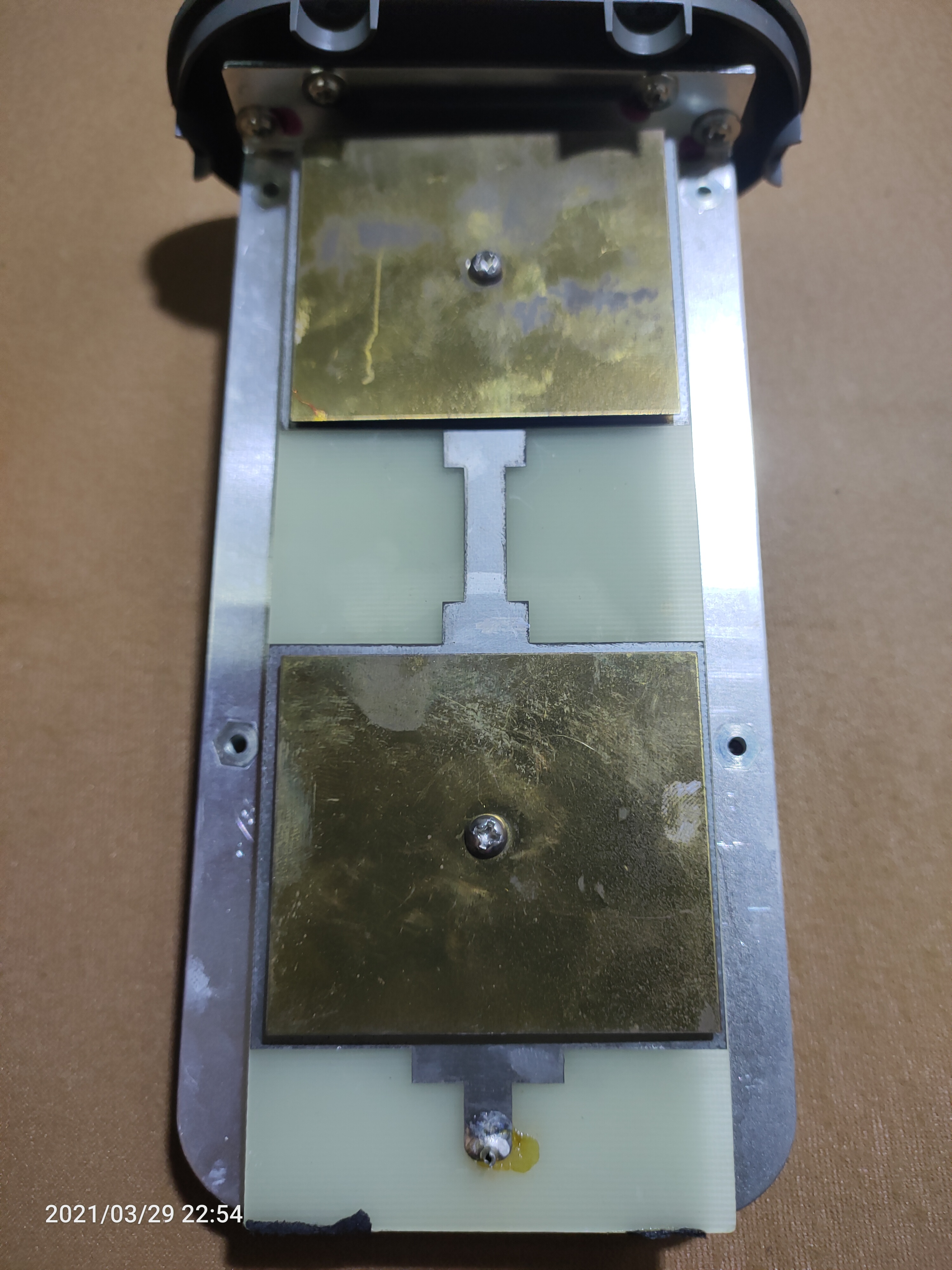

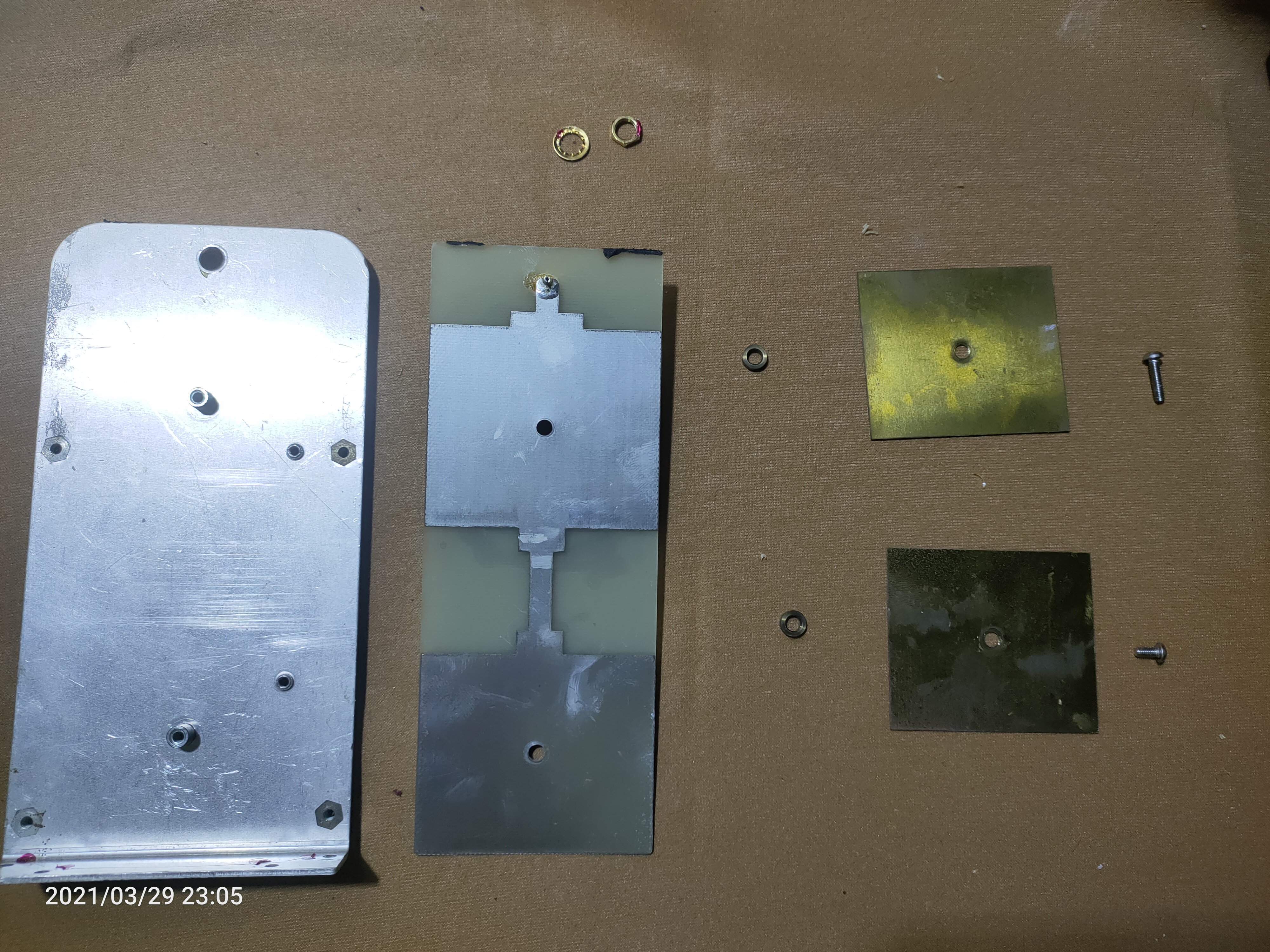

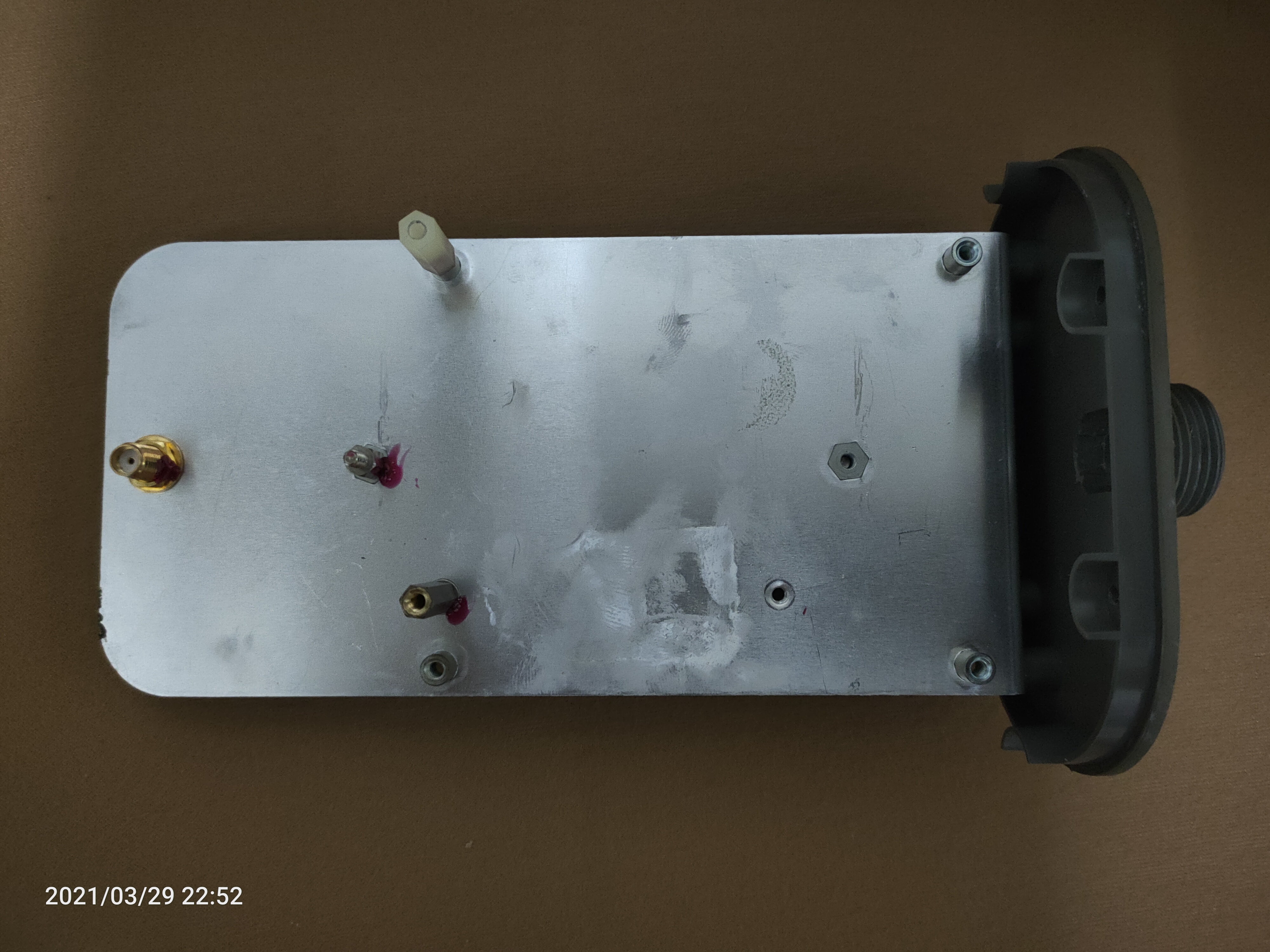

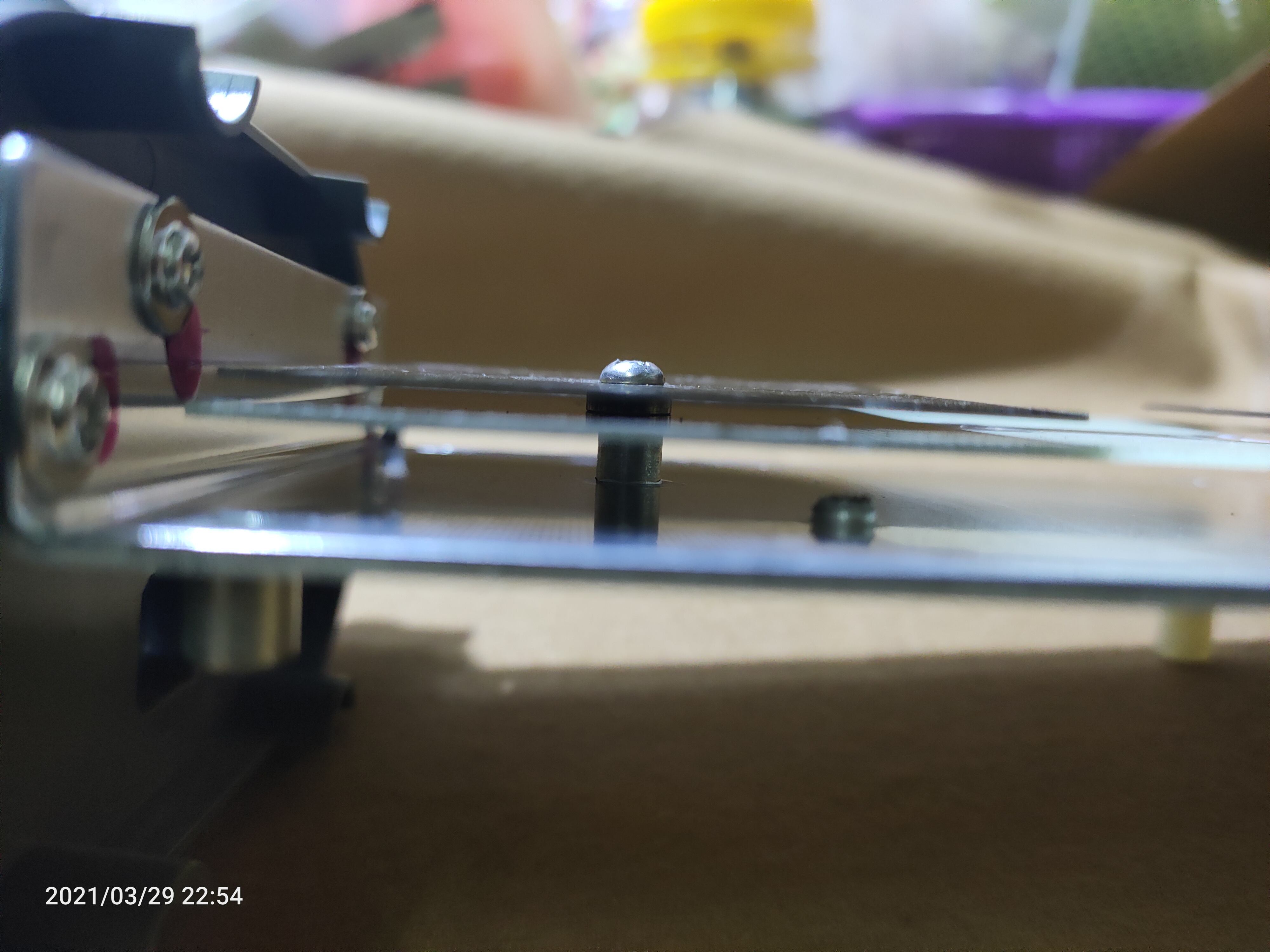

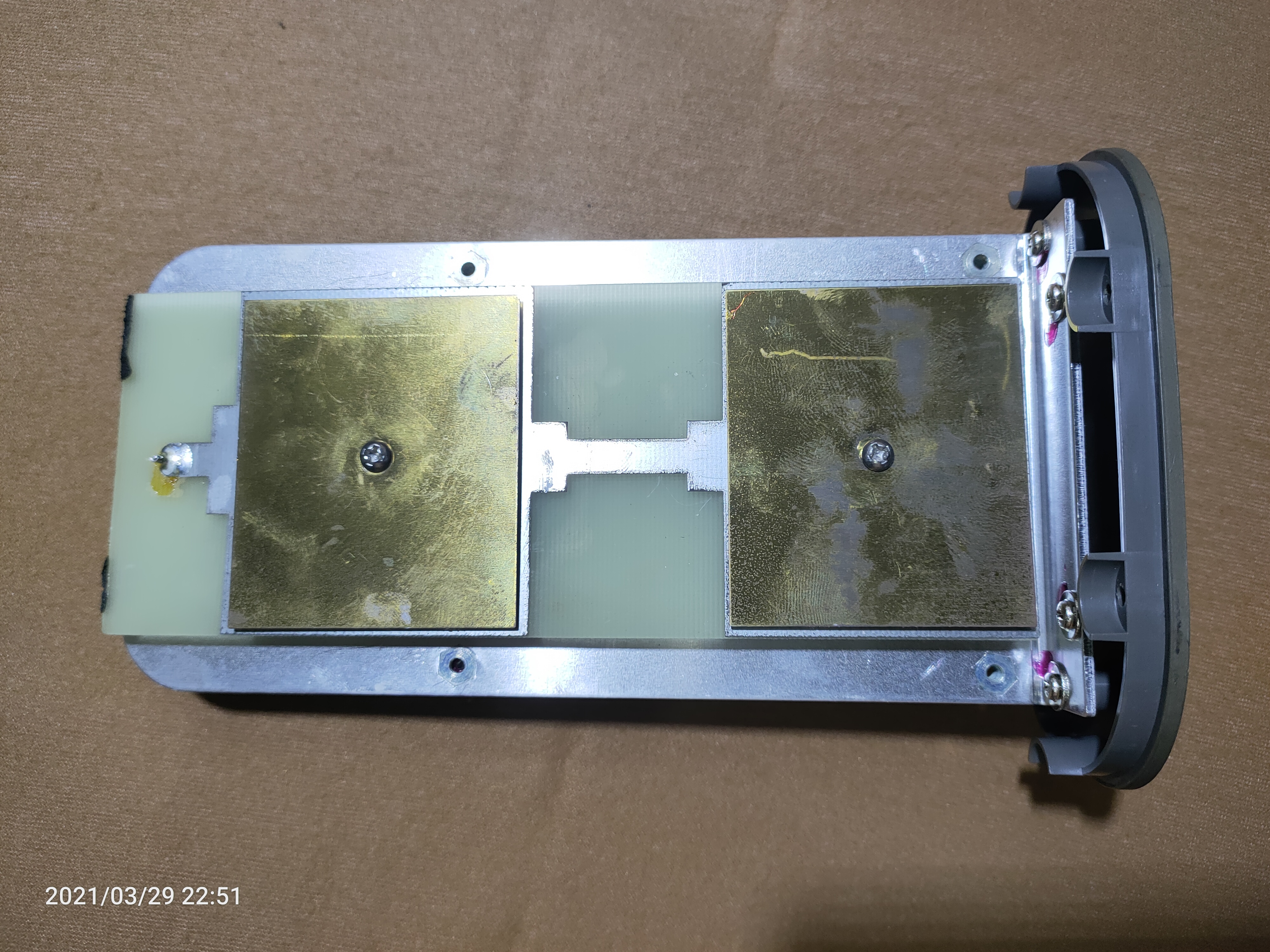

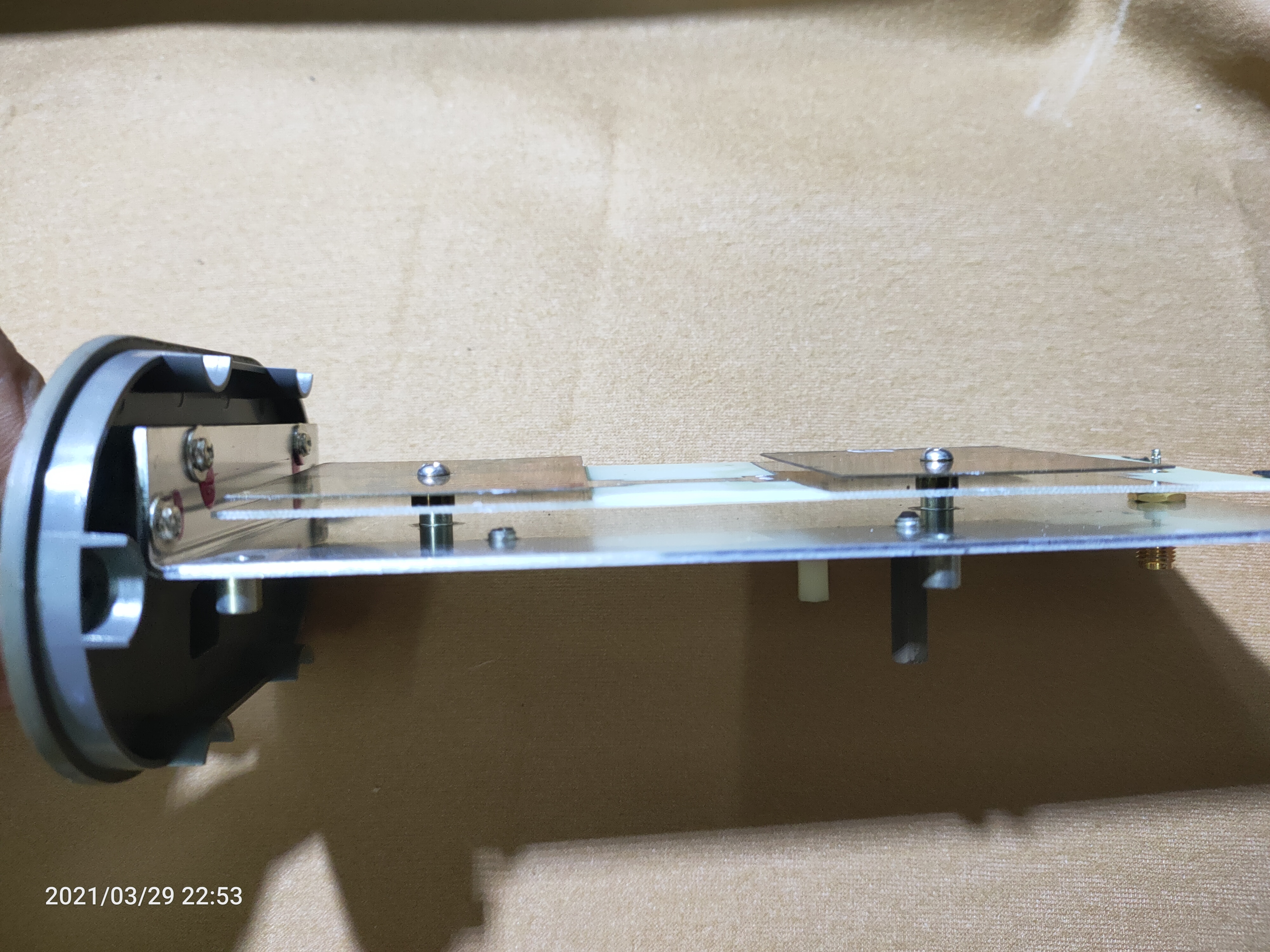

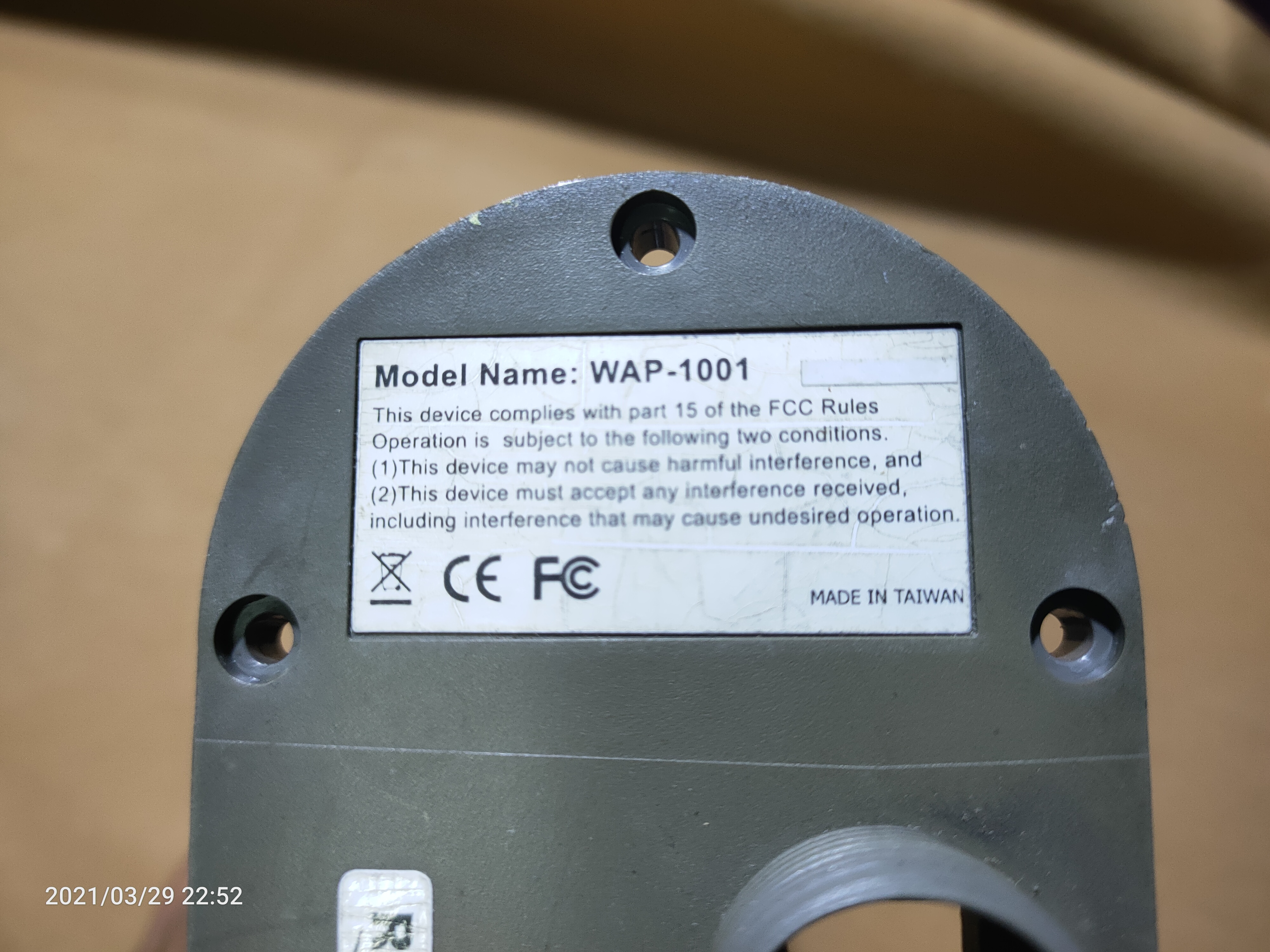

I got in my possession an outdoor AP/Bridge model WAP-1001 by LevelOne. I took some pictures and measurement so I can share in this forum. Maybe somebody has an interest to replicate and try this flat panel directional antenna. The only information I know about the antenna is it gain is 12dbi (see the brochure at http://download.level1.com/level1/datasheet/WAP-1001.pdf). Maybe somebody who has information please share...

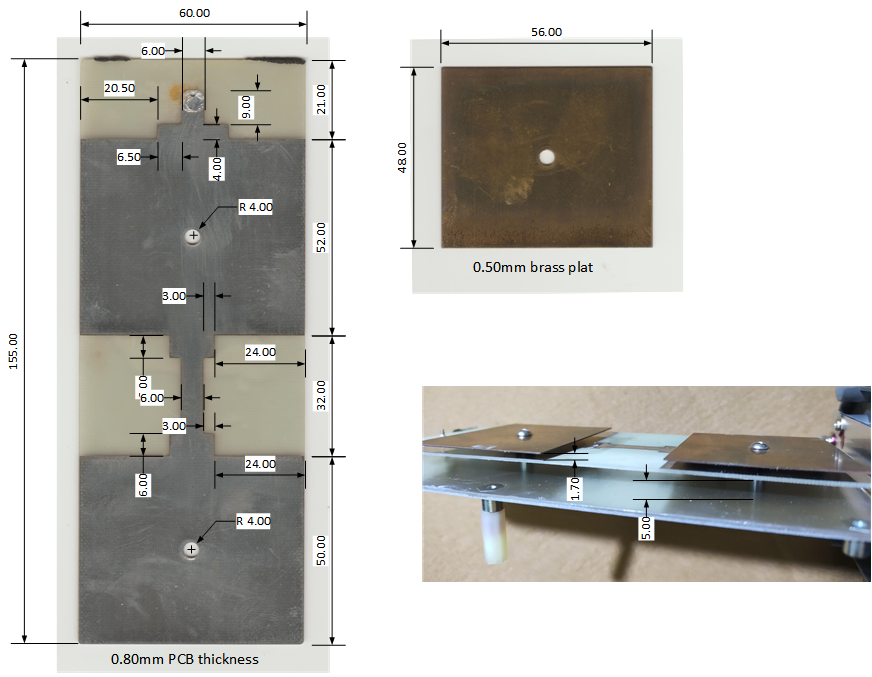

dimension.pdf

3 people like this

Share this post

Link to post
Share on other sites

Posted

,,,croxmanz,, thanks for this post but I think the dimensions of the reflector should be as well..!!!!

Share this post

Link to post
Share on other sites

Posted

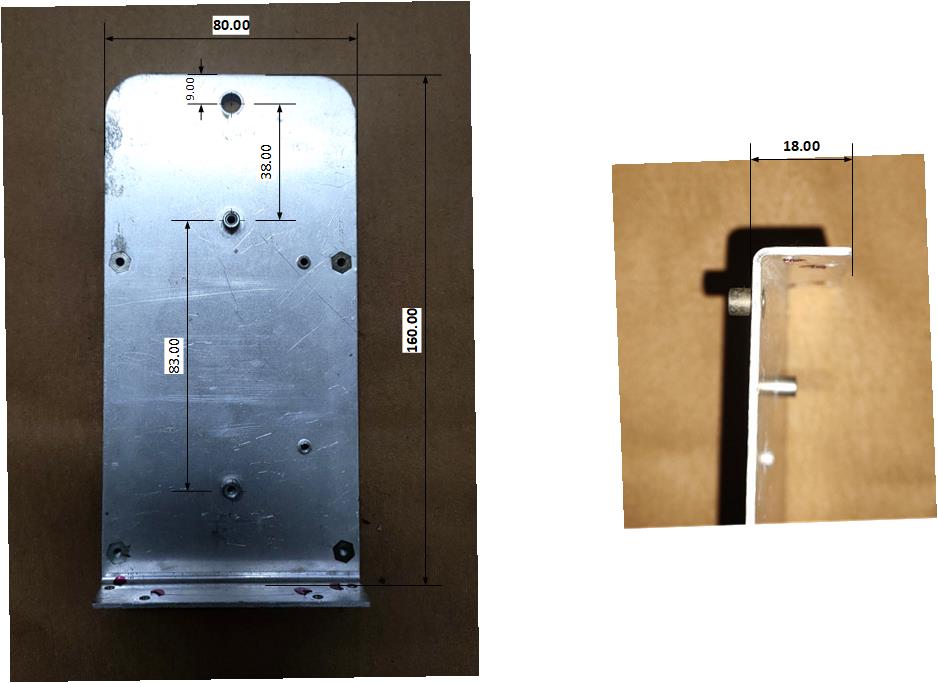

sorry..here is the reflector dimension. the reflector is made out 1.5 mm thick aluminium.


4 people like this

Share this post

Link to post
Share on other sites

Posted

Never mind, thank you...!!!

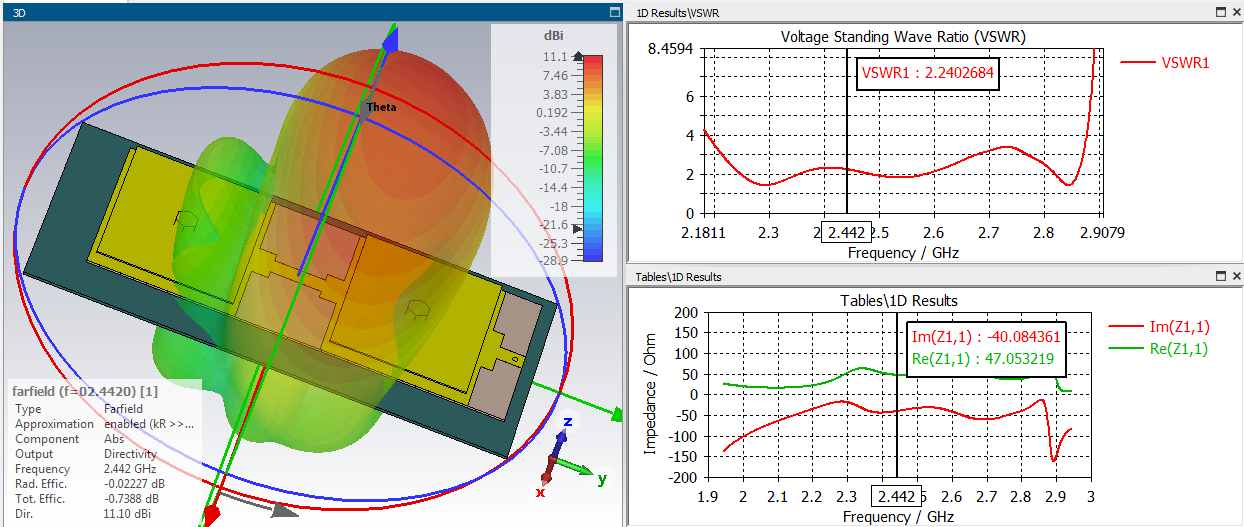

,,,this is the result of the simulation....


2 people like this
