Catherine antenna

55 posts in this topic

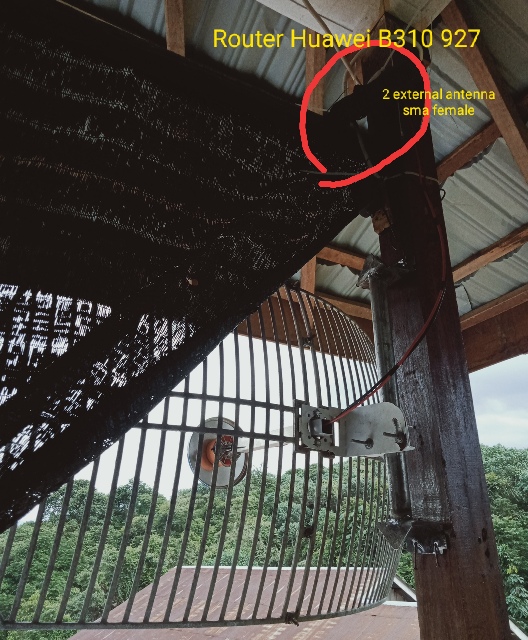

Focus point grid antenna (60 x 90)cm is 31.25 cm

Yes I have did it(reflector antenna vertical) and got more little result.

Oneday I'll take photo of the detail.

1 person likes this

Share this post


Link to post
Share on other sites

,, the secondary reflector from the grid antenna is for either vertical or horizontally  polarization ... you need a secondary reflector with circular polarization...!!!

Share this post


Link to post
Share on other sites
On 09.12.2021 at 7:37 PM, clanon said:



focus point is important (distance to reflector) some mm make a huge difference...

did you try with antenna (reflector ) at 90 degrees...VERTICAL...?

Edited Thursday at 07:38 PM by clanon

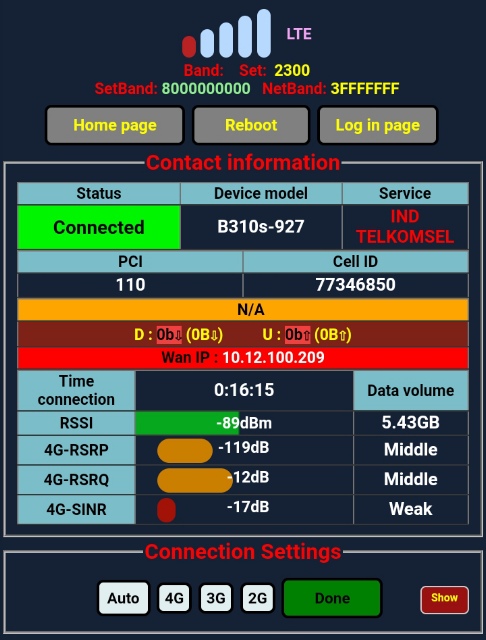

On screen LTE. -/+45°.

Try it.


Edited by Harry36
1 person likes this

Share this post


Link to post
Share on other sites

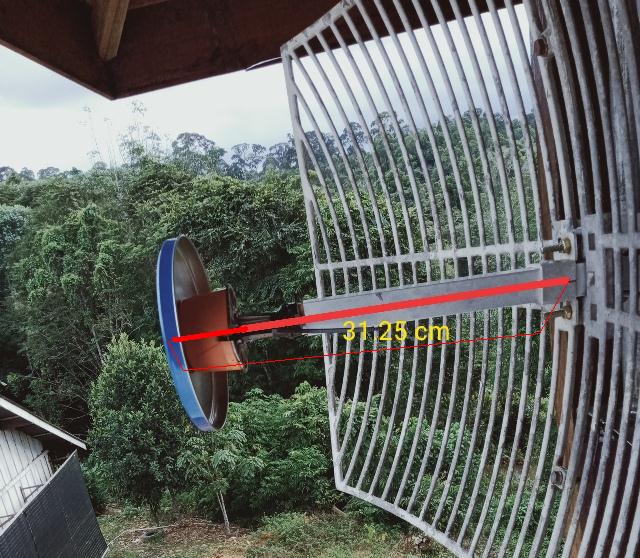

Focus point grid antenna (60 x 90)cm is 31.25 cm

Yes I have did it(reflector antenna vertical) and got more little result.

Oneday I'll take photo of the detail.








2 people like this

Share this post


Link to post
Share on other sites

,,,Shabra,try to put the plate in the focus of the parabole grid...!!!

1 person likes this

Share this post


Link to post
Share on other sites

Admin,I don't understand what you mean.

May be you can explain to me something in a picture,please!



Share this post


Link to post
Share on other sites

Ok.I'm going to try it at fine weather.Tonight is rainy and little thunder at the sky and decrease the indicator of signal.




Share this post


Link to post
Share on other sites

,,, Shabra,how to get a commercial Kathrein vibrator...???

Share this post


Link to post
Share on other sites

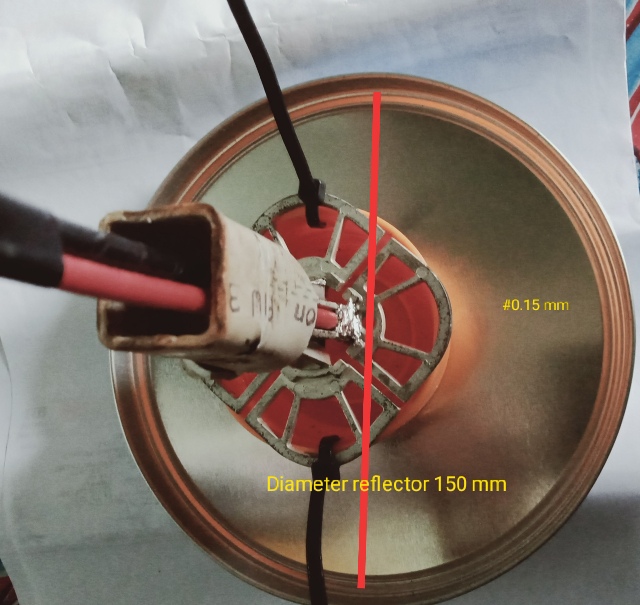

tmp-cam-8174757563326704163.jpgOn marketplace online platform

In Indonesia like shopee,lazada,bukalapak,and tokopedia

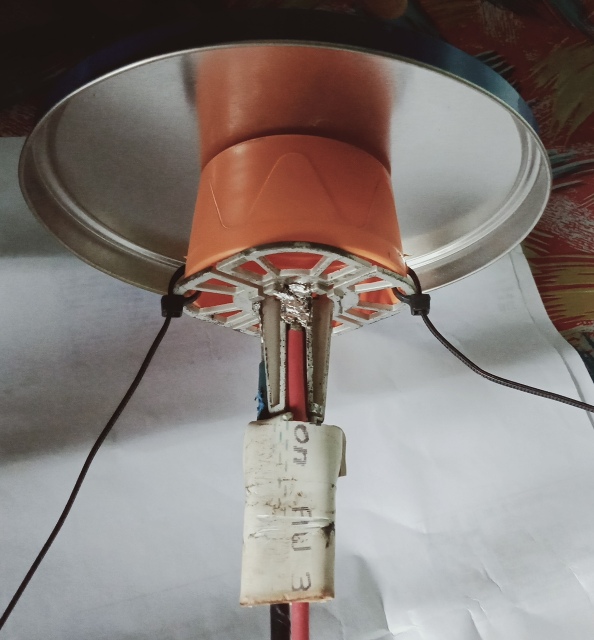

The seller get it from "flea market"tmp-cam-766346691459643408.jpg


1 person likes this

Share this post


Link to post
Share on other sites

Internet service provider that have a BTS(Base transceiver station) have to regenerated the sectoral antenna.If it have reached limit of usage will be changed with the new one antenna.

And maybe someone use part of it(kathrein antenna) to get the signal.

And becomes popular.

2 people like this

Share this post


Link to post
Share on other sites

HUMIDITY and MOISTURE inside COAXIAL cable could be a problem...there. over time. a layer of some insulation or cover all in thin PET (nylon) dielectric paint could be better...

Cable changes inside due to WATER and you lose SIGNAL

1 person likes this

Share this post


Link to post
Share on other sites

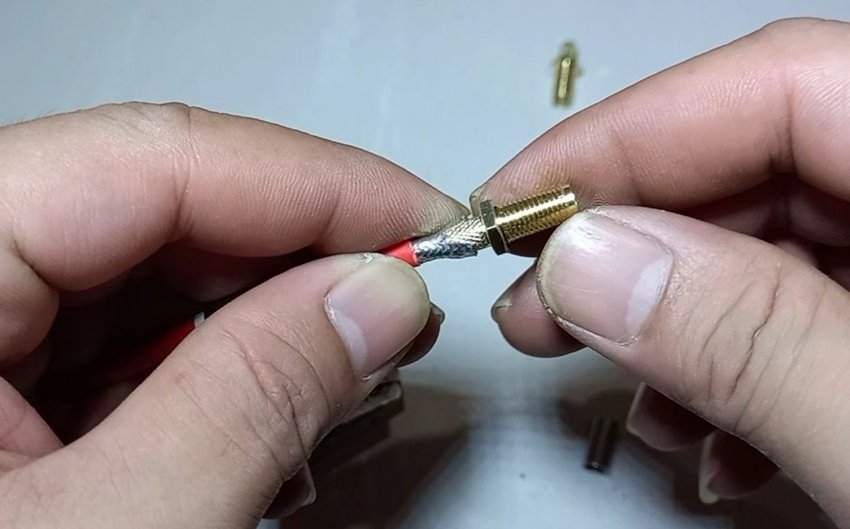

For connecting cables from semirigid Teflon cables to 5C 75 ohm tv antenna cables should you use a connector like this or is it better to solder it directly? And how long should the cable be?


1 person likes this

Share this post


Link to post
Share on other sites

,,, it depends on what kind (type) of cable it is ... in any case it is not a 75 ohm impedance cable ... !!!

1 person likes this

Share this post


Link to post
Share on other sites

if TOLERANCES (diameters on shield , leads , PCBs) are not maintained , impedance would change. I would solder straight from modem , card to antenna , if possible. Keeping distances as short as possible and impedance (cable shape ,curves) as minimum as possible. ALL connectors have loses imho

2 people like this

Share this post


Link to post
Share on other sites

Coaxial cables with an impedance of 50 ohms (Ω) are used to connect the transceiver to the antenna. The most common cables are RG 58 and RG 213:The RG 58 cable is used for use, which has a diameter of 5 mm and the losses it introduces are insignificant, due to the small length of the cable. One detail that you MUST keep in mind is that a cable must be equal in length to multiples of ½λ to properly transfer the impedance of the antenna. If the length is different then the cable will work as an impedance transformer. In this case, a properly tuned antenna will have a high SWR at the transceiver output. The shortening factor (k) has a special importance in the calculation of the cable length. It differs depending on the dielectric of the cable.

-shortening factor(k) -Solid Polyethylene (PE):  66 %

1 person likes this

Share this post


Link to post
Share on other sites

1. the ground of the antenna needs to be at the defined position to get a proper radiation pattern and impedance matching (mount it on a separate horizontal arm)

On 12. 12. 2021. at 10:44 AM, Shabra said:

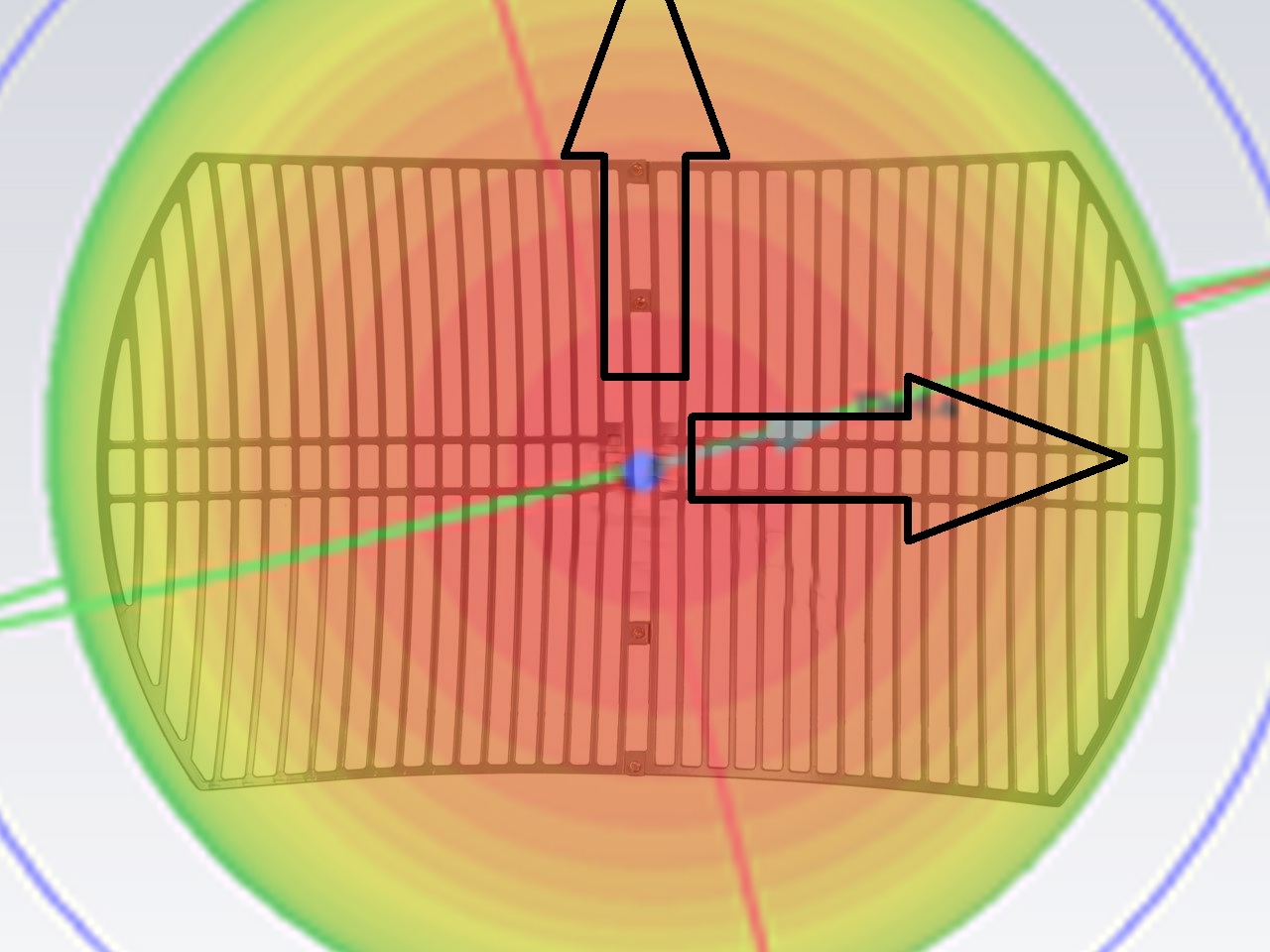

 2. the parabolic grid antenna is made for a dipole (you don't use the full reflection area of the grid), you reflect only one part of the polarised wave (-3dB for TX and RX, MIMO is not gonna work in this particular case)

an offset satellite dish is a much better choice for a reflector, kip in mind that there is a polarisation change after a reflection (SISO system limitation)



3 people like this

Share this post


Link to post
Share on other sites

Gregorian Antenna – symmetrical reflector...


3 people like this

Share this post


Link to post
Share on other sites

shabra , what swarg is saying (i think) is that you should MAKE sure that the base of the MED sees a GND (center of grid) at the SAME point like in the BASE station (telecom antenna) which means HOLDING it from OUTSIDE and BEHIND with the circle (director) pointing in to the GRID...

And that the lobe of this MED is FAT and goes in two directions (polarizations) meaning that you are spilling some radiation since your reflector (grid) is almost rectangular (Circular would be better to reflect both dipoles) which are at 90 degrees


2 people like this

Share this post


Link to post
Share on other sites

Thanks for advice.

I'll try someday.

Edited by Shabra
Emoticon symbol may be give missinterpretation.
1 person likes this

Share this post


Link to post
Share on other sites
On 12/12/2021 at 4:56 PM, Admin said:

,,,Shabra,try to put the plate in the focus of the parabole grid...!!!

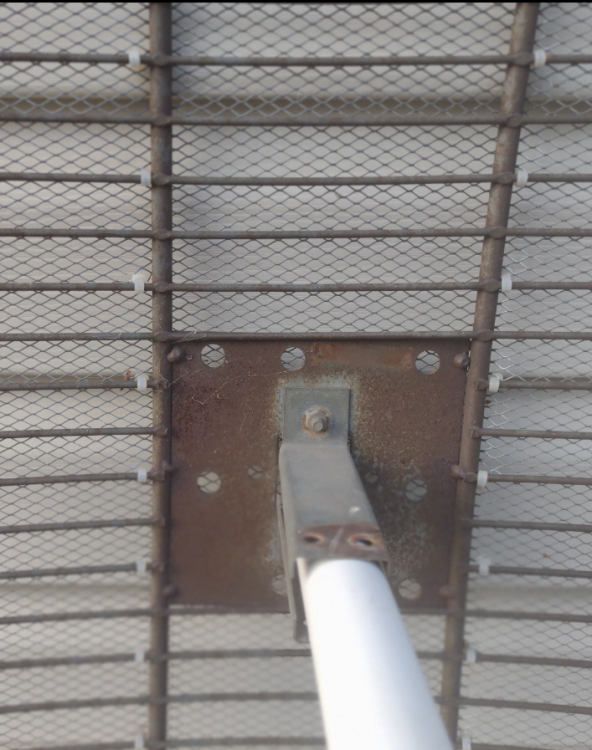

tmp-cam-5786940898015854984.jpgThe result is better than ever.





Edited by Shabra
Double pictures.

Share this post


Link to post
Share on other sites
On 9/12/2021 at 11:49 PM, Harry36 said:

I've been looking at this for a long time ;)





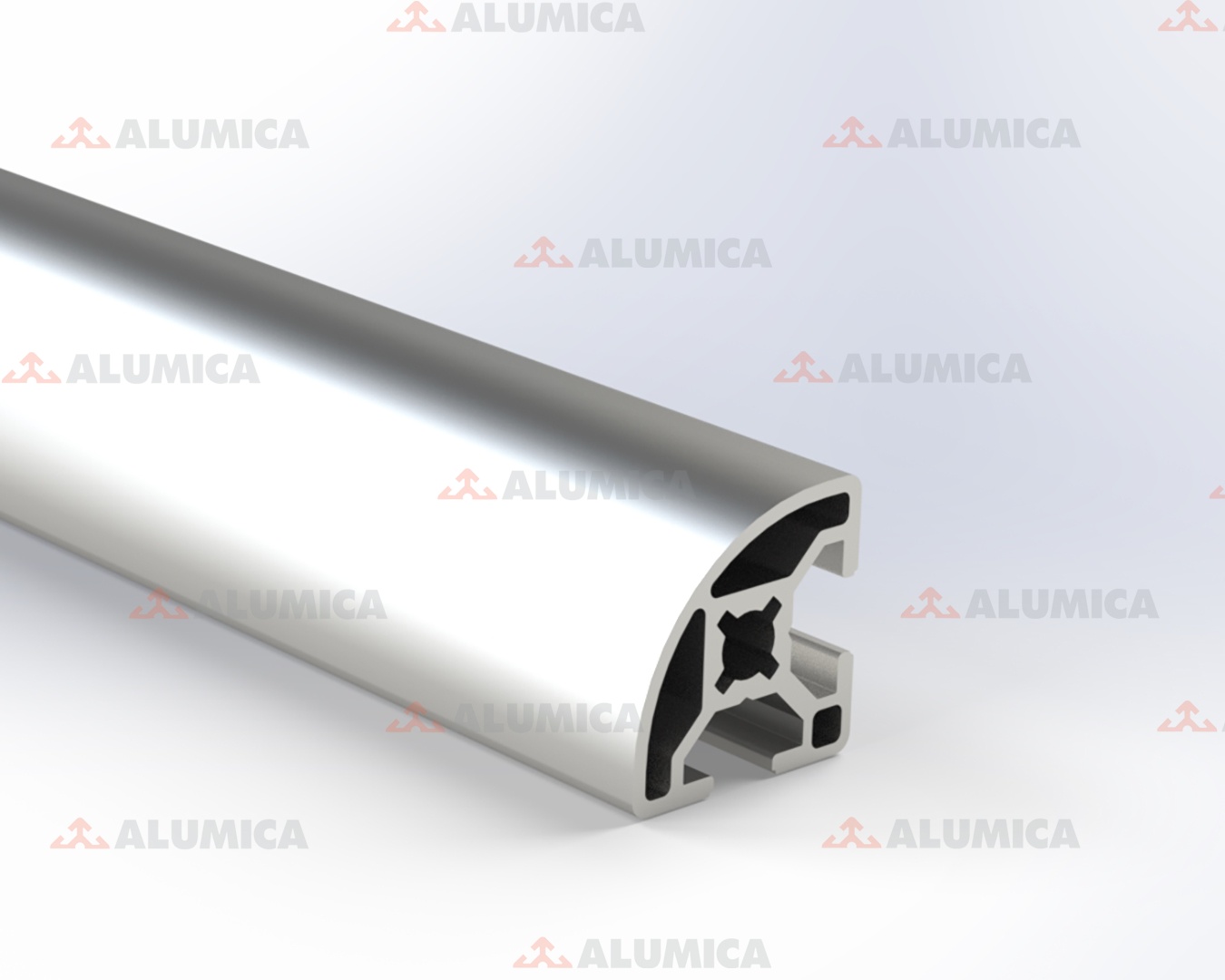

,,, maybe this profile would be suitable for this type of antenna...



Share this post


Link to post
Share on other sites

IMHO for lte1700-2700 very nice



Edited by Harry36

Share this post


Link to post
Share on other sites

Yes, I think you're right, try it.

Share this post


Link to post
Share on other sites

Structural aluminum dipoles are very expensive to make at home, and can be made even easier with galvanized steel.


Share this post


Link to post
Share on other sites
