ZETA F MIMO-4G/3G/2G

[Admin 2545]

Powerful budget broadband panel antenna 2G / 3G/4G / WIFI. Gain 17.5-20.0 dBi. Ra=75 ohms, MIMO.

General information:

The ZETA F MIMO panel antenna is designed for use in a set of equipment for wireless data transmission systems.:

cellular communication (GSM1800) 2G (EDGE) 3G (UMTS 2100) 4G (WIMAX,LTE) WI-FI (IEEE 802.11b, g) and in other systems in the 1700-2700 MHz band.

Electrical characteristics

Operating frequency range, MHz 1700-2700

Gain in the GSM1800 range, dBi 17,5-18

3G gain (1.9-2.2 GHz), dBi18-19

WIFI gain (2.4 GHz), dBi19,5

4G (LTE) gain, dBi 19,5-20,0

Bottom width in the H-plane, deg 15-26

Bottom width in the E-plane, deg 15-26

Side lobe level, max -12 dB

Cross polarization level, max -25 dB

Input impedance, Ohms 75

SWR , max 1.6

Permissible power,10 W

Polarisation vertical+ horizontal/ X-pol

Mechanical characteristics

Weight with mounting, g 2705

Bracing mast diameter 20-52 mm

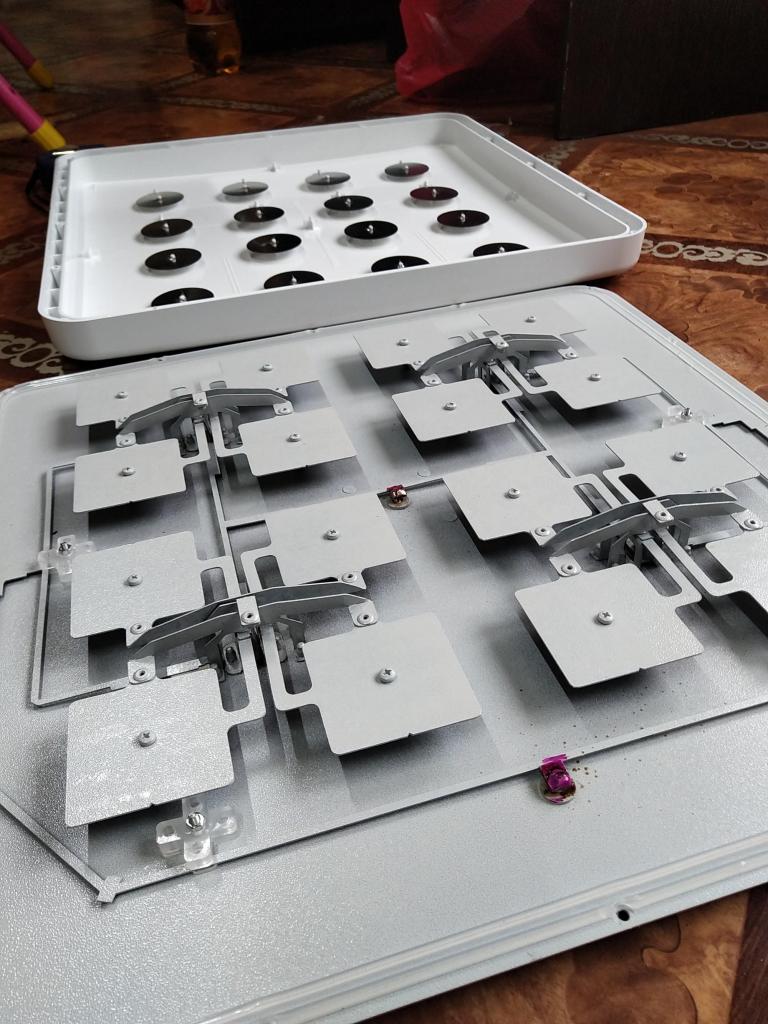

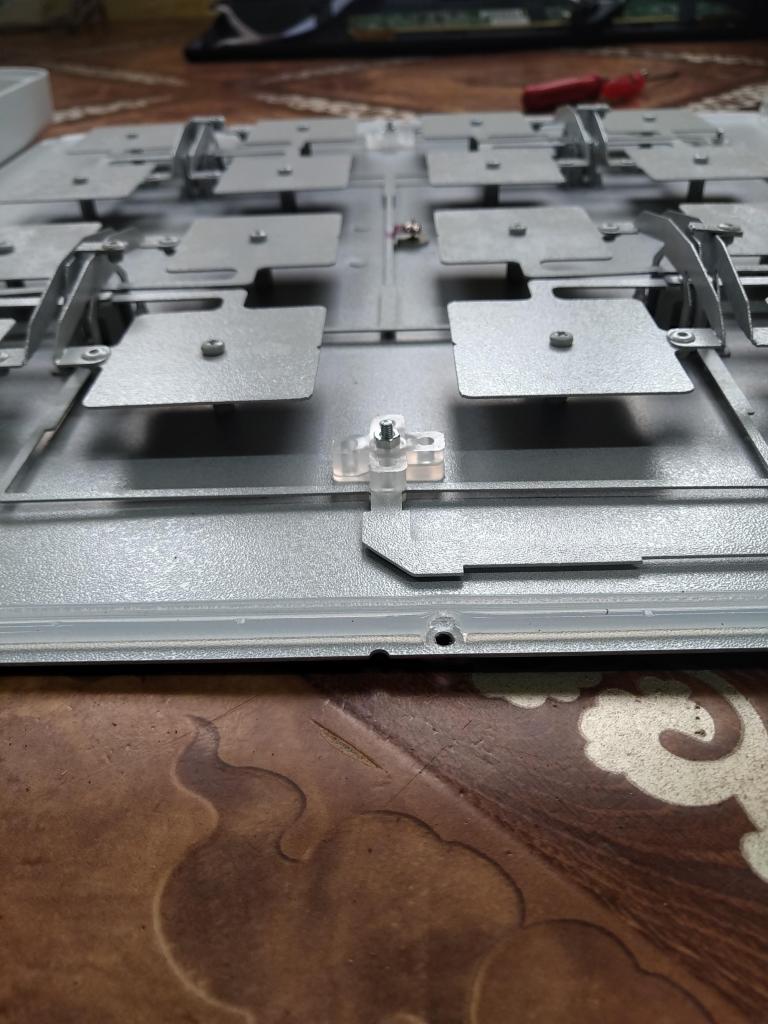

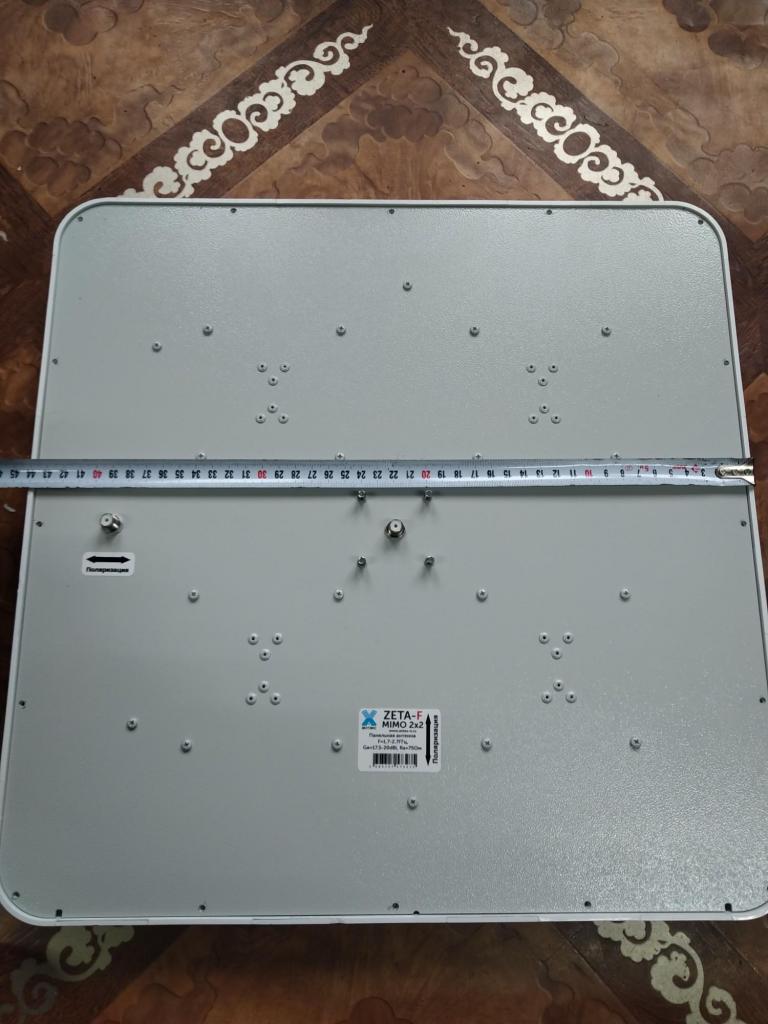

Overall dimensions without mounting, m 0,4 x 0,4 x 0,035

Connector 2 x F-female

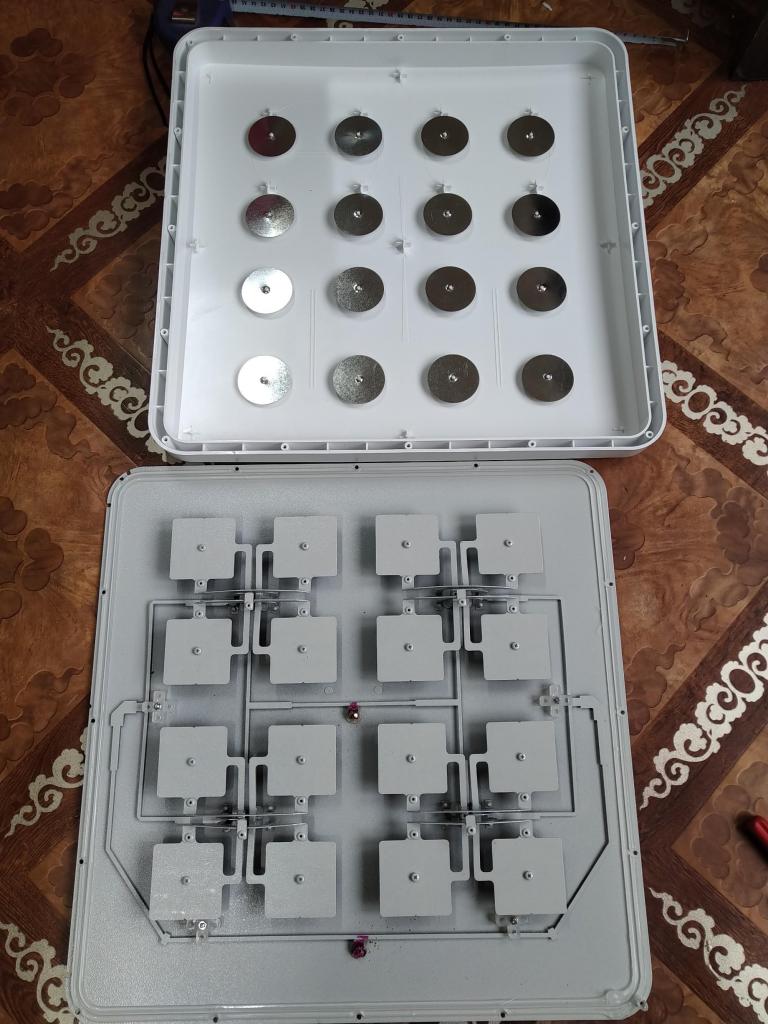

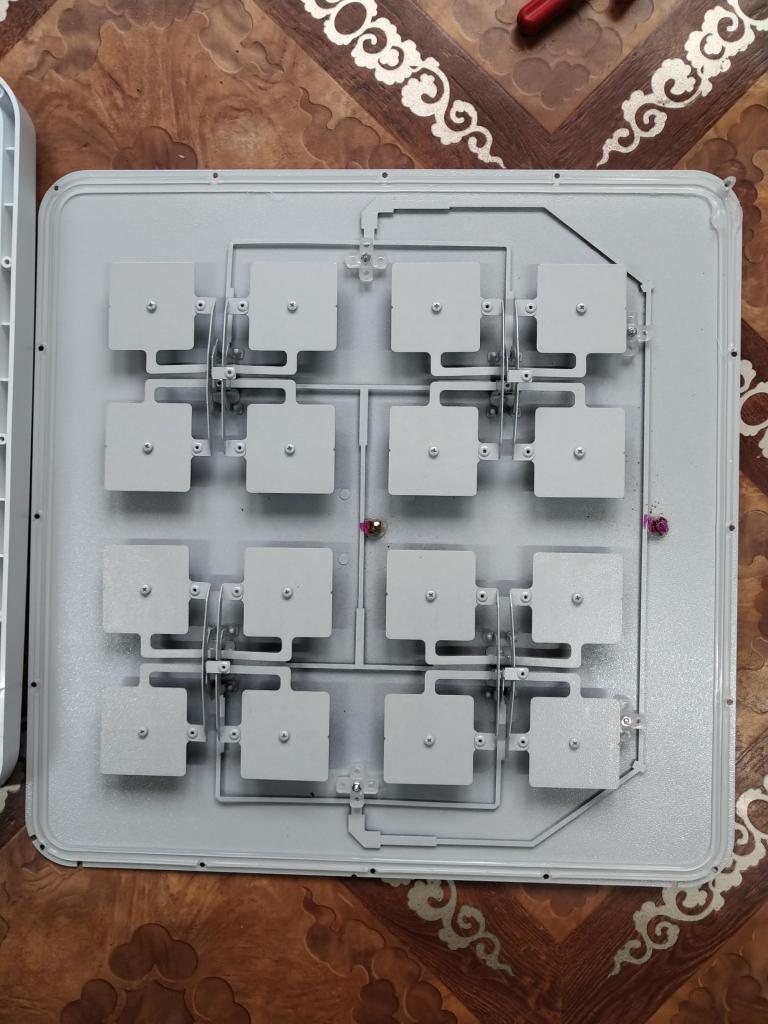

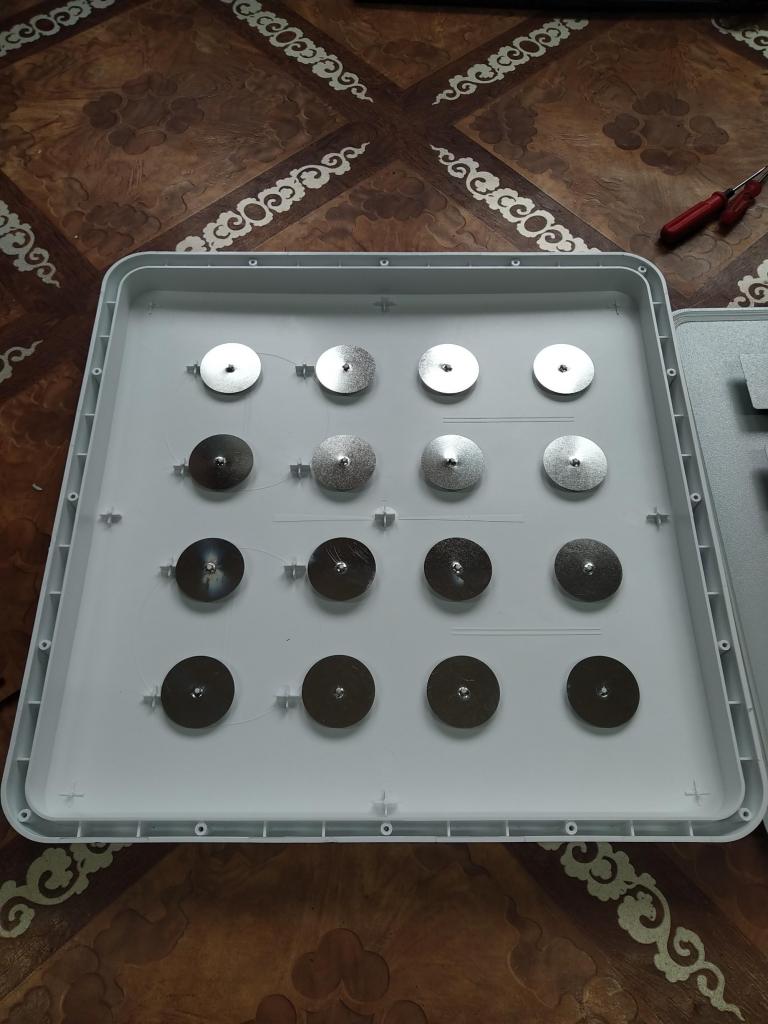

Material of the protective box Polycarbonate+ABS

Antenna Material galvanized steel

Mounting material steel

Protective coating powdered polymer paint
