Best Dish feader for 2.4Ghz and 5Ghz at one dish

[noobbbb 4]

Best Dish feader for 2.4Ghz and 5Ghz at one dish?

bester ×

dual band cantenna ×

bat wings ×

biquad ×

or something else ×

[clanon 248]

It depends on the DISH , F/D ratio  . offset or center feed...?

you'll be trying to achieve 70% efficiency (illumination) or more if possible.



[noobbbb 4]

I have couple offset . there is no center feed I thing. for the diameter I will check tomorrow.

[clanon 248]

http://www.electronicecircuits.com/electronic-software/parabola-calculator-for-satellite-dish-antenna-design

[noobbbb 4]

Dish dimensions  99/80, depth 9.5 . feeder rod 59 . but the degree of the rod is bend. from the calculator I saw that have to be 17 degrees. So I will fit it in position.
Suggestions for feeders 2.4G and 5G?

Edited October 19, 2021 by noobbbb

[hm97q7 0]

dish 98x90sm- feeder rod 62sm depth 8mm/ ( from the deepest point to the feeder rot 45\46sm / Fi 300 / I don't have the calks files saved from the  http://www.electronicecircuits.com/electronic-software/parabola-calculator-for-satellite-dish-antenna-design

[hm97q7 0]

thinking to make he can from copper since its going to be inside, soldering on the right dimensions should be fine

[hm97q7 0]

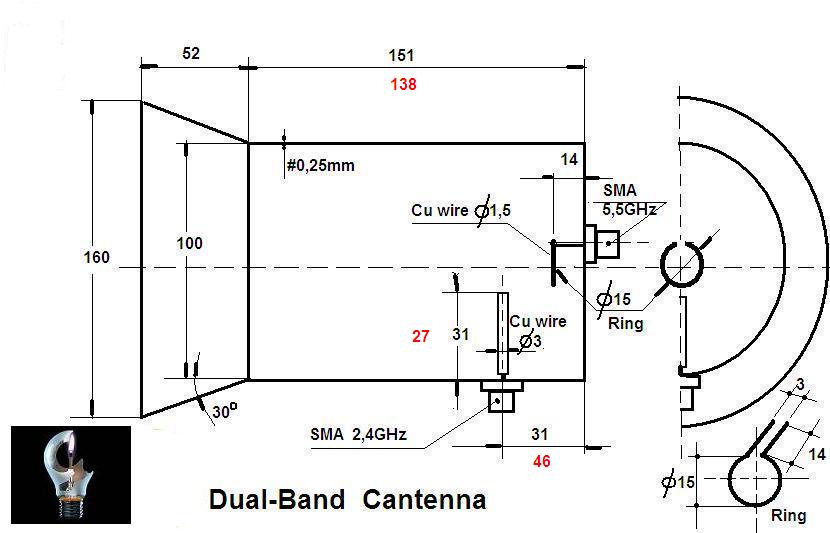

just wondering about the red measurements? are the correct or  inorived?

[Admin 2561]

,,, it is still possible ... !!!
