Nitsa-7 PCB-Broadband Printed Omni-directional

Started by Admin,

Posted

The Nitsa-7 PCB omni-directional printed antenna is designed to connect to 3G/4G/WiFirouters and modems that do not have built-in antennas. The antenna is equipped with a 20 cm long thin flexible cable with a U. fl connector installed. It is recommended for gluing with double-sided adhesive tape on the inner surfaces of plastic cases.

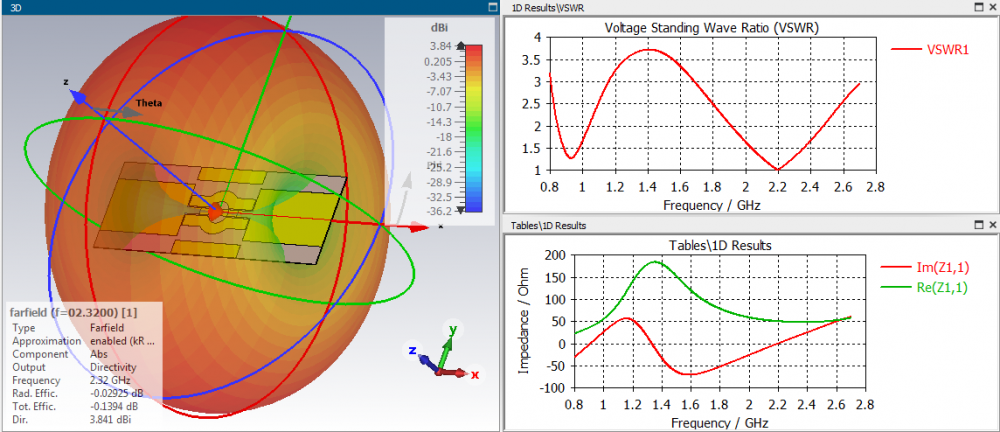

    Electrical Characteristics of NITSA-7 PCB

Operating frequency range, MHz 800-960/1700-2700

Gain factor, dBi 2-5

Bottom width in the horizontal plane, deg 360

Bottom width in vertical plane, deg up to 80

Input impedance, Ohms 50

SWR in the operating frequency range, max. 2.4

Permissible power, W 2

Polarisation linear

    Mechanical characteristics

Weight, g 50

Overall dimensions without cable, mm 119x40x0. 5

Cable length, mm 200

Connector U.fl
