2.4ghz-patch-21dBi

[dharma 1]

Hi There,

I Found the antenna design from this link http://onnocenter.or.id/pustaka/docs/antenna-2.4ghz/2.4ghz-patch-21dBi/

but I confuse where i must put my N Female connector on that antenna design

can somebody help me ?

DS 2400 - 21.cdr

[Admin 2561]

,,,hi buddy...!!!

,,,but tell me, do you have such a thing?

,,,many years ago, I did a simulation on this antenna...!!!

[dharma 1]

No Sir, I have never use patch / panel antenna, I just have TP-Link ant2415d and my Homemade Collinear antenna..

[Admin 2561]

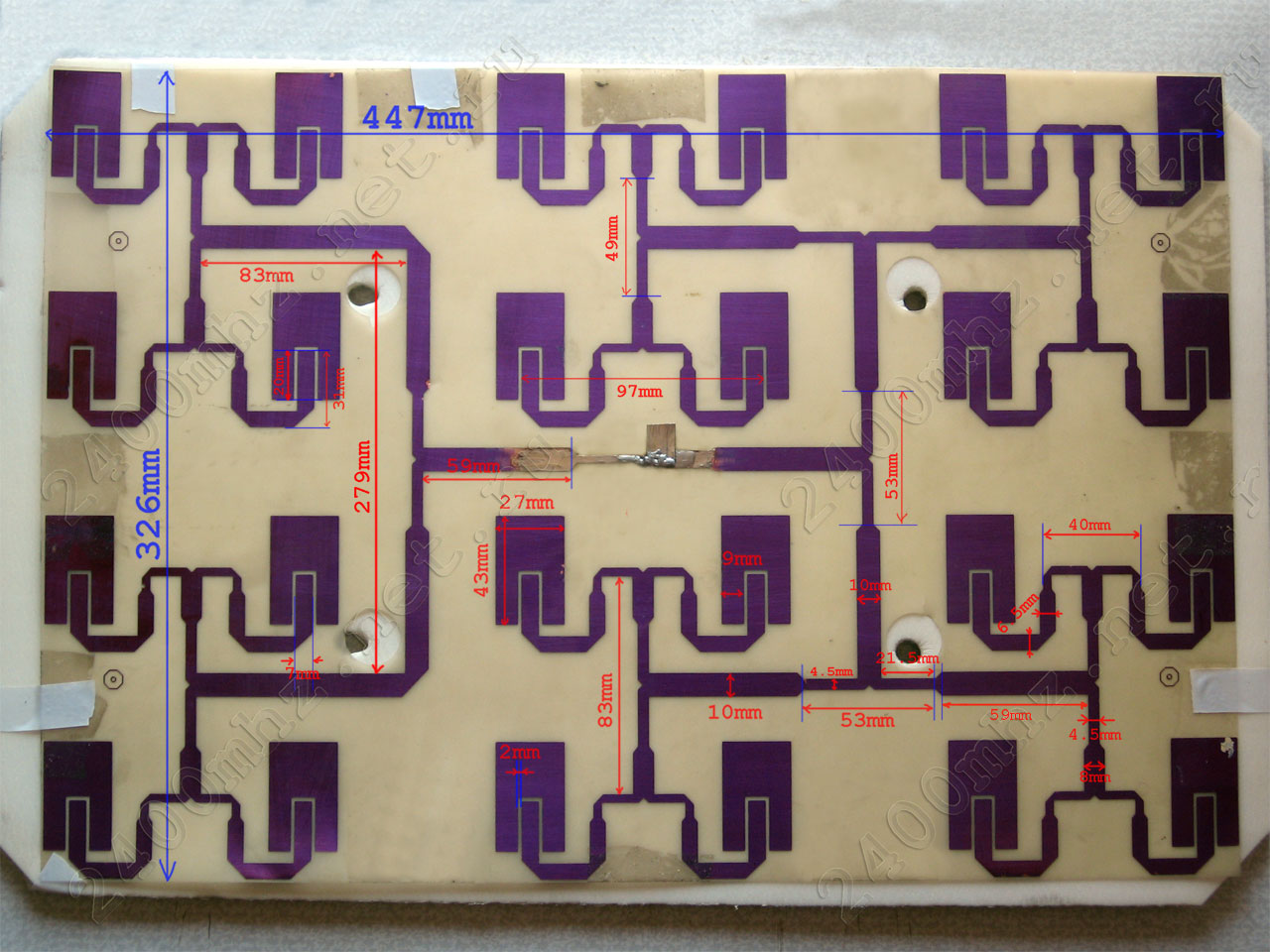

These are both , the sizes and position of the feed point...

[dharma 1]

Thanks Sir thats all I need..

[bejonet 58]

On 03/04/2018 at 8:54 PM, dharma said:

No Sir, I have never use patch / panel antenna, I just have TP-Link ant2415d and my Homemade Collinear antenna..

May i see your homemade collinear antenna?

[Admin 2561]

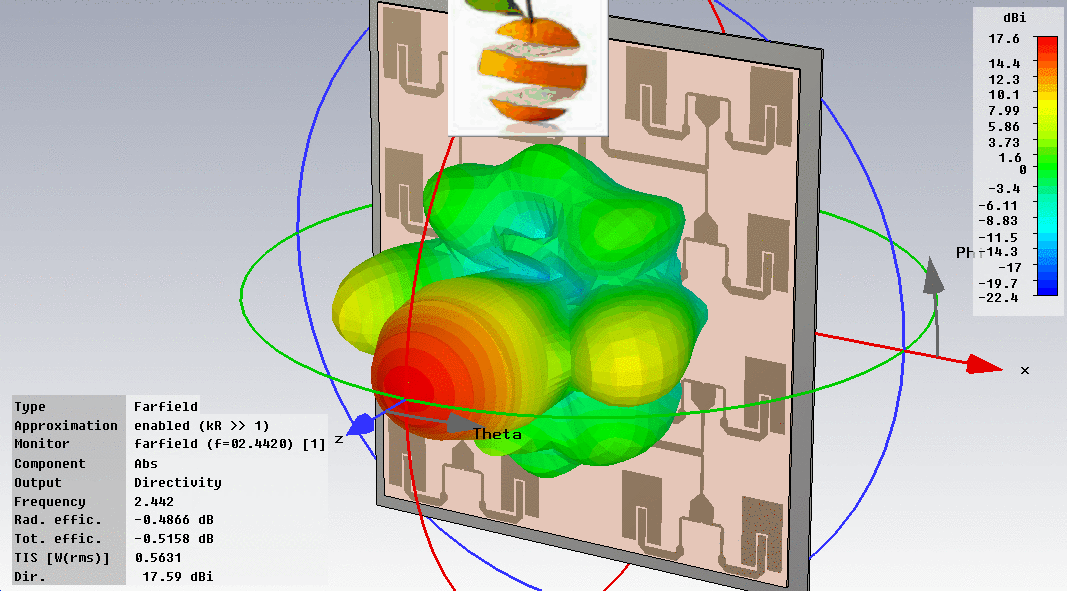

,,,an older antenna simulation....

[dharma 1]

On 11/5/2018 at 1:15 AM, bejonet said:

May i see your homemade collinear antenna?

I forgot where to put it, it might have been discarded by my wife
