yagi 2.4Ghz yagi

[Eric 7]

i've been using a non-isolated yagi antenna.. so far no problem..



[Admin 2545]

,,,, the thickness of 5mm aluminum seems a bit big to me .. !!!
,,,post a picture with this antenna, if you can ... !!!

[Ivan_it 0]

where to find the latest and working version of the antenna

[Admin 2545]

15 hours ago, Ivan_it said:

where to find the latest and working version of the antenna



[Hamza 43]

i think  none speaks about the  thickness of  feed  ??  its  so important for the impedance ?!!!!    any idea ?

[Vasuki 2]

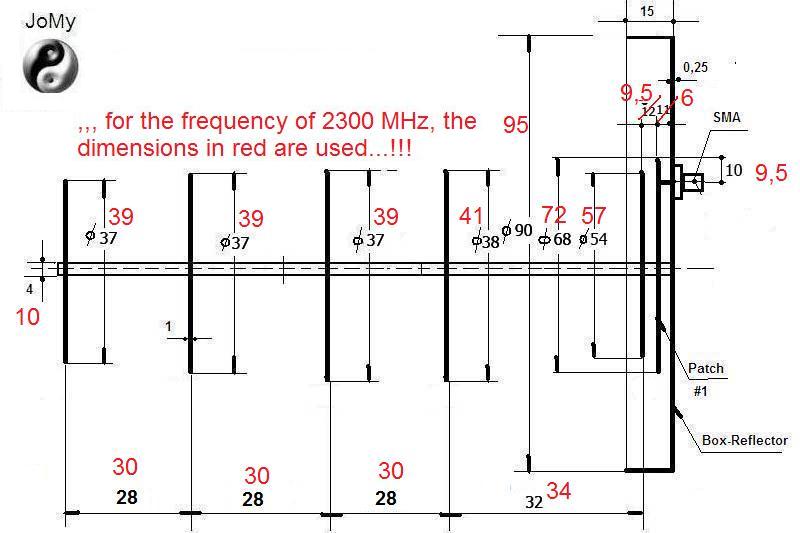

please send a diagram for 2300mhz frequency pls pls pls

[Admin 2545]

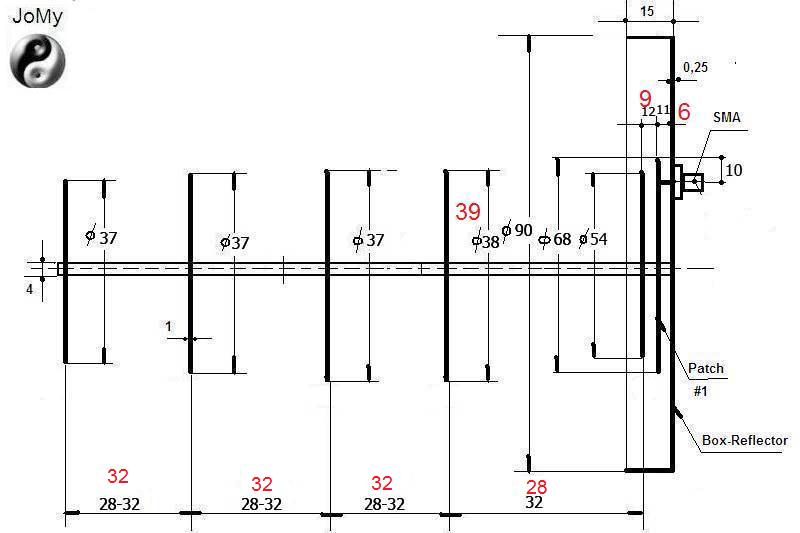

,,,you can try this...





[Vasuki 2]

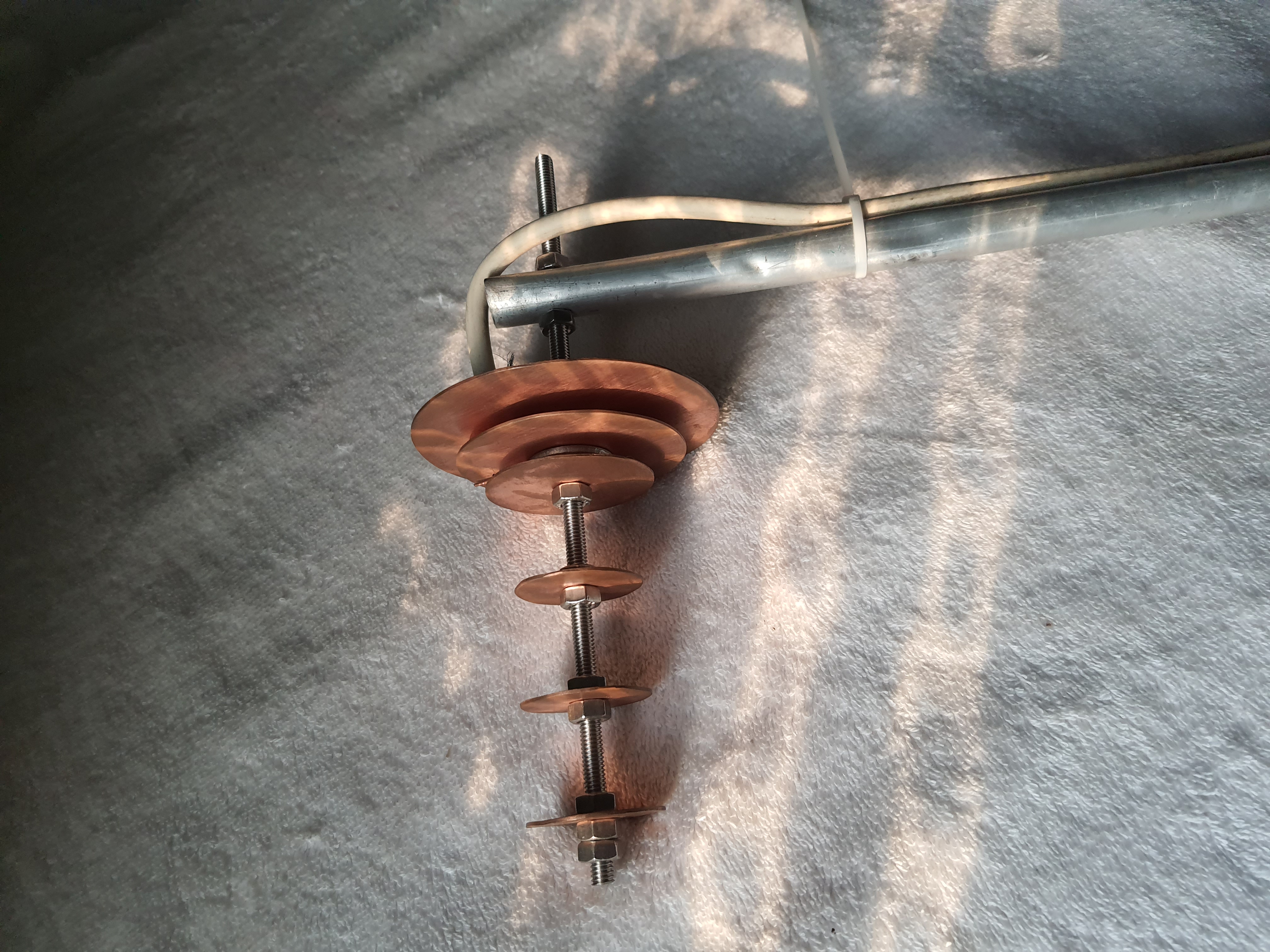

this is the antenna i made for 2.4ghz (wifi antenna )

Edited December 8, 2020 by Vasuki

[Admin 2545]

Vasuki,I gave you a solution above, if you want to consider it, well, if not, I think it is unuseless to continue the discussion...!!!

[Vasuki 2]

8 hours ago, Admin said:

Vasuki,I gave you a solution above, if you want to consider it, well, if not, I think it is unuseless to continue the discussion...!!!

Okk i will try that one thank you.

[Hamza 43]

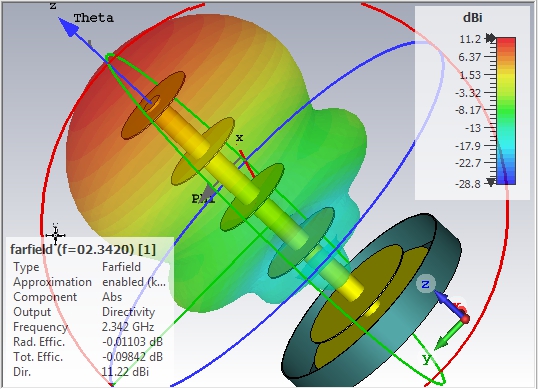

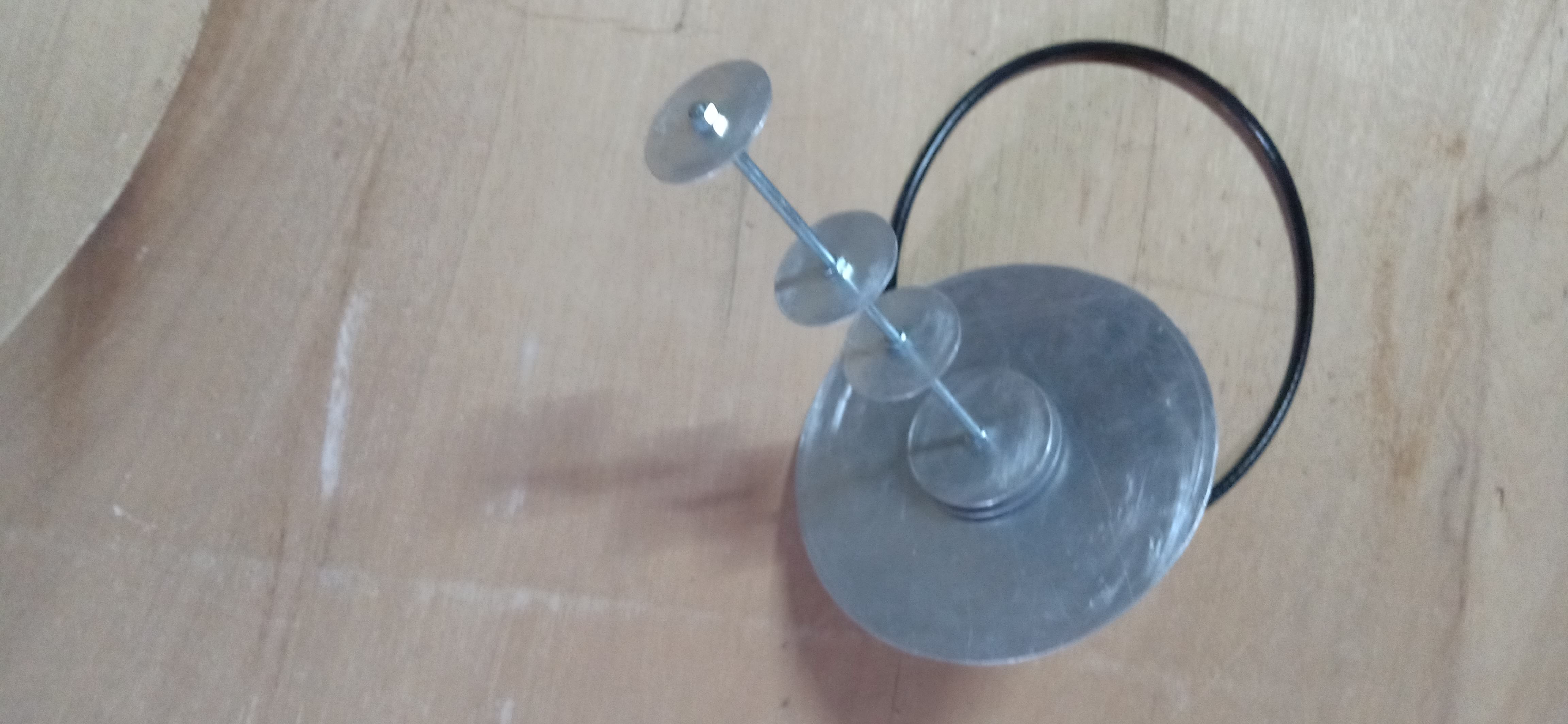

Yagi patch 2,4 GHz   14-15  DBi  inspired by Jomy

[Admin 2545]

,,,congratulations...!!!
,,, and how does it work .. ???

[Hamza 43]

7 minutes ago, Admin said:

Unexpectedly  high performance with just 6 elements and shorter boom it's performs  like BDM 22 elements . Thank you jomy ..

[clanon 246]

1 hour ago, Hamza said:

1 hour ago, Admin said:

Unexpectedly  high performance with just 6 elements and shorter boom it's performs  like BDM 22 elements . Thank you jomy ..

REFLECTOR area ...must be IMPORTANT



[Admin 2545]

http://give-all.biz/articles/samdel/samodelnaya-antenna-analog-obluchatelya-bester

It could be even better..!!!

[Hamza 43]

1 hour ago, Admin said:

http://give-all.biz/articles/samdel/samodelnaya-antenna-analog-obluchatelya-bester

It could be even better..!!!

So I can use it as  irradiater offset ?!!!

3 hours ago, Admin said:

Unexpectedly  high performance with just 6 elements and shorter boom it's performs  like BDM 22 elements . Thank you jomy ..

[Hamza 43]

I think  adding bucket   it gives more directivity and more gain    I appreciate it. It's  just 20 cm  , just 6 elements and light weight  I ll write by the dramel JOMY ANT. on the reflector. You are really genius ☺️

[Vasuki 2]

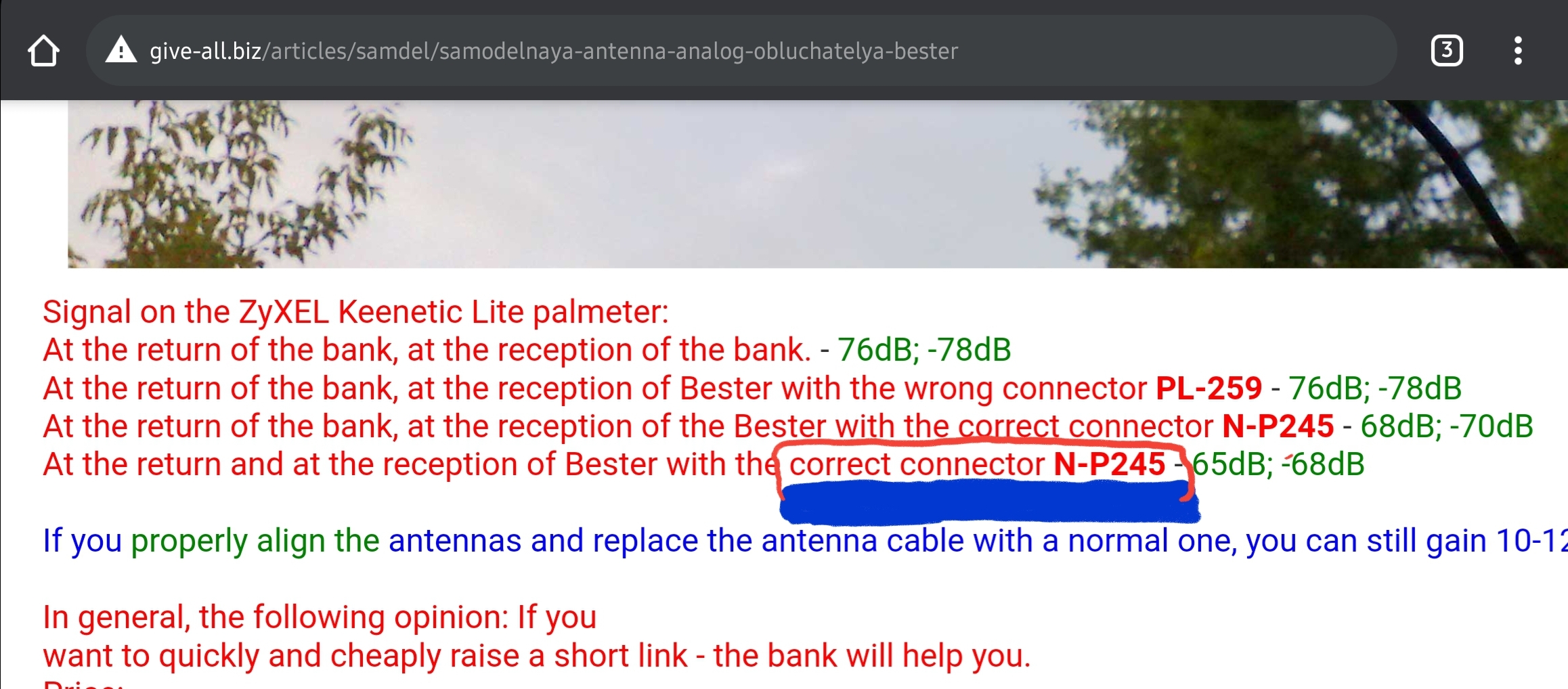

,,,,,Here you have said " with the correct connector " will connector matter the quality of signal ?? !!!!!

If so which connector and wire should i use for 2.3ghz antenna ?!!!!!

[Admin 2545]

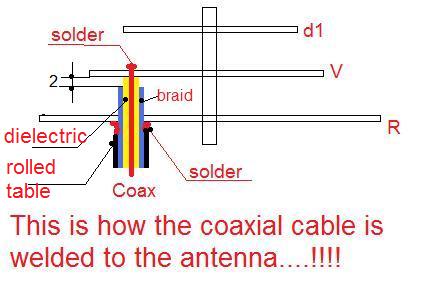

,,, for you simpler ...

[Hamza 43]

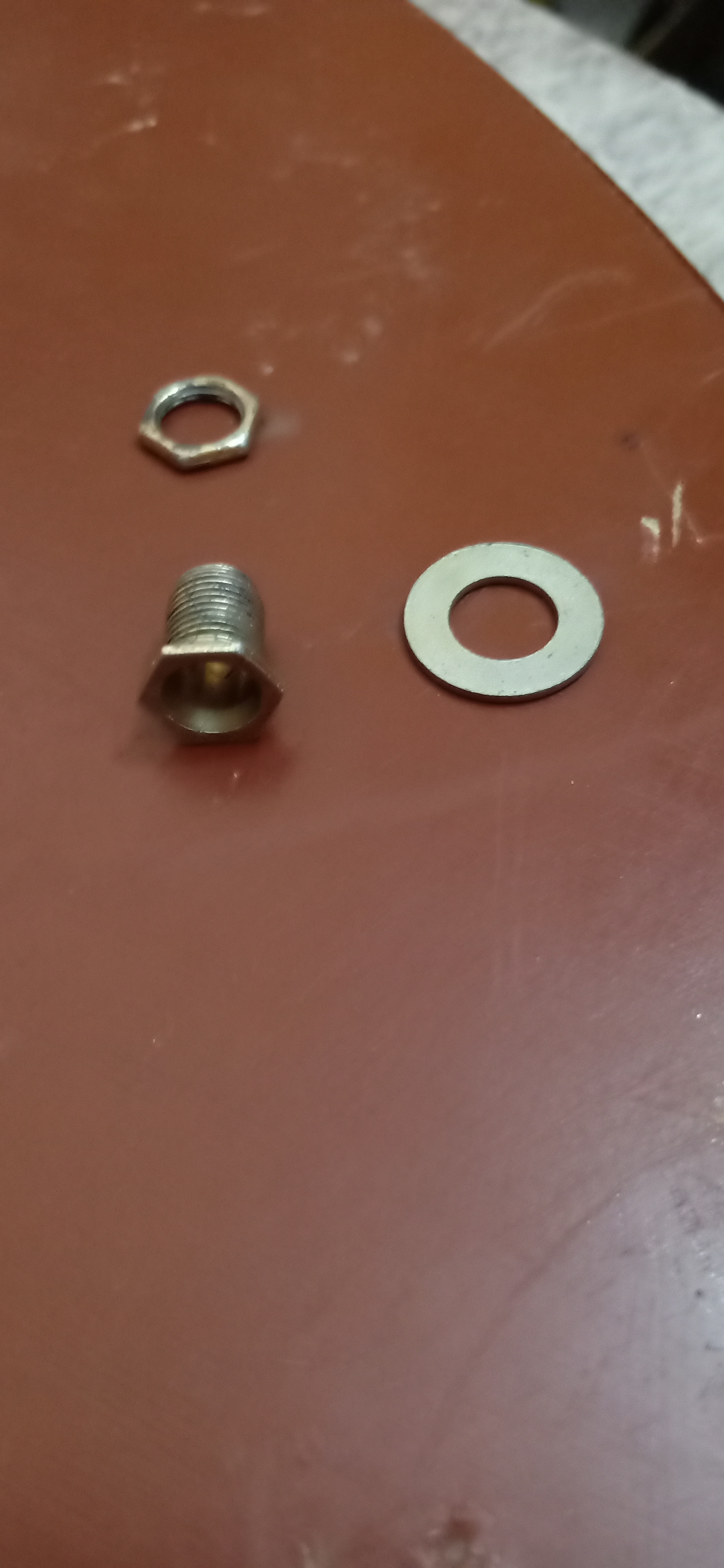

You can use something like this from old wall clock if you don't like soldering

[Vasuki 2]

50 minutes ago, Admin said:

,,, for you simpler ...

Thank you so much

[Vasuki 2]

13 minutes ago, Hamza said:

You can use something like this from old wall clock if you don't like soldering

Thank you so much



[Hamza 43]

Or like this

[Vasuki 2]

3 minutes ago, Vasuki said:

Thank you so much

The second conductor should also be in contact with the modem ??

Edited December 11, 2020 by Vasuki

[Vasuki 2]

1 minute ago, Hamza said:

Or like this

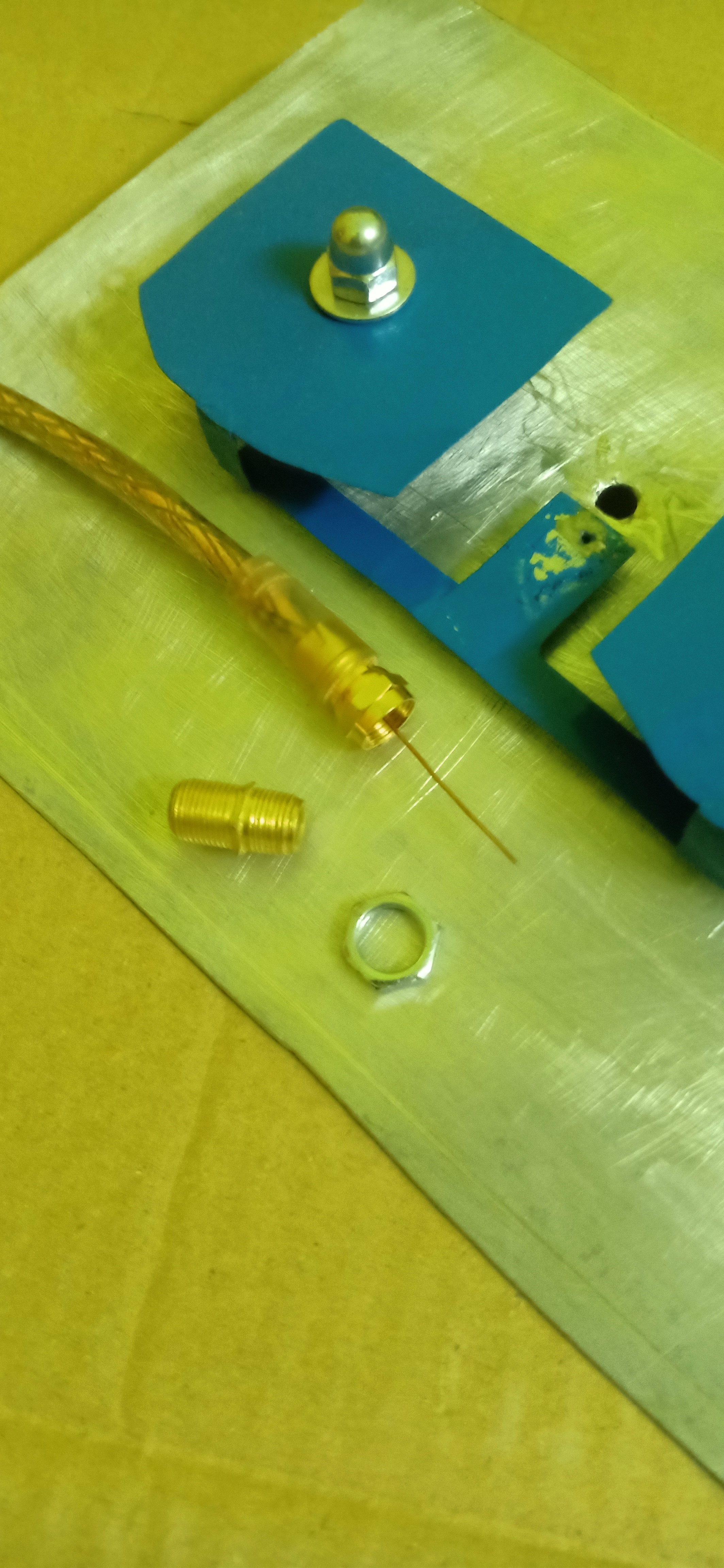

What is this connector called ?
