not sure about the ..."antenna"...but if you have an UNBALANCED (CO-AXIAL CABLE) contact on the board and you wanna extend that signal path...

the coax shield is of the utmost importance (keeping isolation , impedance , and vswr) must be solder to gnd the closest possible to inner wire (50ohms)

two antennas are for MIMO (speed)

Edited December 11, 2020 by clanon

[Admin 2545]

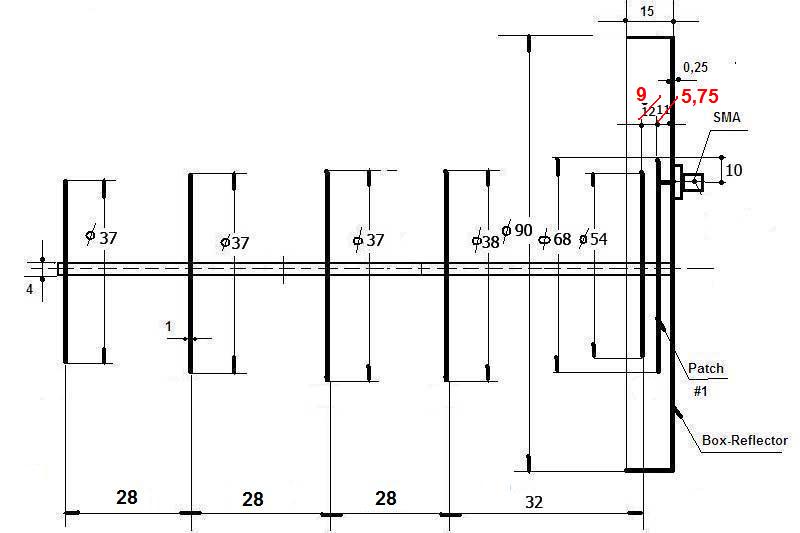

,,,these are the real dimensions...

[Admin 2545]

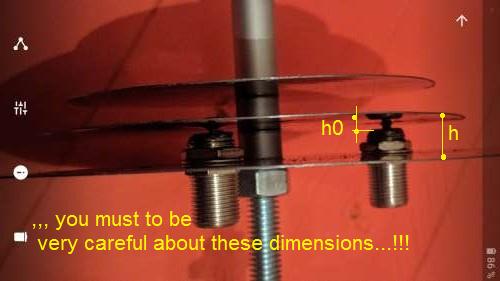

,,, no, the vibrating element does not need to be isolated...!!!

[Khubaib 3]

Hi,

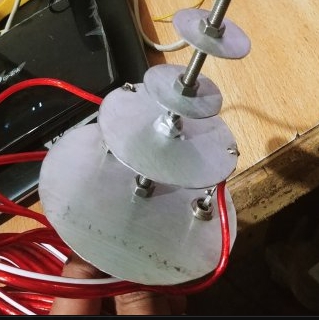

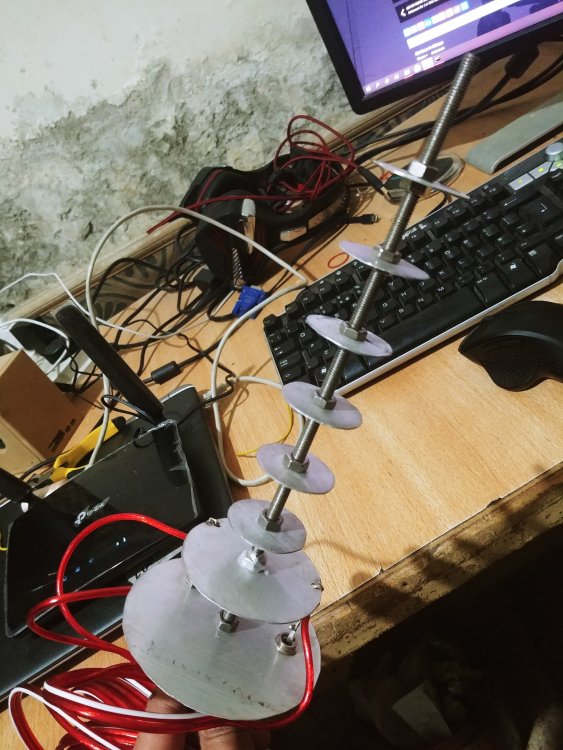

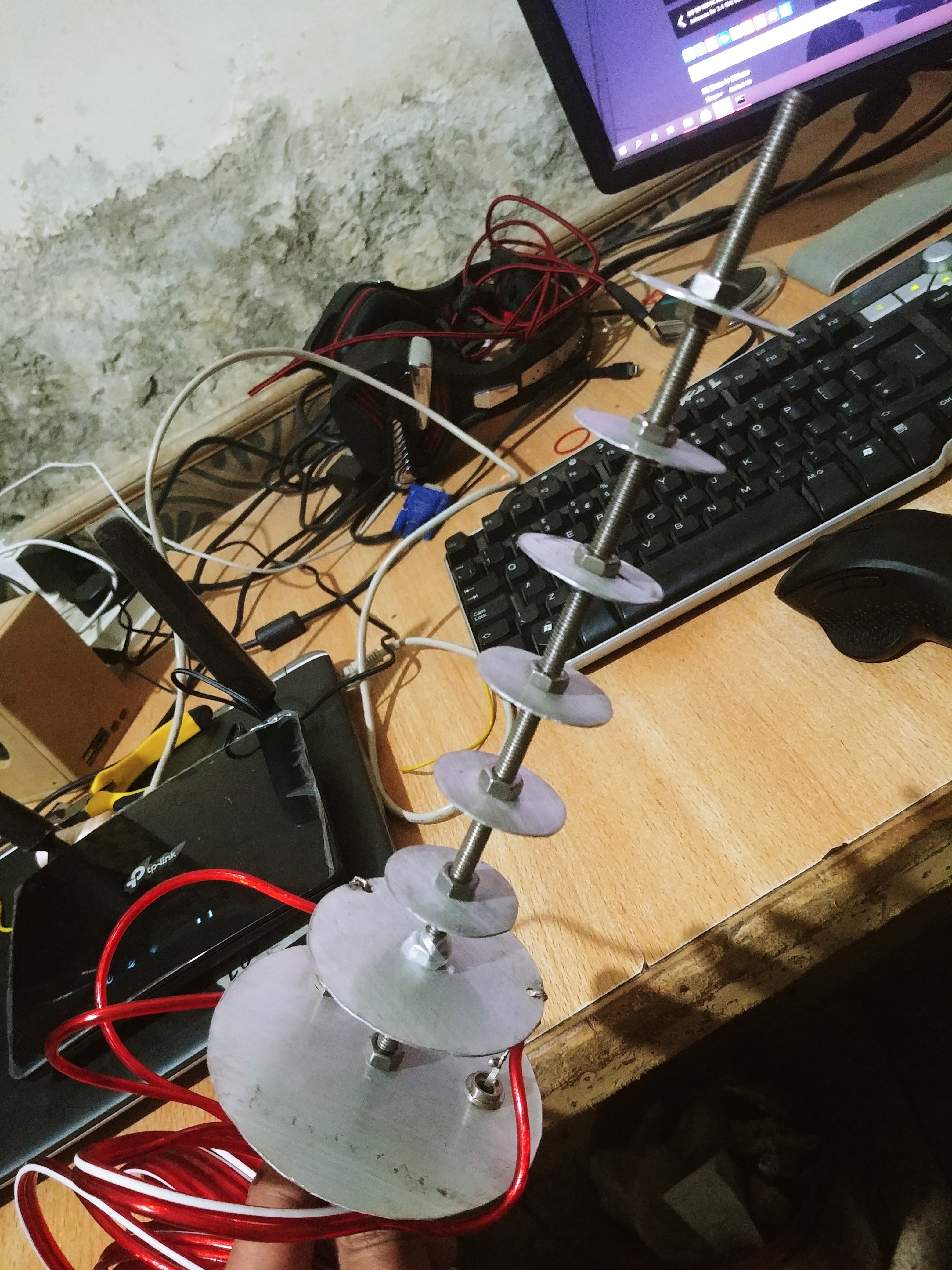

I am new to Yagi 2.4 antenna. I am looking for an antenna which may increase signal strghnth for my 4g SIM card modem TP Link MR64000. This modem have two antennas. But it does not give much speed. Which type of antenna should i make and connect to my modem as out door extermal antenna? I have made following and it does not perform well. this design is from andrew on youtube.



Thanks,

Khubaib

[clanon 246]

WHAT CABLE is THAT...?

[Khubaib 3]

9 hours ago, clanon said:

WHAT CABLE is THAT...?

It is regular copper cable normally used for speakers.

[Admin 2545]

,,, if andrew mcneil taught you something like that, it means he's on the outside of antenna bester...

[Khubaib 3]

1 hour ago, Admin said:

,,, if andrew mcneil taught you something like that, it means he's on the outside of antenna bester...

 Could you please share a good design for 4G SIM router which can boost signals and also share which cable should i use? I know i have left some loop holes , i just I have installed a connector and did not use it due to cable diffrence. i also isolated vibrator using a plastic bag strips :).

[Admin 2545]

,,, use coaxial cable with 50 Ohm impedance, and the rest you will find here on this post...!!!

[clanon 246]

[BurgHammer 1]

17 hours ago, Khubaib said:

It is regular copper cable normally used for speakers.

When McNeil mocks cheap, low quality coax as "speaker wire," he doesn't mean you should use literal speaker cable to connect your antenna. :I

I know he's done a video on the Kreosan "WiFi Gun" and another testing it inside a wave guide, and he definitely used normal coax on those, connected the normal way.

[Khubaib 3]

8 hours ago, BurgHammer said:

When McNeil mocks cheap, low quality coax as "speaker wire," he doesn't mean you should use literal speaker cable to connect your antenna. :I

I know he's done a video on the Kreosan "WiFi Gun" and another testing it inside a wave guide, and he definitely used normal coax on those, connected the normal way.

Agree, I thought it may work. BTW what difference the wire could make, as i am learning about antennas need to keep in mind.

[Khubaib 3]

On 1/25/2021 at 0:47 PM, Admin said:



,,,these are the real dimensions...

For above diagram, can we add two connectors to antenna and install same to 4G SIM Router?

The first 90mm plate, should it be corved as shown in picuture?

[Admin 2545]

,,, it is best not to use two connectors on a single antenna but to use two antennas with one connector each...!!!

[clanon 246]

On 1/27/2021 at 7:12 AM, Khubaib said:

Agree, I thought it may work. BTW what difference the wire could make, as i am learning about antennas need to keep in mind.

2.4ghz (2400Mhz) anything above 500mhz behaves completely different to ...say 10 khz...At this high frequencies the cable behaves more like a waveguide than a cable...Coaxial shield keep  the wave RF inside avoiding RADIATION spills and EM interactions...Impedance must be kept at 50 ohms from generator to load (antenna) any changes missadaptations would mean wasted energy or in the worst cases (like yours) energy bouncing back to the generator (wifi card) this is called VSWR and must be kept under 2:1

Edited January 29, 2021 by clanon

[Khubaib 3]

On 1/30/2021 at 0:12 AM, clanon said:

2.4ghz (2400Mhz) anything above 500mhz behaves completely different to ...say 10 khz...At this high frequencies the cable behaves more like a waveguide than a cable...Coaxial shield keep  the wave RF inside avoiding RADIATION spills and EM interactions...Impedance must be kept at 50 ohms from generator to load (antenna) any changes missadaptations would mean wasted energy or in the worst cases (like yours) energy bouncing back to the generator (wifi card) this is called VSWR and must be kept under 2:1

Thanks for the explanation, it does help.

[Khubaib 3]

On 30/01/2021 at 0:12 AM, clanon said:

2.4ghz (2400Mhz) anything above 500mhz behaves completely different to ...say 10 khz...At this high frequencies the cable behaves more like a waveguide than a cable...Coaxial shield keep  the wave RF inside avoiding RADIATION spills and EM interactions...Impedance must be kept at 50 ohms from generator to load (antenna) any changes missadaptations would mean wasted energy or in the worst cases (like yours) energy bouncing back to the generator (wifi card) this is called VSWR and must be kept under 2:1

How much speed or improvement would increase if i install two antenns with 4G SIM router? If all dimentions and process is followed? instead of router antennas.

[clanon 246]

 MiMo (2T2R) it's the improvement over the max for a regular wifi (150Mbits/s (15Mbytes/s)) and it should start (on OPTIMAL conditions) at 300Mbps (30Mbytes/s) and UP

Of course it depends in SIGNAL STRENGTH (- db) and QUALITY (Packets Lost)

Edited February 1, 2021 by clanon

[Khubaib 3]

Hi.

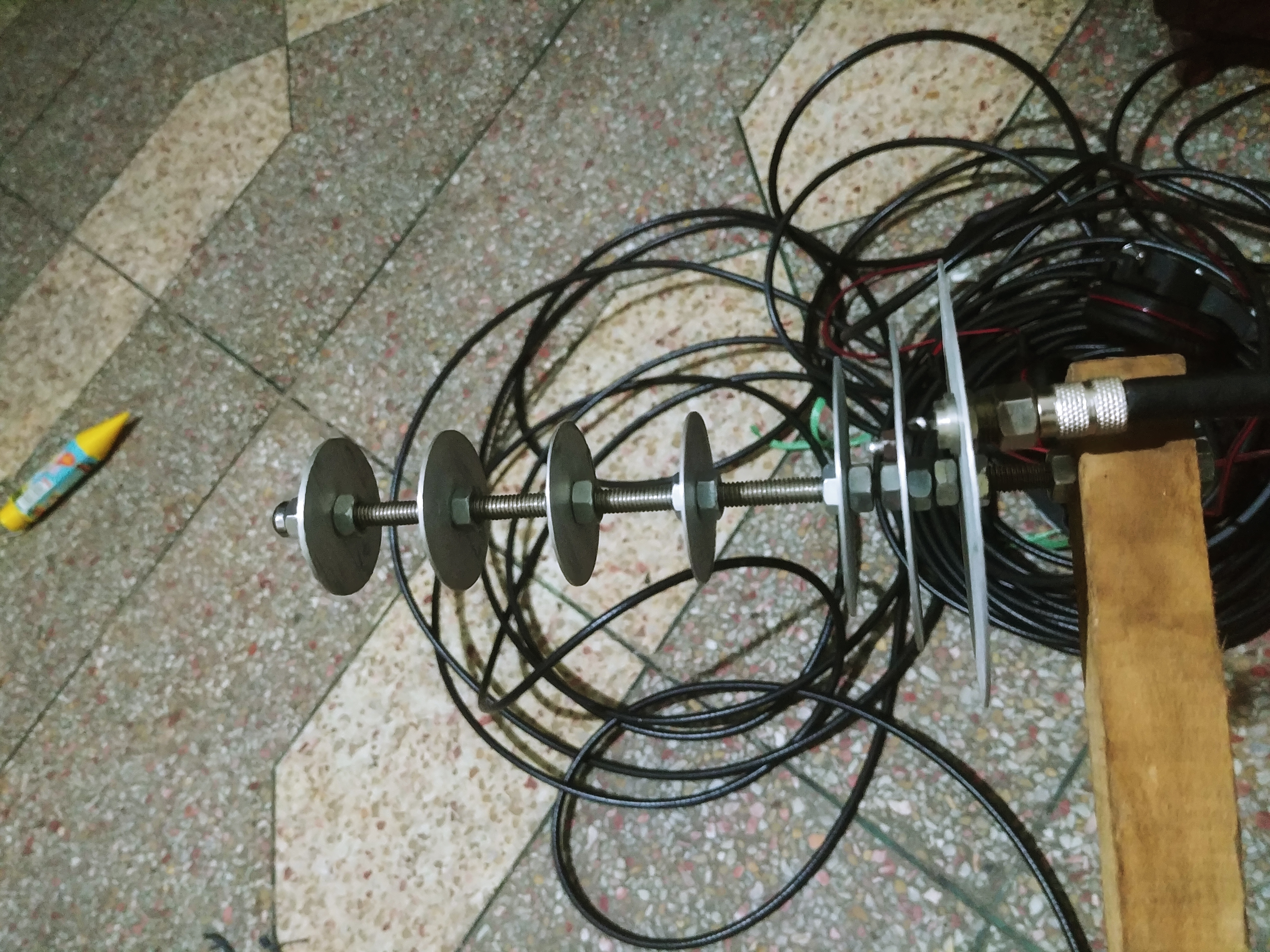

I have built antenna with latest design. I observed upload speed decreased and download speed increased. What could be the reason for this? Image attached

[Admin 2545]

,,, which is the latest design...???

[Eric 7]

18 hours ago, Khubaib said:

Hi.



I have built antenna with latest design. I observed upload speed decreased and download speed increased. What could be the reason for this? Image attached

Can u pls share the details of that latest design?

[Khubaib 3]

On 2/9/2021 at 1:35 PM, Admin said:

,,, which is the latest design...???

[Khubaib 3]

20 hours ago, Eric said:

Can u pls share the details of that latest design?

There you go.



[Khubaib 3]

Hi,



I have few more questions if anyone can answer.

1. Can this Yagi Antenna transmist and receive signal at the same time.

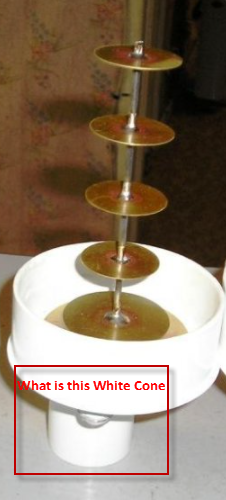

2. What is inside white cone and what does that do as attached.



3. I have TP Link MR6400 router it has two antennas not sure if both transmit or receive signals or one receives and the other transmit.

4. I have pretty good response from this antenna, now looking for omni directional antenna designs.

5. Is there any way to identify transmission tower location? I have so many towers on my sight but not sure which one to point my Yagi antenna at? It will be great help if you could share transmission tower tracking app.

Appriciate your help in advance.



Regards,

Khubaib
