yagi 2.4Ghz yagi

245 posts in this topic

0.25 is disc thickness, 10 is SMA connector's distance from the radiator's edge, both in millimeters.

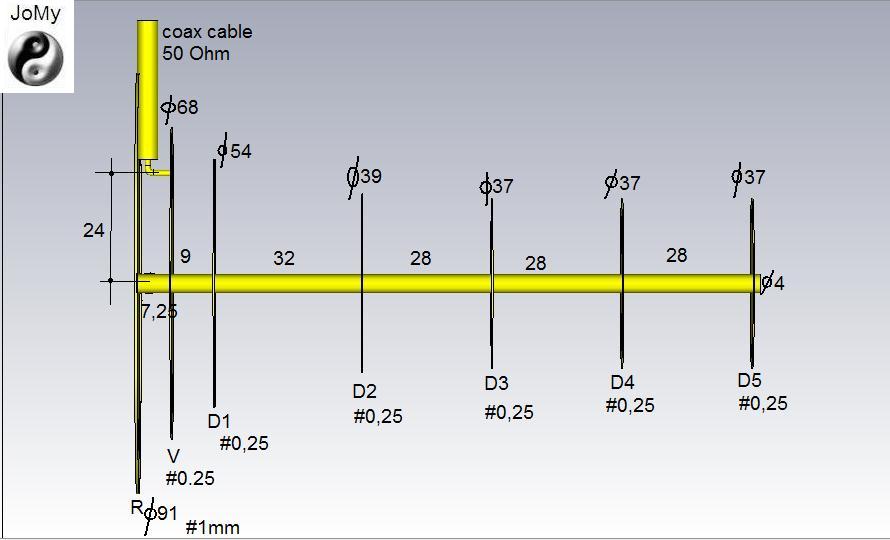

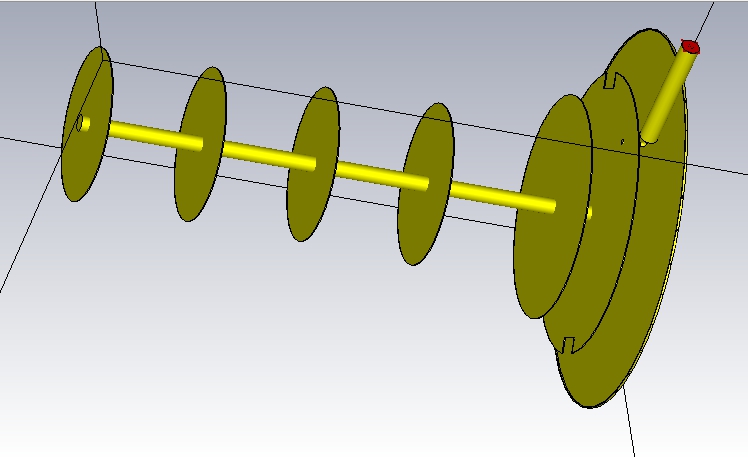

The diameters of the reflector, radiator and first director are 90, 68 and 54 mm, respectively, with 5.75mm and 9mm gaps in between.

Share this post


Link to post
Share on other sites

,,, a simpler and improved version...

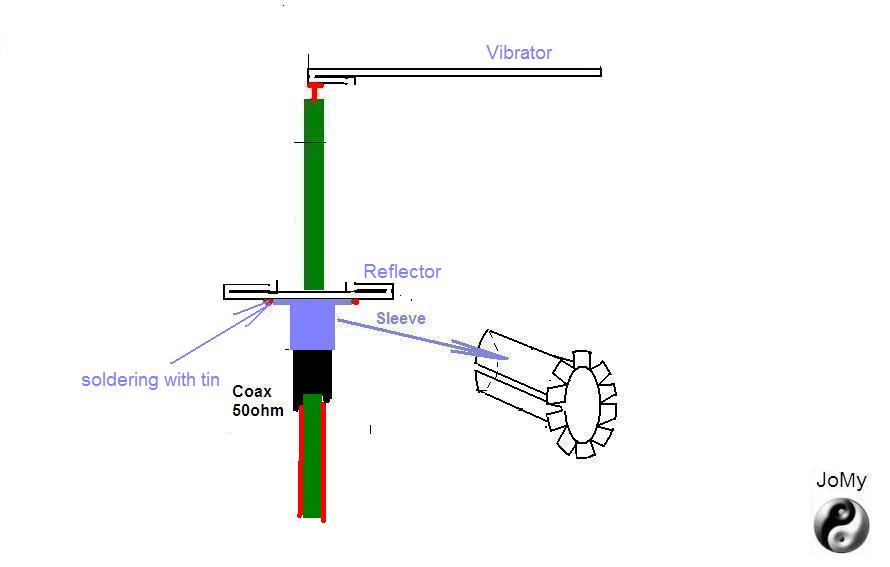

,,,notched vibrator and supplied directly with coaxial cable...!!!


Share this post


Link to post
Share on other sites
7 hours ago, Admin said:

,,, a simpler and improved version...




,,,notched vibrator and supplied directly with coaxial cable...!!!


Thank you sir for prompt reply.

Share this post


Link to post
Share on other sites

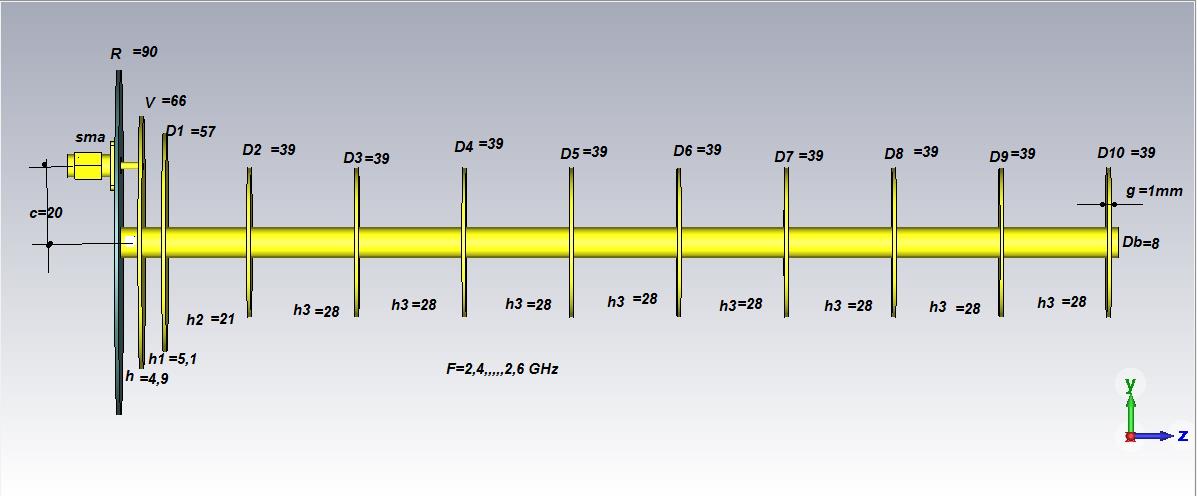

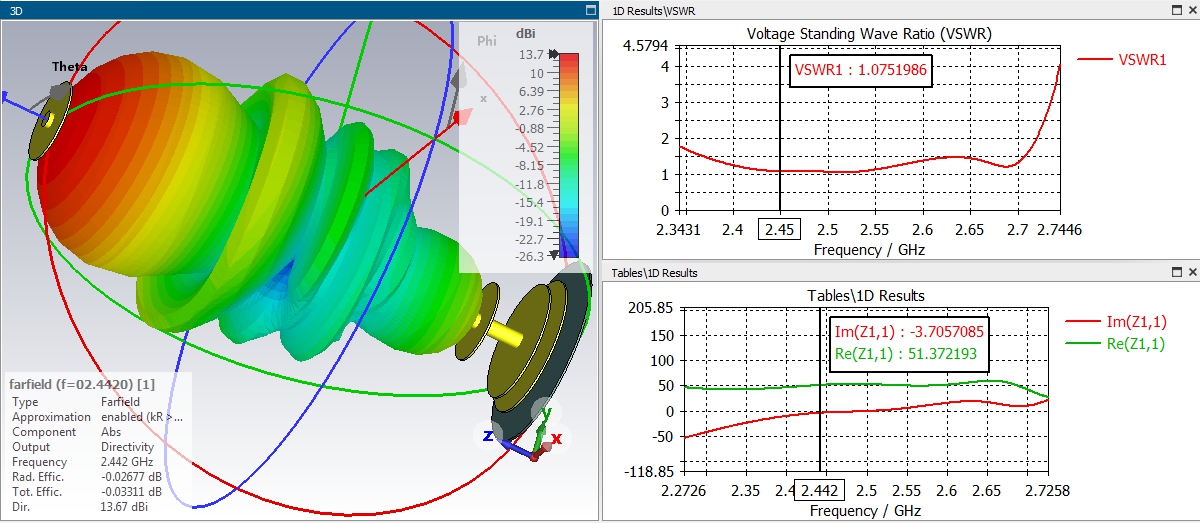

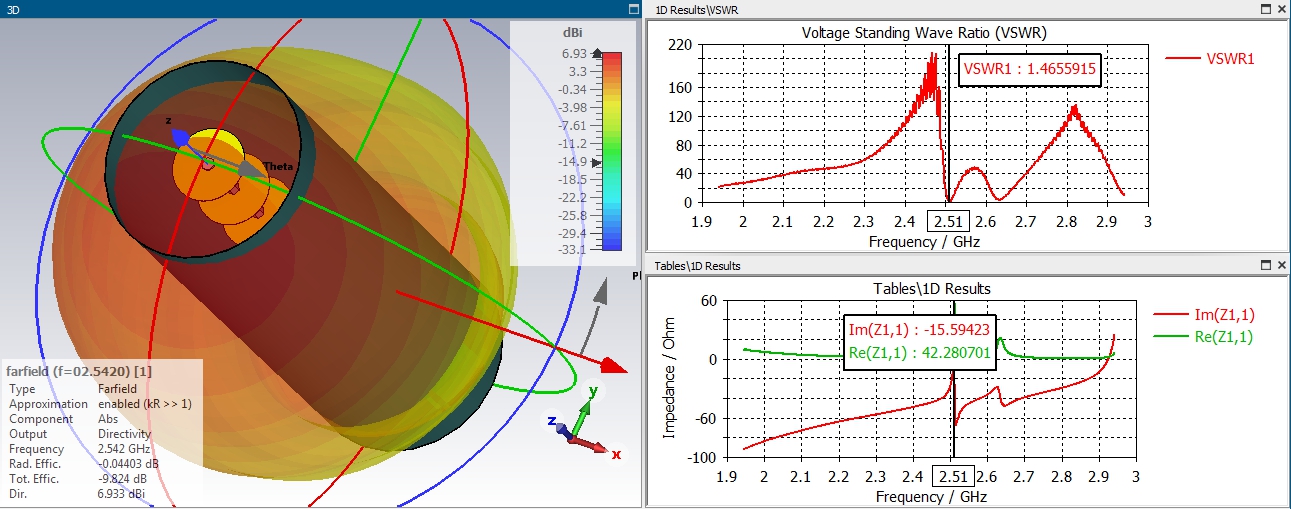

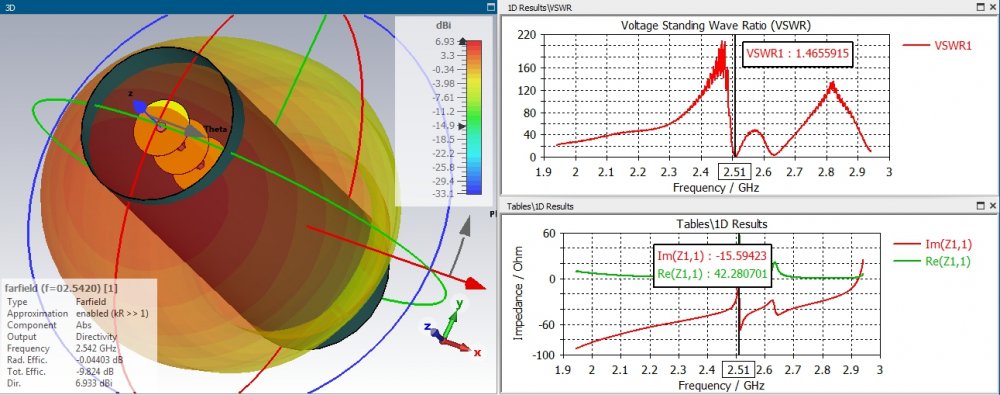

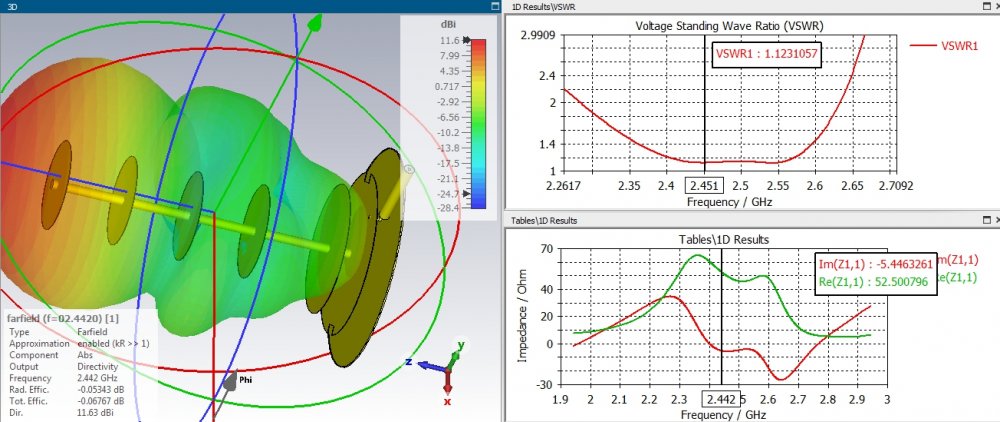

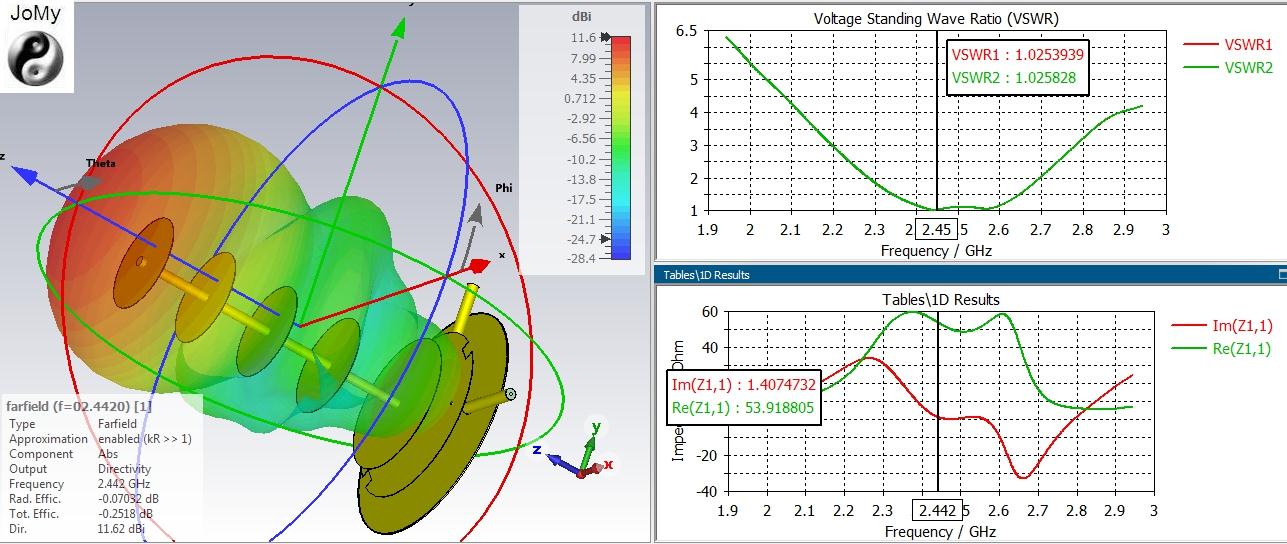

MiMo Bester after optimization....

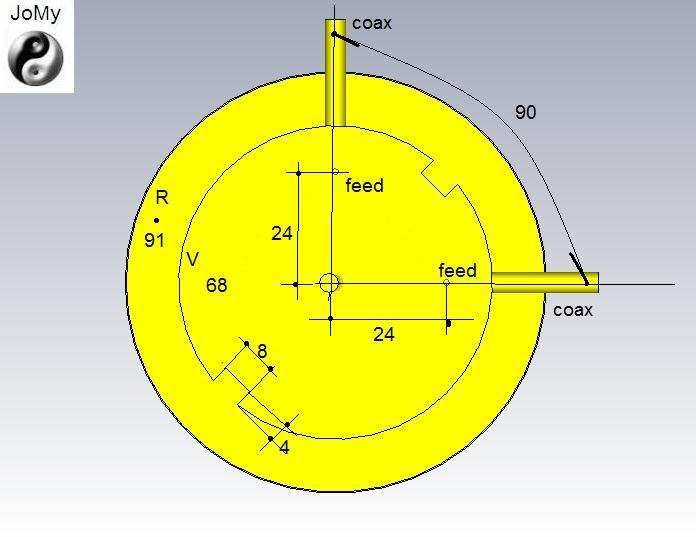

,,, constructive details ...





1 person likes this

Share this post


Link to post
Share on other sites

Can you please guide for rod base yagi for 2.4 g?

I have 3 mm long aluminum wire and 10mm thick wooden strip. Want to make yagi for it.

Edited by Guyton

Share this post


Link to post
Share on other sites
12 hours ago, Guyton said:

Can you please guide for rod base yagi for 2.4 g?

I have 3 mm long aluminum wire and 10mm thick wooden strip. Want to make yagi for it.

,,, here you can find what interests you ... !!!



Share this post


Link to post
Share on other sites

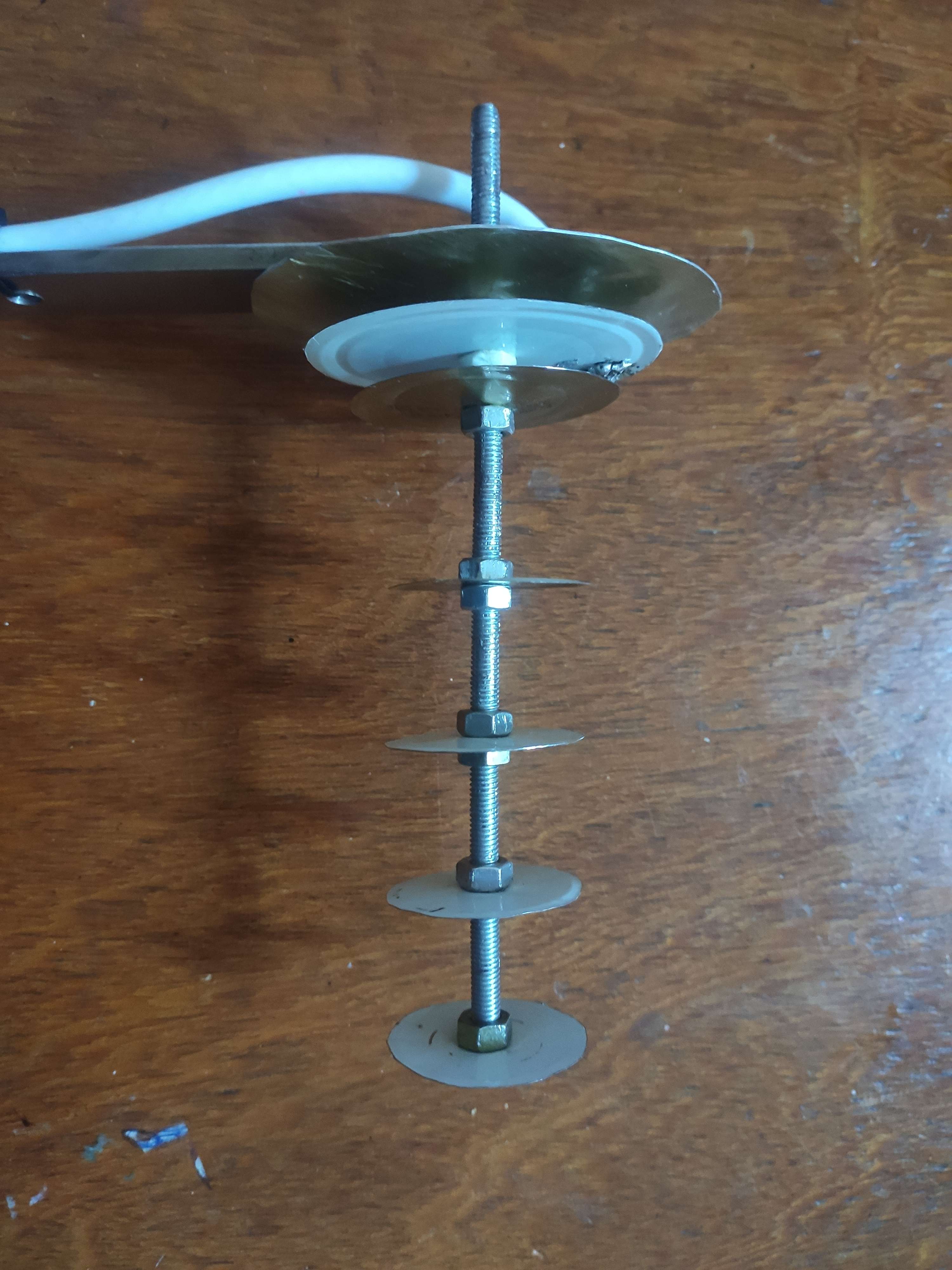

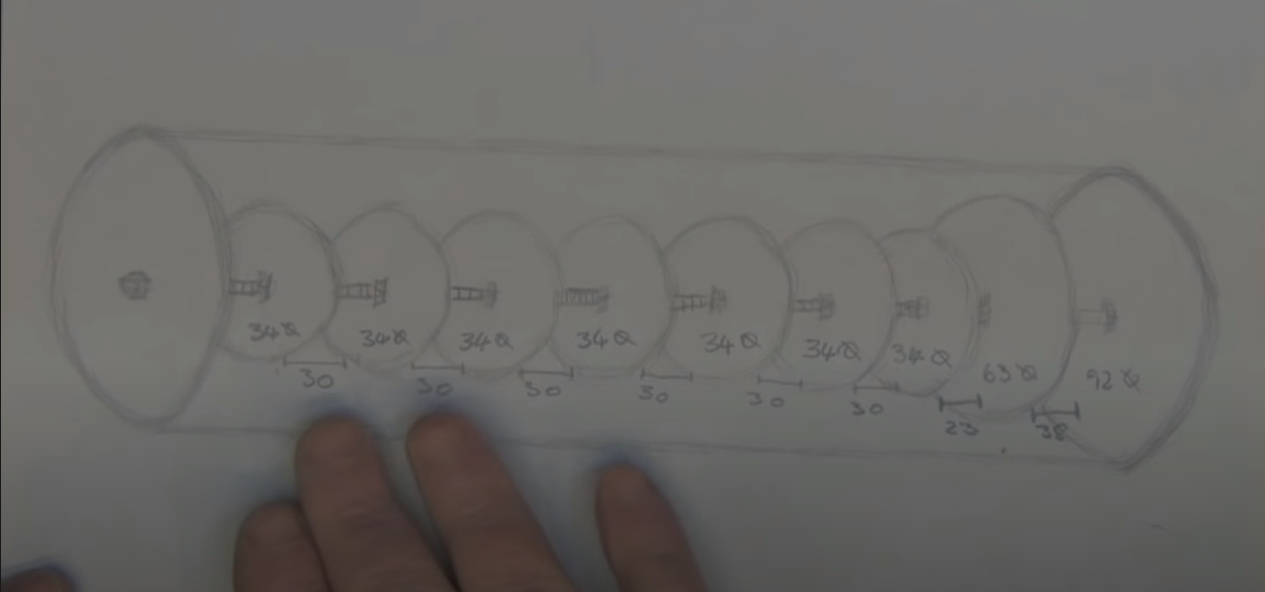

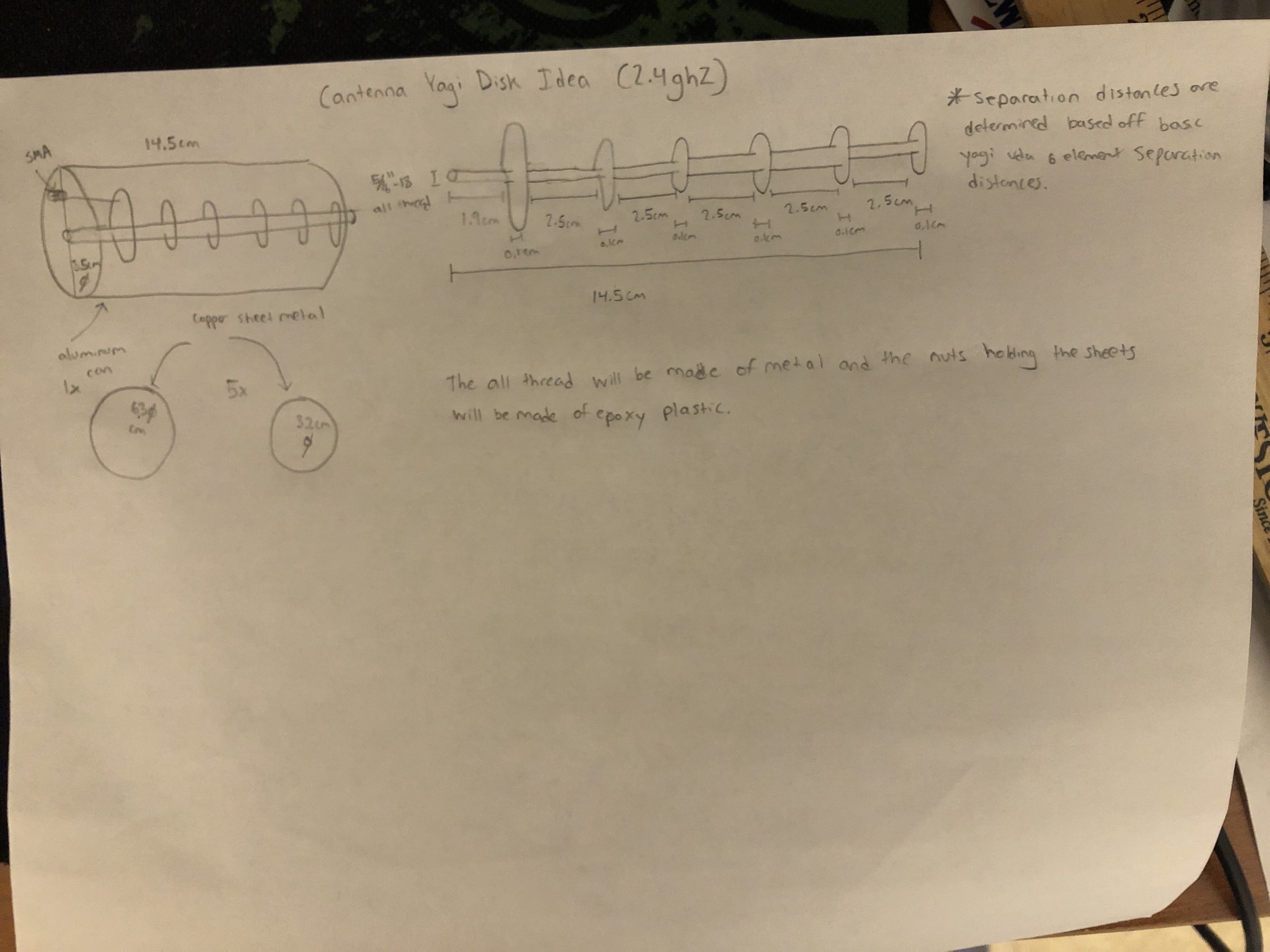

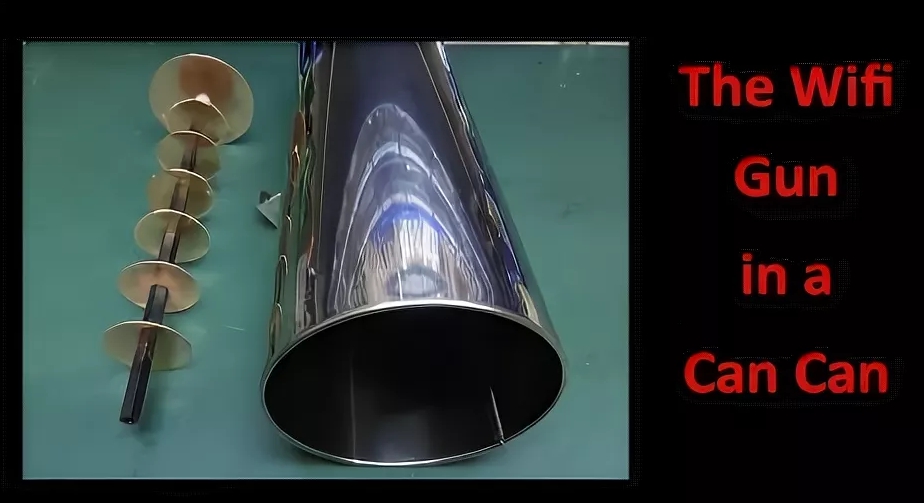

Could you guys tell me if you think this design could work? I am building a 2.4ghz yagi disk cantenna, but I am unsure of the separation distances and copper circles.


Edited by Fir3shoxk

Share this post


Link to post
Share on other sites

,,, it's stupid ... !!!


,,,, and mcneil's antenna is a fake...!!!!






1 person likes this

Share this post


Link to post
Share on other sites

Oh my thank you so much! What would you recommend then if I were to build a cantenna yagi disk?

Share this post


Link to post
Share on other sites

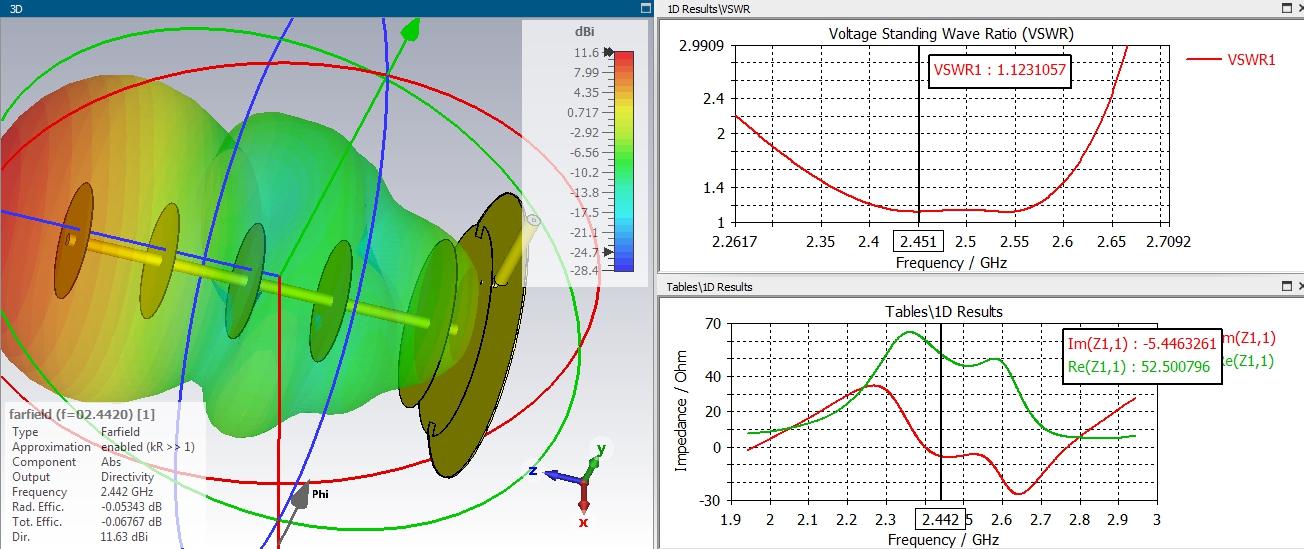

On 3/6/2020 at 10:46 AM, Admin said:

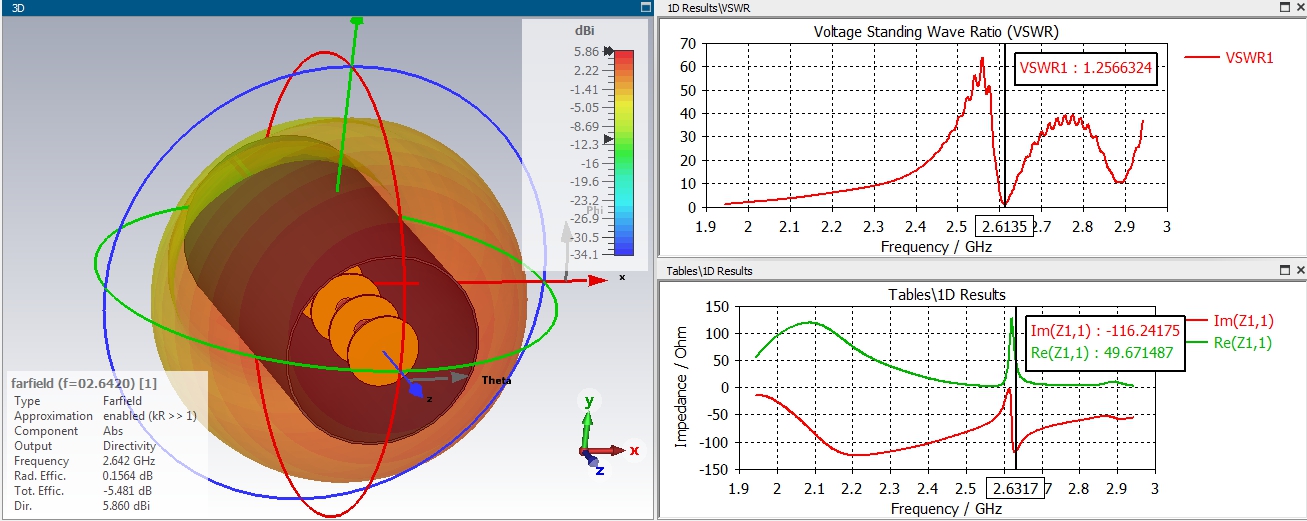

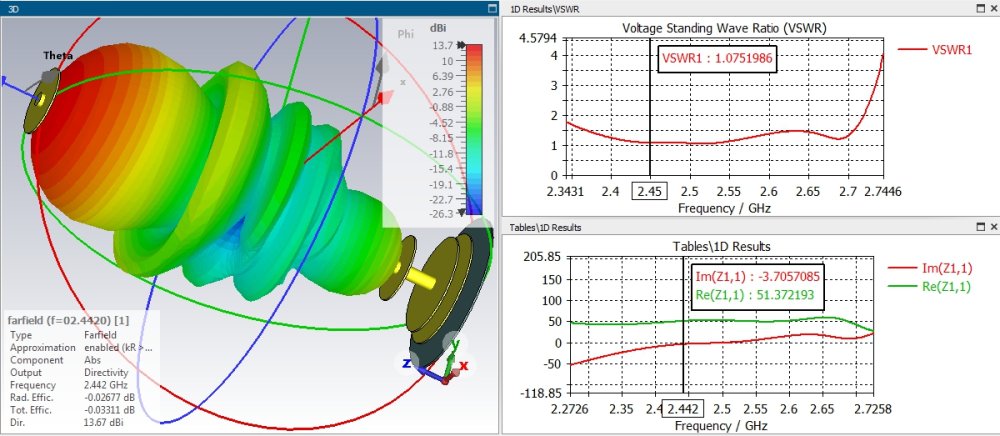

,,, this is a simulation with 8mm rod....

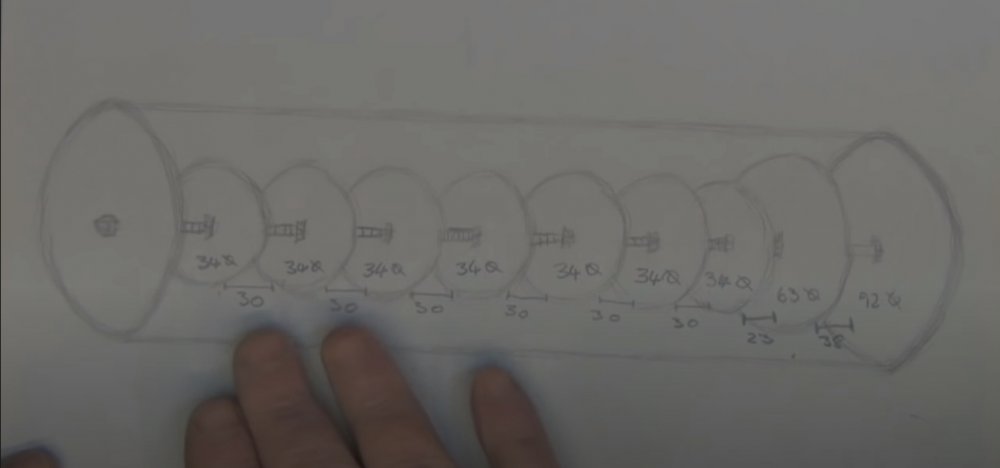

The constructive dimensions...


Does this design still work or is it flawed?

Share this post


Link to post
Share on other sites

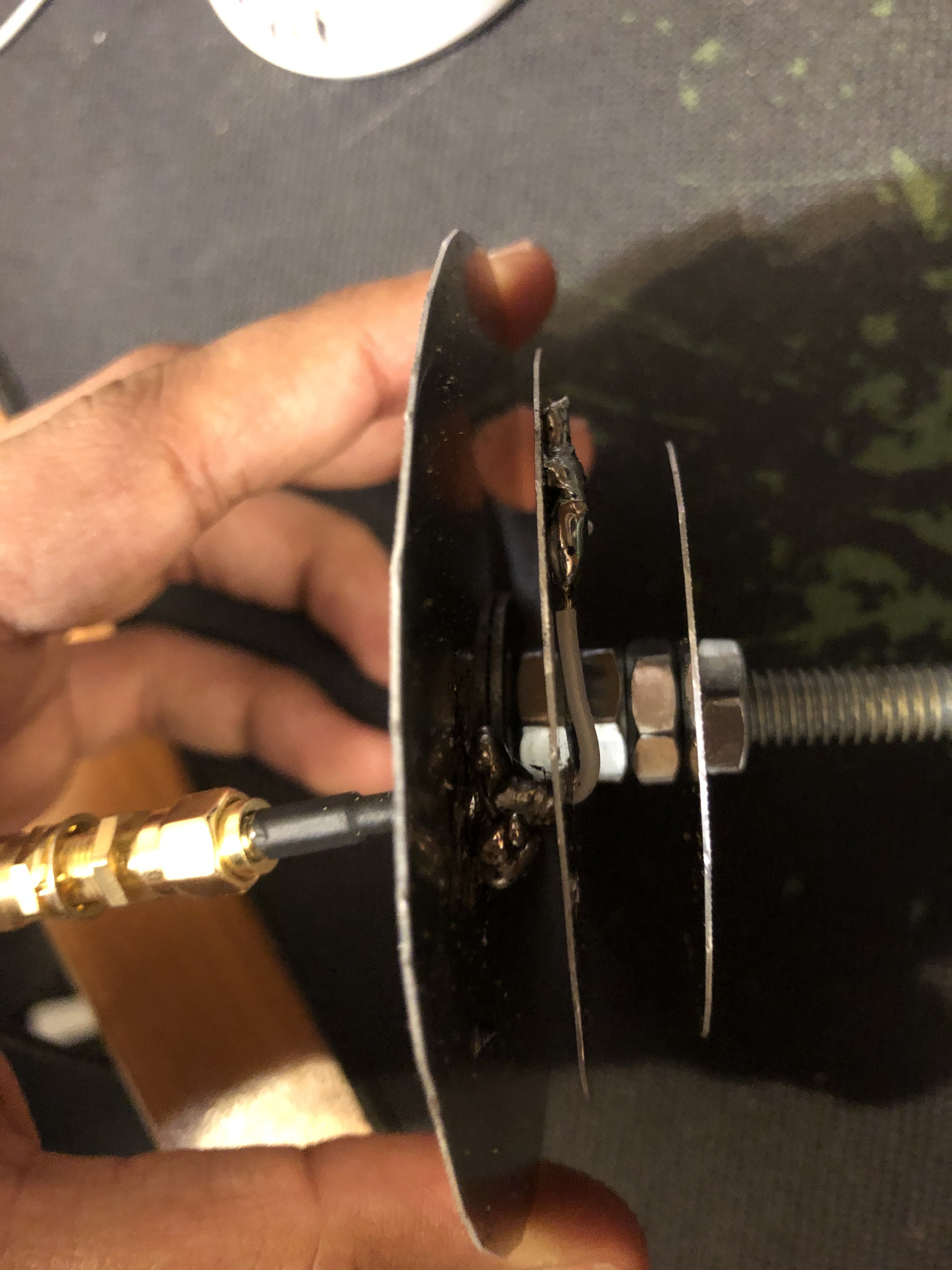

Am I correctly connecting the SMA to the antenna? For some reason it isn’t performing as good as I wanted it to.


Share this post


Link to post
Share on other sites

,,, not good, very rudimentary, still studying ,, !!!

Share this post


Link to post
Share on other sites
3 hours ago, Fir3shoxk said:

Am I correctly connecting the SMA to the antenna? For some reason it isn’t performing as good as I wanted it to.


try using the SMA connector.

Share this post


Link to post
Share on other sites

,, or do it yourself...








1 person likes this

Share this post


Link to post
Share on other sites

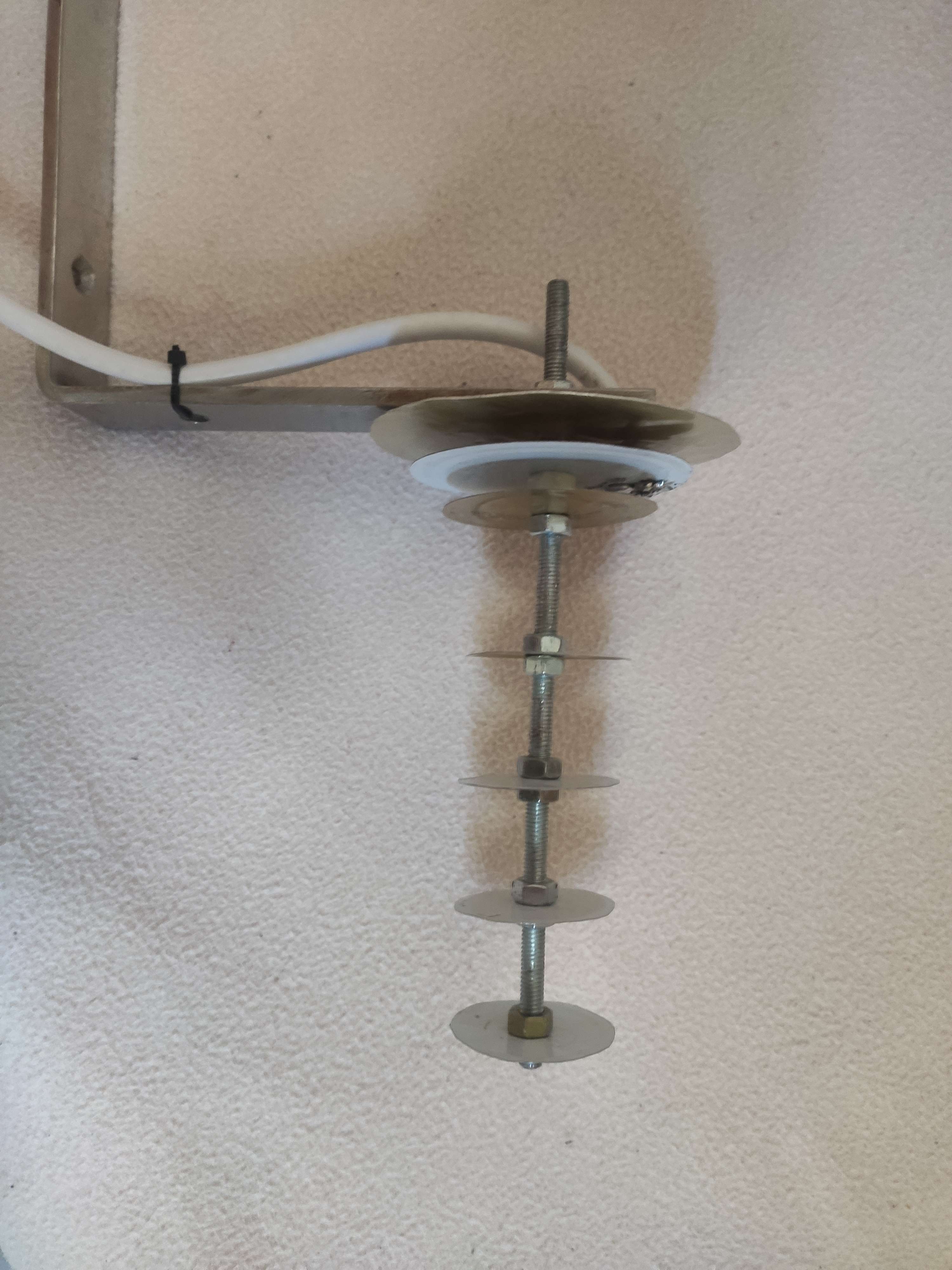

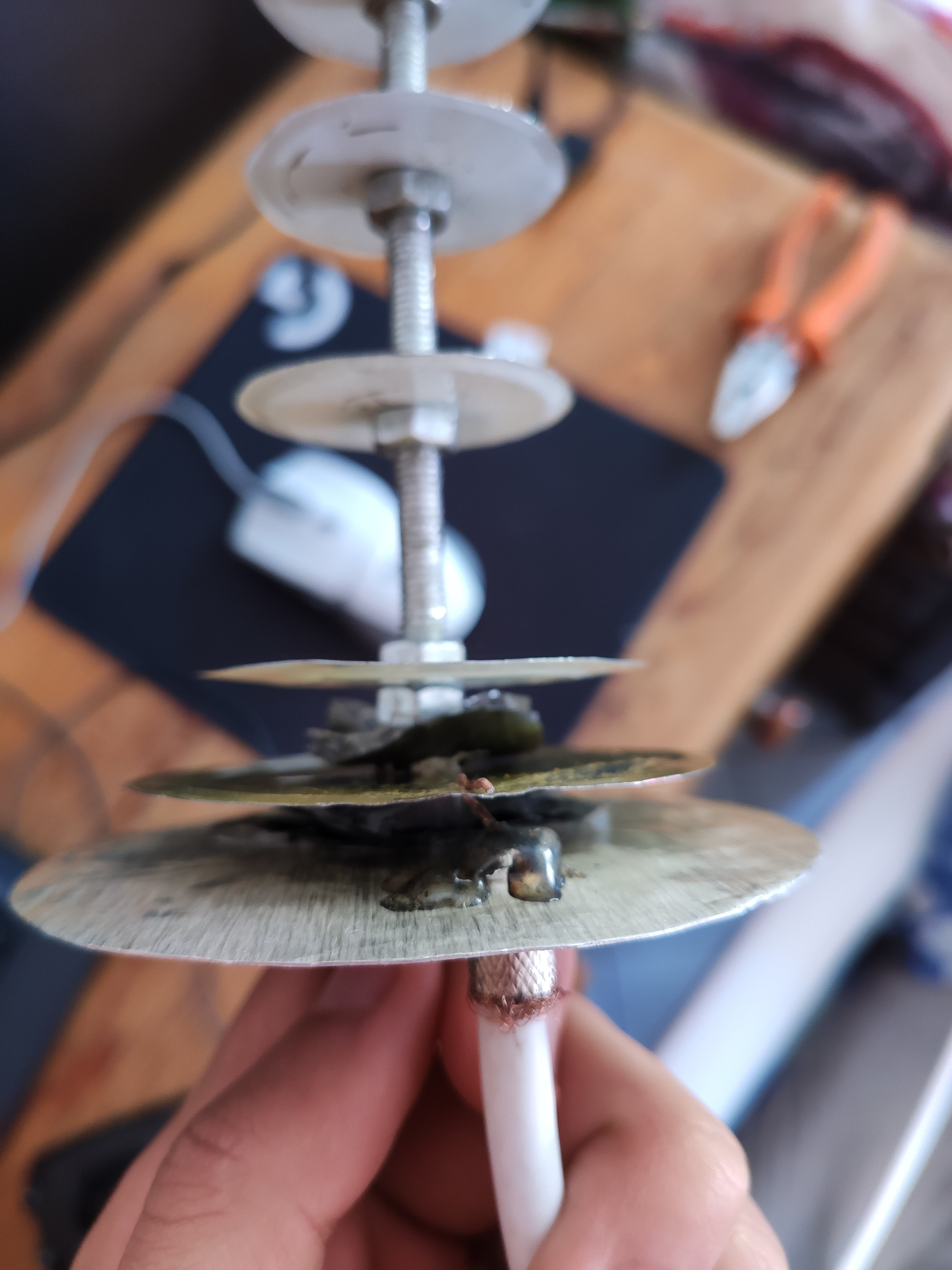

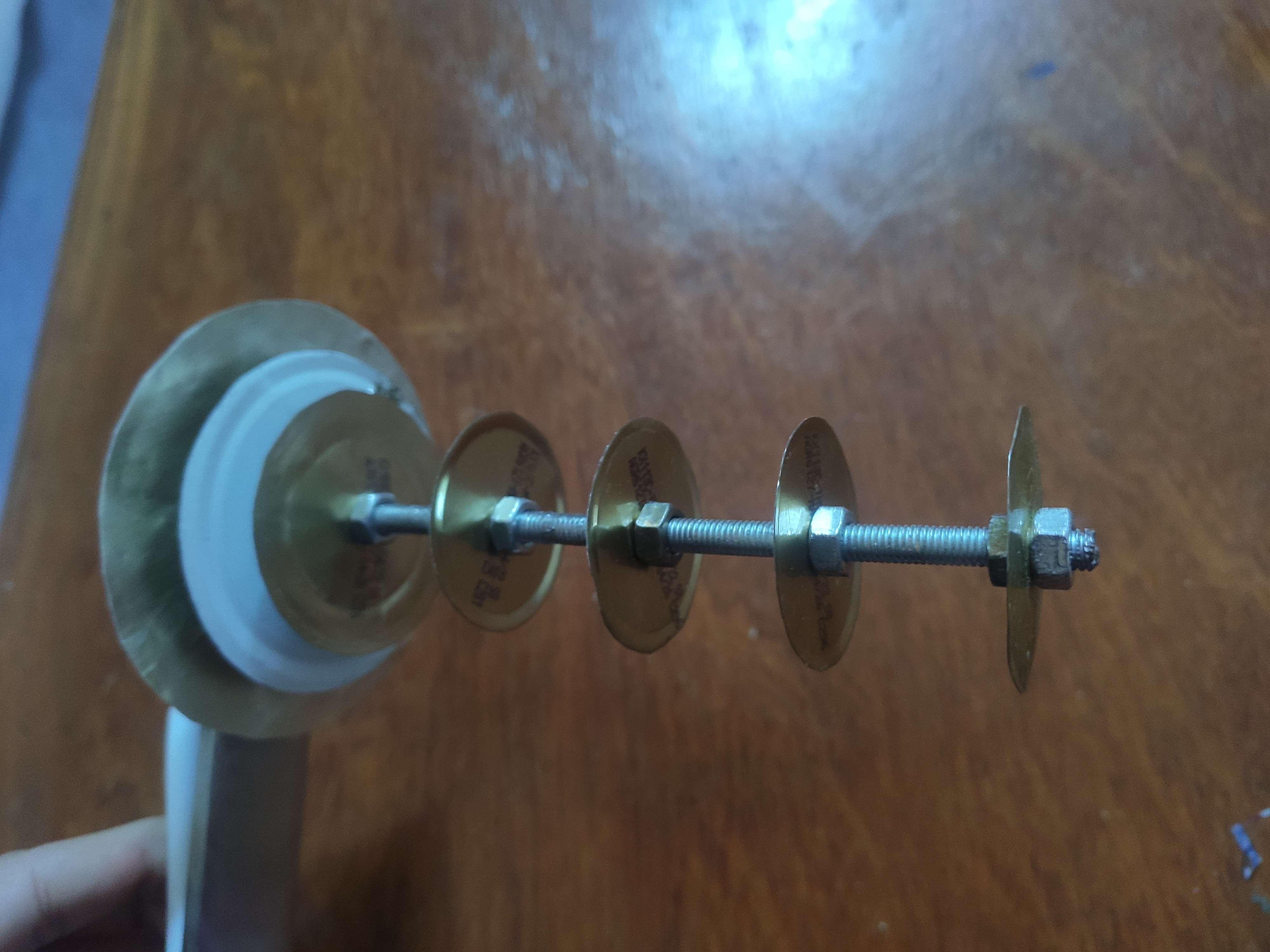

I finished making my antenna guys and it's working .
is there any thing i can improves it with like adding something Pringles can maybe ??




Share this post


Link to post
Share on other sites

,, the connection between radiator and vibrator is not visible...show it...!!!!

Share this post


Link to post
Share on other sites
On 1/28/2023 at 3:29 PM, Admin said:

,, the connection between radiator and vibrator is not visible...show it...!!!!

that black thing is just glue to make it more stable




Share this post


Link to post
Share on other sites

,,, such a thing cannot be done..!!!!
,,look better on this forum...!!

Share this post


Link to post
Share on other sites

,,,other dimensions, another wifi-shotgun antenna...



Share this post


Link to post
Share on other sites

In it something is. Thanks for the help in this question, can I too I can to you than that to help?

sassa

Share this post


Link to post
Share on other sites
On 1/30/2023 at 11:29 PM, Admin said:

,,,other dimensions, another wifi-shotgun antenna...



feedpoint (SMA) to the center c=20. is there any standard method on the calculation? most of the time it is about 1/3 to 1/4 from the R=90 in this case



Share this post


Link to post
Share on other sites

,,,the  feedpoint is chosen relative to the vibrator and not to the reflector...!!!

,,,as you can see, this is chosen to ensure a wide frequency band...!!!

Share this post


Link to post
Share on other sites
44 minutes ago, Admin said:

,,,the  feedpoint is chosen relative to the vibrator and not to the reflector...!!!

,,,as you can see, this is chosen to ensure a wide frequency band...!!!

oh ok, so the feedpoint location is it safe to say around ~ 1/3 length location from the center of the V? I still cannot find the correct formula for this. or is it  to be autocalculated in the CST software?

Share this post


Link to post
Share on other sites
