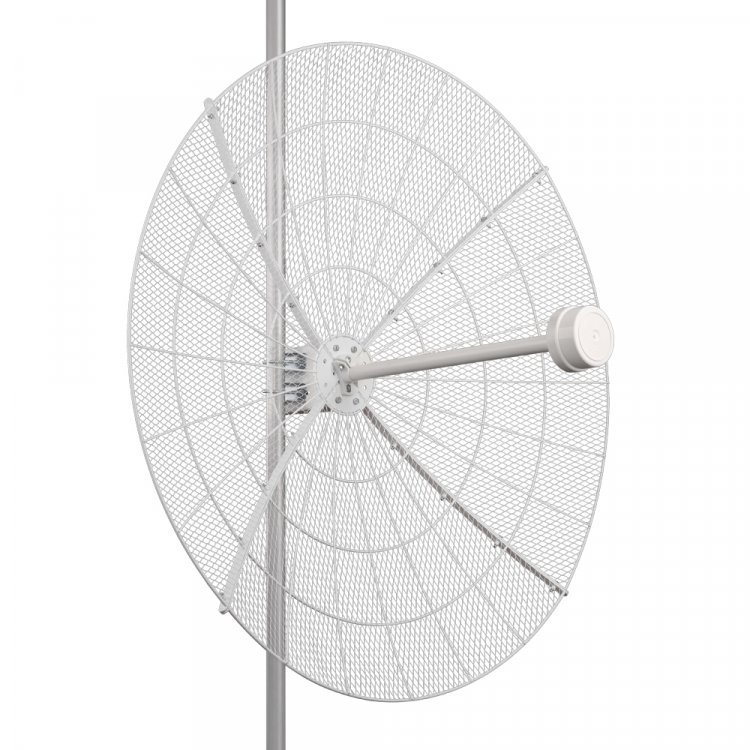

KNA27-1700 / 4200P - Parabolic 4G / 5G MIMO antenna 27 dB

[Admin 2546]

27 dB, MIMO, for router and modem
5G (N78), LTE (1800, 2100, 2300, 2600), Wi-Fi 2400
Frequency range: 1700 to 4200 MHz




[Harry36 140]

this antenna has nothing to do with KNA

[Admin 2546]

,,, yes, you're right, then this is ... ?? !!

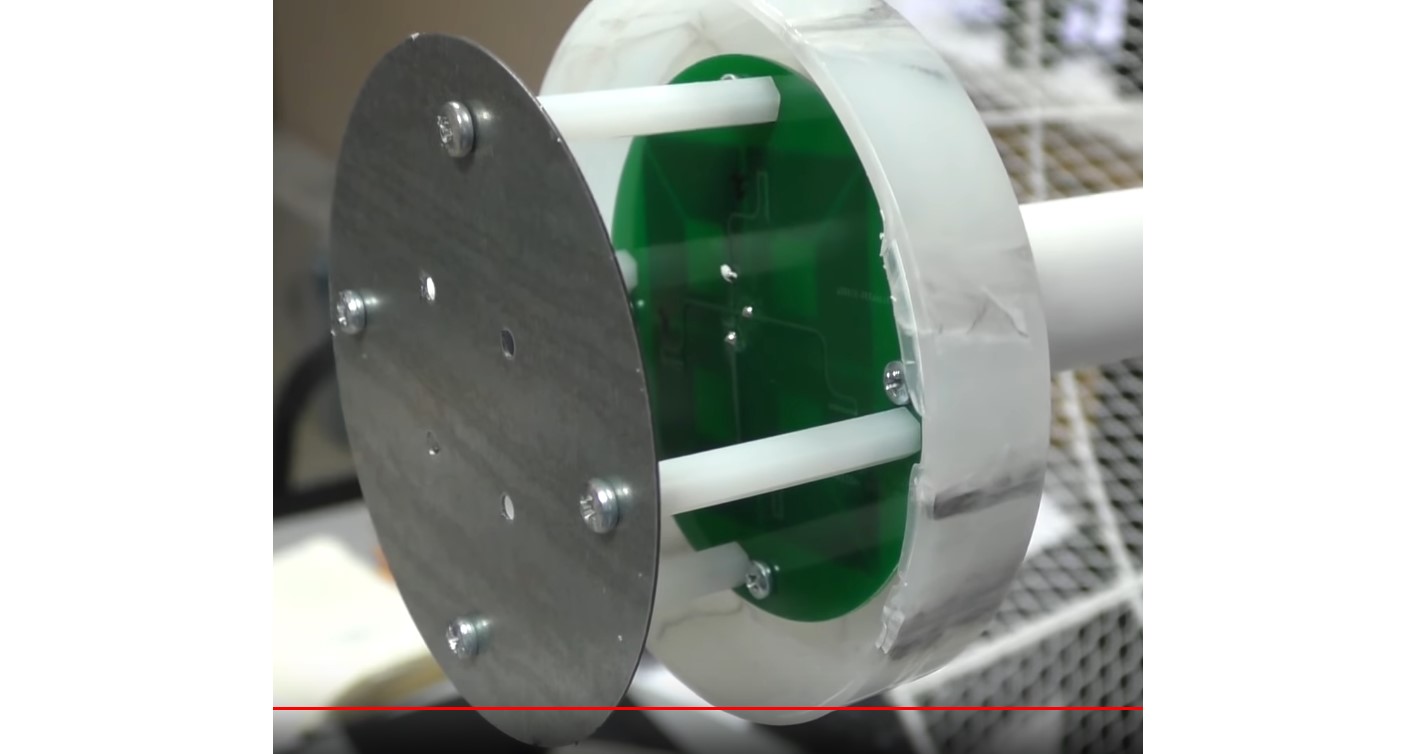

outdoor kna27 kna27-800/2700c gain signal booster gsm for 3g 4g LTE MIMO antenna

[Harry36 140]

48 minutes ago, Admin said:

,,, yes, you're right, then this is ... ?? !!

outdoor kna27 kna27-800/2700c gain signal booster gsm for 3g 4g LTE MIMO antenna



[Harry36 140]

wswr 3.5. ☹️

[Admin 2546]

,,, do you have the dimensions ... ???

[Harry36 140]

KNA27-1700 / 4200P

Edited November 22, 2021 by Harry36

[Harry36 140]

5 minutes ago, Admin said:

,,, do you have the dimensions ... ???

Yes. No dimension balun(((

[clanon 247]

mobe pics to https://www.wifi-antennas.com/topic/1762-no-name-antenna-27-dbi/?page=2...i think

[Harry36 140]

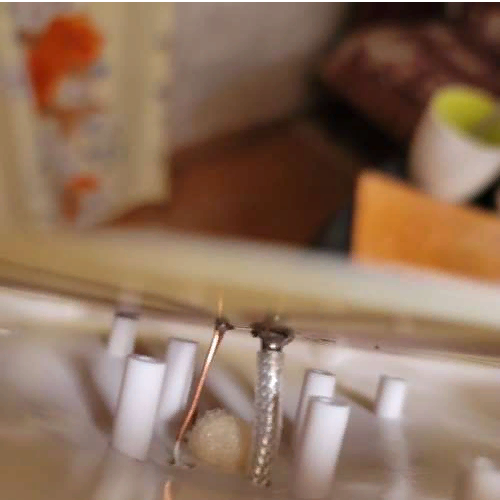

[Harry36 140]

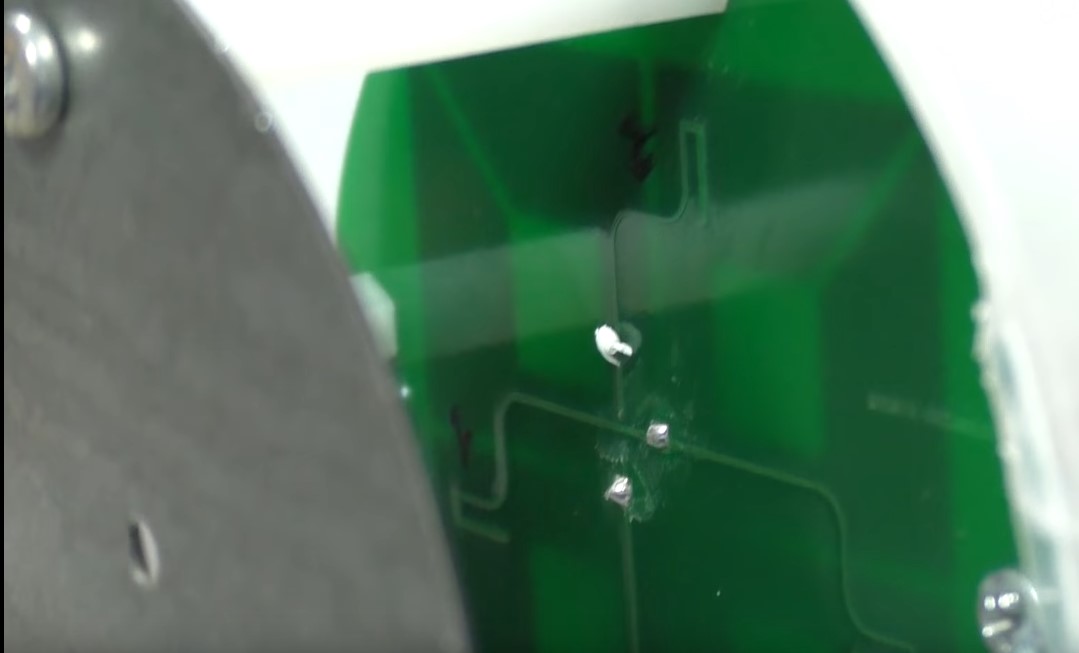

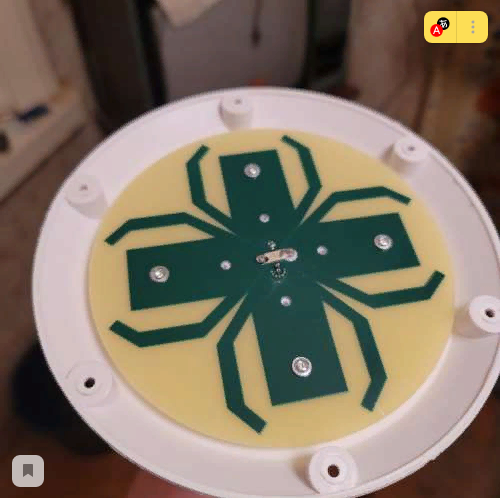

As always, Crox's firm screwed up. The development of 2018 was stolen as an irradiator.

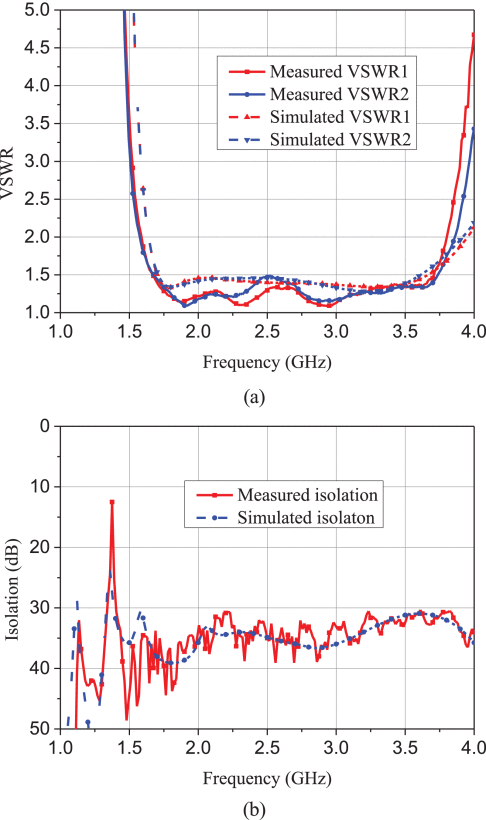

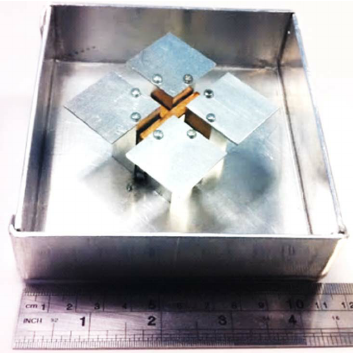

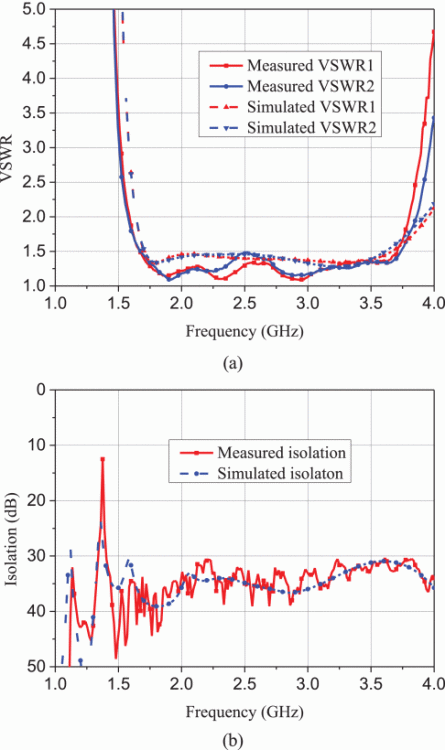

https://ieeexplore.ieee.org/document/8410517

where are the differences from the original?))

[clanon 247]

easier to STEAL than develop-invent...

nice bandwidth... could it be SHIFTED to 1 ghz (LTE)...? Who needs 3,5ghz...

Edited December 7, 2021 by clanon

[Harry36 140]

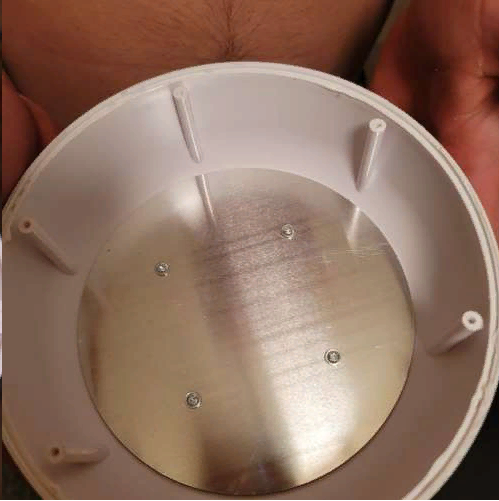

Unfortunately, without the exact dimensions (although I do not see any differences from the original), I do not presume to judge the frequency range, perhaps the reduction of the reflector and the plastic case with the rod played a role. But we all see the fact of theft without the slightest alteration with our own eyes. This is a very sad page in the history of the company.

[Harry36 140]

34 minutes ago, clanon said:

easier to STEAL than develop-invent...

nice bandwidth... could it be SHIFTED to 1 ghz (LTE)...? Who needs 3,5ghz...



The 3.3-4.2 GHz band is used for 5G technologies.

n77 TDD 3700 C-Band 3300 - 4200

n78 TDD 3500 C-Band n77 3300 - 3800

n79 TDD 4700 C-Band 4400 - 5000

[clanon 247]

26 minutes ago, Harry36 said:

Unfortunately, without the exact dimensions (although I do not see any differences from the original), I do not presume to judge the frequency range, perhaps the reduction of the reflector and the plastic case with the rod played a role. But we all see the fact of theft without the slightest alteration with our own eyes. This is a very sad page in the history of the company.

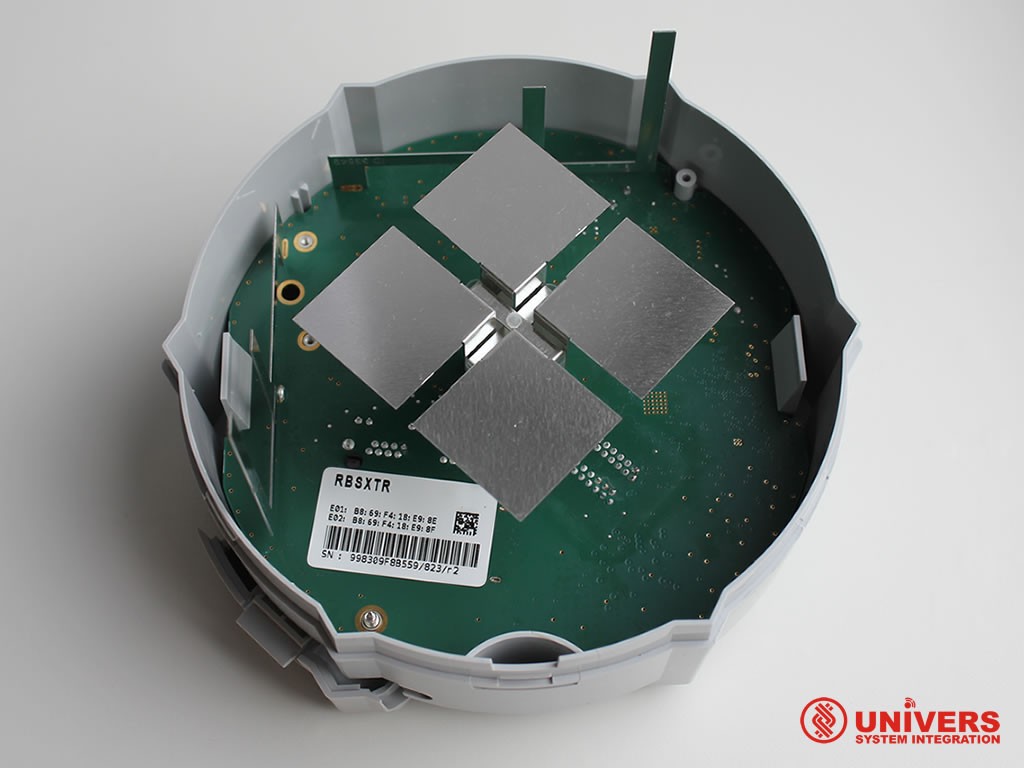

i catched Mikrotik stealing BUT developing over the theft here

[Harry36 140]

18 hours ago, clanon said:

i catched Mikrotik stealing BUT developing over the theft here

yes, this is not the only fact with Mikrotik



Spoiler



[Samsterino2.4 2]

Hello Admin Sir,

Do you have dimensions for such irradiator?

Edited September 25, 2022 by Samsterino2.4

[Admin 2546]

,,,hi buddy...!!!

,,,no, I don't have it, but something similar can be improvised..!!!

[Samsterino2.4 2]

I love it when you say that!

[Harry36 140]

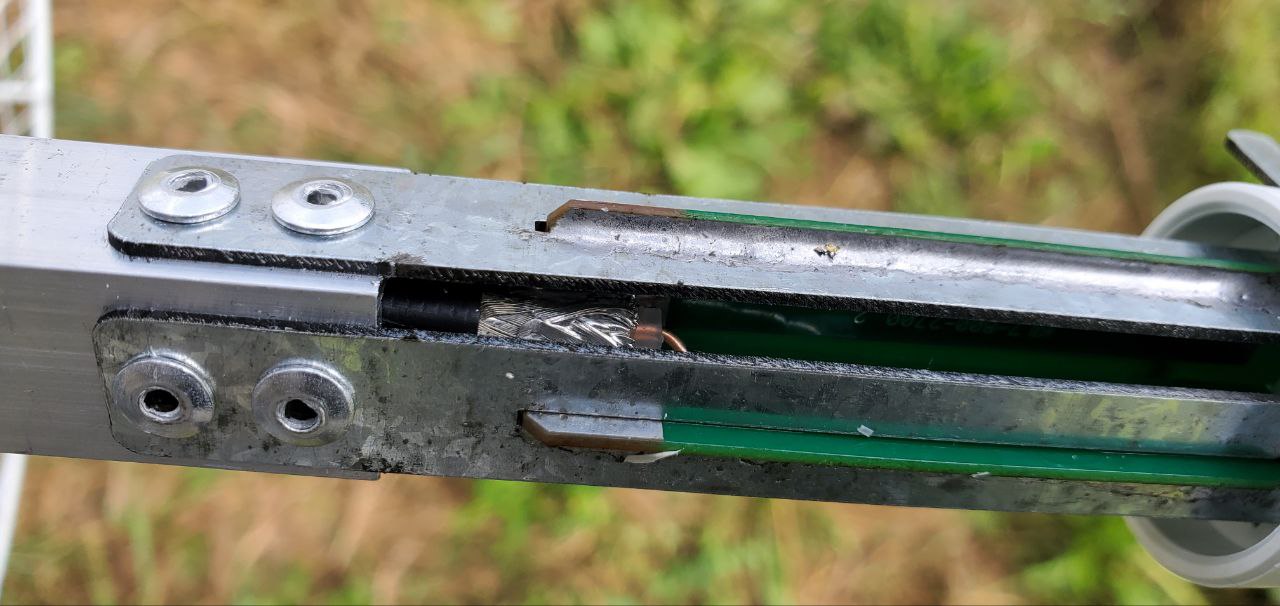

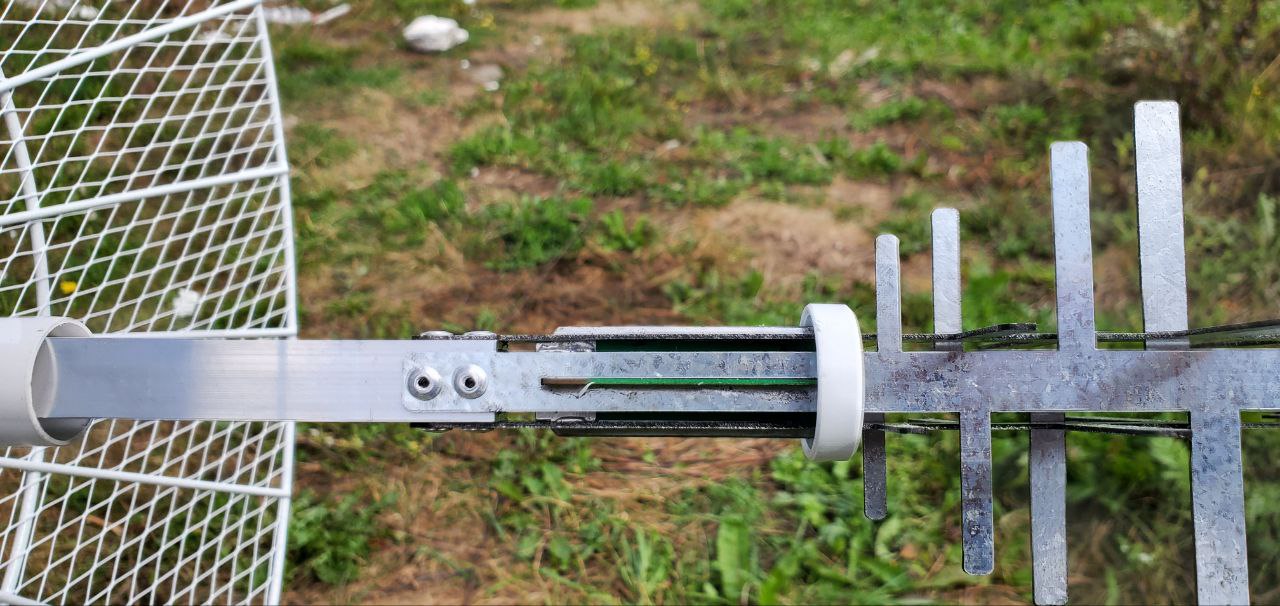

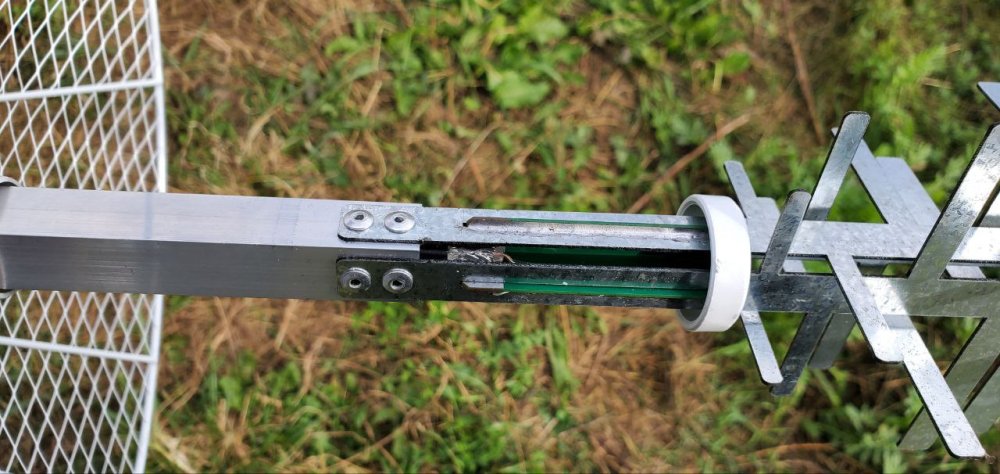

On 22.11.2021 at 4:30 PM, Harry36 said:

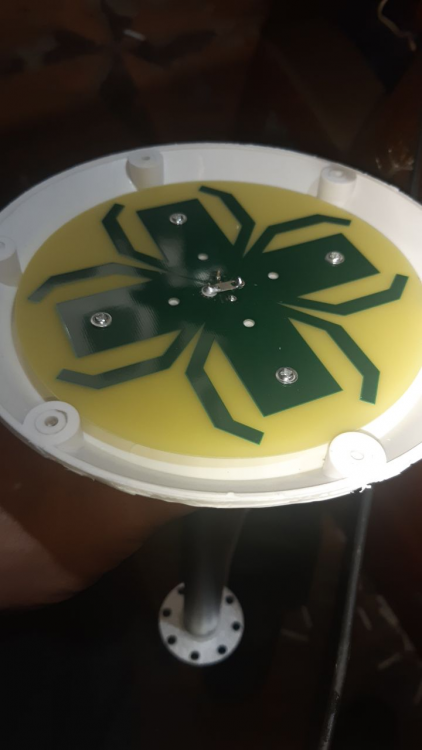

outdoor kna27 kna27-800/2700

without plastic protection
