Directional panel 4G MIMO antenna KAA20-2600

Started by Admin,

Posted

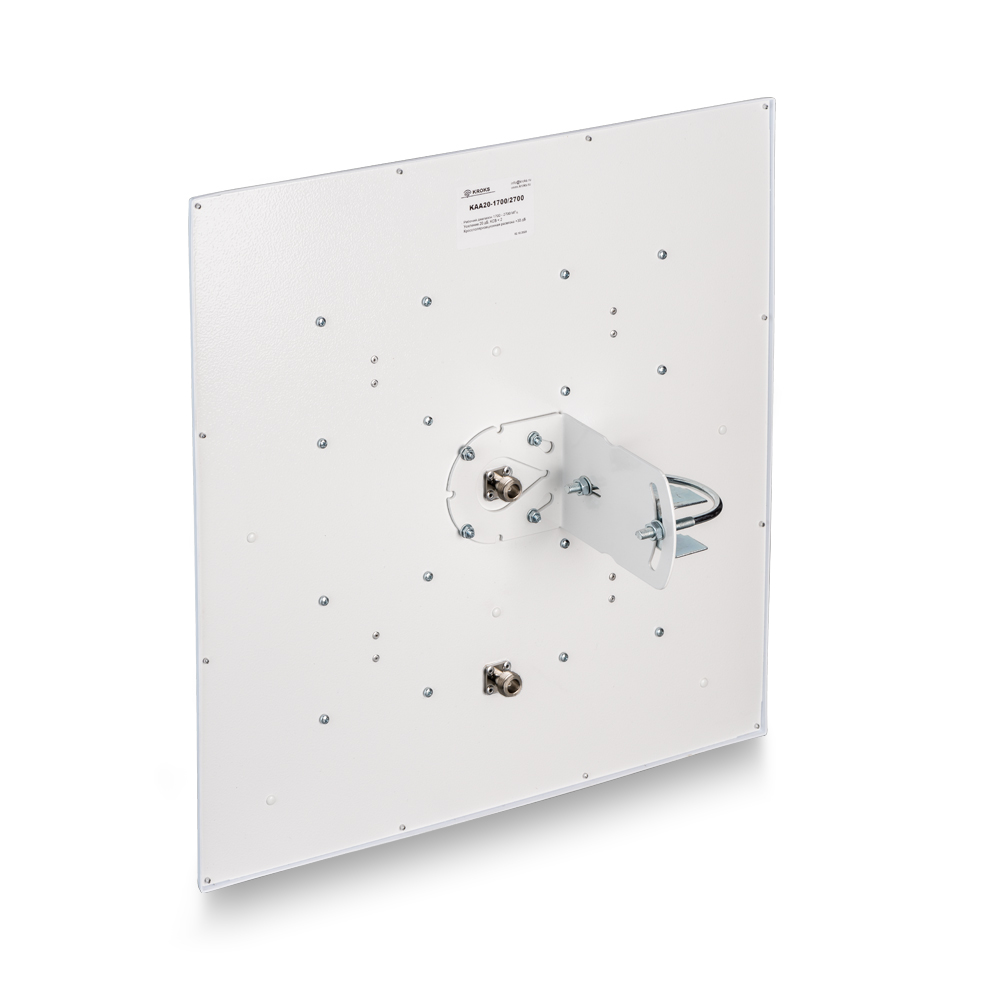

 KROKS KAA20-2600

Dimensions (length , width , height ), mm 445  x   445  x   80

Antenna characteristics:

Operating frequency range, MHz 2400-2700

Antenna gain, dB 20

VSWR in the operating frequency range, not more than 1.7

Polarization Линейная

Input impedance, Ohm 50

Maximum input power, W 10

Connector N- female F- female

Permissible wind load, m/s 30

Operating temperature range, °C -40 … +50

Maximum permissible humidity, % 100

Port isolation, not less, dB 30

Communication standard WiFi 2400 LTE 2600

Type of mounting на трубу

Execution type Панельная
