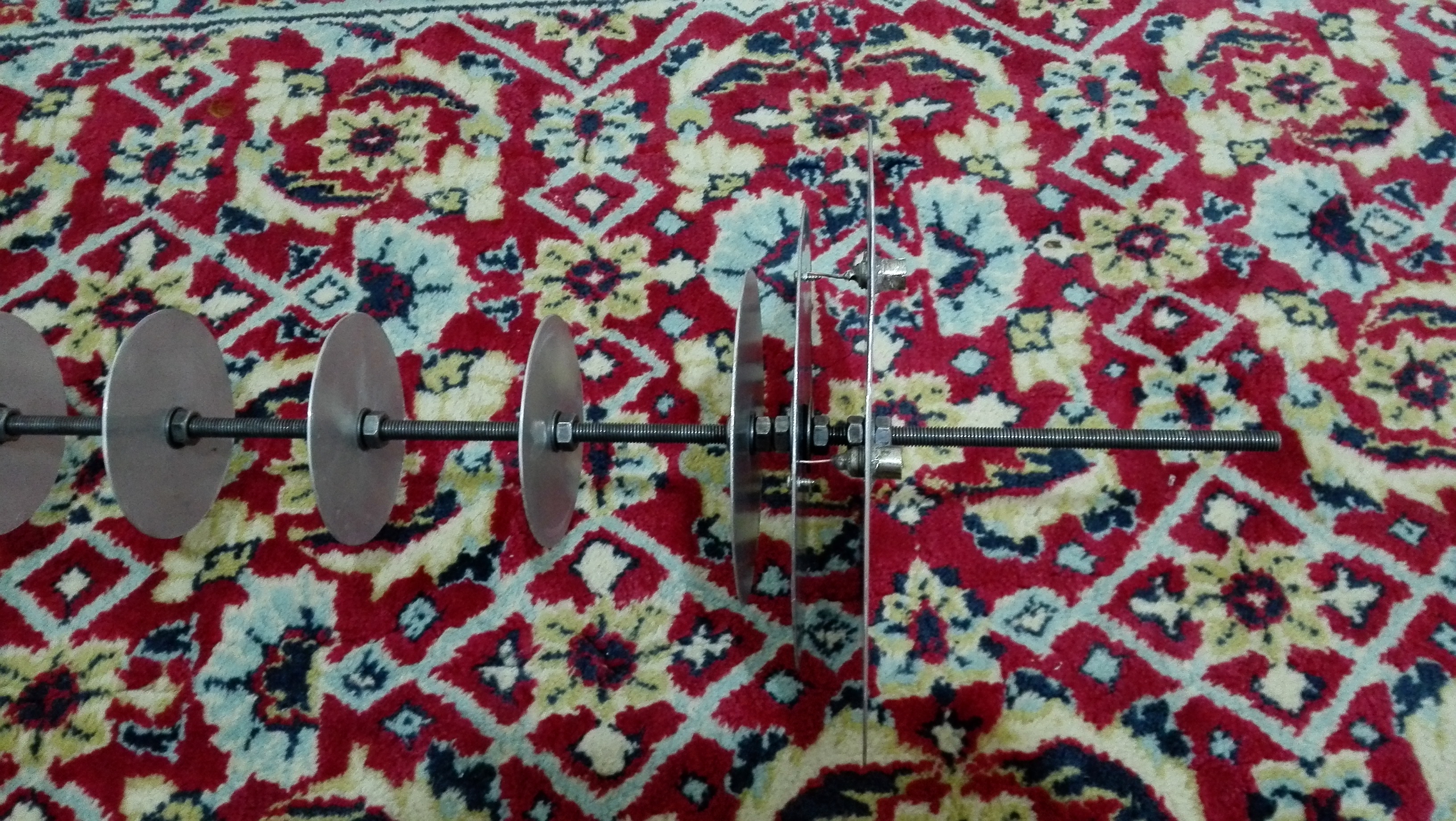

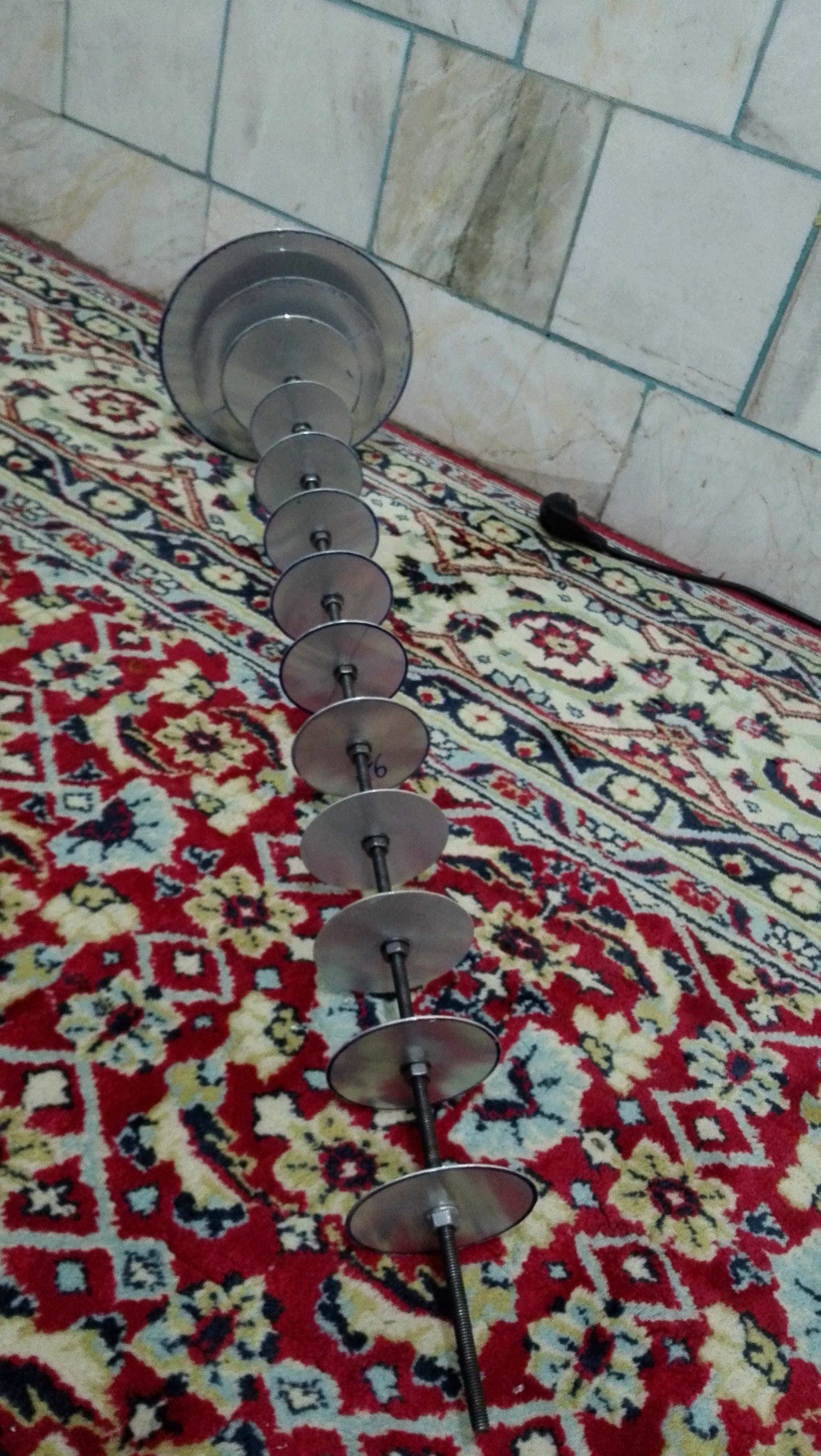

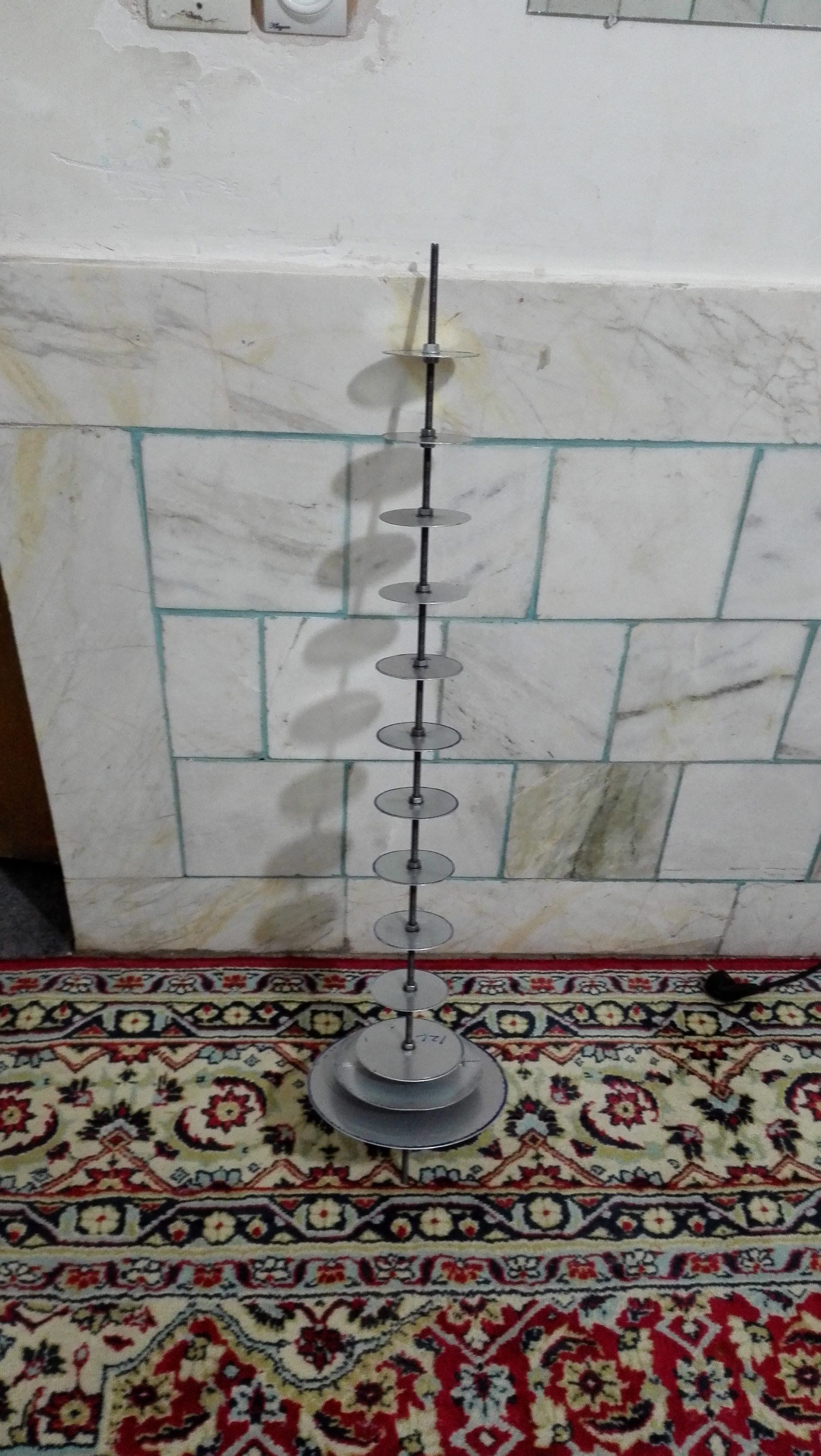

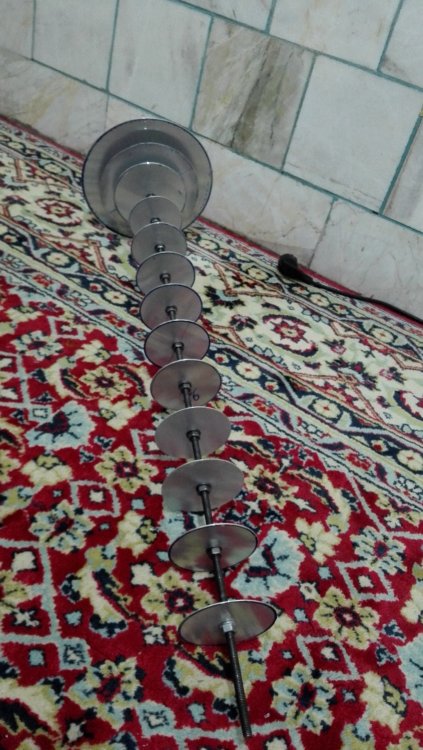

mobile antenna 2G-3G-4G Antenna(850Mhrz)

[babak_p 1]

whit huawei router B612s-25d







[babak_p 1]

coax cable: rg 59(cca zar cabl kerman)

lenght: 12 m

distance to cell tower :2 km

but big montain front ...

in my vilage 3G not recive by any cellphone.

first 3G stable connection in village.

?......?

?

[Admin 2545]

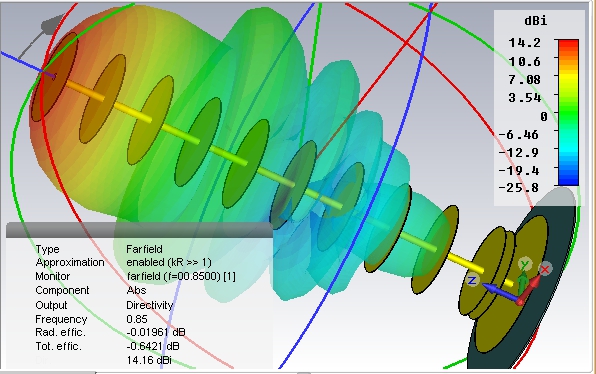

"okay, I agree with you, but you have to know that the antenna is not good enough ....!!!

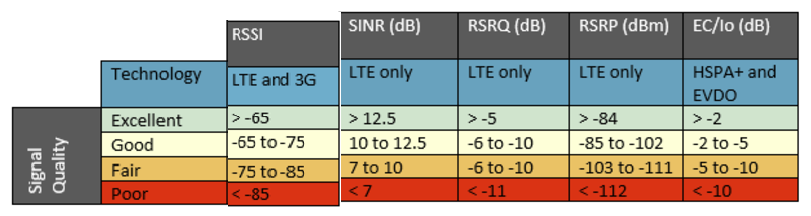

Look at this...

[Admin 2545]

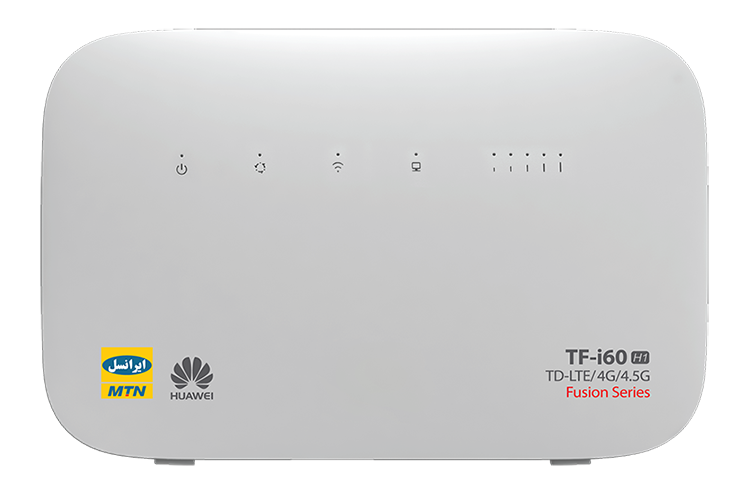

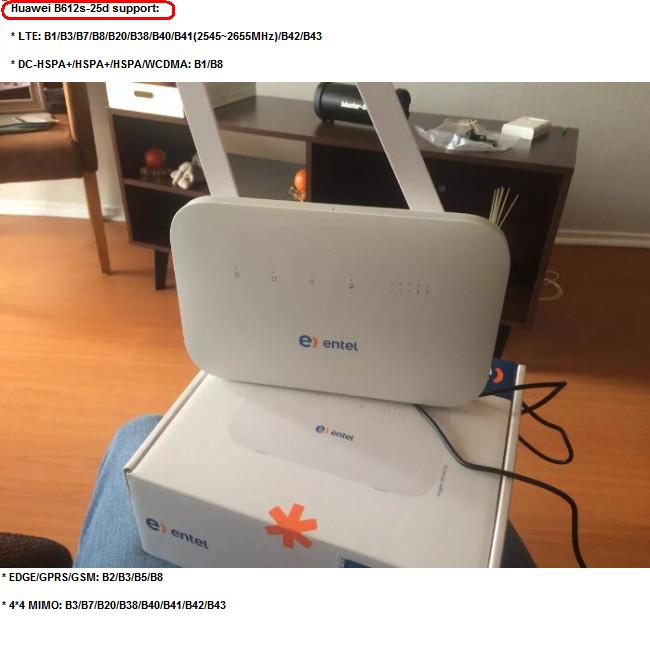

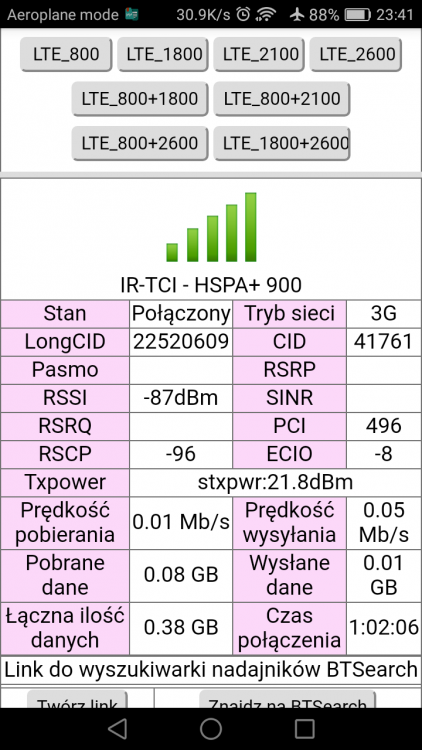

This is your modem ...



,,,in which frequency band you work with him....???

DC-HSPA+/HSPA+/HSPA/WCDMA: B1/B8...????

[babak_p 1]

Yes, dear admin

https://www.4gltemall.com/blog/tag/huawei-b612s-25d/

https://www.4gltemall.com/huawei-b612-4g-lte-cpe.html


Of course, this router in Iran is sold by this operator (Irancell) under the name tf-i60 - that I could unlock it to use other sim operator.

[babak_p 1]

https://www.4gltemall.com/downloads/dl/file/id/167/product/1329/huawei_b612_lte_cpe_user_manual.pdf
https://www.4gltemall.com/downloads/dl/file/id/168/product/1329/huawei_b612s_25d_lte_cpe_product_description_specs_datasheet.pdf

[babak_p 1]

On 6/23/2018 at 10:51 PM, Admin said:

"خوب، من با شما موافقم، اما شما باید بدانید که آنتن به اندازه کافی خوب نیست .... !!!

به این نگاه ...



The reason for the loss of the signal is the presence of a big mountain, as well as the connection of the rg59 cable with the combination of aluminum and copper and a weak connector to the cable and modem

[Admin 2545]

But in all of this,
is the antenna calculated for the 850MHz frequency...???

,,,and it is advisable to use two SiSo antennas instead of a single MiMo antenna...!!!



[Admin 2545]

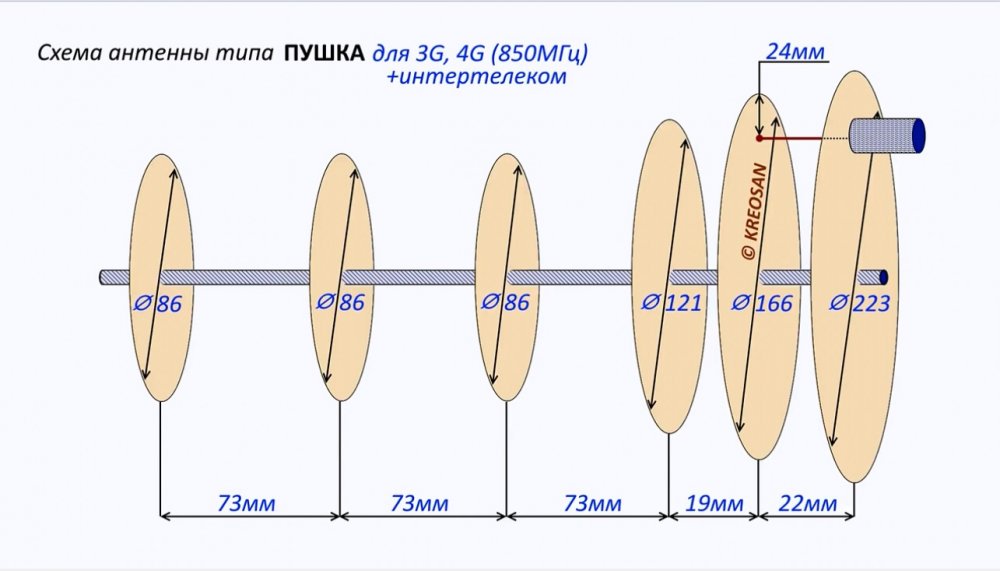

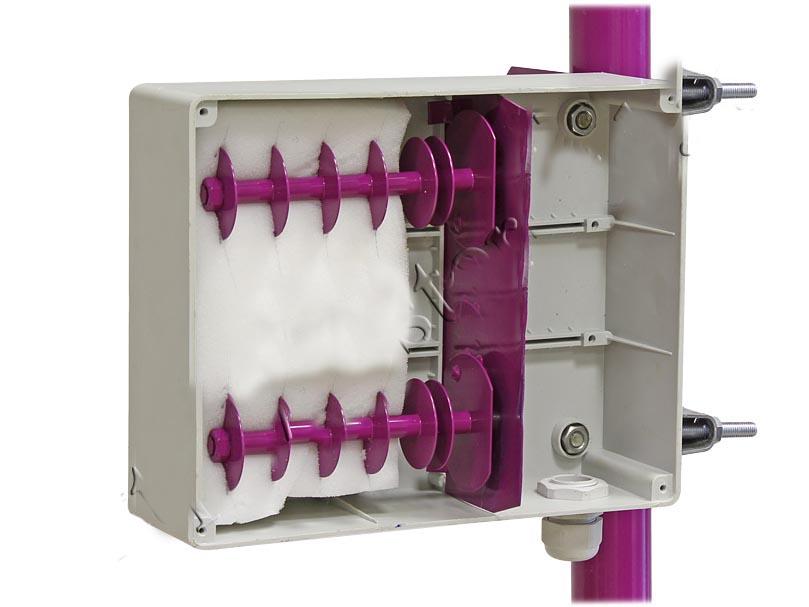

Two antennas of this type...

[babak_p 1]

Thanks for you

Do you have the size and dimensions of this Antenna and the texts of Antenna?



[lrg 30]

9 hours ago, babak_p said:

Thanks for you

Do you have the size and dimensions of this Antenna and the texts of Antenna?



what's your distance to the base station? in my opinion, the worst option would be an irradiator and a working mirror.

[Admin 2545]

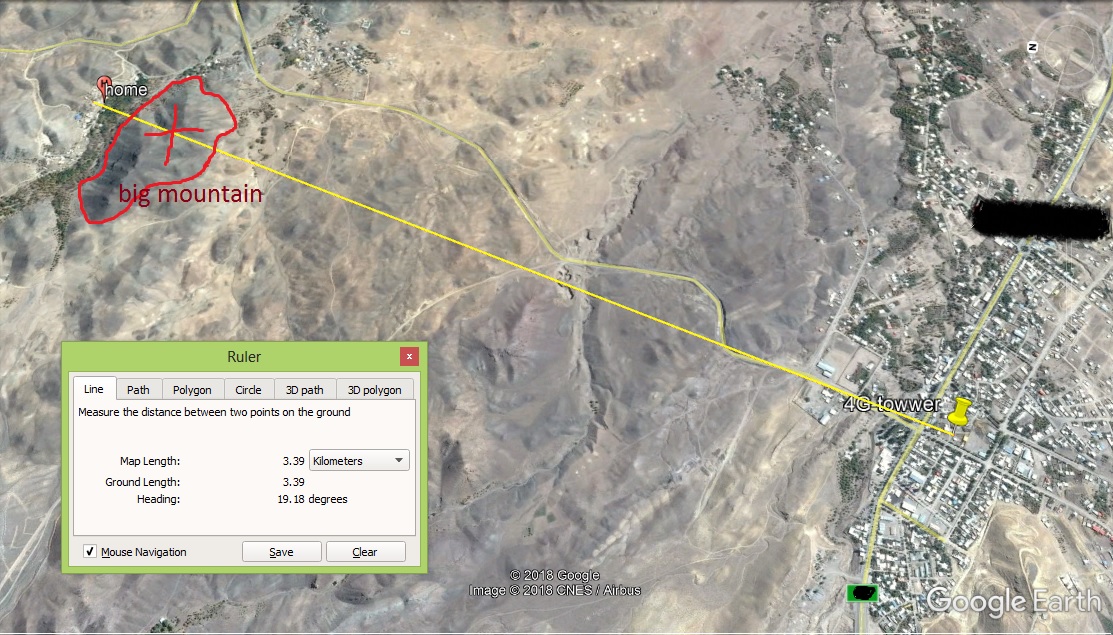

Irg, see the above image, Google Earth...!!!

[babak_p 1]

I wanted the dimensions of this antenna

[SuperGut 0]

От криасана пушкарь (на 6 и 7 дисков) вабще бредовый, сильно уступает бэстэру

From kriasana, Pushkar (on 6 and 7 discs) is delusional, much inferior to BESTER...!



,,, please, speak in English ... !!!

[EvgenijK 0]

 Who has the correct drawing with dimensions for bdm 900 mimo and 75 ohm cable?

[Admin 2545]

,,,yes, but it must be taken into account that for the frequency of 900 MHz, the diameter of the reflector is around 250mm...!!!

[EvgenijK 0]

20 minutes ago, Admin said:

,,,да, но надо учитывать, что для частоты 900МГц диаметр рефлектора около 250мм...!!!



[Admin 2545]

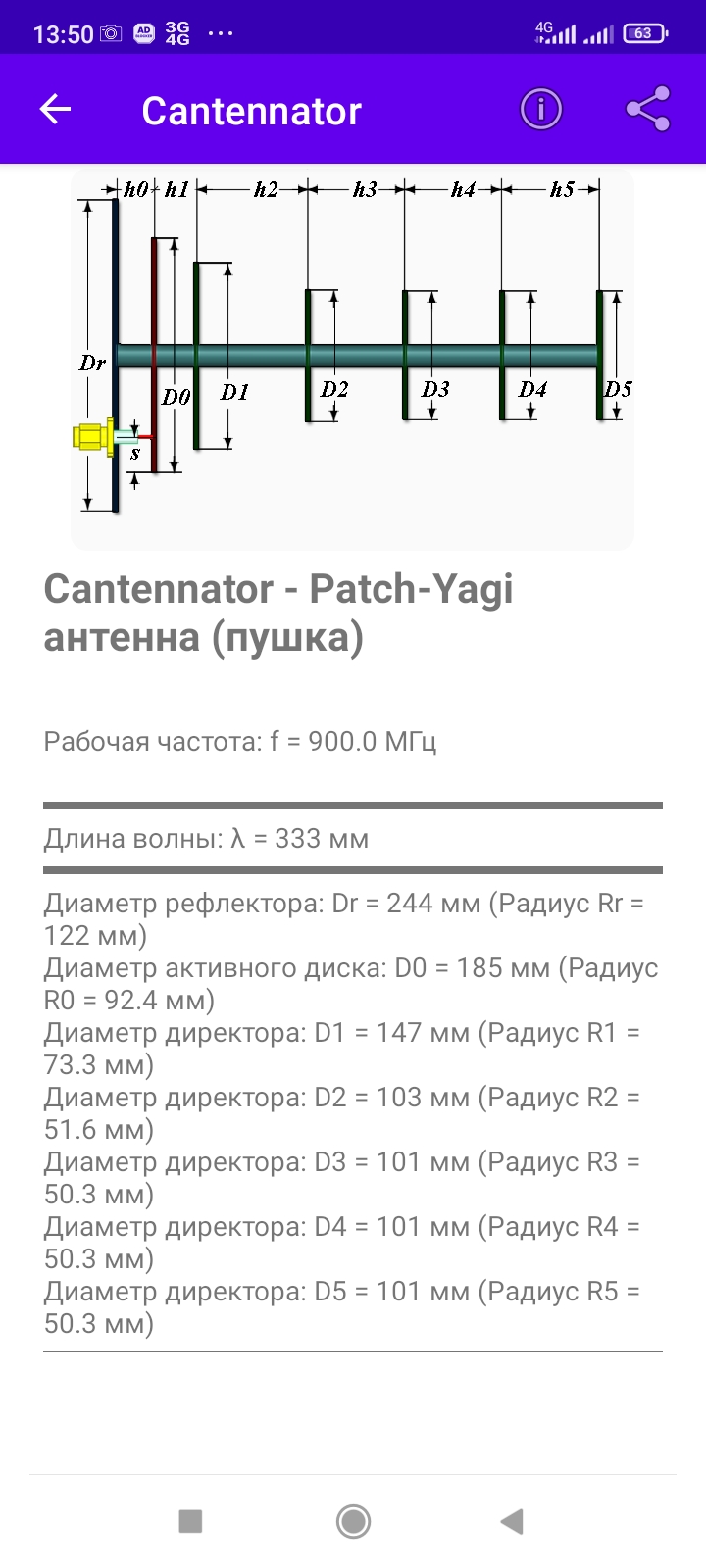

,,,the antennas after the Cantennator calculator, are not very good..!!!

[EvgenijK 0]

4 minutes ago, Admin said:

,,,антенны после калькулятора Cantennator, не очень..!!!

what are the correct sizes?

[Admin 2545]

On 5/14/2023 at 2:00 PM, EvgenijK said:

what are the correct sizes?

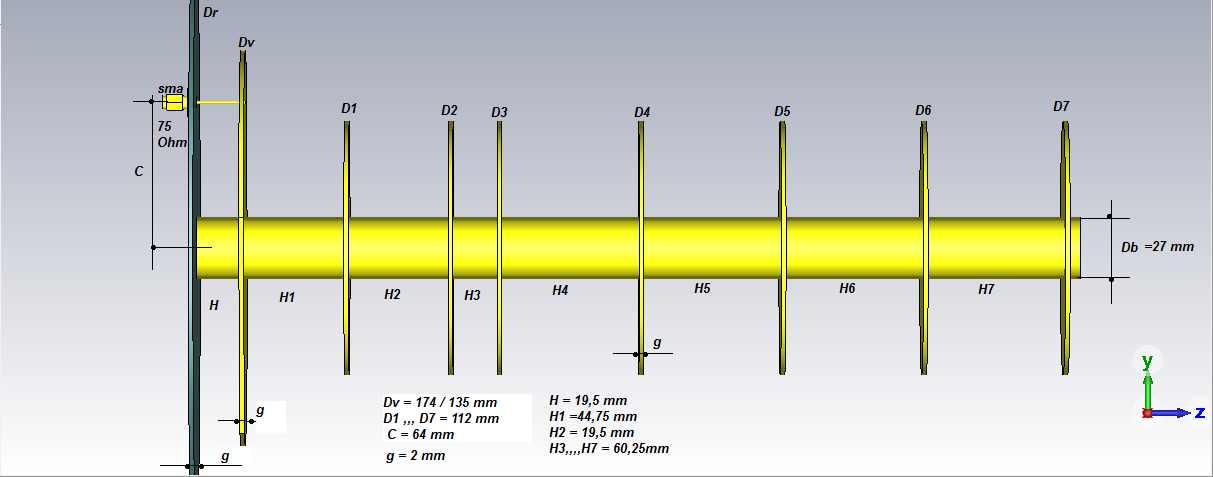

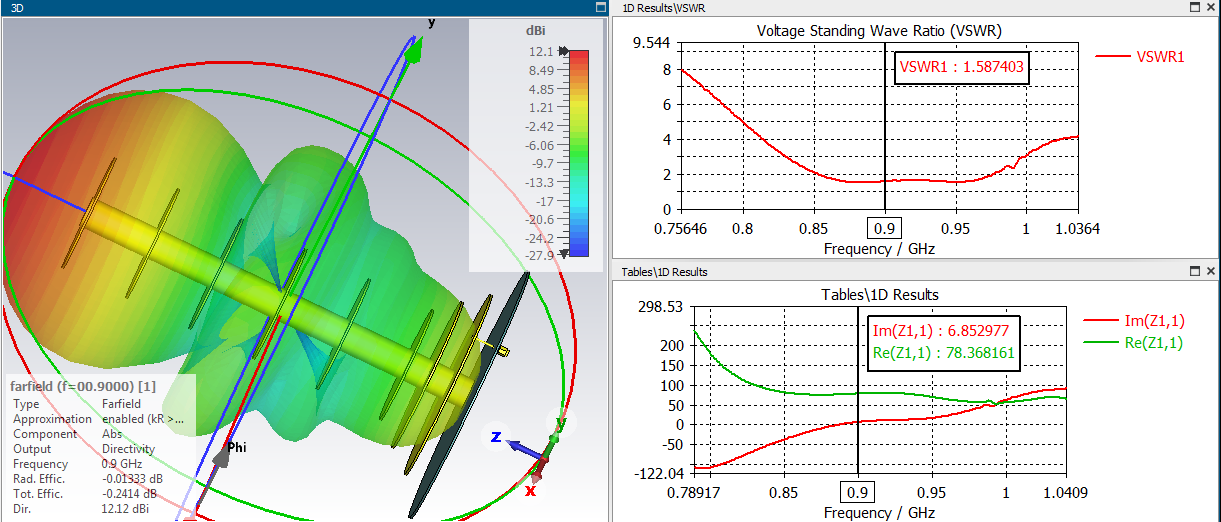

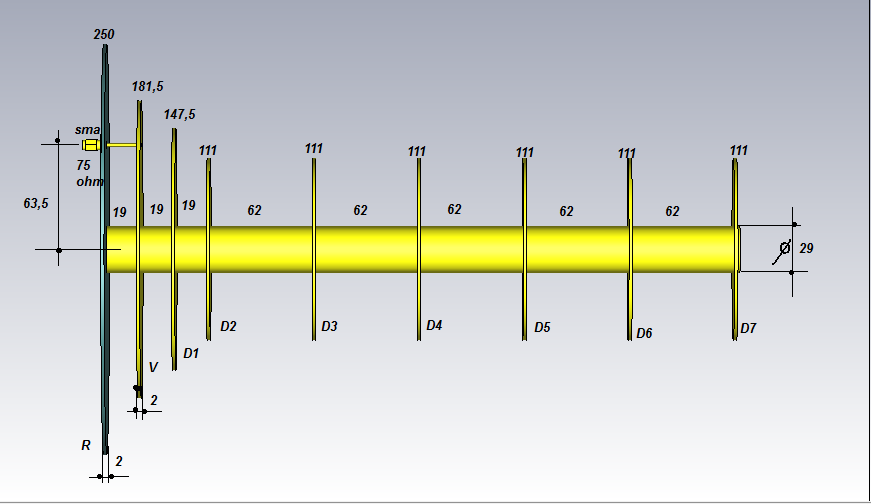

,,,maybe this one...!!!

[Admin 2545]

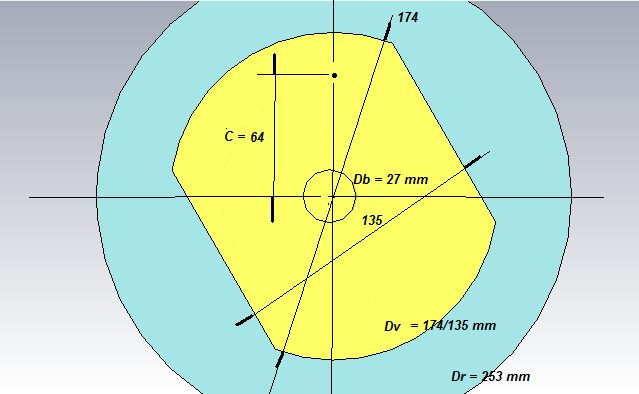

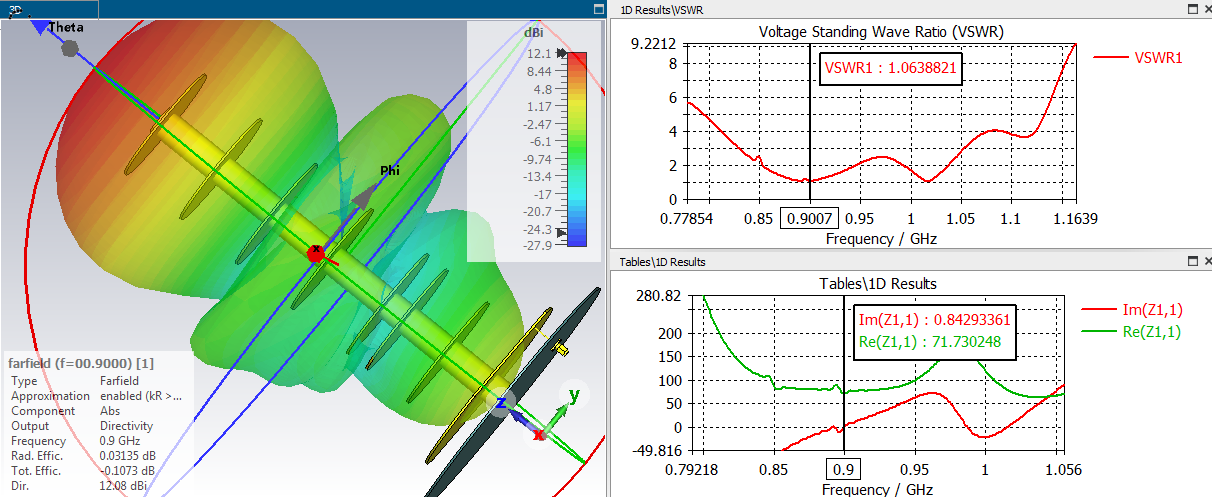

,,,another version...

[eddyann 3]

On 5/15/2023 at 11:36 AM, Admin said:





you dont use cantennator for this dimension? I want to get the dimension for 920 MHz with 50 ohm

[Admin 2545]

,,,okay, I will try to satisfy your request...!!!

[EvgenijK 0]

On 15.05.2023 at 5:57 PM, Admin said:

,,,another version...

Size error. H3 is also 60.25mm or 19.5mm?
H=19.5
H1=44.75
H2=19.5
H3=?

[EvgenijK 0]

?????

Where is the answer to the dimensions of the antenna?



Edited June 23, 2023 by EvgenijK
