LTE-800

[lrg 30]

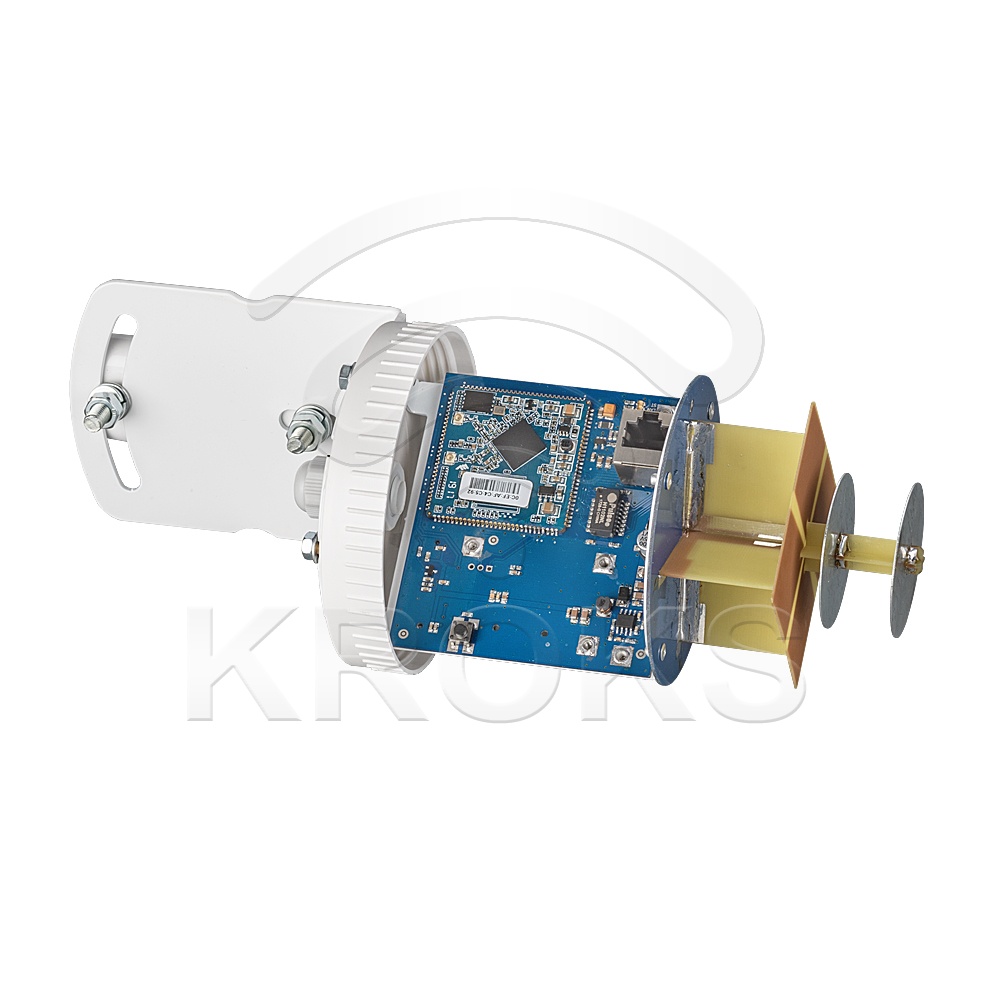

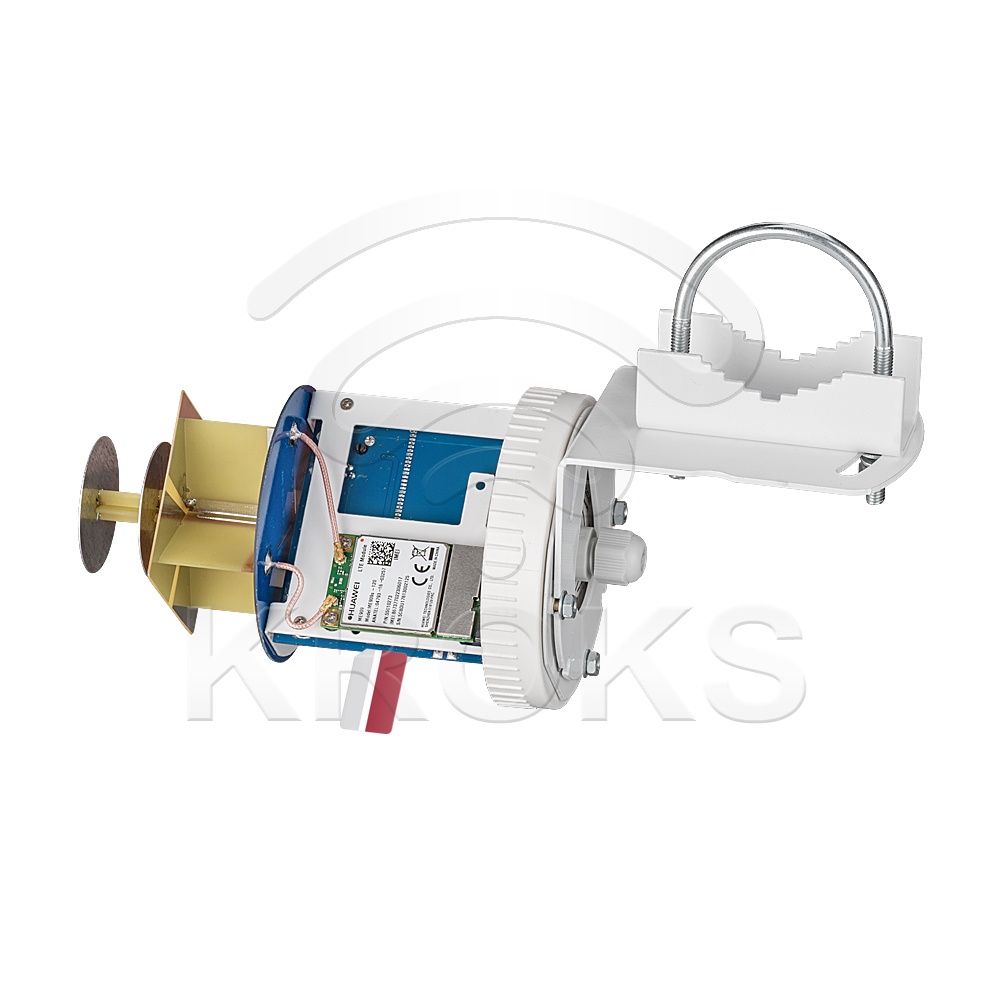

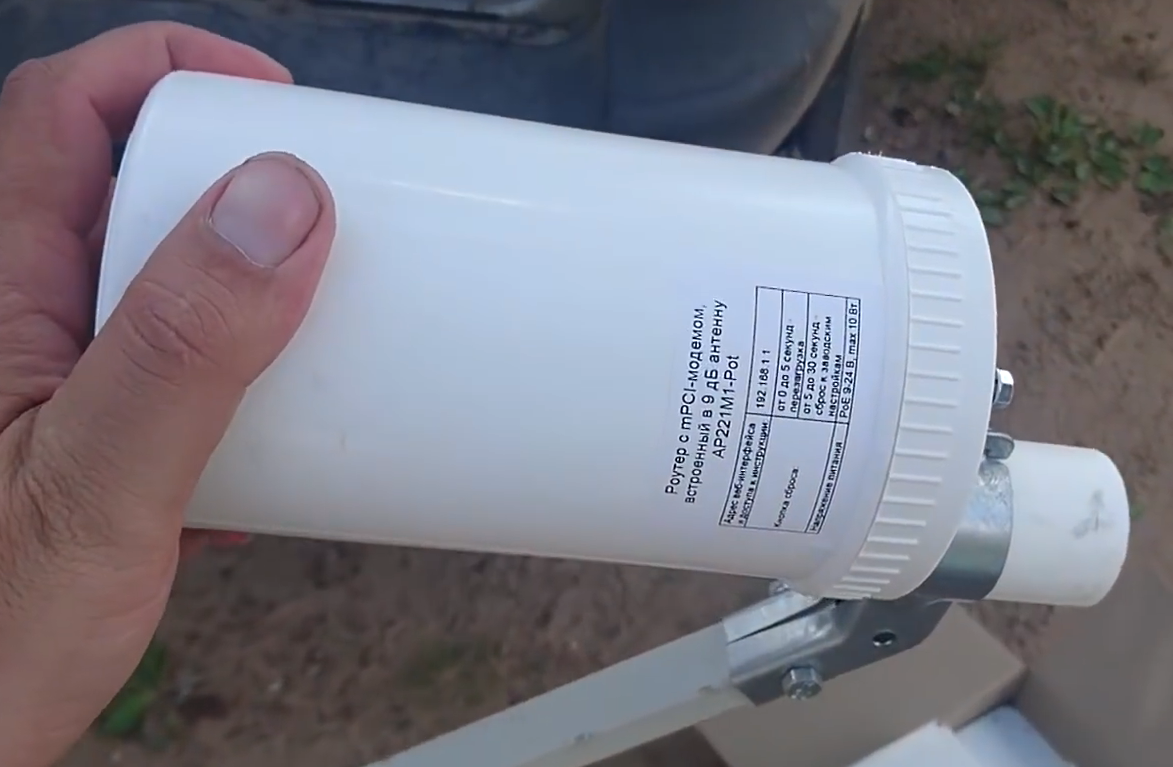

Kroks AP-221M1-Pot - is router with 4G mPCI modem and the 9 dB antenna built into a housing designed for installation on the street.

Advantages over traditional solutions:

The device already contains 4 components, which is usually purchased separately: antenna, microwave path from the antenna to the modem and the router.

mPCI modem allows you to get the maximum possible speed 4G Internet that may not always provide a normal USB modem

Due to the fact that the antenna and modem installed as close as possible to each other, the loss of the microwave cable is minimized.

Easy to install. For mounting the device it is necessary to lay only one cable is twisted pair, which is much easier, faster, and cheaper, than to lay two microwave coaxial cable.

To power the router does not need to mount a separate cable, as the power is on twisted pair. The power injector is already included in the delivery set of the device.

Inside the device is mini-PCI modem Huawei ME909s-120.

The router has one LAN port is 100 Mbps.

Key benefits:

compact size

supply voltage 9 to 24 Volts

Operating frequencies:

2G - EDGE/GPRS/GSM 1900/1800/900/850 MHz

3G DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8

4G - LTE (FDD) B1/B2/B3/B5/B7/B8/B20

Data transfer rate:

4G - up to 100 Mbit/sec (input) / 50 Mbps (Exodus)

3G - up to 43.2 Mbps / 5.76 Mbps (Exodus)

Ports and interfaces:

Ports Ethernet, 1 PC, 100 Mbit/s

SIM reader

Main features:

128 MB Ram

Rom 32 MB

The power of the transmitter modem +23 ... +33 dBm

CPU 600 Mhz

Power 9~24 V, not more than 10 watts.

[Admin 2546]

,,,from where it"s "youtube"...??

[lrg 30]

Yes

[lrg 30]

[lrg 30]

[Admin 2546]

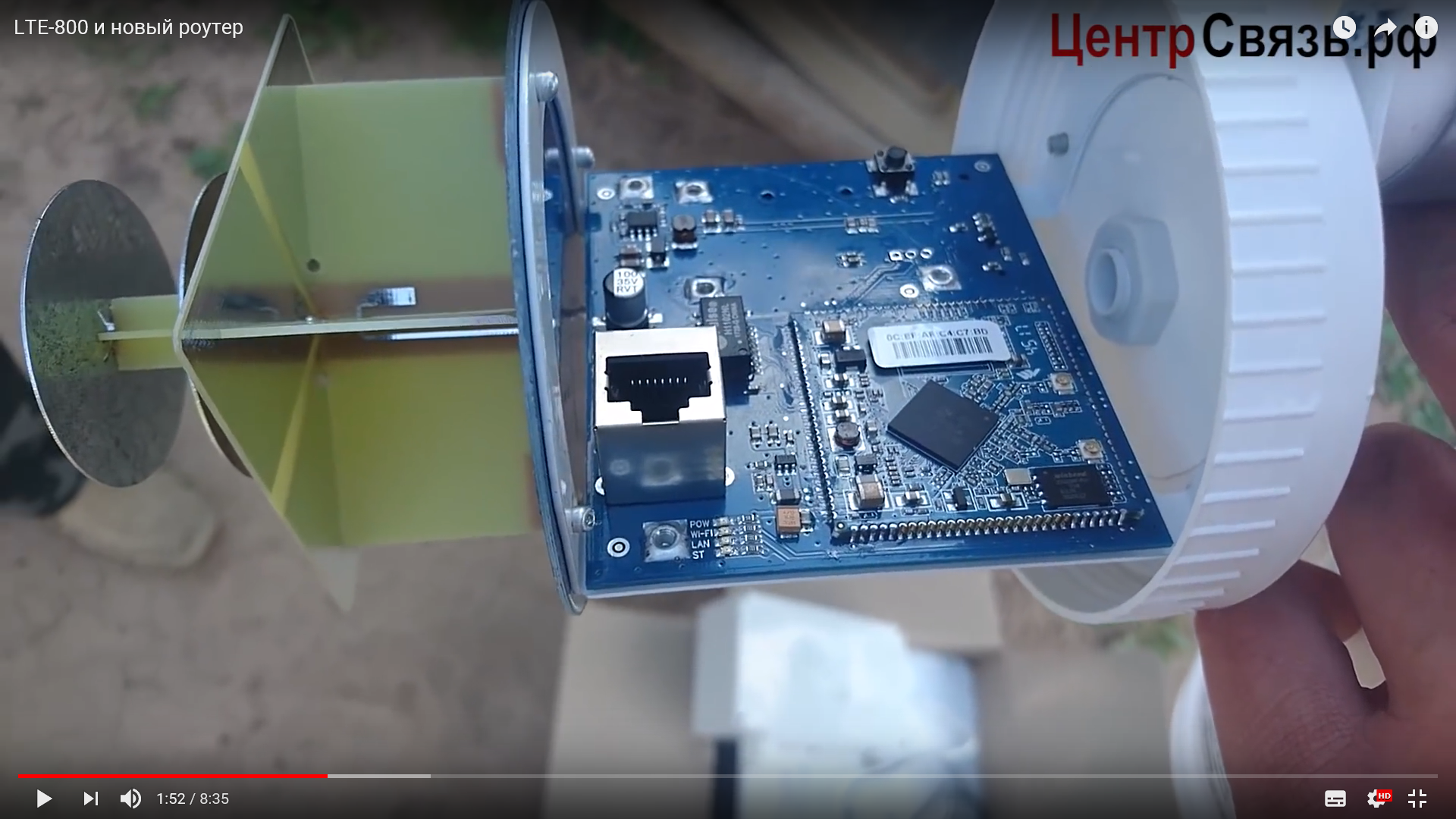

IRG, show the movie on youtube...!!!

[lrg 30]



[Admin 2546]

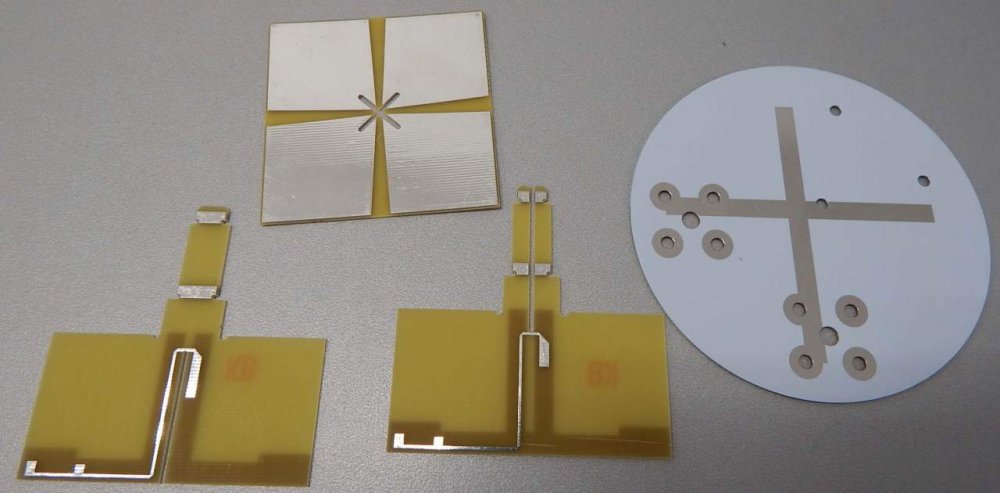

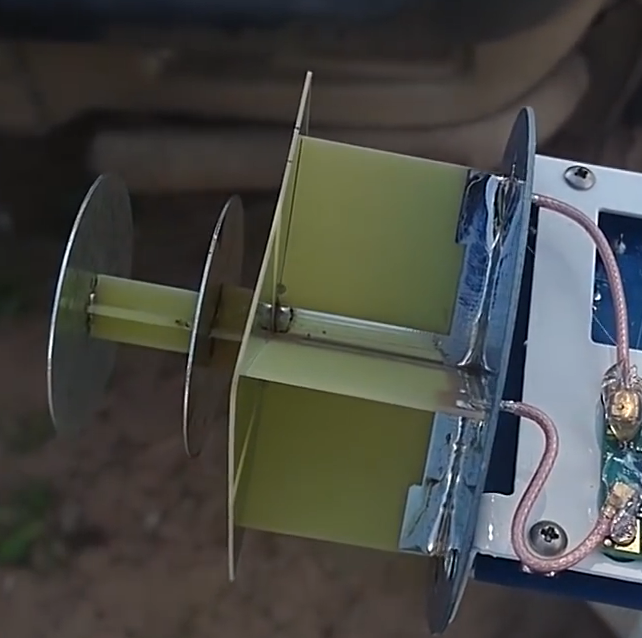

These are the component parts of the PCB antenna...



Irg, please, if you can post the dimensions to them...!!!

[lrg 30]

I can't. I don't have this antenna.
