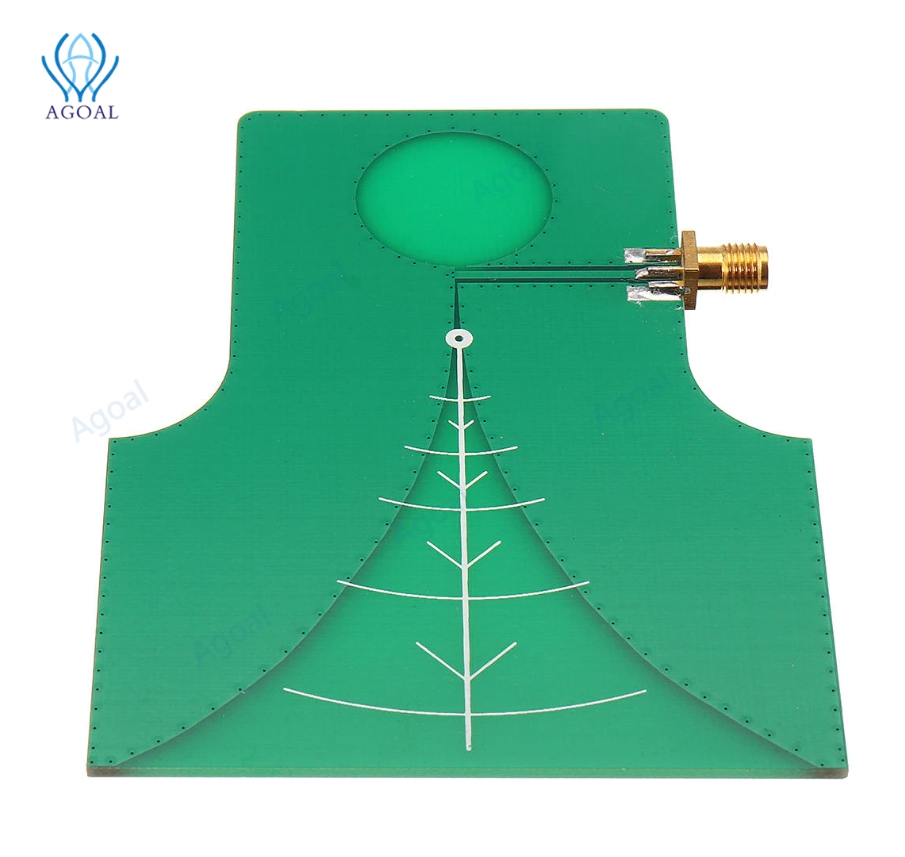

UWB Directional High Gain Wideband TEM Antenna

Started by Admin, March 1, 2022

Posted March 1, 2022

The high gain directional wideband antenna is suitable for directional radio signal transmission and reception, signal source reconnaissance and direction finding, broadband signal testing and the like.
The antenna is suitable for UWB positioning module, Wifi2.4G and 5.8GHz and other common frequencies.

Antenna indicators:

Frequency range: 2.4GHZz-10.5GHz
Dimensions: 100mm*85mm
Polarization mode: linear polarization
Rated gain: 7dBi
Return loss: 10dB
Power capacity: 8W
Interface form: SMA female head (outer screw inner hole)

Package included:

1 x 2.4-10.5GHz UWB Directional High Gain Wideband TEM Antenna
