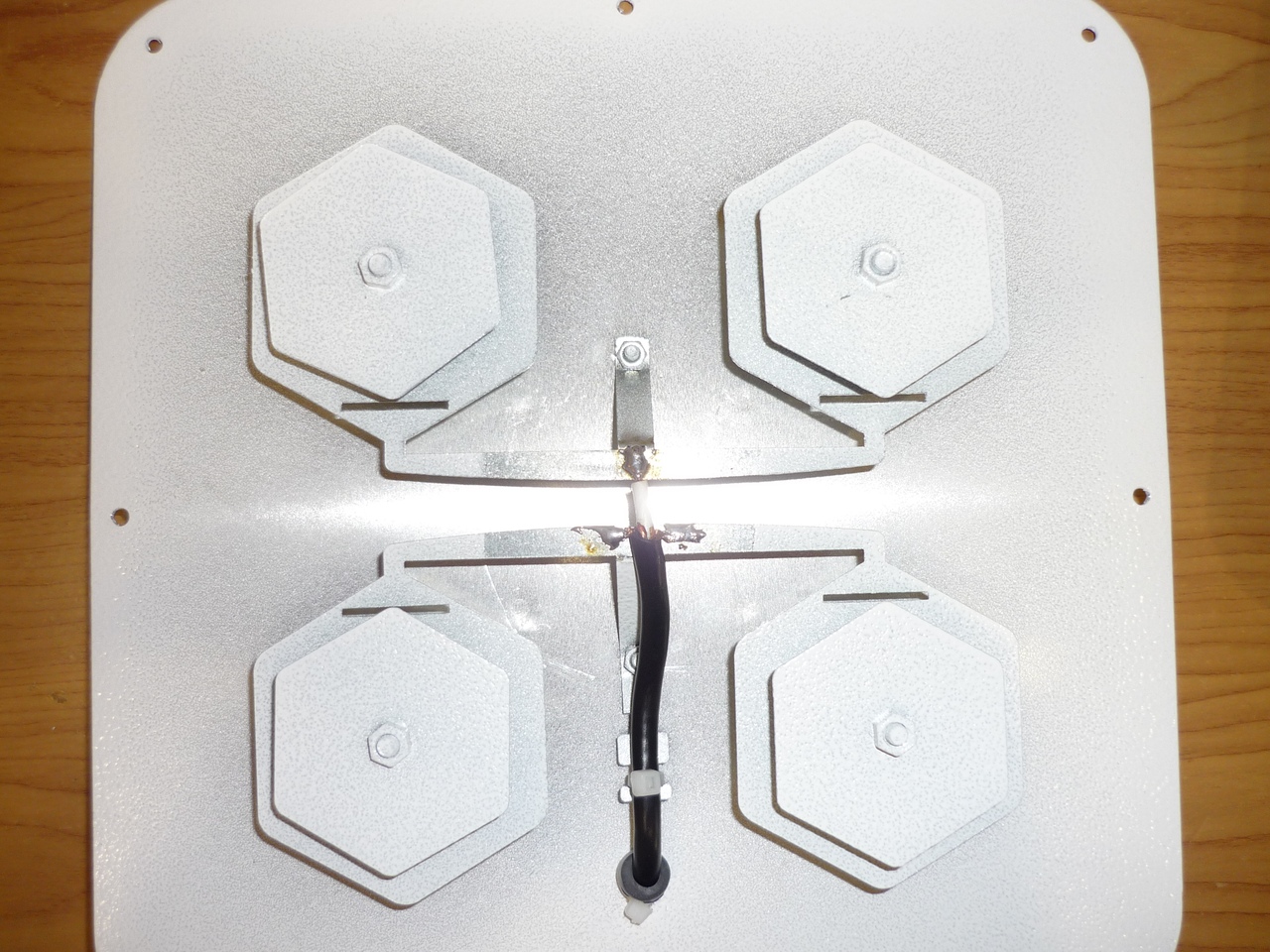

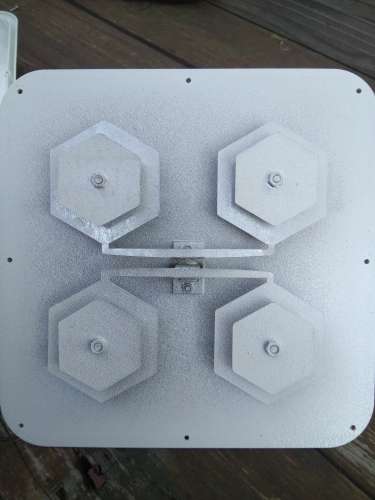

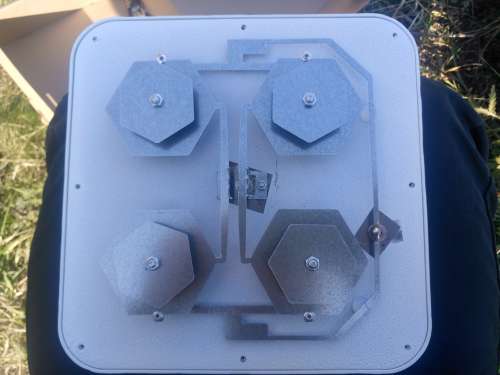

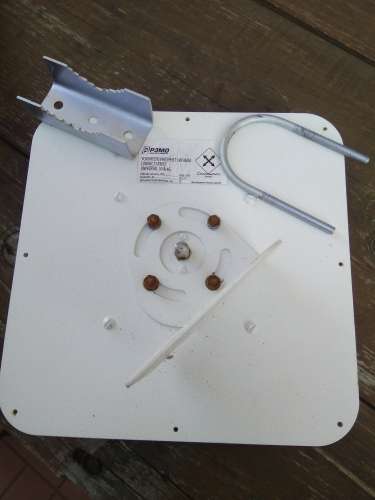

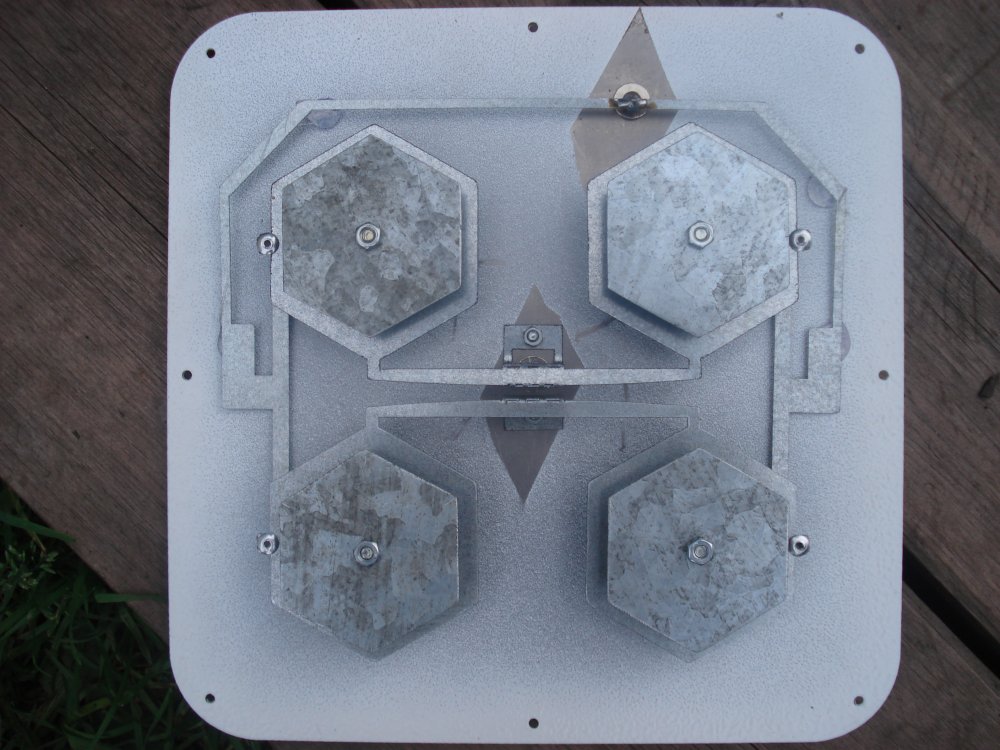

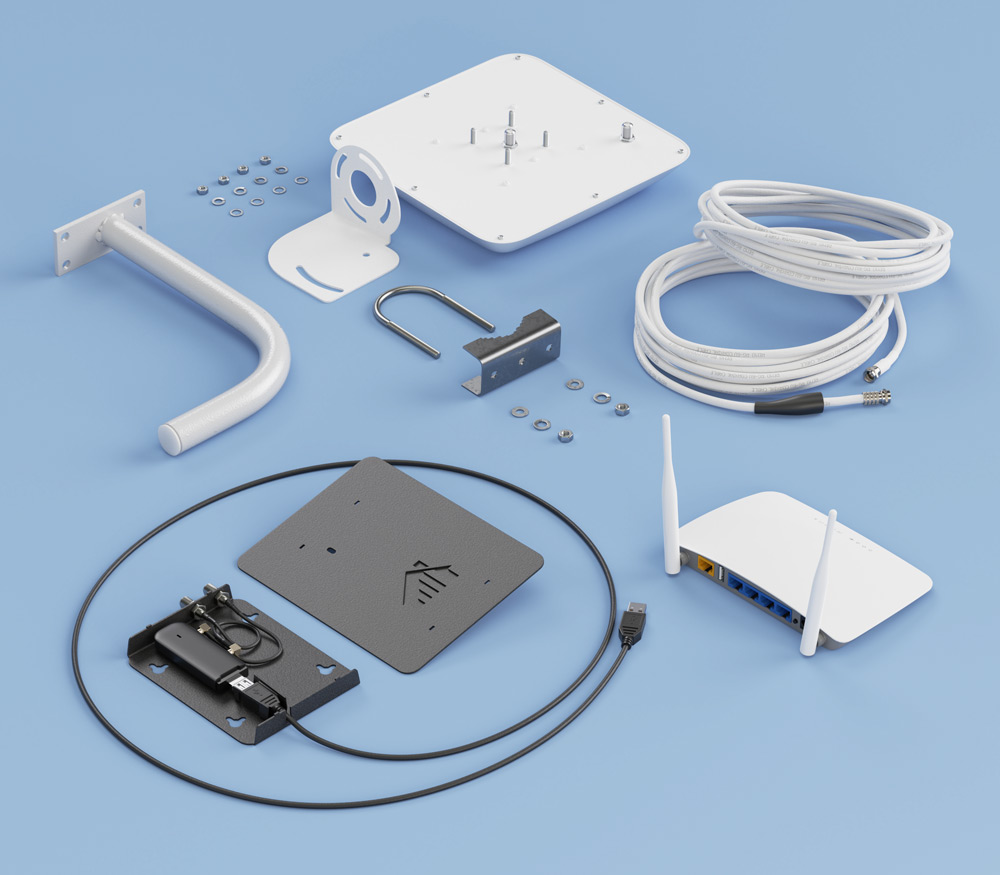

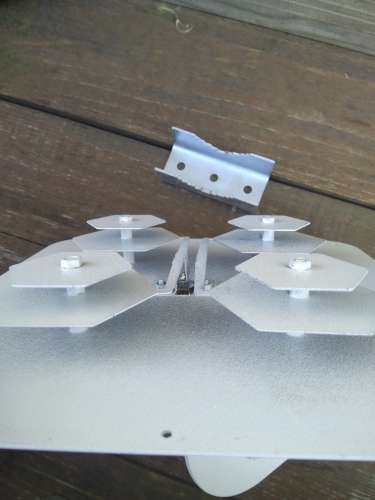

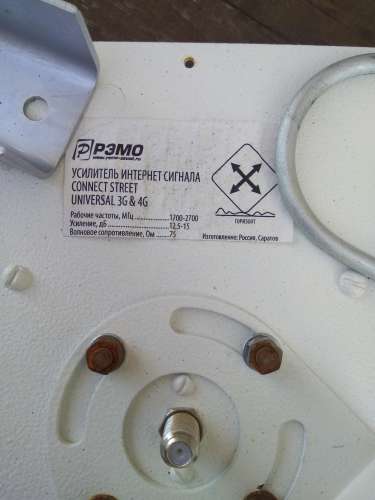

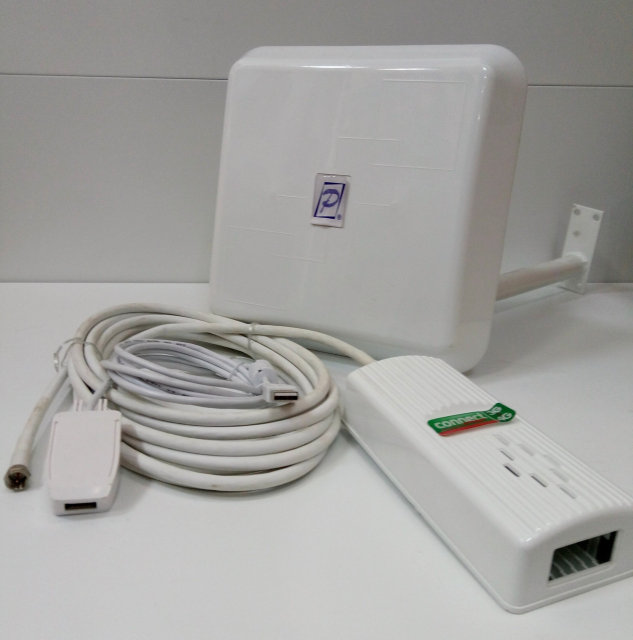

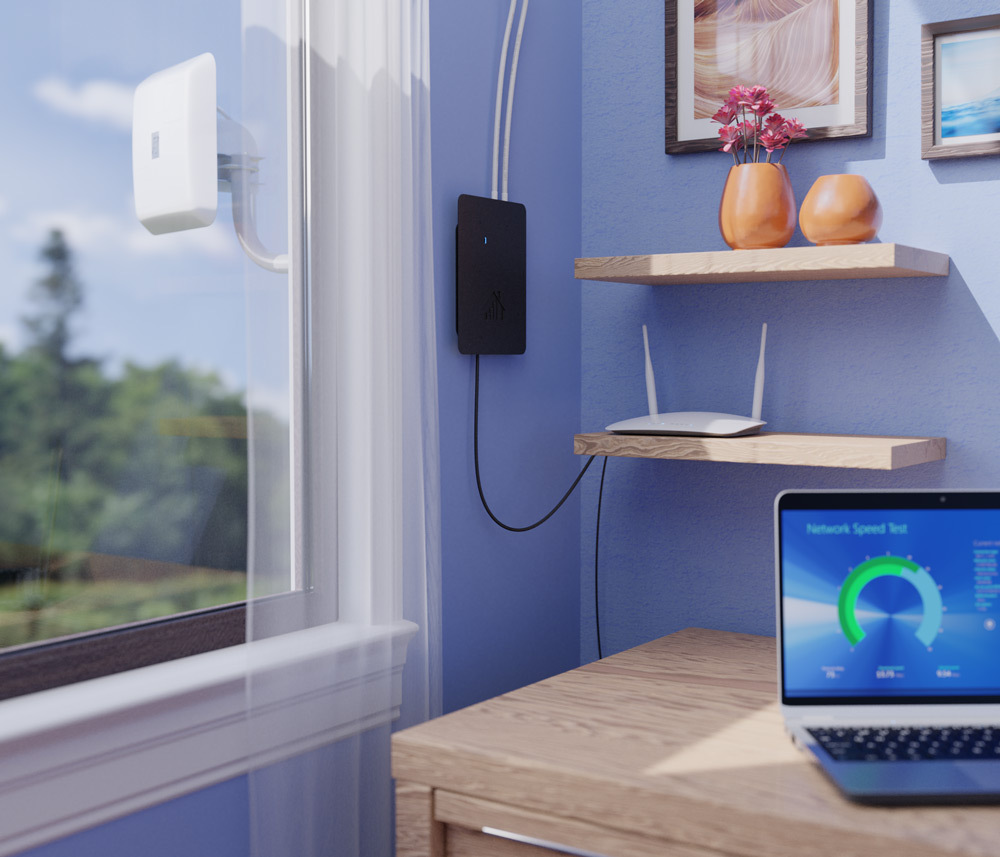

Remo Street Connect 3G/4G Universal

[Admin 2545]

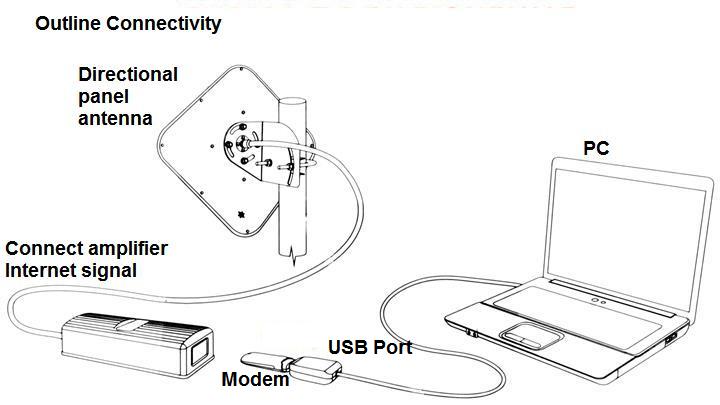

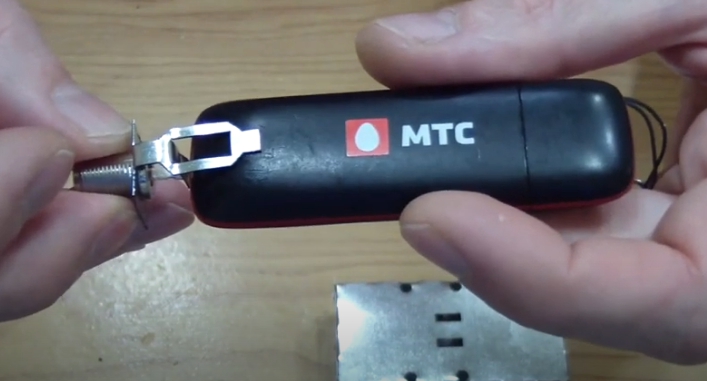

The device is designed to provide stable access to the Internet via the USB - radio modems in the areas of uncertain reception of a signal of networks 3G (HSDPA/HSUPA/WCDMA2100) and 4G (LTE2600) of any operator.

Range of working frequencies, MHz    1700...2700
Gain, dBi    12,5...15
Cable length, m    5
Overall dimensions of the antenna, mm    240x240x20

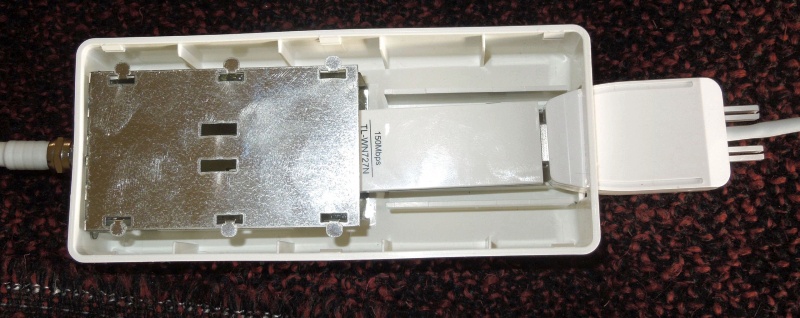

Overall connectors remover, mm    150х65х35
Set weight, not more, kg    1,5















[Admin 2545]

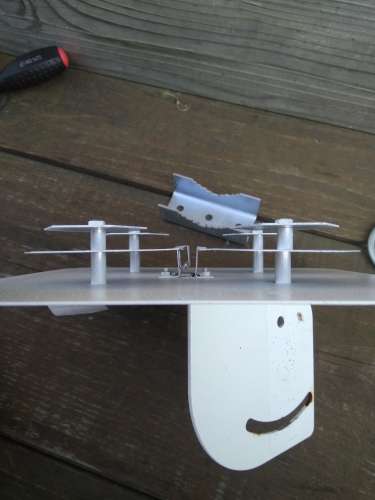

Well, but I still think it is a mediocre antenna, especially for adapting the broadband impedance...



[Admin 2545]

[Admin 2545]



[Radik 6]

Can I upload files here, how to make REMO?

[Admin 2545]

Of course, my friend....!!!

[Radik 6]

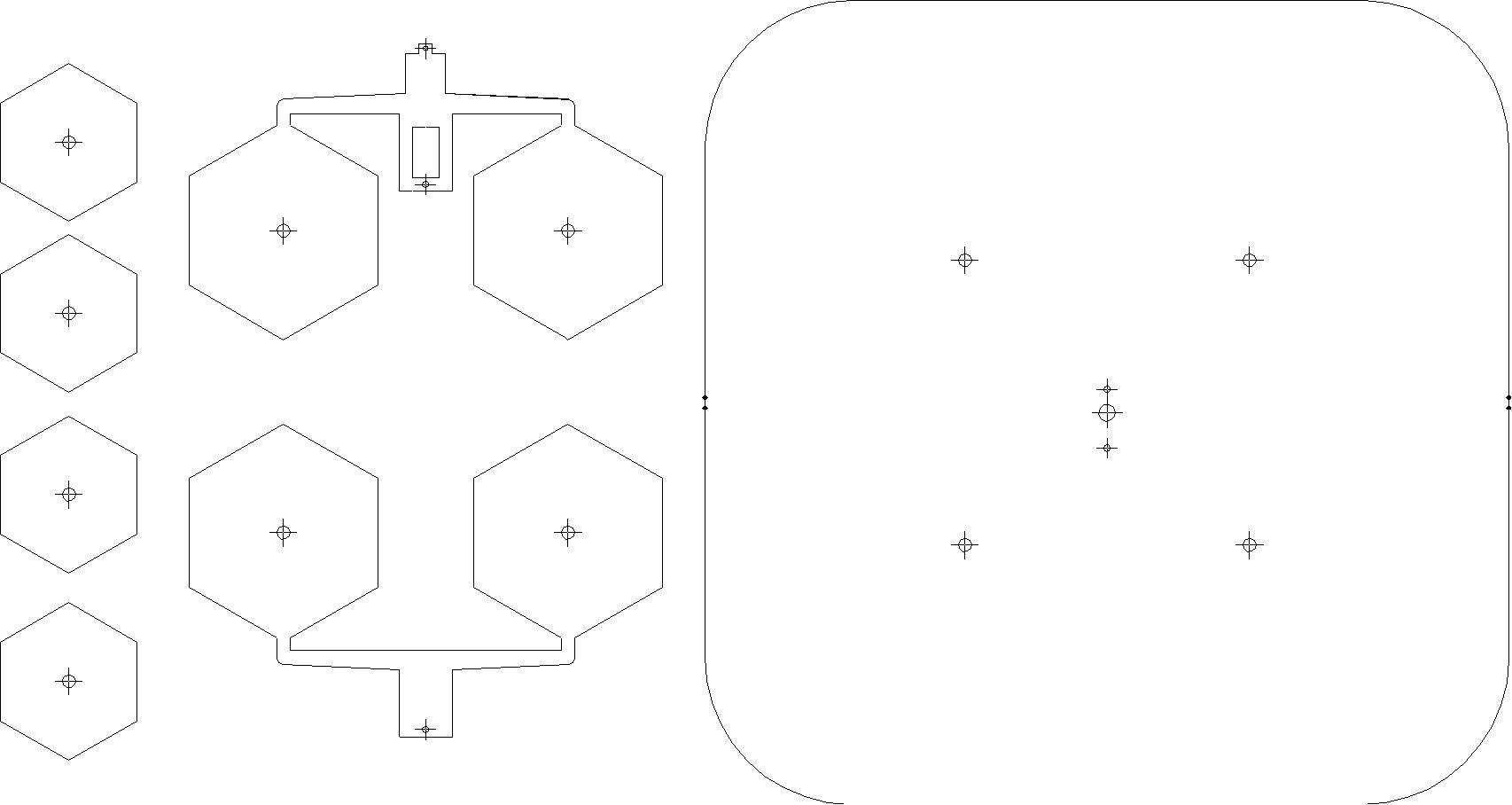

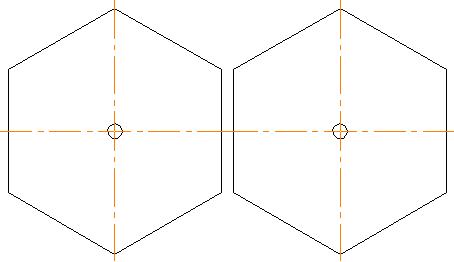

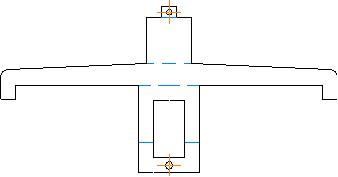

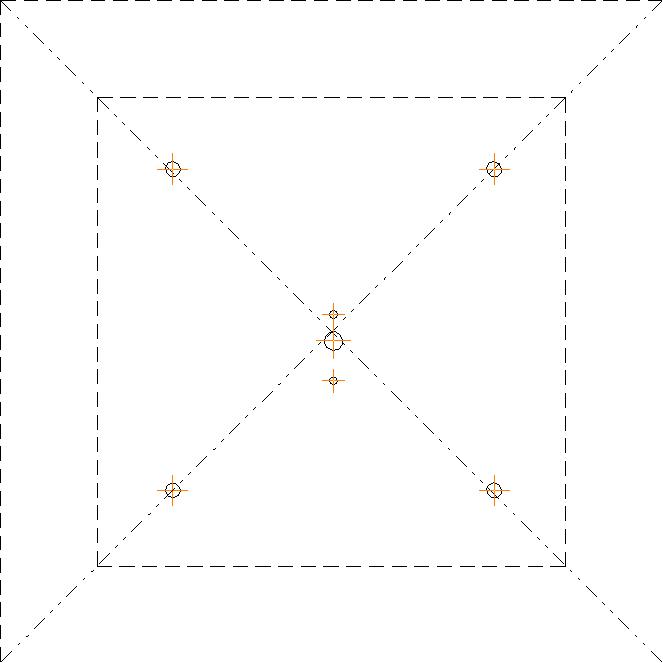

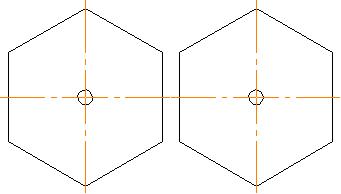

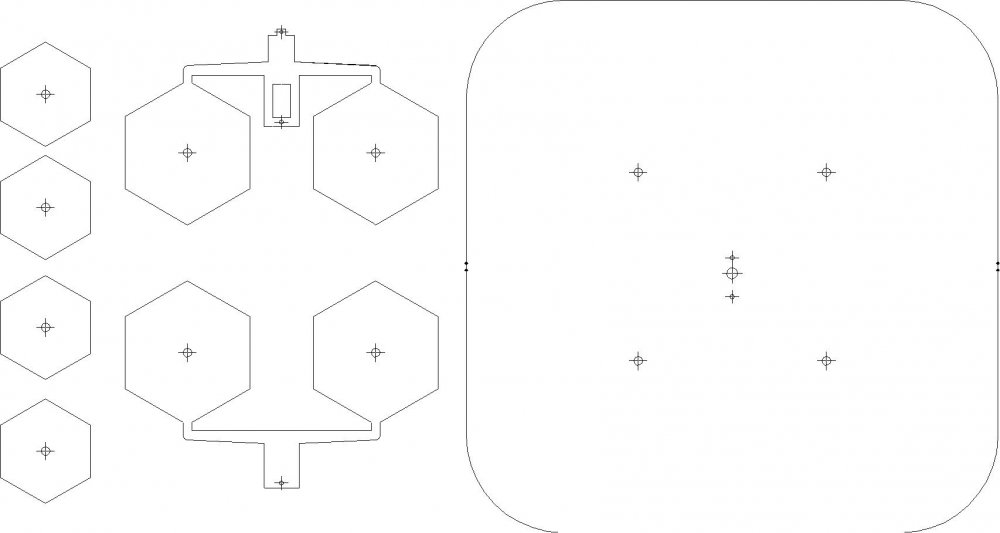

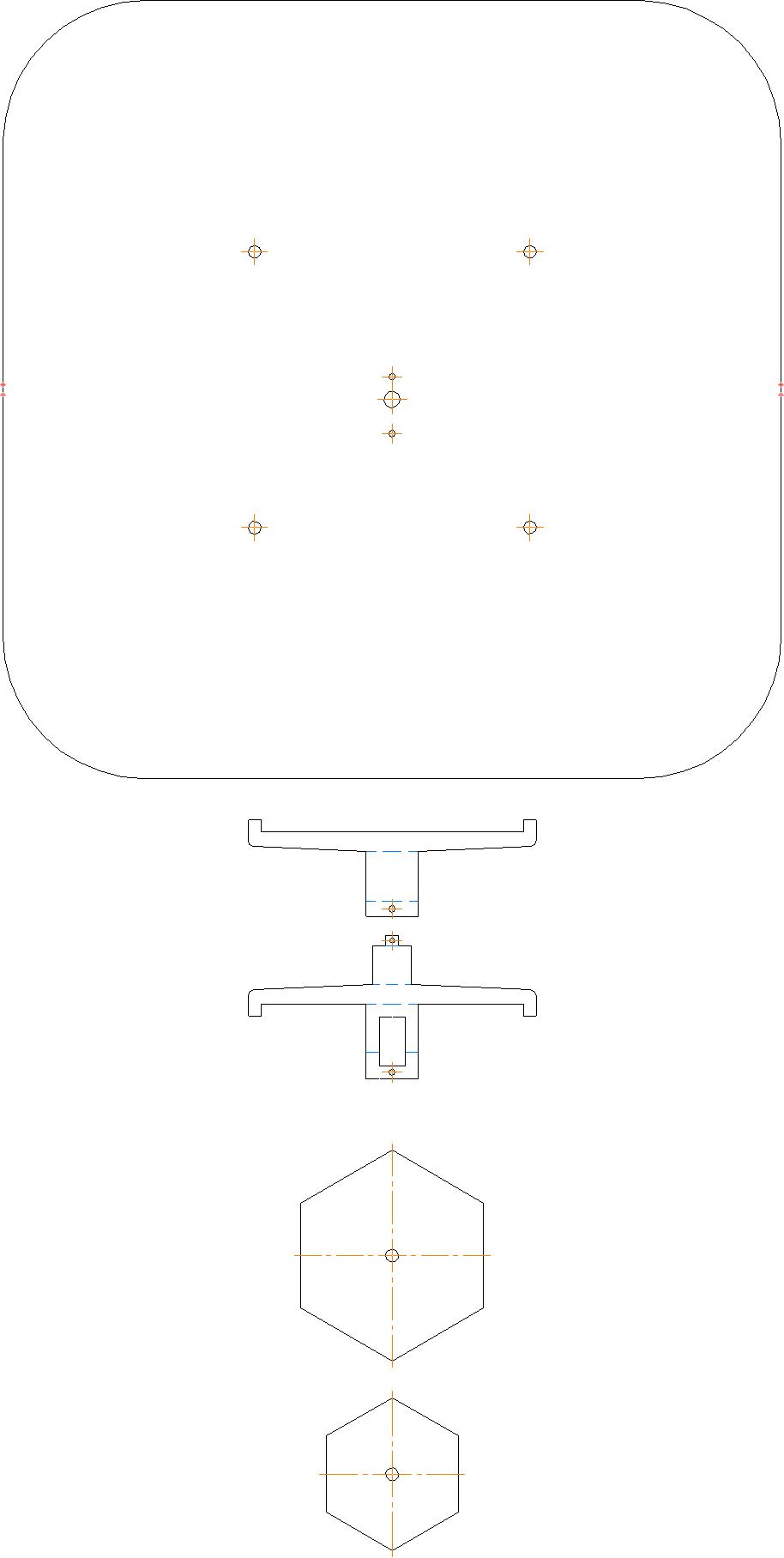

Антенна 1700--2700 мГц цельный элемент1.pdf

Антенна 1700--2700 мГц цельный элемент1.frw.bak

Антенна 1700--2700 мГц цельный элемент1.frw

Антенна 1700--2700 мГц цельный элемент1,1.pdf

Антенна 1700--2700 мГц цельный элемент1,1.frw.bak

Антенна 1700--2700 мГц цельный элемент1,1.frw

Антенна 1700--2700 мГц цельный элемент.pdf

Антенна 1700--2700 мГц цельный элемент.frw

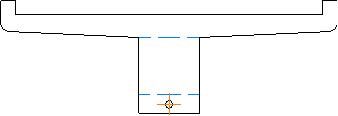

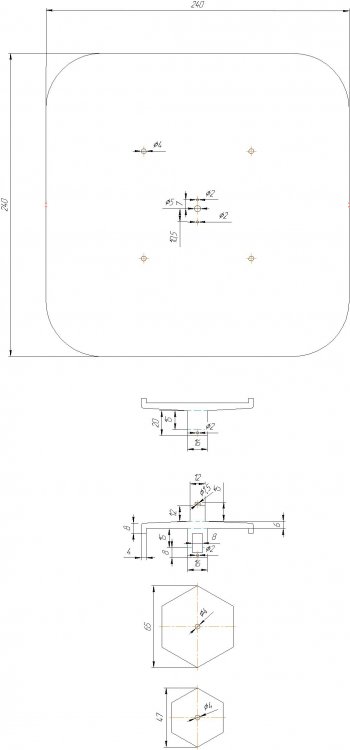

Antenna 1700-2700mhz Dimensions.dxf

Antenna 1700-2700 MHz template 1.frw

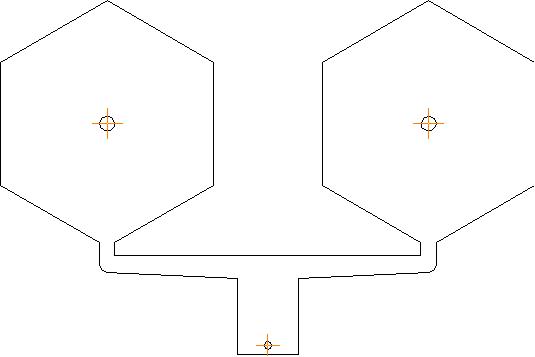

Antenna 1700--2700 MHz integral element.dxf

К шаблону 1 To pattern 1.txt

Антенна 1700-2700мгц шаблон 3.pdf

Антенна 1700-2700мгц шаблон 3.frw.bak

Антенна 1700-2700мгц шаблон 3.frw

Антенна 1700-2700мгц шаблон 3,1.pdf

Антенна 1700-2700мгц шаблон 3,1.frw.bak

Антенна 1700-2700мгц шаблон 3,1.frw

Антенна 1700-2700мгц шаблон 2.pdf

Антенна 1700-2700мгц шаблон 2.frw.bak

Антенна 1700-2700мгц шаблон 2.frw

Антенна 1700-2700мгц шаблон 2,1.pdf

Антенна 1700-2700мгц шаблон 2,1.frw.bak

Антенна 1700-2700мгц шаблон 2,1.frw

Антенна 1700-2700мгц шаблон 1.pdf

Антенна 1700-2700мгц шаблон 1.frw.bak

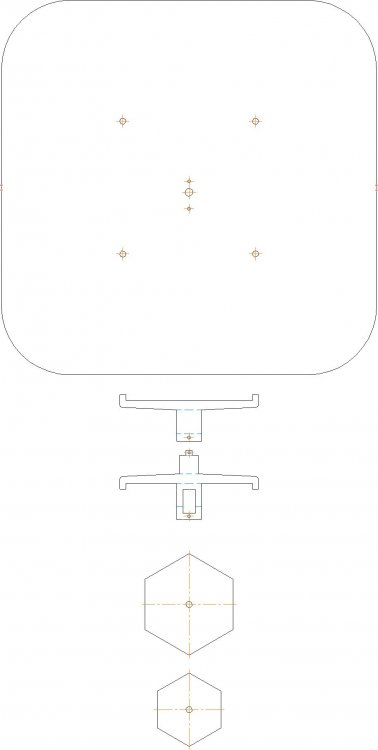

Антенна 1700-2700мгц Размеры.pdf

Антенна 1700-2700мгц Размеры.frw

[Admin 2545]

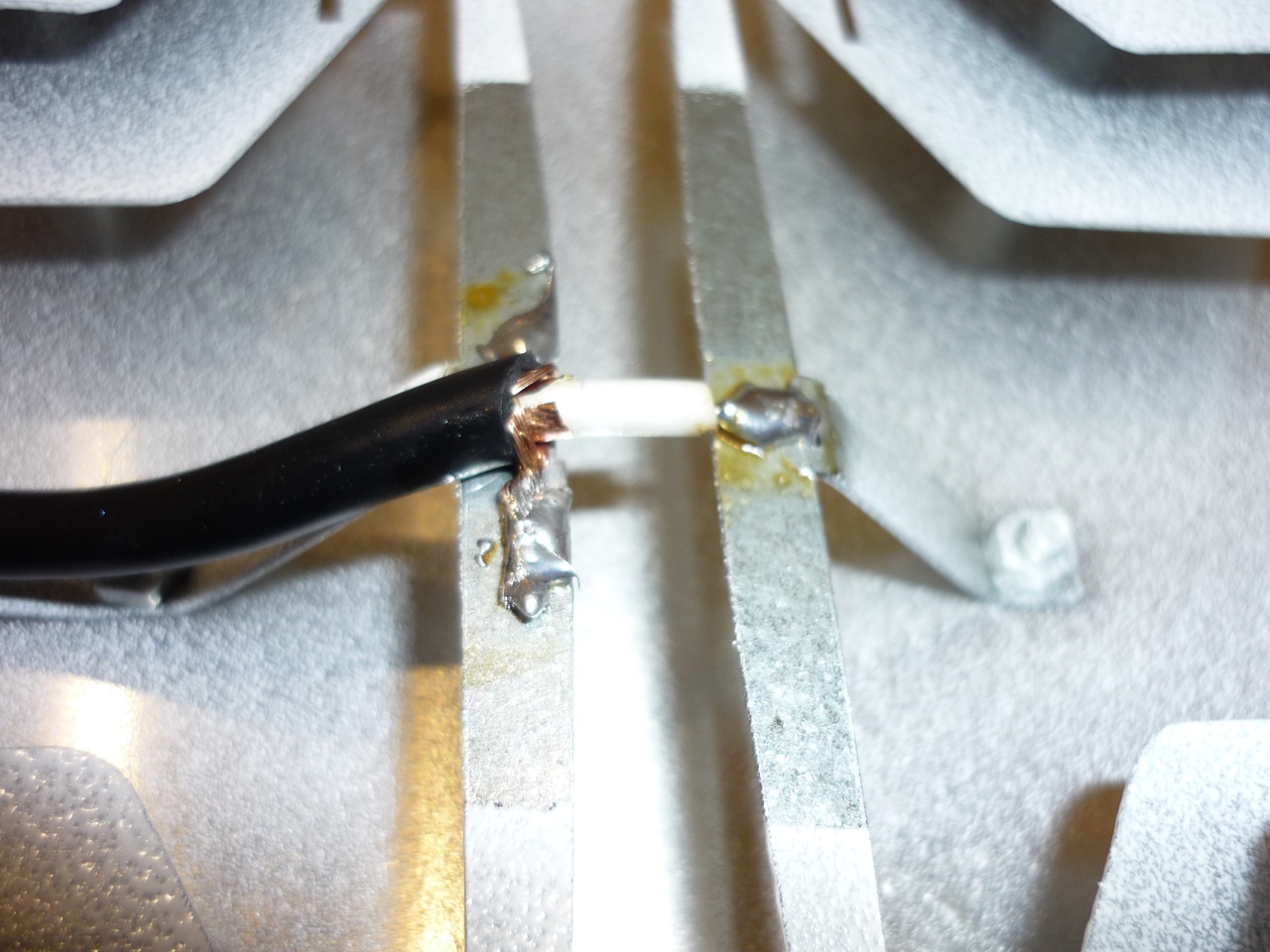

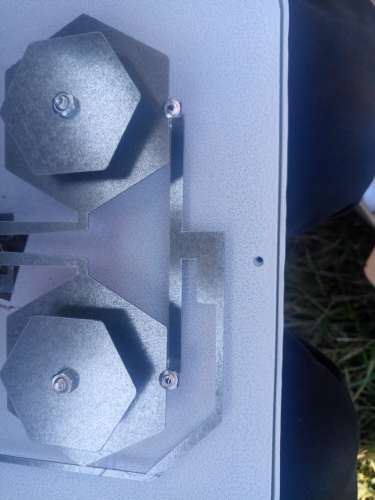

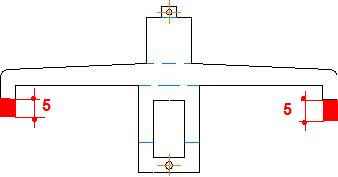

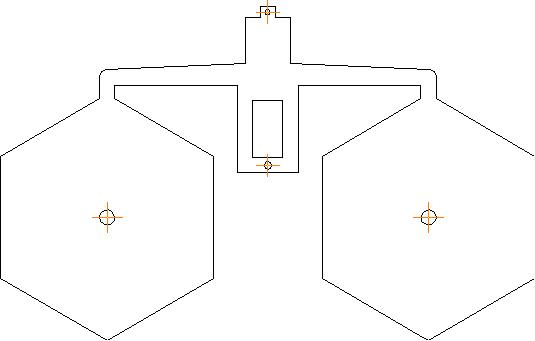

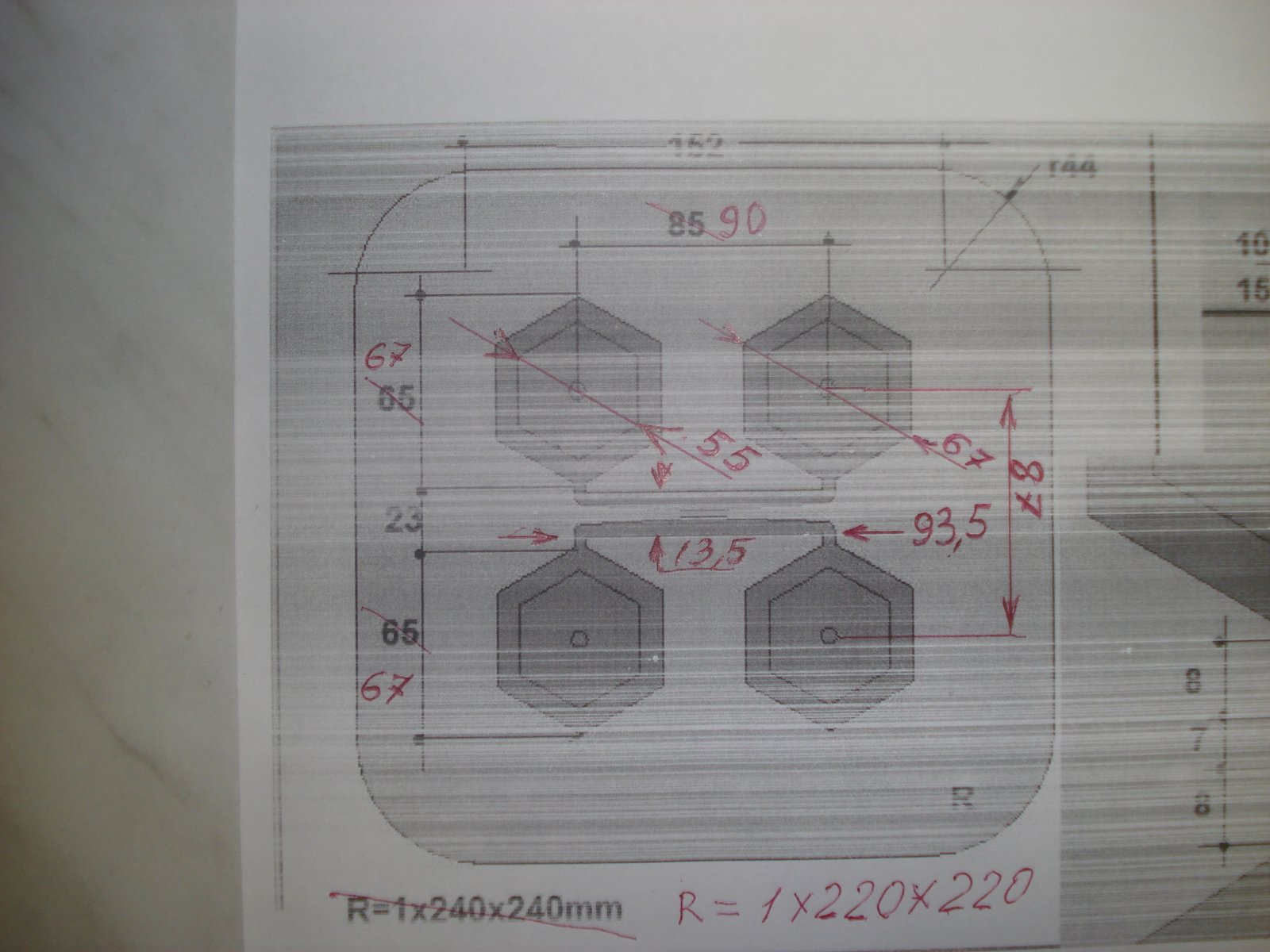

,,, some portions must be added to the drawings, so that the line can be soldered to the hexagonal patches...

[Balouchi 1]

On 12/9/2018 at 11:05 AM, Admin said:

,,, some portions must be added to the drawings, so that the line can be glued to the hexagonal patches...

Is it possible to add a feed2 to this model?

[Admin 2545]

15 minutes ago, Balouchi said:

Is it possible to add a feed2 to this model?

,,,no...!!!

... need different feed lines ...!!!

[Admin 2545]

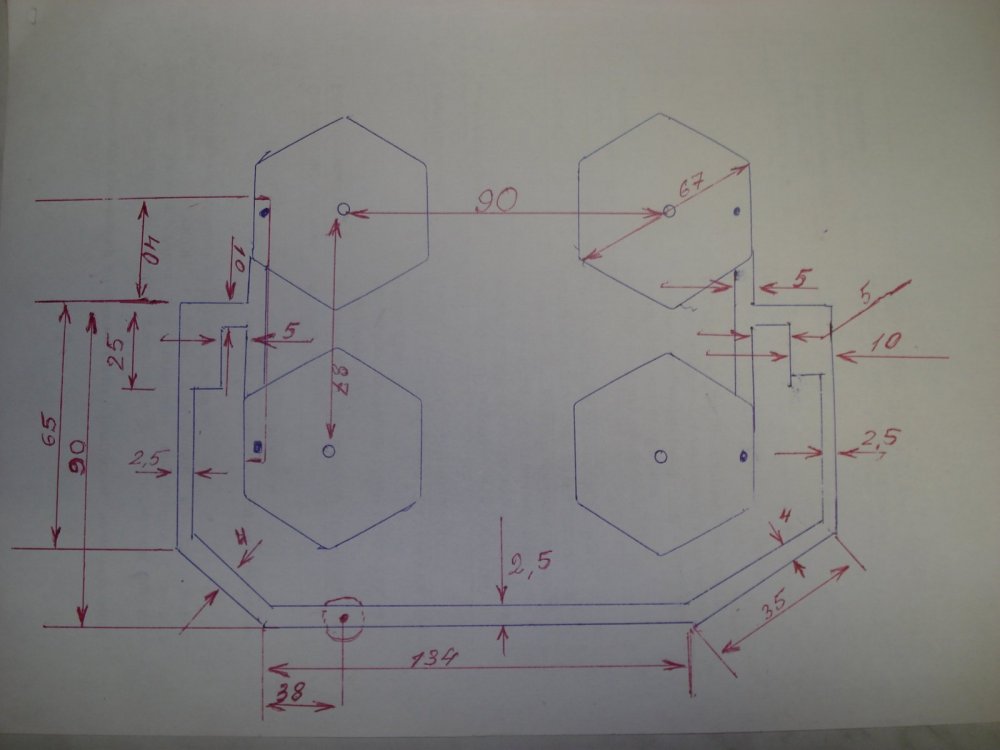

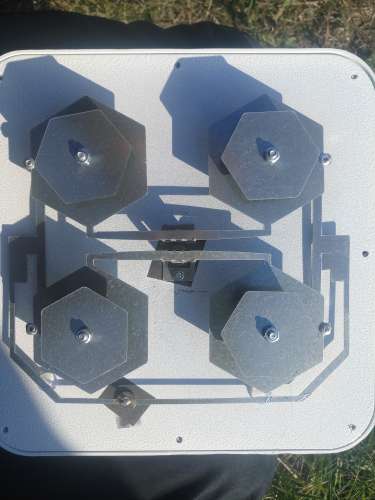

With the special input of the user "nickol.belousow2017" , I will try to simulate this  PANEL 3G/LTE ANTENNA "BAS-2324 FLAT-15F MIMO"



[Admin 2545]

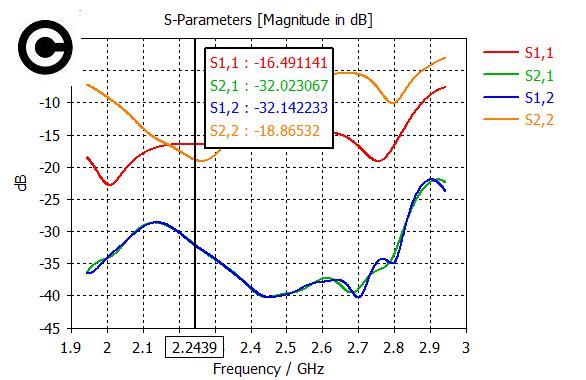

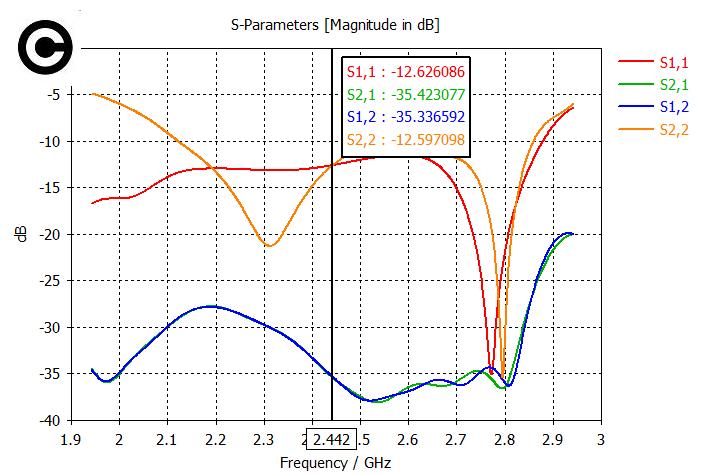

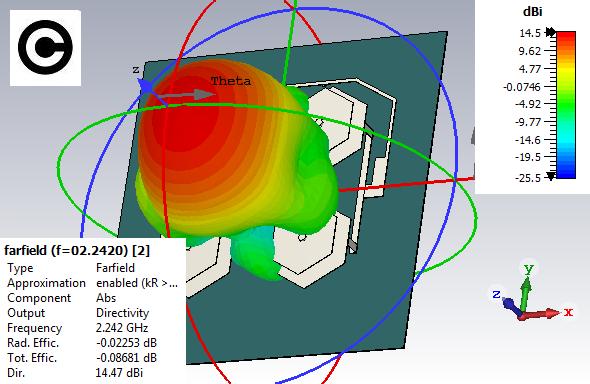

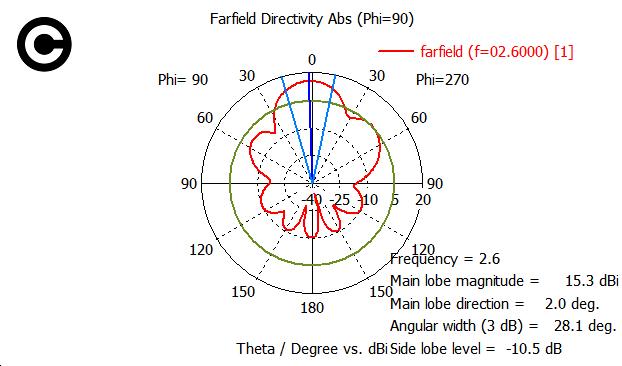

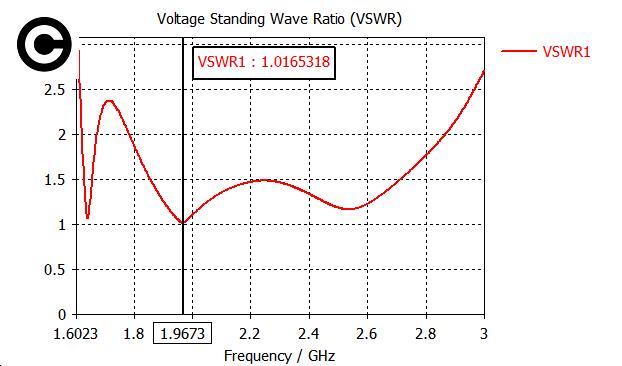

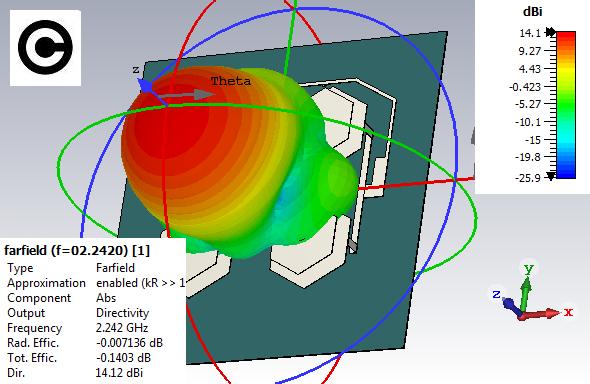

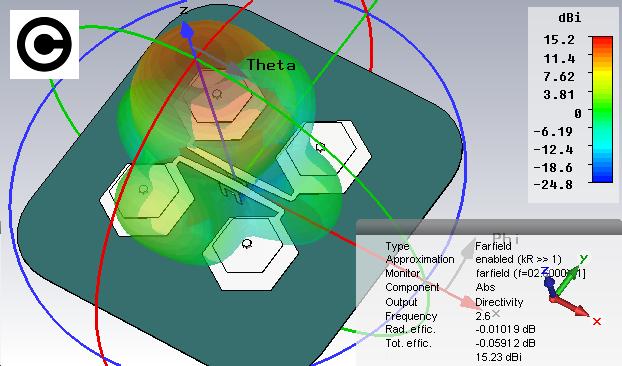

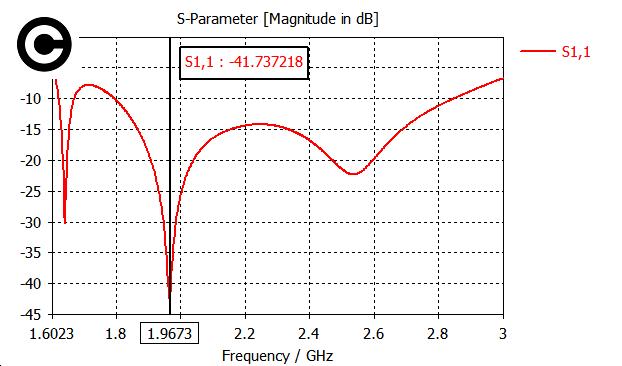

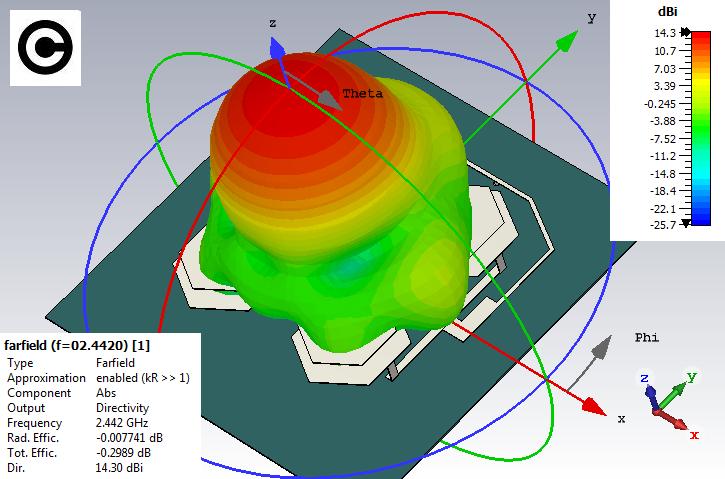

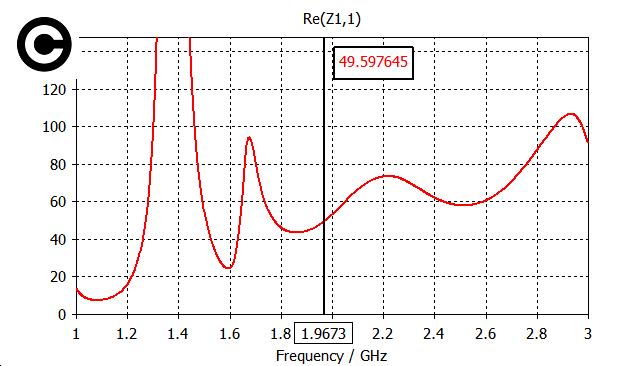

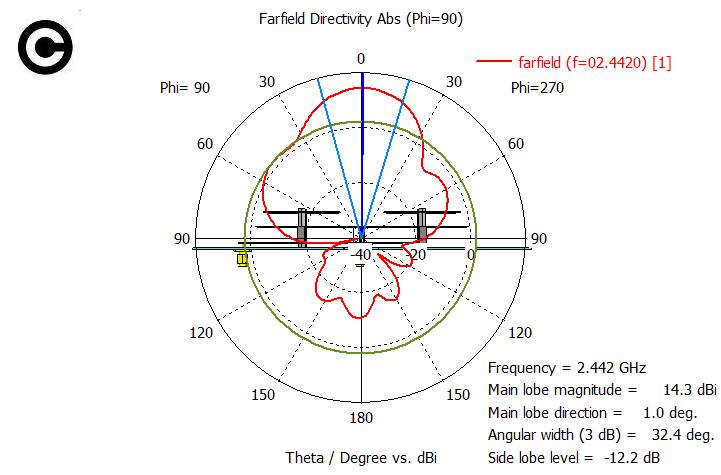

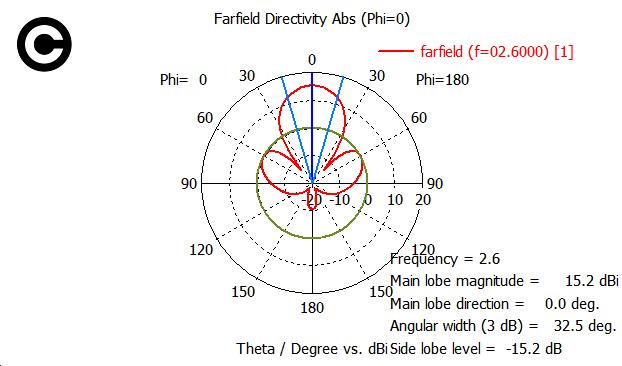

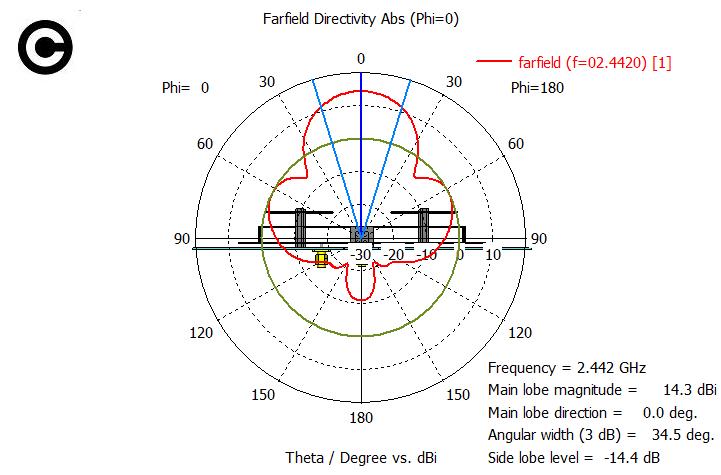

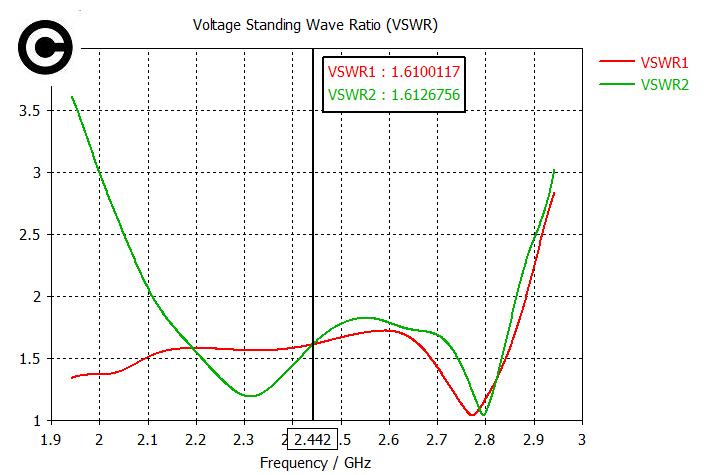

These are the results after a first simulation...

[nickol.belousow2017@yandex 5]

Админ, я в теме, Может ты хочешь что-то спросить?

Admin, I'm in the subject, Maybe you want to ask something?

[Admin 2545]

[nickol.belousow2017@yandex 5]

В течение пяти минут, подождите!

For five minutes, wait!

[nickol.belousow2017@yandex 5]

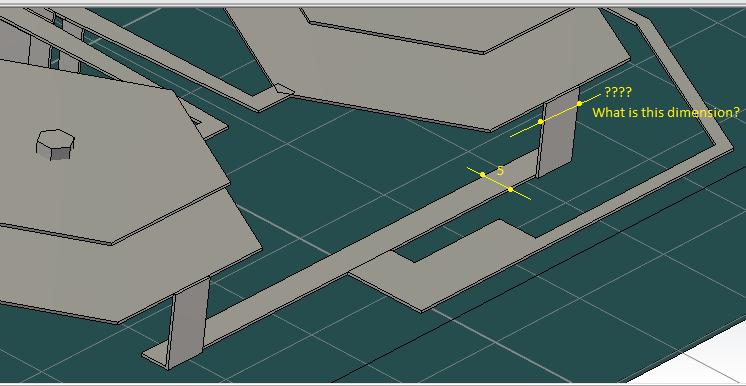

20 minutes ago, Admin said:

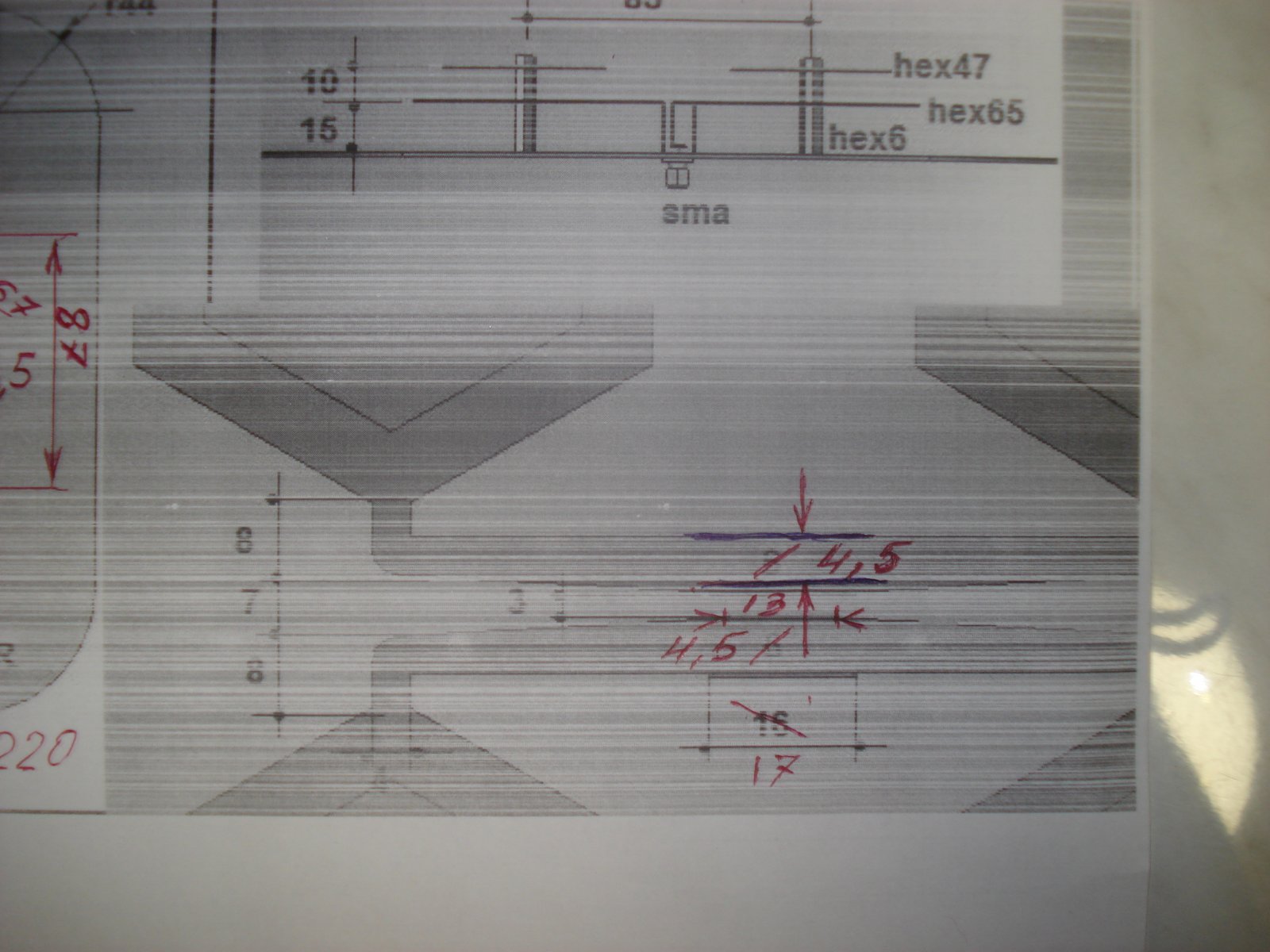

5 мм! От заплаты вниз, длина 12 mm.

5 mm! From the patch down, length 12 mm.

[Admin 2545]

,, спасибо ... !!!!

[Admin 2545]

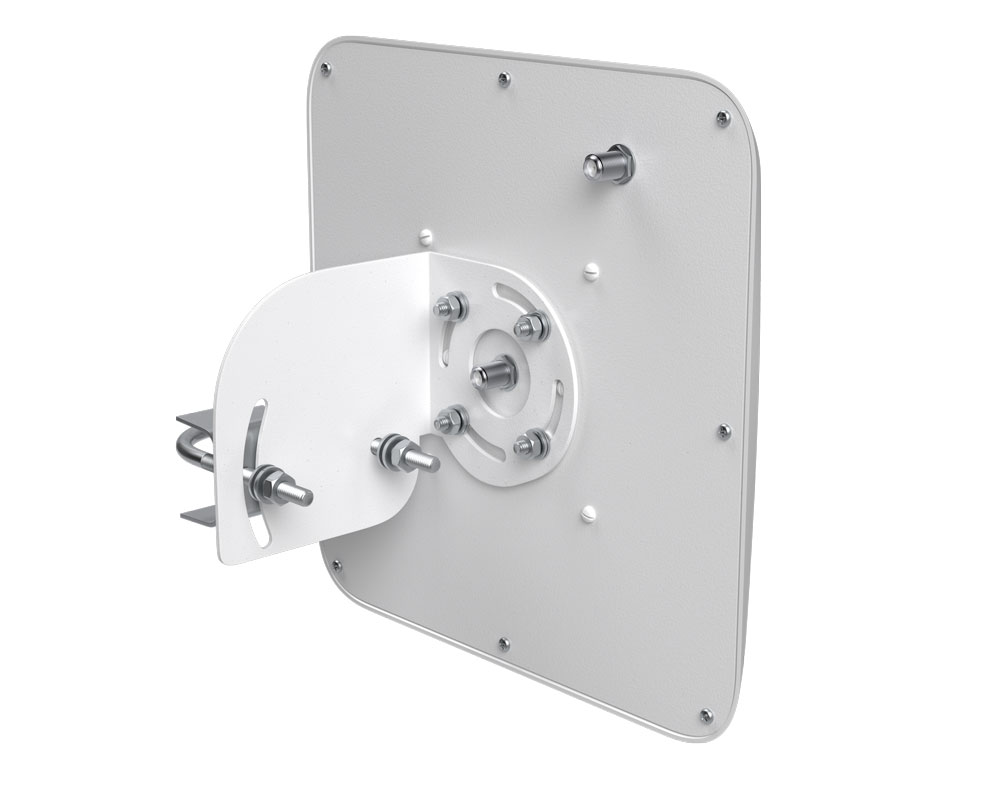

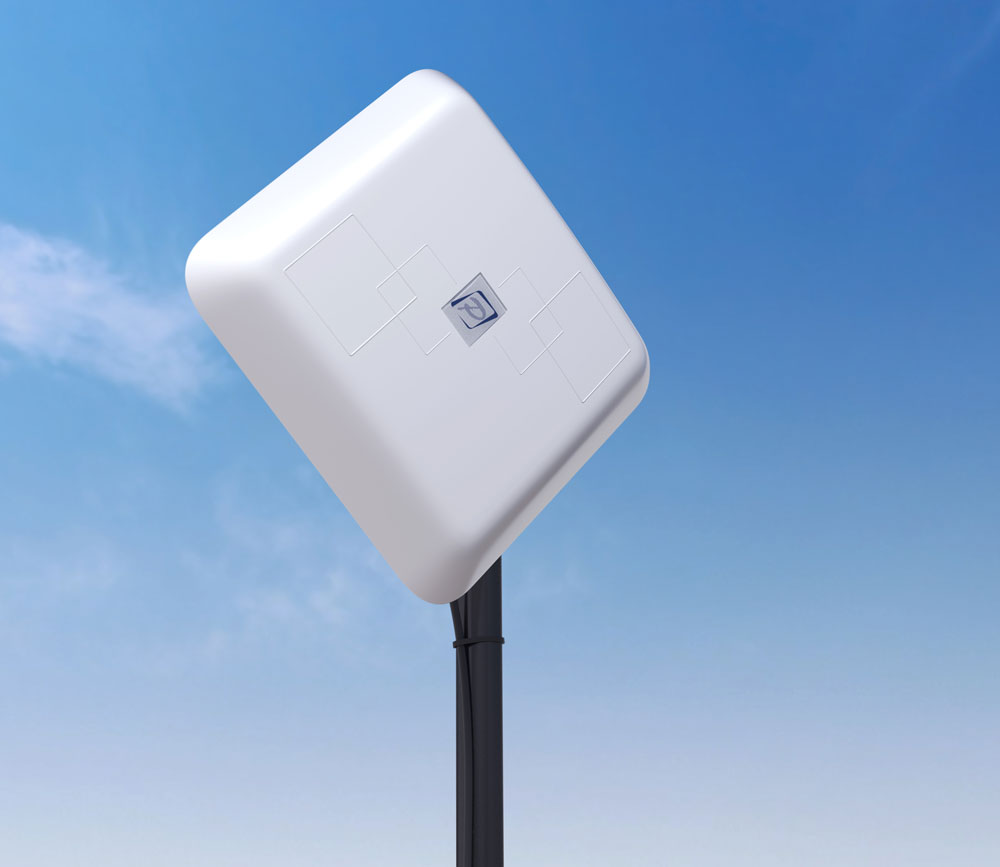

Panel antenna "BAS-2324 FLAT-15F MiMo" is designed for use in conjunction with the equipment of wireless data transmission systems standards 2G(GSM1800), 3G (WCDMA2100), 4G(WIMAX LTE2600). 4G LTE antenna allows to implement the MIMO technology (Multiple Input Multiple Output), significantly improving the stability and sustainability of the equipment and increase the speed of data transmission. Equipped with two F-connectors for easy and quick connection of feeder lines.

The antenna is directional (beam width is 30°/30°). When installing the antenna it is important to know the right direction to the base station of your provider. The antenna is equipped with two F-connectorsthat allows to connect almost any hardware (to connect to modems require appropriate adapters and/or cables), the connectors are structurally closed DC, which provides protection of connected equipment from static electricity.

FEATURES

The location of the antenna:External
Supported communication standards:GSM1800, WCDMA2100 (3G), IEEE802.11b/g/n (WiFi), LTE2600 (4G)
Operating frequencies, MHz:1700 - 2700
Gain max dBi:15
The wave resistance, Ohm:75
Maximum input power, watts:40
Connector type:2 F-connector
Assembled dimensions (without mount), mm:240x240x40
Weight, max, kg:1



[Admin 2545]

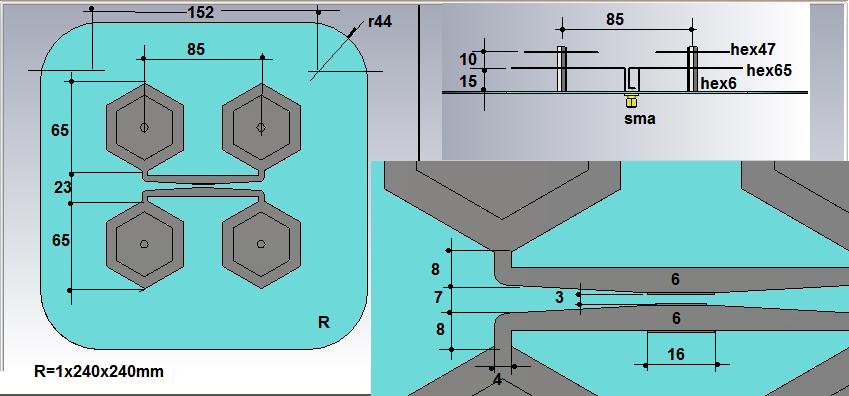

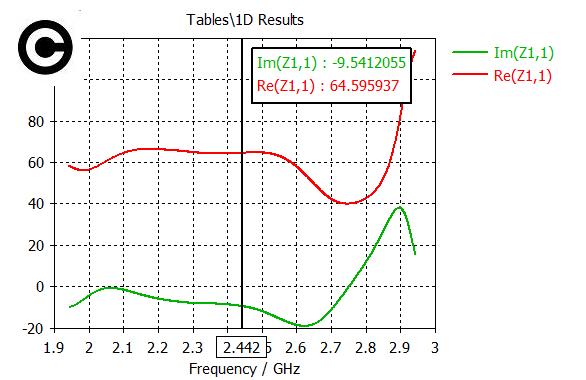

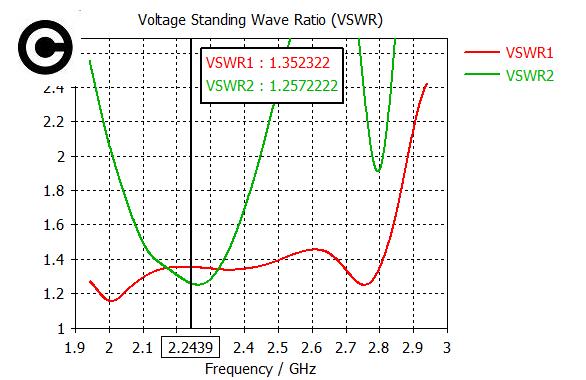

,,, after modifying the dimensions of those submitted by Nickol, it appears that the simulation results correspond to those of manufacture...

[Admin 2545]

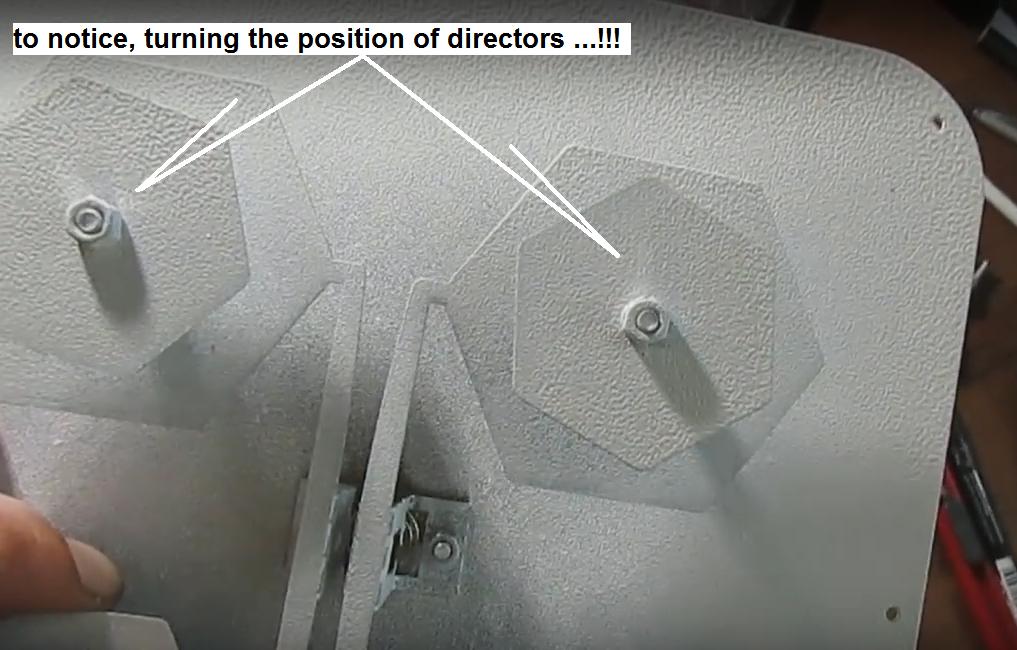

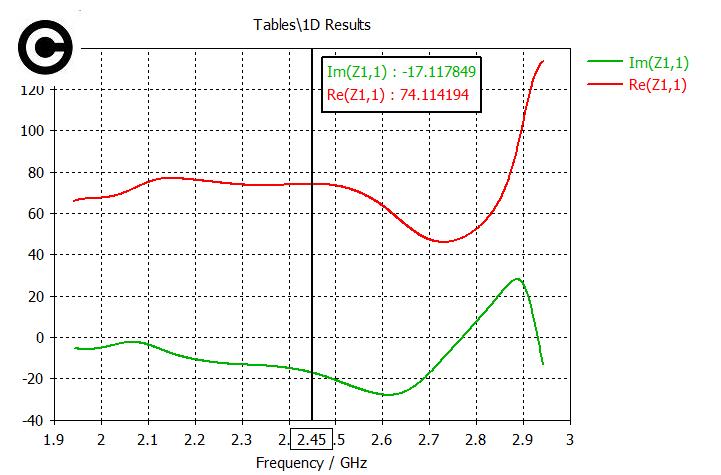

,,, I repeat, it seems that the adjustment on the frequency range,VSWR or impedance is made by rotating the first director...

[clanon 246]

wouldn't be better to try a CIRCULAR director...?

imho

[Admin 2545]

,,, yes, it might, it must be tried ... !!!

[Admin 2545]

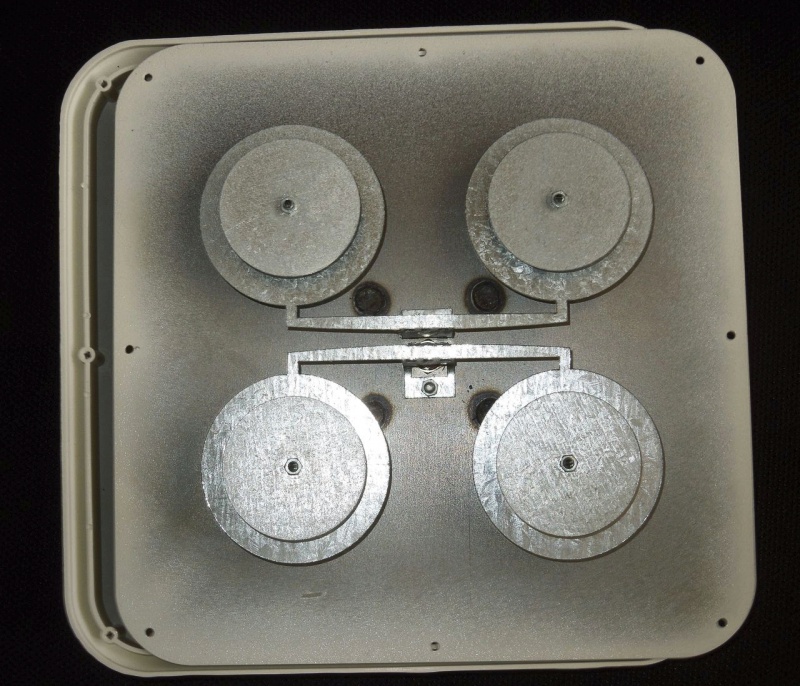

,,,, yes, REMO the manufacturer, also has the circular version of this antenna but with an output impedance of 75 Ohm

,,,and resonator (puller unit)....



[Admin 2545]

The company's latest optimization...dual band(2,4 GHz;5GHz) antenna by REMO ELECTRONICS

Technical specifications

Built-in Wi-Fi Adapter No

Cable length, m 5

Voltage SWR, not more than 2

Package weight, kg 1,2

Supported 2.4 GHz and 5 GHz WIFI communication standards(IEEE802.11a/ac/b/g/n standards)

Operating frequencies, MHz 2400-2500, 5100-6200

Assembled dimensions, mm 240x240x85

Antenna placement is external

Gain, max., dBi 15/12

Wave resistance, Ohms 50

Connector type RP-SMA-plug

Weight, kg 1

[Admin 2545]

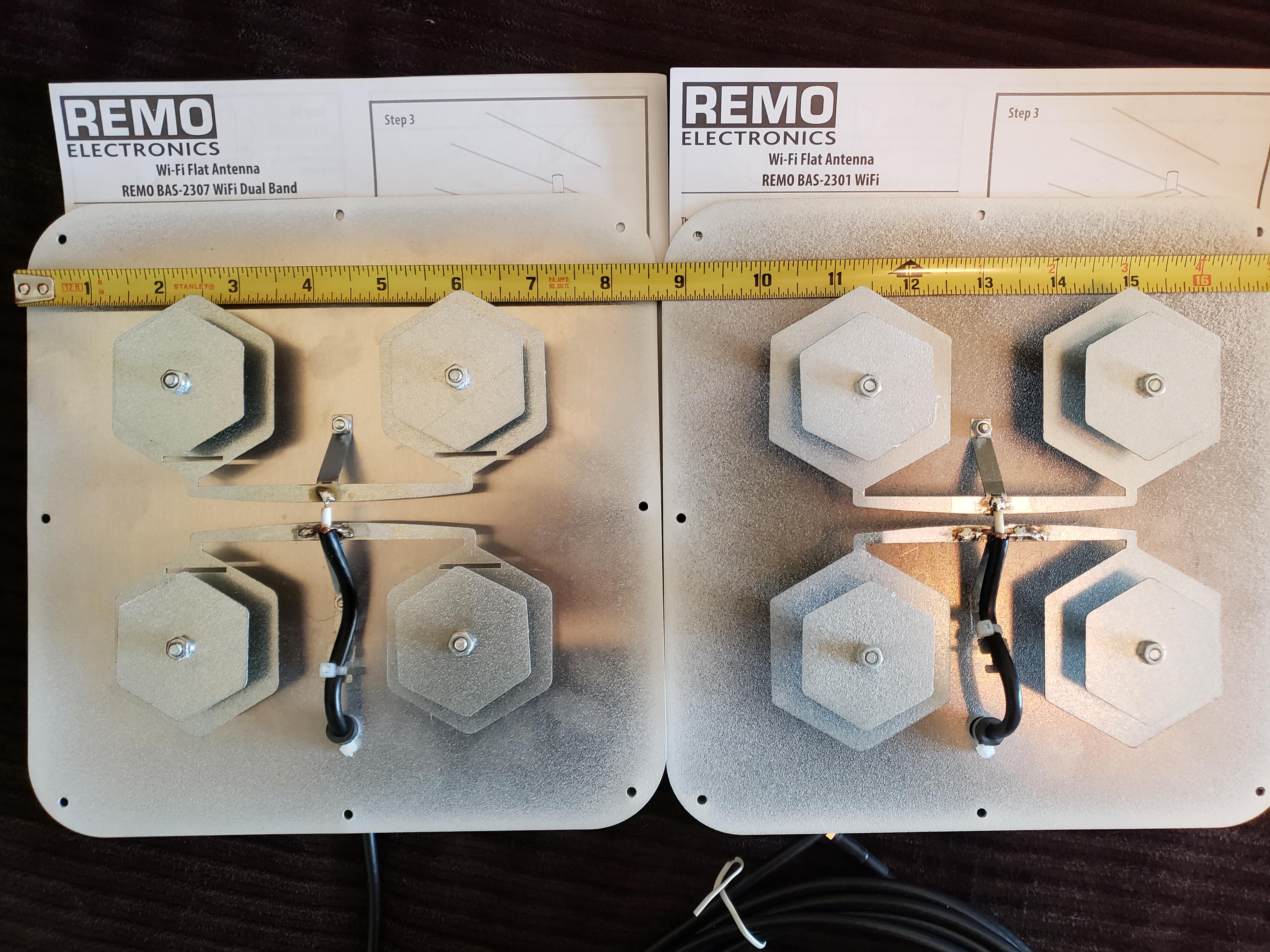

,,,dual band and single band WiFi-Flat Antenna...
