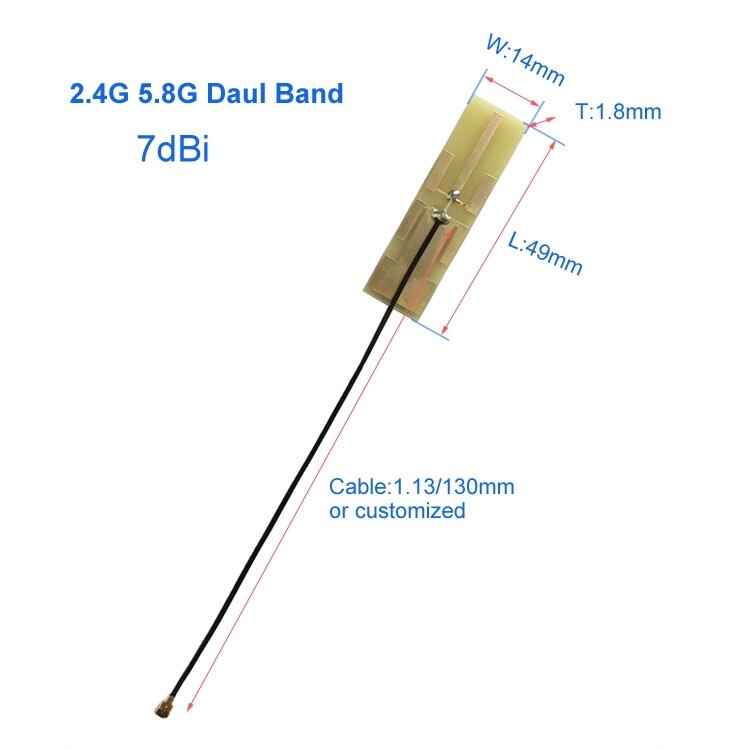

2.4G 5.8G PCB Antenna 7dBi WIFI Patch

Started by Admin, March 10, 2022

Posted March 10, 2022

2.4g 5.8g daul band wifi whip mmcx antenna
Frequency range 2400-2500Mhz/5150-5850Mhz
Gain 7dBi
VSWR ≤1.5
Polarization Vertical
Input impedance 50Ω
Power 30w
Size 49*14*1.8mm
Cable length 130mm or customized length

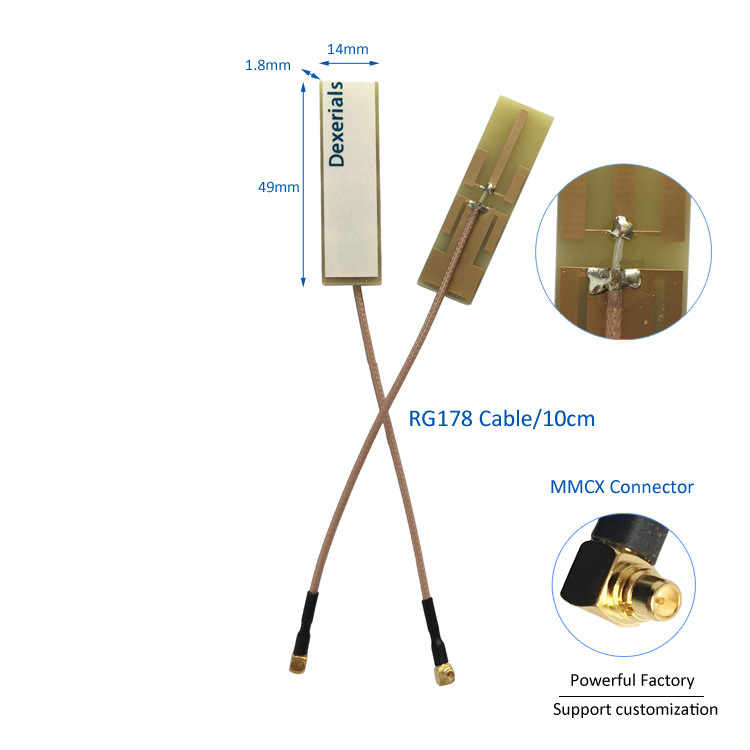

Cable type RG178 whip antenna
Connector MMCX
Mounting 3M sticker
Operation Temperature - 40 °C ~ + 80 °C
Storage Temperature - 40 °C ~ + 80 °C
Application Wifi 2.4g antenna 5.8g antenna
MMCX or Ipex connector or stripped cable optional
