Broadband 2G/3G / 4G MIMO Antenna KAA20-1700/2700 BOX

Started by Admin,

Posted

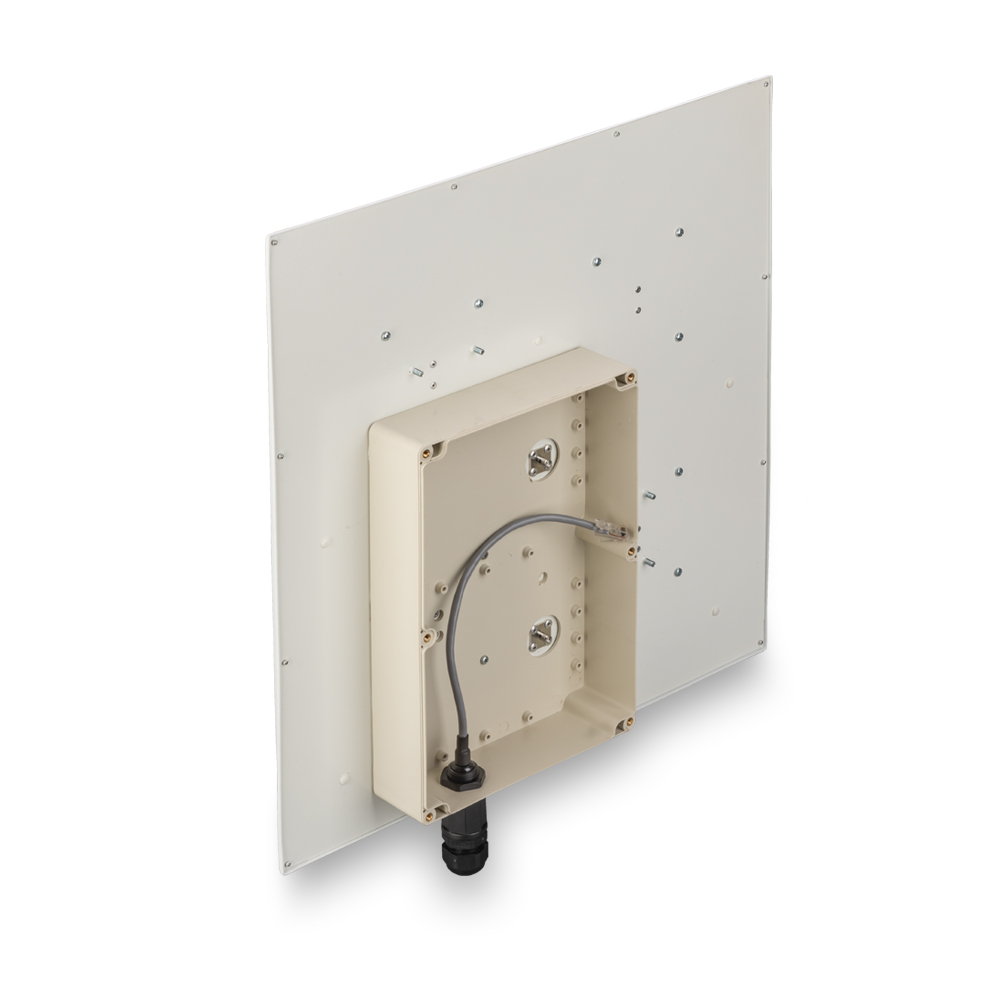

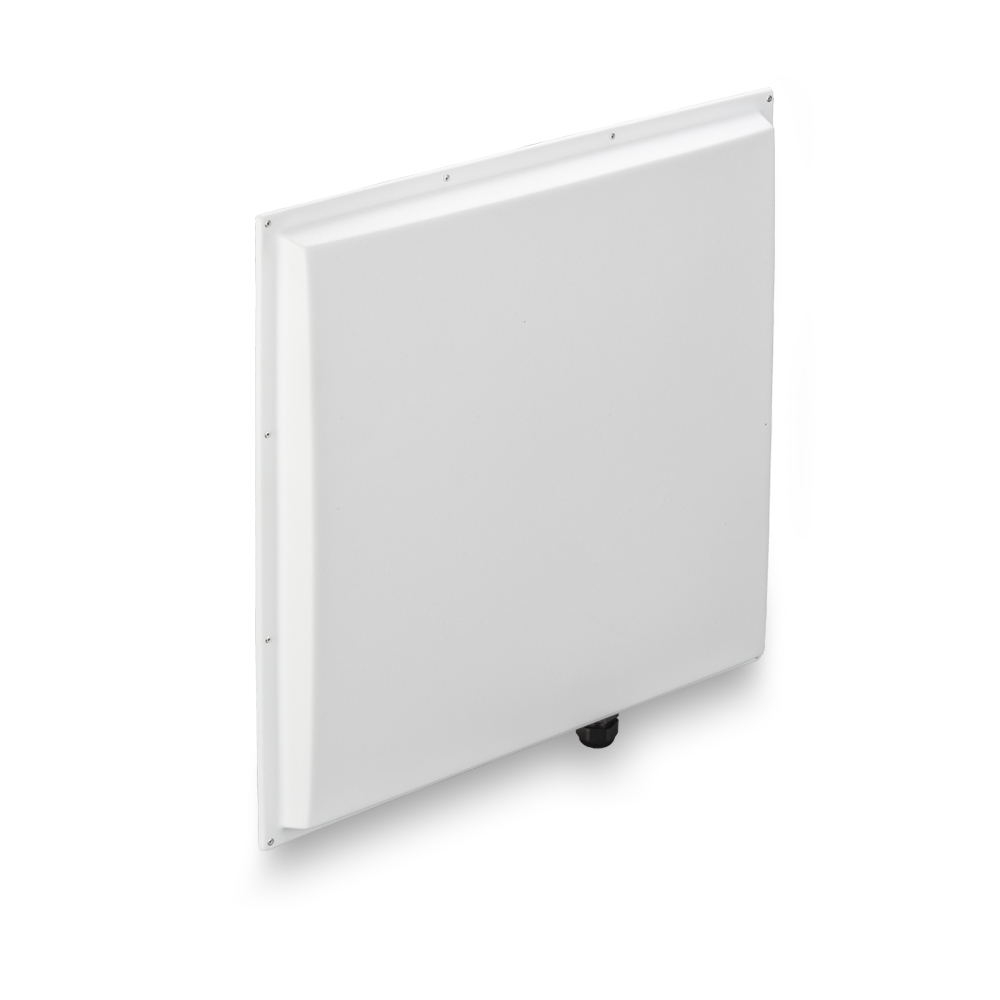

The KROKS KAA20-1700/2700 BOX MIMO panel antenna is designed for use in conjunction with 3G / 4G modems, in the frequency range 1700-2700 MHz.

The antenna is compatible with equipment for the following standards::

2G (EDGE, GPRS on GSM1800 frequencies)

3G (UMTS 2100)

4G (LTE1800, LTE2600)

2.4 GHz WI-FI (IEEE 802.11 b, g, n)

Dimensions (length, width, height), mm 440 x 435 x 105

Package dimensions (length, width, height), mm 445 x 440 x 110

Package weight, grams 3900

    Antennas-characteristics :

Operating frequency range, MHz 1700-2700

Antenna gain, dB 17-20

SWR in the operating frequency range, max. 1.8

Polarisation ,Linear

Wave resistance, Ohms 50 (SMA connector)

Maximum input power, W 10

Connector, SMA-female

Operating temperature range, oC -40 … +50

Maximum permissible air humidity, % 100

Port decoupling at least, dB 35
