Powerful broadband patch antenna

[Admin 2537]

Flat (strip, patch) antenna array (16 patches).
Antenna Sarma gives up to 19 dBi, the maximum gain at frequencies of 2100 and 1800, 2400, 2600 MHz
operating frequencies with a gain of 8 to 19 dBi from 800 to 2700 MHz
radiation Angles vertical: 20.7 degrees, horizontal: 25.8 degrees

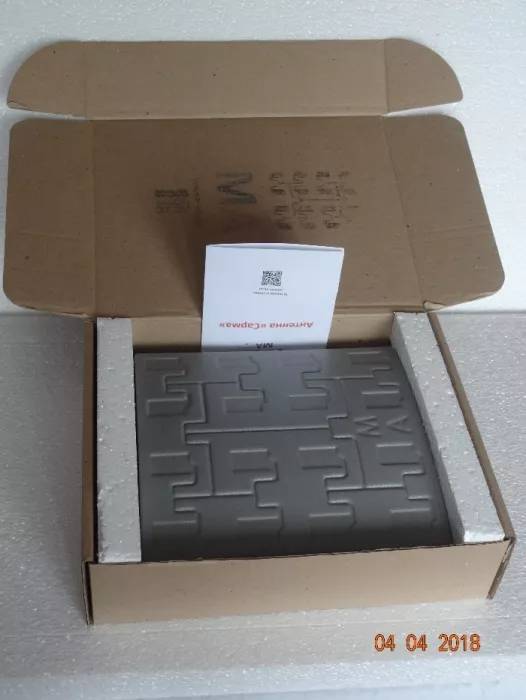

Weight, Assembly, Size 1 kg. 300х320 mm in the package. Has a high quality presentation.
Output connector F-mA, 50 ohms. Maybe order compactoffice other connectors.

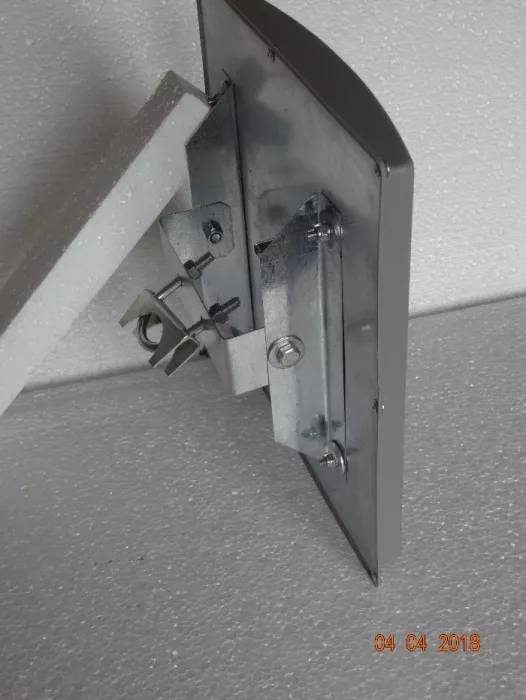

Reliable and hard to wind load, swivel mount, capable dolgovremennoi locking perpendicular to the radiation source. Bolting M6, M8, M8 pipe clamp for pipes up to 48 mm.

closed loop, lightning protection.
The use of drop cables 75 Ohm slightly alter the characteristics of the signal.
When working with operators of mobile Internet, when using multi-standard equipment can simultaneously efficiently liaise at all speeds 2g, 3g, 4g (900, 1800, 2100, 2600 MHz) and CDMA 800 MHz.

Supply options:
1. the maximum gain on the "2400" MHz (wi-fi, flying machines, etc.)
2. the maximum gain on the "2100" MHz +2600 +1800 (3G + 4G)
3. 2300 MHz (Wi-Max, etc.)
