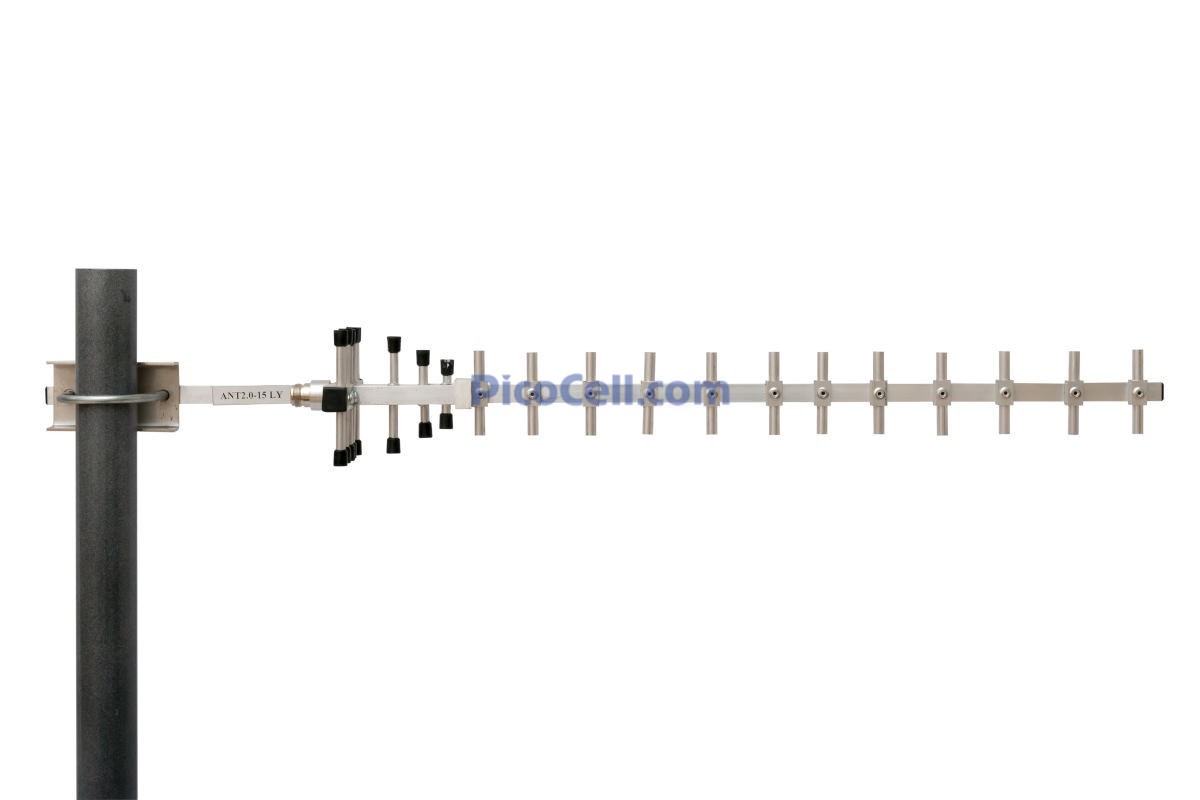

3G ANT 2.0-15 LY Antenna

Started by Admin,

Posted

Operating frequency range 2000 MHz

Uplink 1900 - 2170

3G mobile connection

Radiation sector in the vertical plane 34.5

Horizontal radiation sector 35.0

Gain 15 dB

Vertical polarization

UMTS 2000 Standard

Maximum input power 100.0 W

Wave resistance 50.0 ohm

VSWr of input and output, no more than 1.5

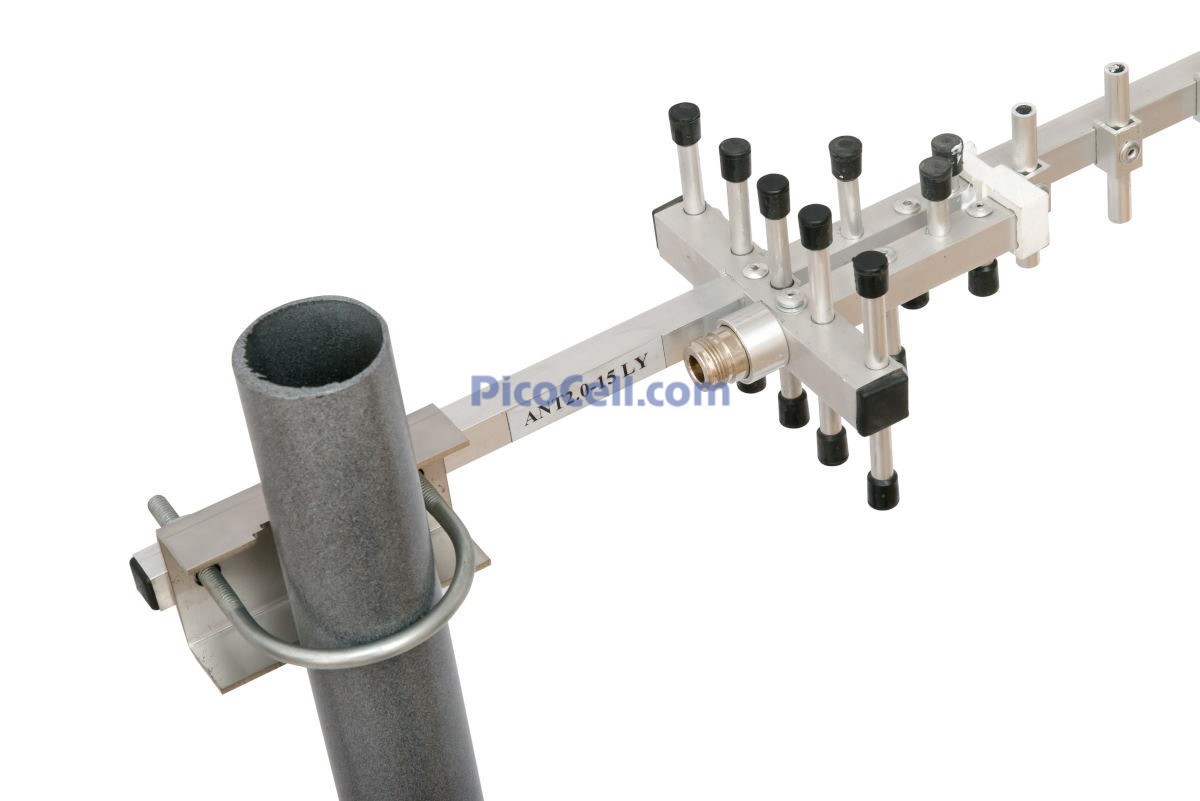

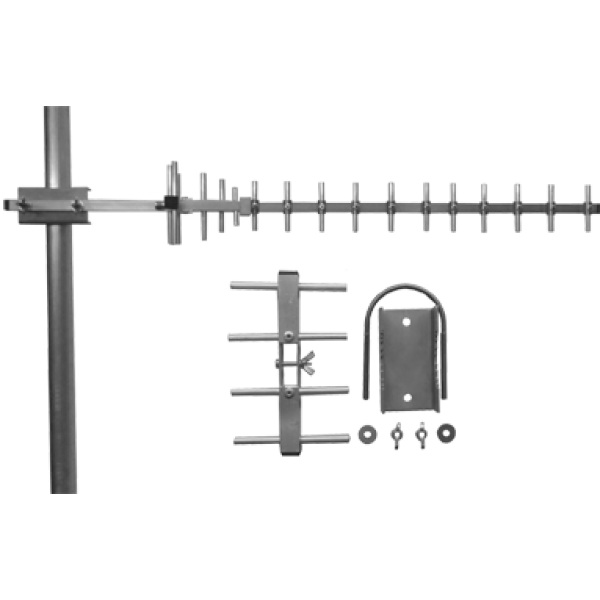

Mounting position on the bracket / on the mast (up to 50 mm)

Housing material Aluminum

Connector type N-female

Operating temperature range -40..+60

Dimensions 750×110×90 mm

Weight 0.3 Kg
