Konus Wi-Fi antenna

[Admin 2546]

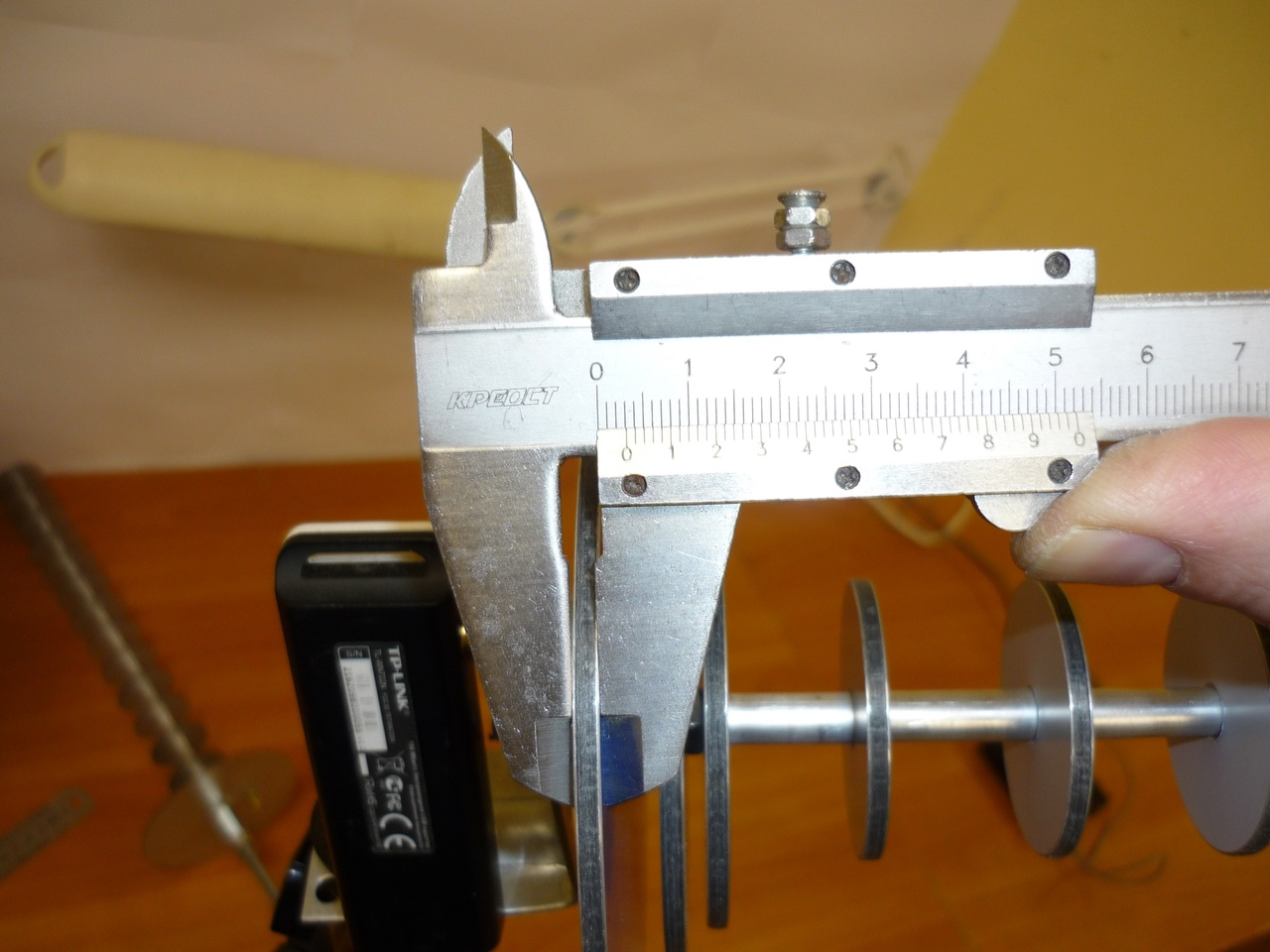

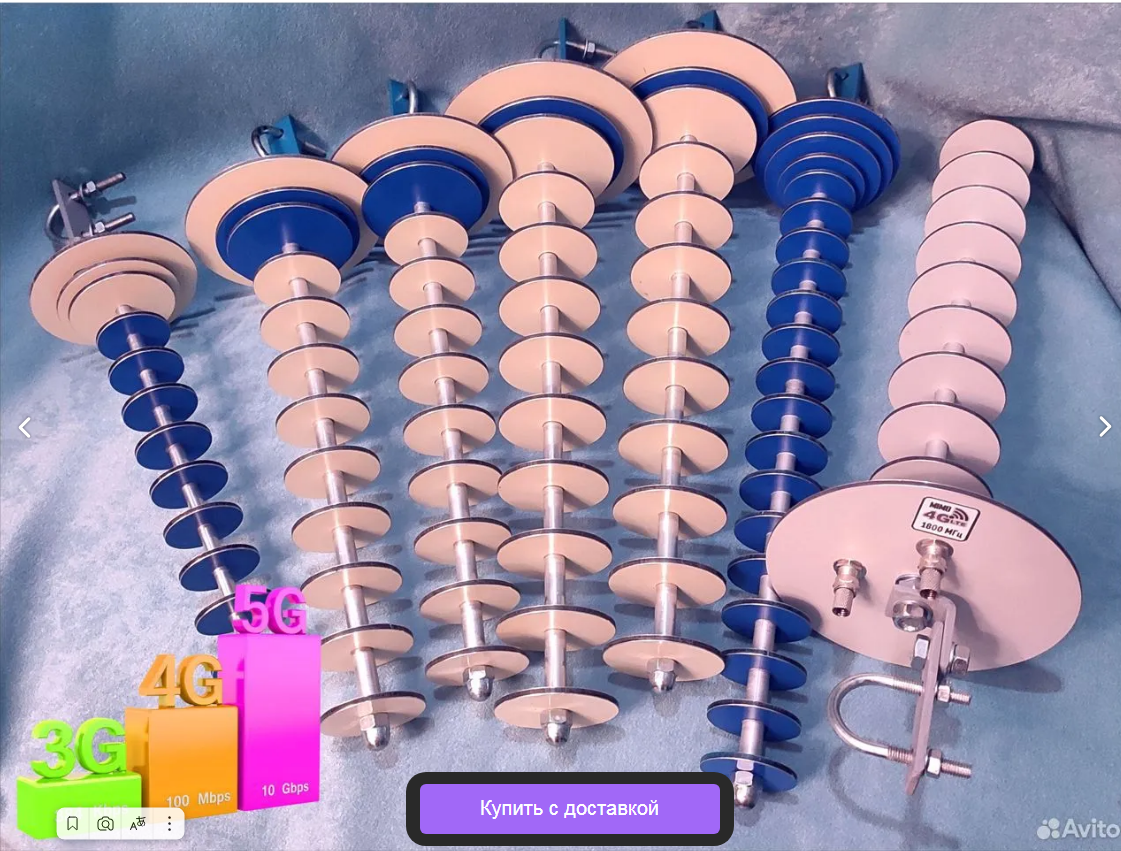

Wi-Fi antenna "Konus" with gain up to 17 dBi (maximum 16.8 dBi). The antenna is made of composite materials, the output is an F-connector (if you wish, you can install two connectors-free of charge).All four types of SMA connectors can be installed (SMA-male, RP-SMA-male, SMA-Female, and RP-SMA-Female).Wi-Fi antennas are usually used to receive or transmit signals from home routers or from free Wi-Fi access points of operators installed in localities. To receive a signal, you can use both a Wi-Fi adapter and almost any Wi-Fi router configured in repeater mode. The router is even more convenient, you can immediately receive and distribute a Wi-Fi signal.

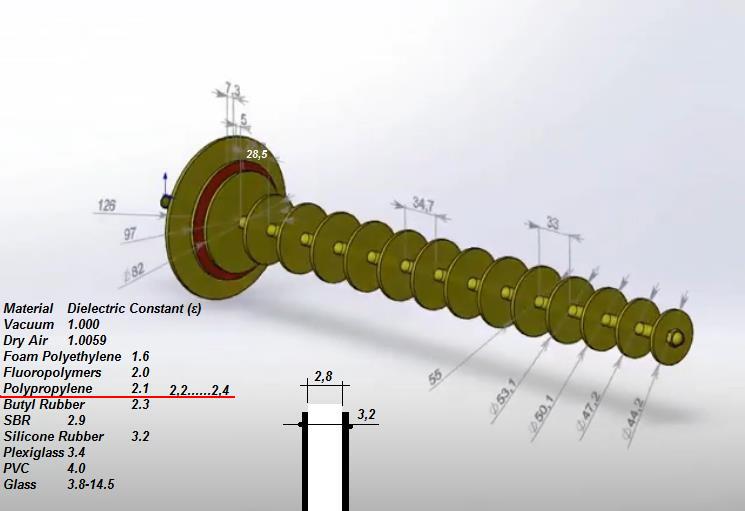

Material Dielectric Constant - Polypropylene -2,1,,,,,2,4

[Admin 2546]

,,,from here...





[Admin 2546]

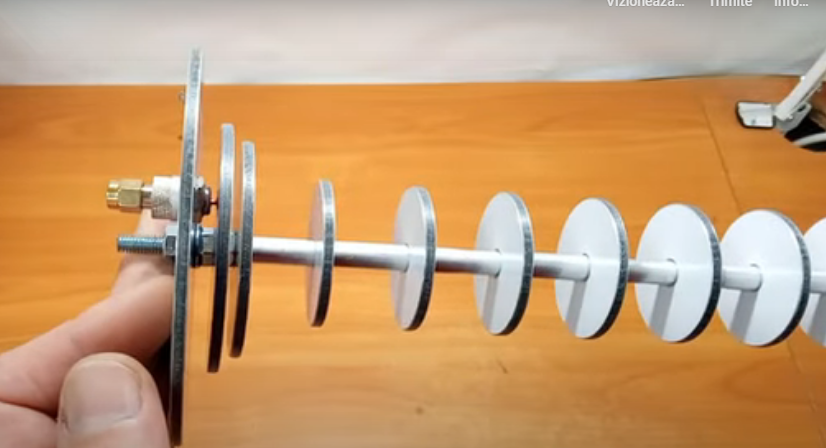

,,,another video...



[Dr. Pepper 58]

Cool idea, this should it make possible to simply 3d print the disks and to cover them with metal tape. When the metal is on both sides then the plastic material it should not produce to many issues because the whole assembly will act like a capacitor with low resistance at 2.4 ghz. But here is even a connection with the center rod so with a new calculation the antenna should perform nearly like a 100% metal one (without looking through the videos to find out if there is a big difference :-).

[Dr. Pepper 58]

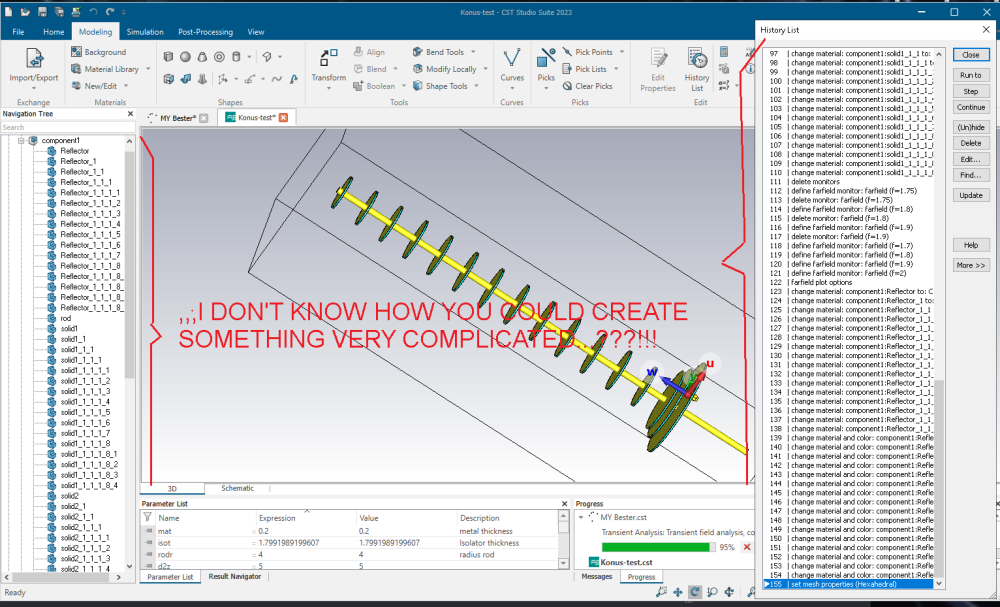

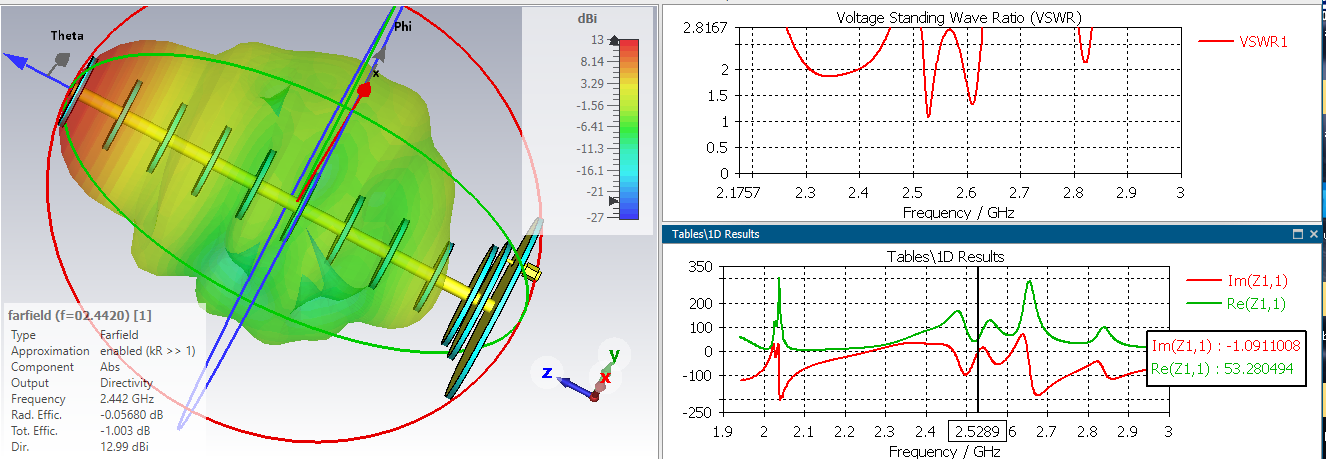

I tried to model the antenna in cst but the design seems not to be right. Can also be that i make a mistake in the design, its a long time since i used the software before. Therefore the parameters are also a bit screwed up. But if you want to look into the design i add the cst file for playing around. When this works it will be very easy to produce such an antenna via 3D printing or with a cheap laser. It is possible to first cut polymer disks and then cover them with conductive tape or simply cut double sided metal covered polymeric material with a cheap laser.

Konus-test.cst

[Admin 2546]

I got other results...



konus antenna.cst

[Dr. Pepper 58]

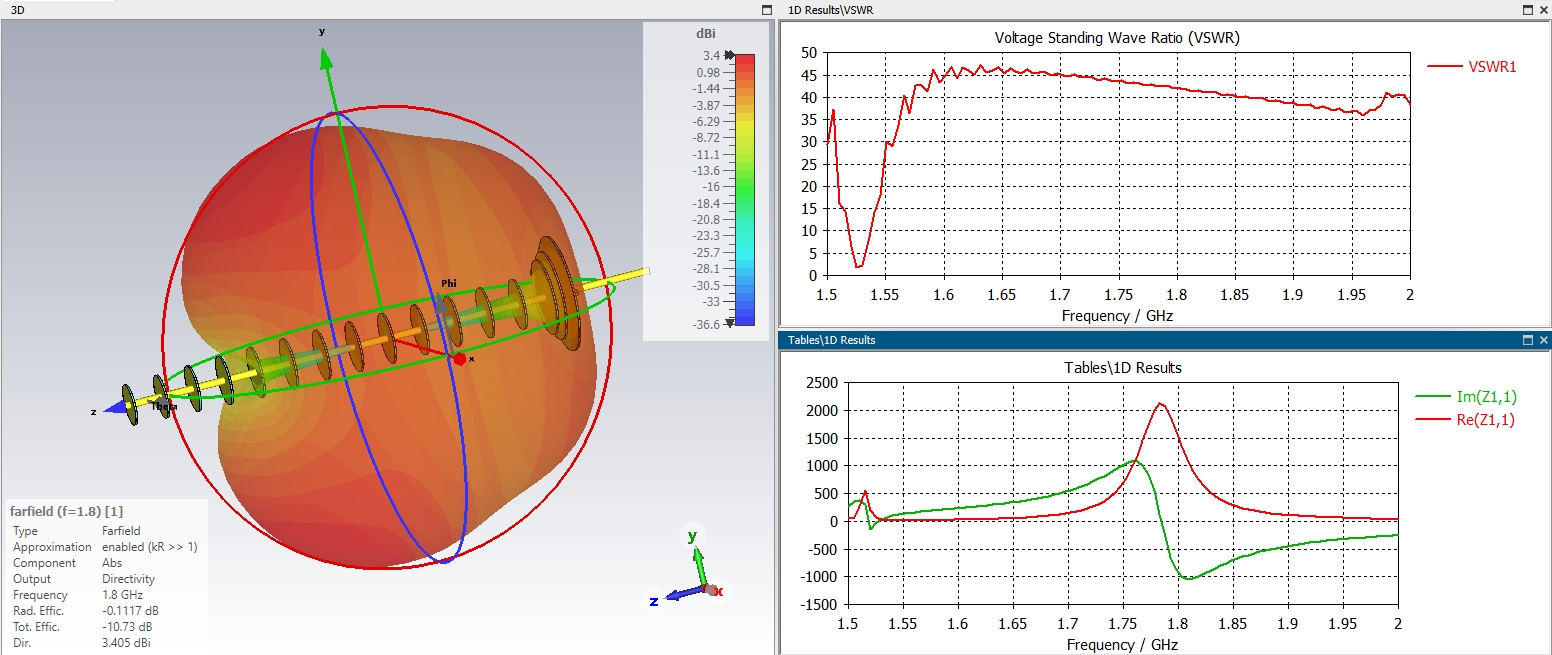

I think i have some error with the port, i removed the sma connector and used a discrete port and now the results are much better. I will optimize a litte and look what is possible

[Dr. Pepper 58]

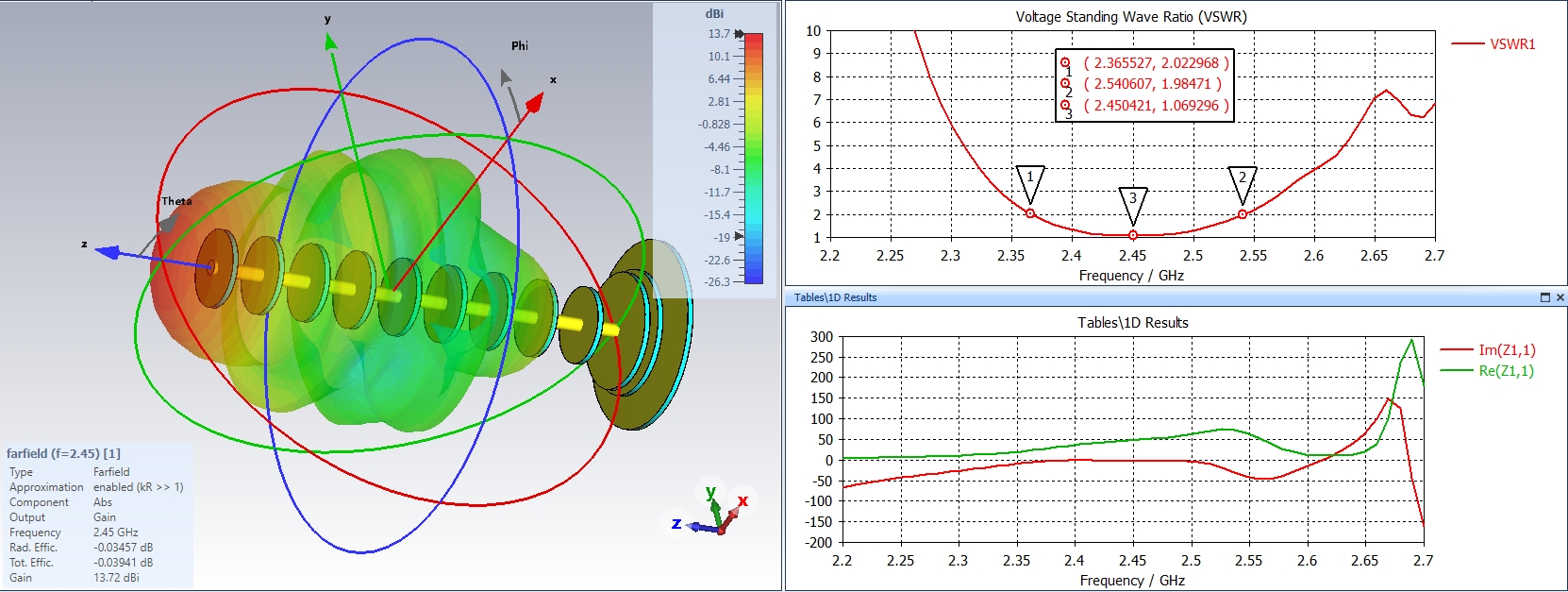

I tried Admins cst file and with this i was able to optimize the structure a little bit. Why my design not works i don't know. I will try to recreate it and find the error. Attached is what i was able to archive with the "konus" antenna, yet the konus is still missing but i will try to add it to raise the gain a little. So it should be possible to make a good antanna even when you only have metal covered plastic disks.

Edited August 26, 2023 by Dr. Pepper

[Admin 2546]

[Dr. Pepper 58]

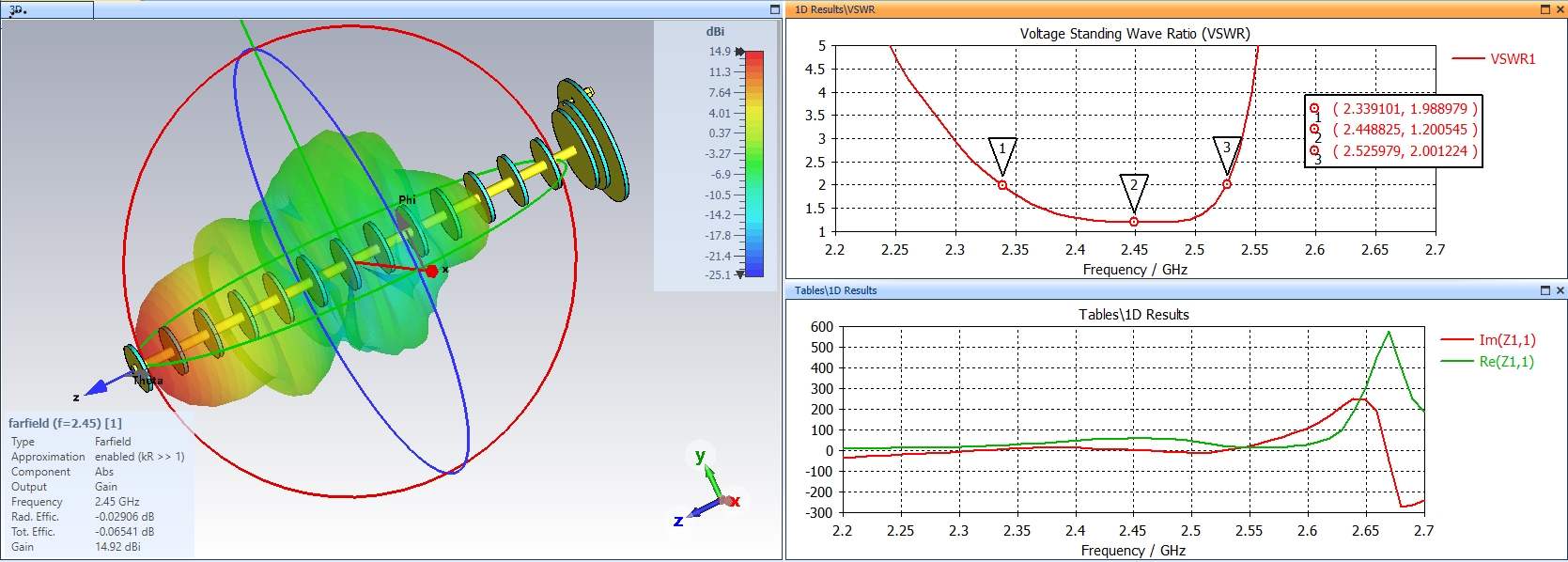

The solution i found with the added konus elements. It works but i couldn't find the claimed 17dbi. At least 15dbi and a good swr of 1.2 is possible.

[Dr. Pepper 58]

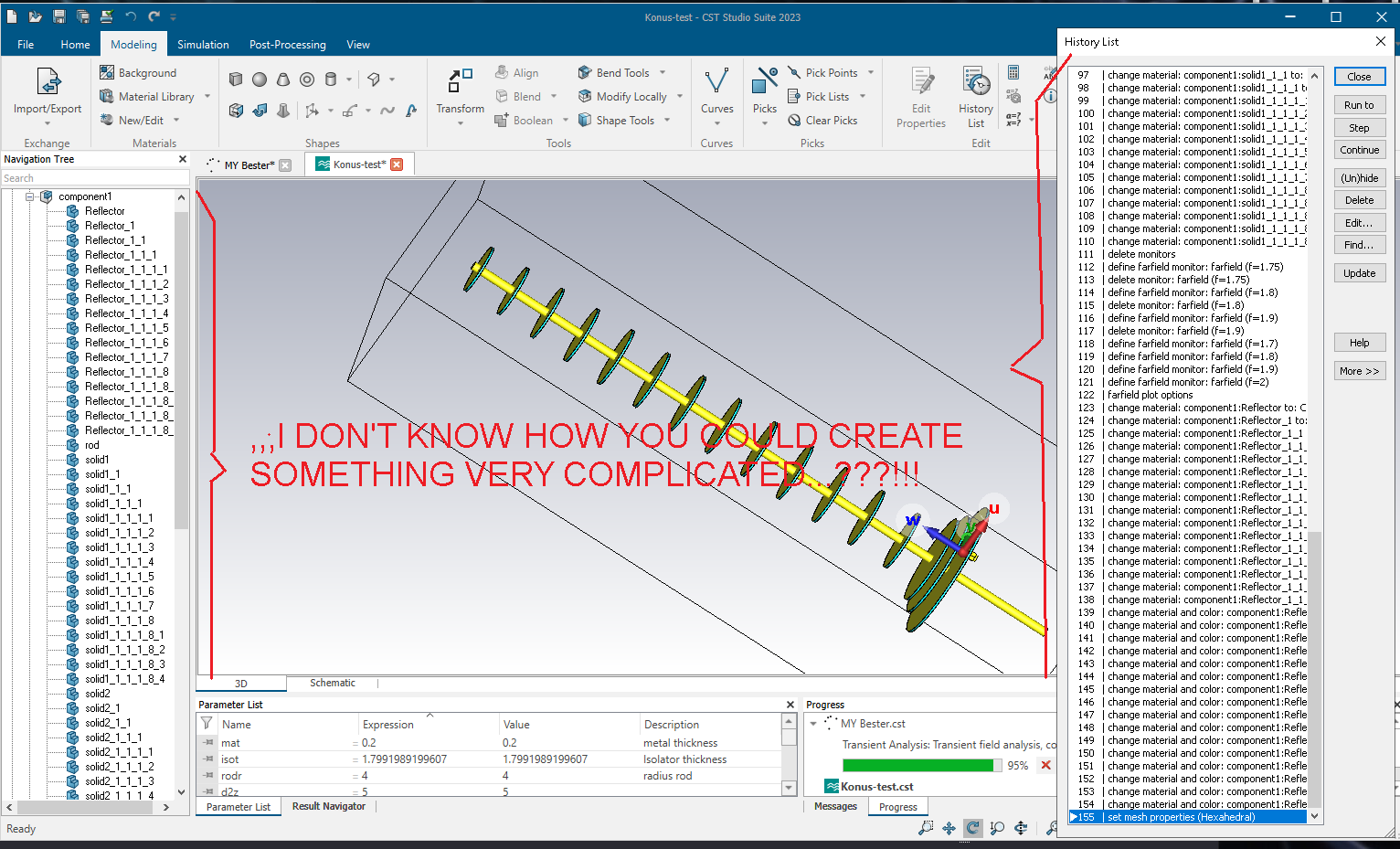

3 hours ago, Admin said:

I i didn't see your post, i simply copy translated a director and then scaled it to the right dimension. I messed up the material and color so i changed it afterwards.



I started with the reflector back metal, the insulator and then the second metal and then simply copied it over and over again and resized it

Edited August 27, 2023 by Dr. Pepper
