bear face-shaped radiator and octagon shape director => 9dBi

Started by eco32,

Posted

from documents:"Wideband quasi‐Yagi antenna with stable radiation patterns for base‐station applications" and "A Novel Wideband Quasi-Yagi Antenna for Base-station Applications"

> simulated gain ranges from 8.0 dBi to 9.8 dBi in the operating band.

that is same gain as in simple biquad but a simpler design.

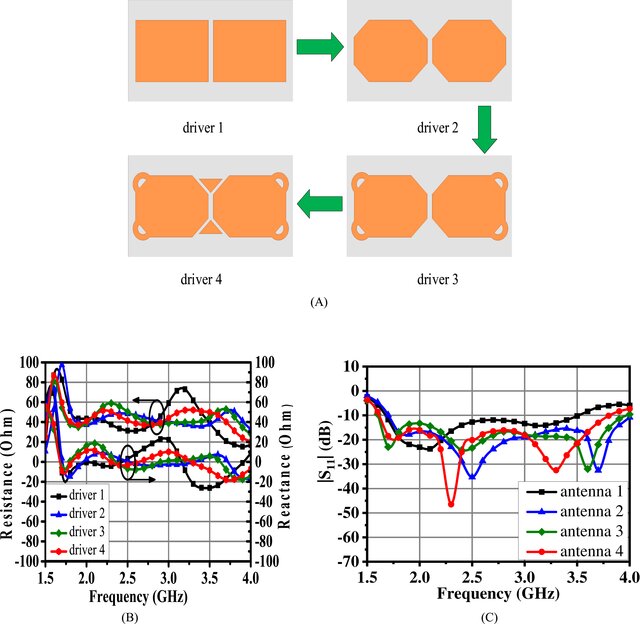

Evolution-processes-of-the-driver-A-Driver-models-excited-with-octagonal-shaped_W640.jpg

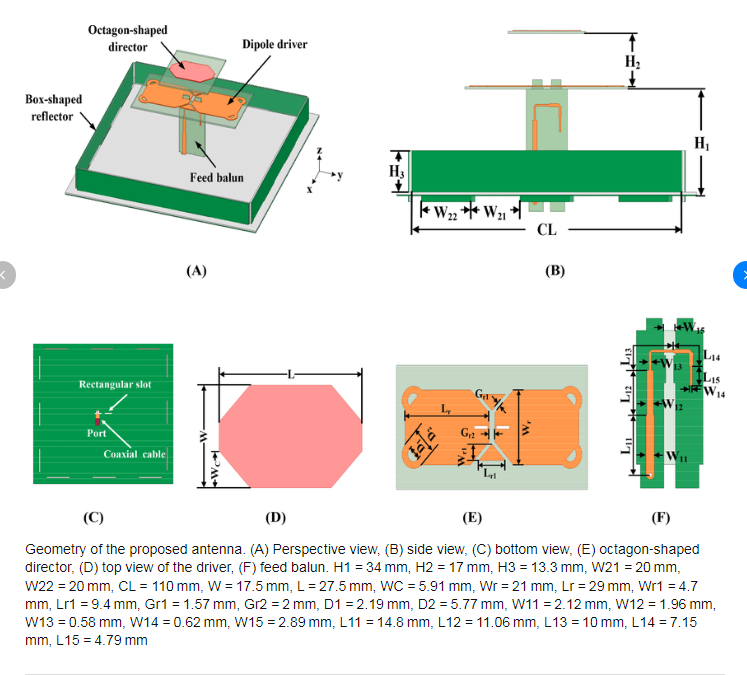

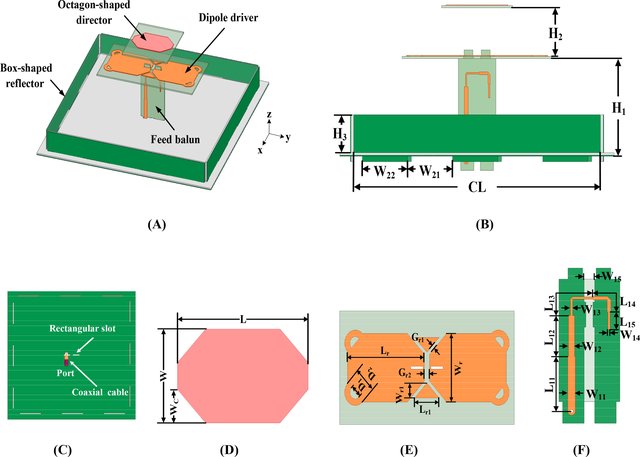

Geometry-of-the-proposed-antenna-A-Perspective-view-B-side-view-C-bottom-view_W640.jpg


Share this post

Link to post
Share on other sites

Posted

,,you forgot to include the dimensions...!!!


Share this post

Link to post
Share on other sites

Posted

I have acces only to "A Novel Wideband Quasi-Yagi Antenna for Base-station Applications", the is no dimensions.

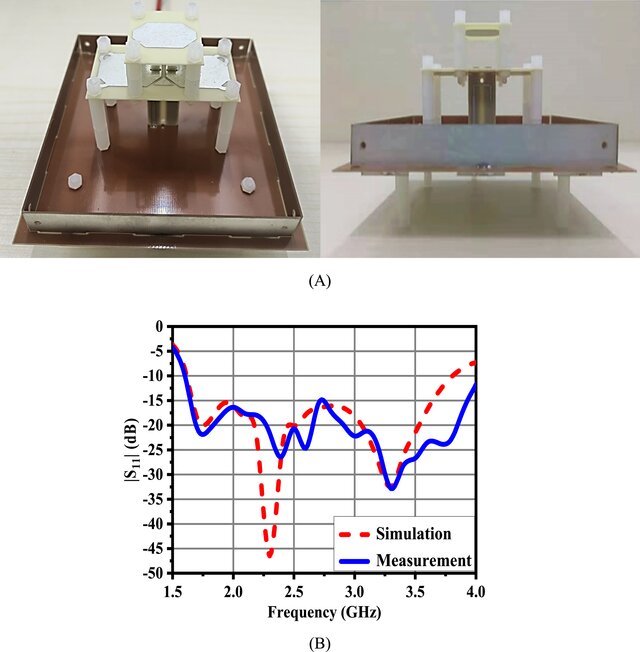

From charts it looks like this is antenna for a ~2.3GHz and ~3.3GHz

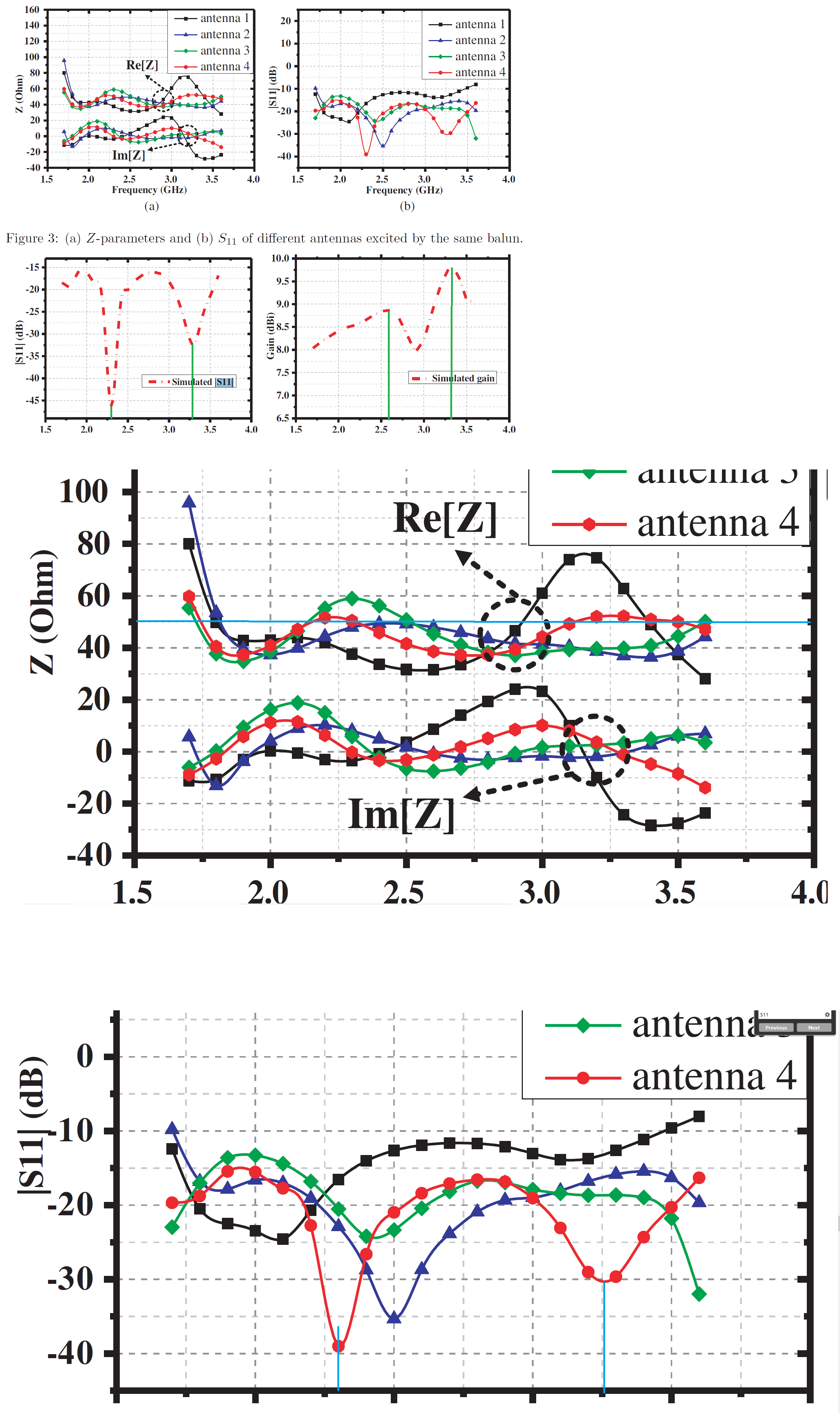

analiza anteny misiowej.png
