anoduck

RF Elements' UltraHorn

Started by anoduck,

Posted

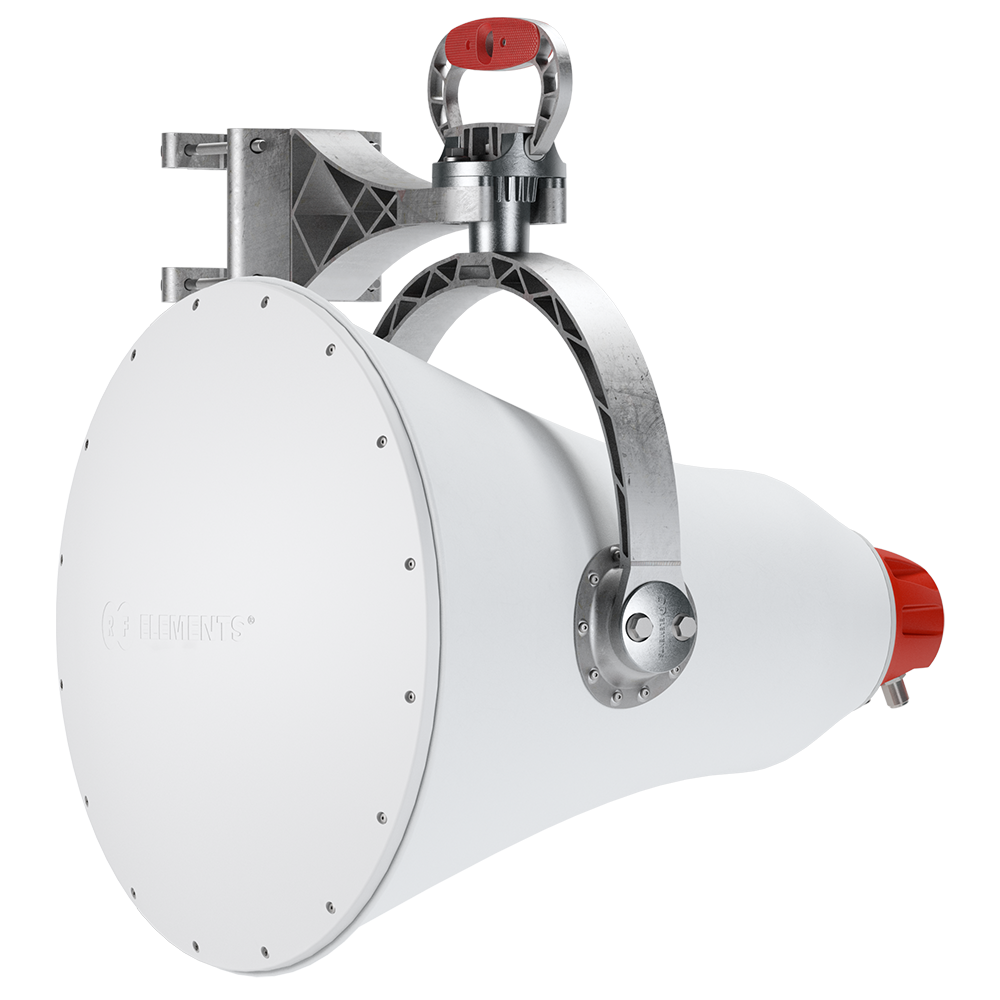

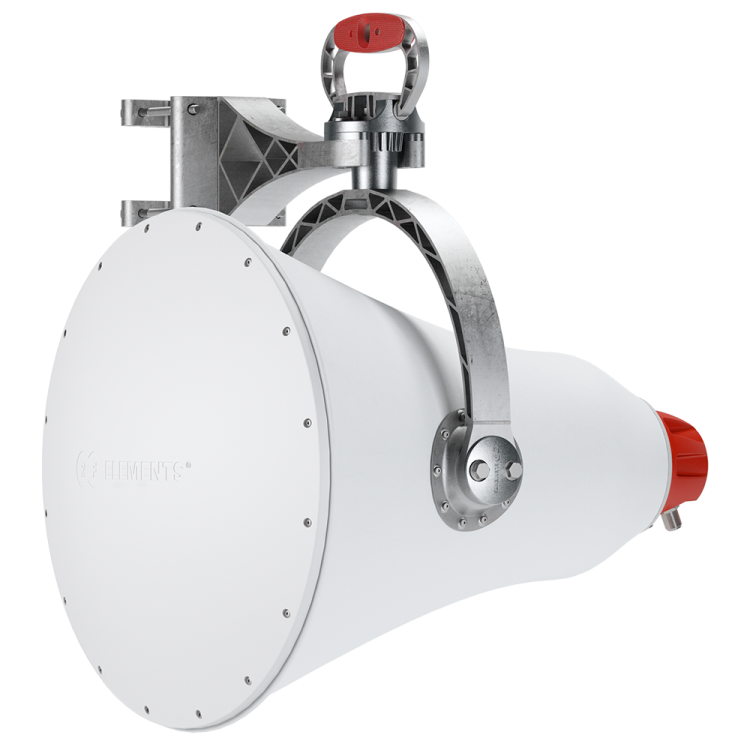

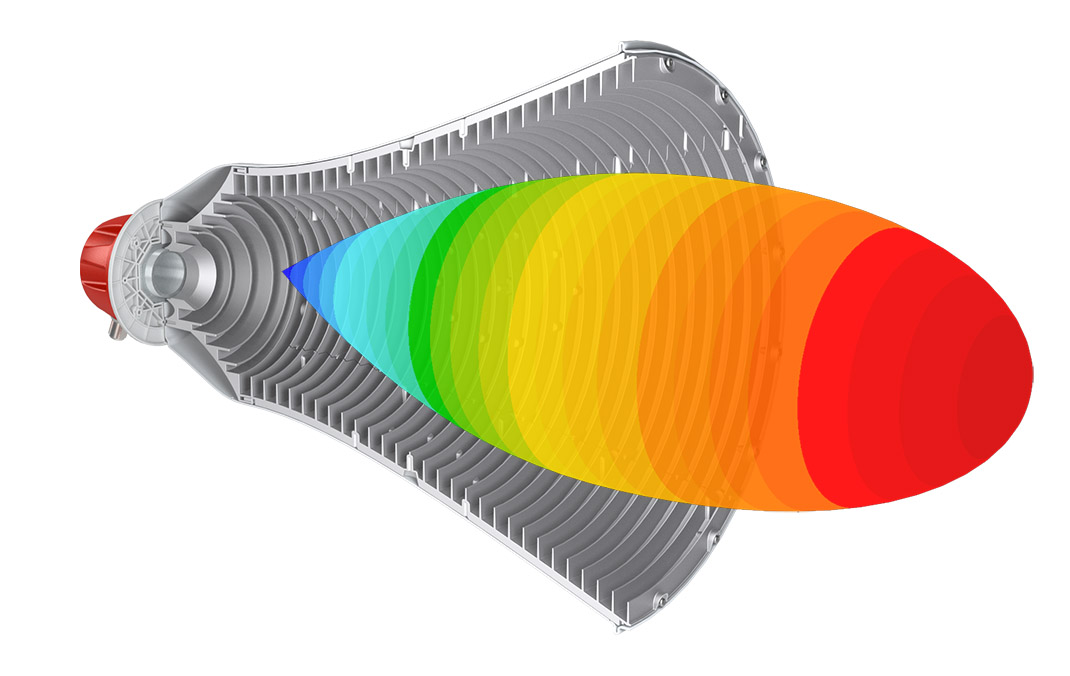

I ran up on this and was pretty impressed. Don't know if anyone has tried to build one of their own. It is a fascinating design, and I am interested in how the internal baffles interact with the wave.




img.asp



1 person likes this

Share this post

Link to post
Share on other sites

Posted

Waveguide Corrugated Horn Antenna......can you give dimensions?

Share this post

Link to post
Share on other sites

Posted (edited)

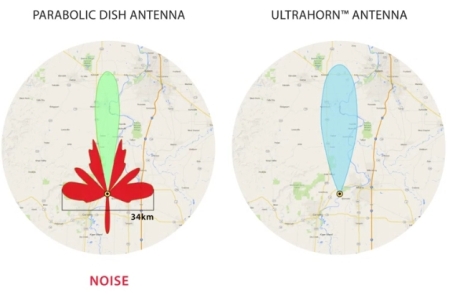

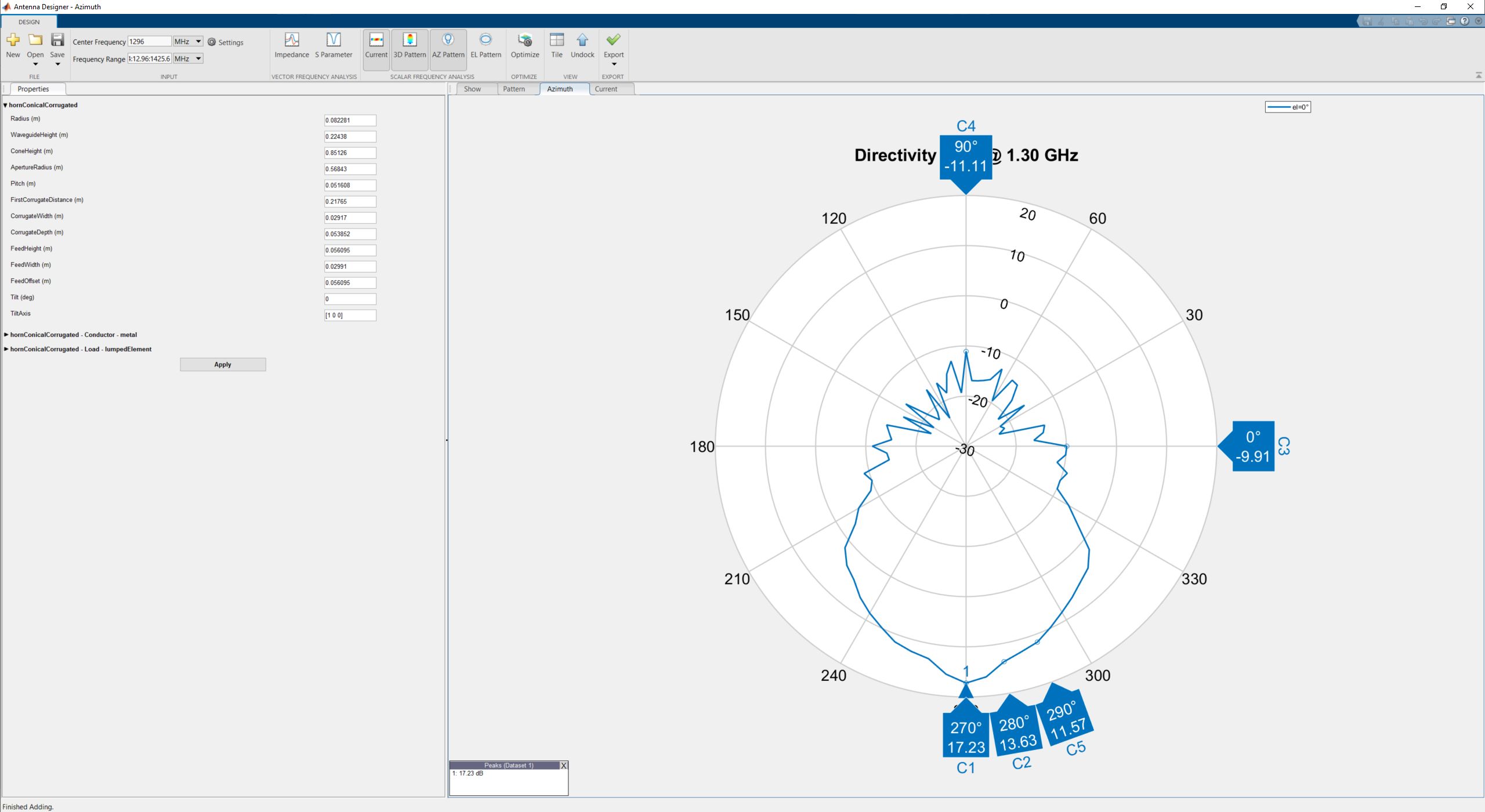

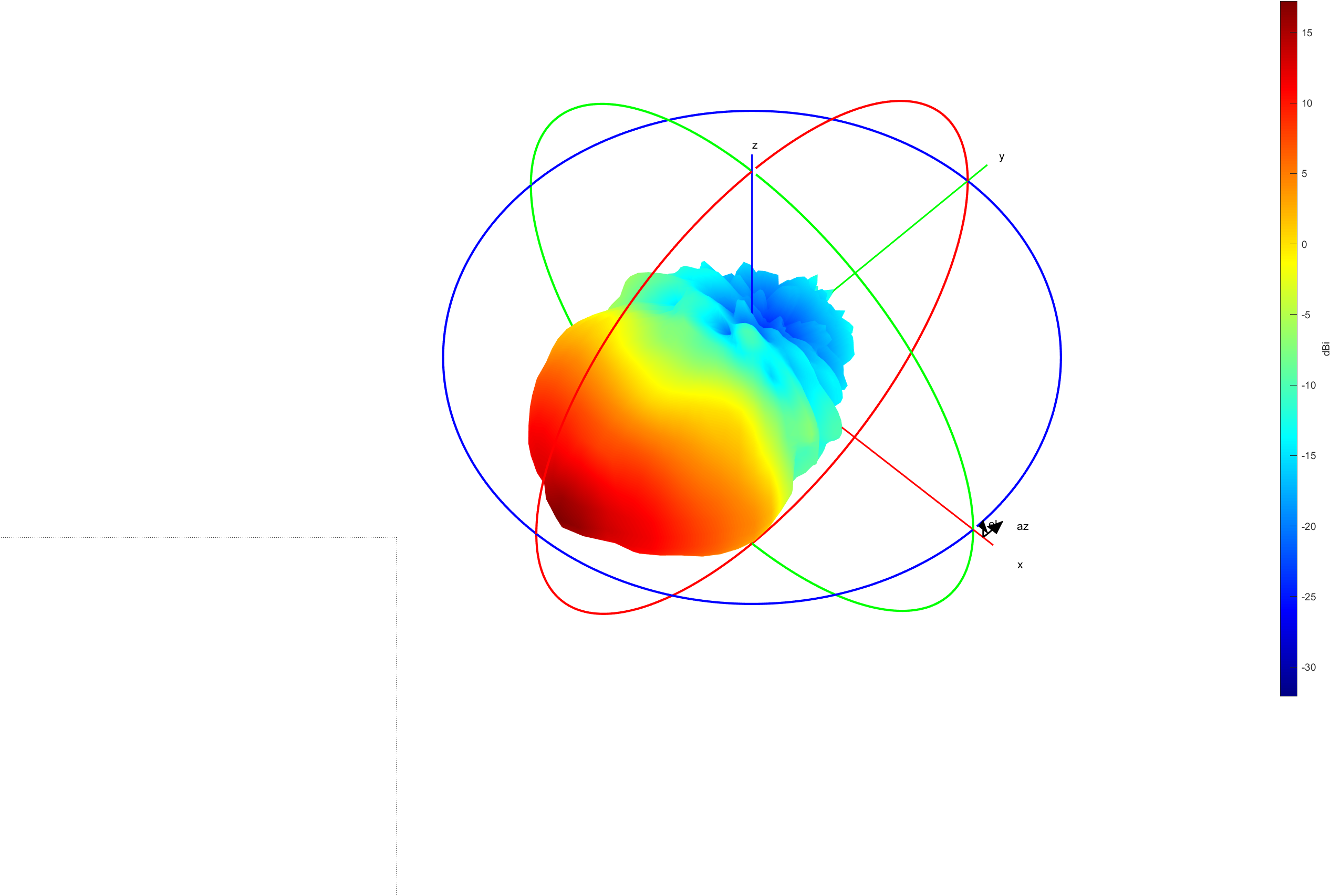

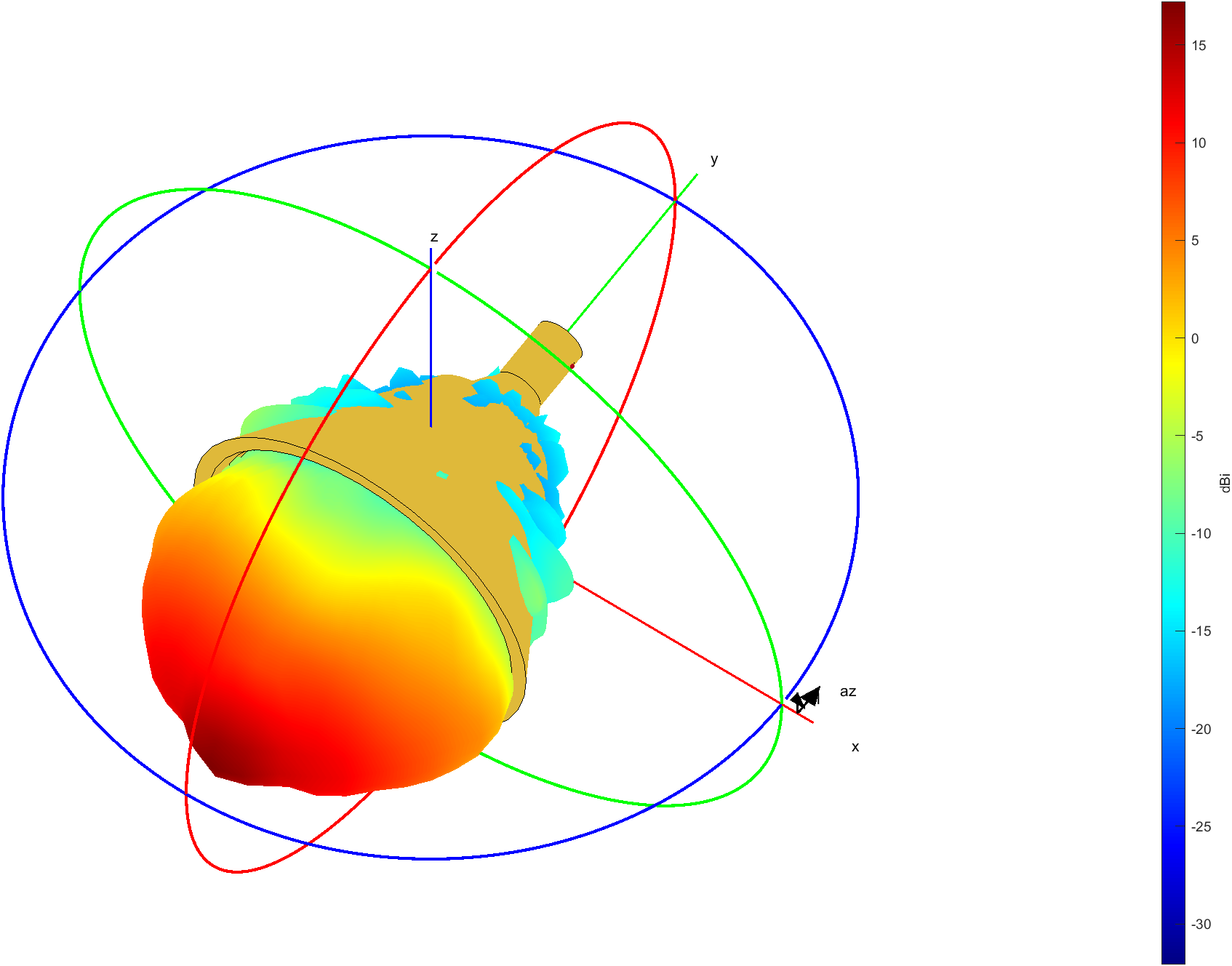

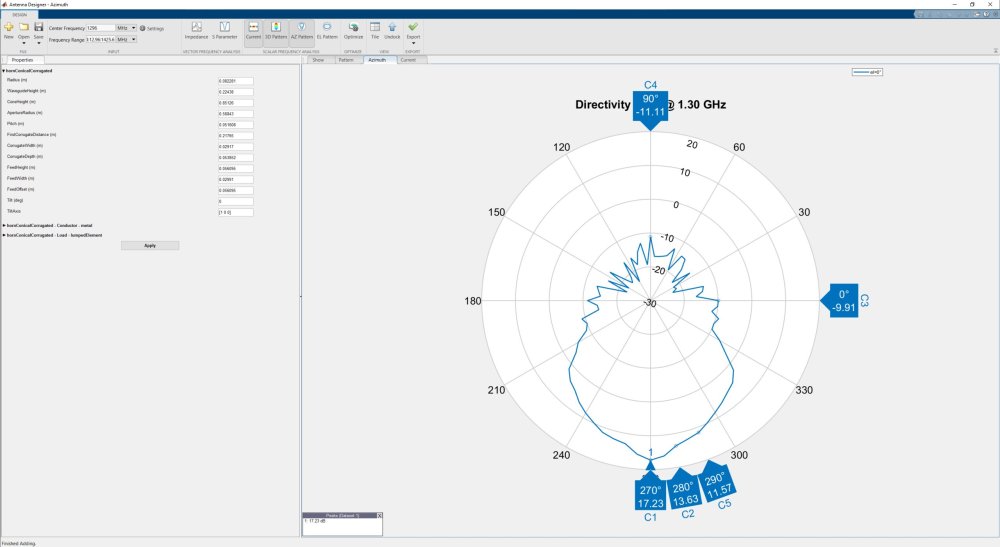

The manufacturer touts that the antenna does not have sidelobes, I wonder whether conical corrugated horn or piramydal corrugatted horn is better,

On 18.08.2023 at 2:44 PM, Admin said:

Waveguide Corrugated Horn Antenna......can you give dimensions?

We have only this for 5180 - 6775MHz  24dBi:

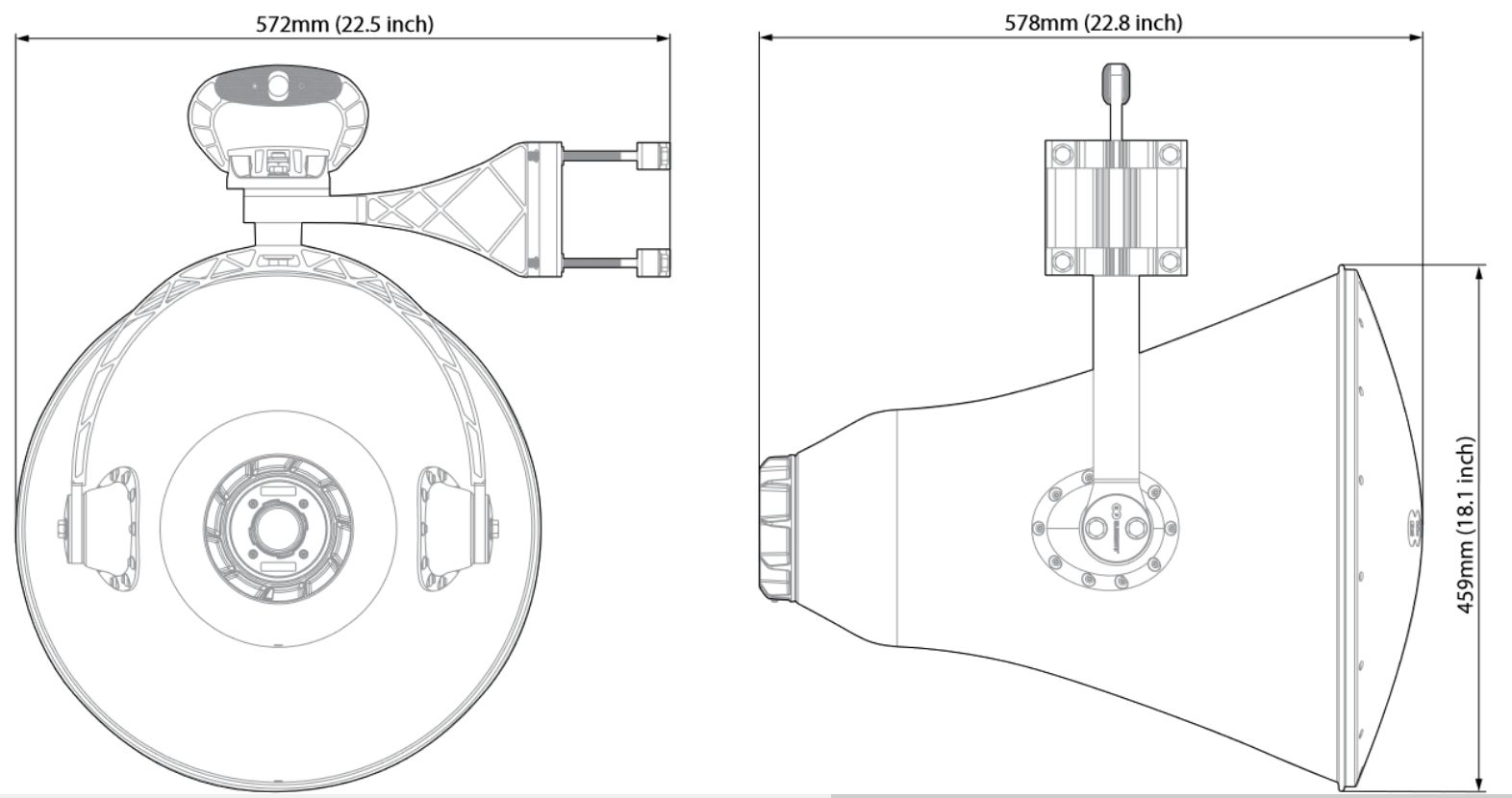

ultrahorn Frequency Range 5180 - 6775MHz 24dBi.jpg

Edited by eco32

Share this post

Link to post
Share on other sites
