VLF Antenna in HFSS

[Alonso 0]

Hello friends, somebody knows how to simulate an N wire loop antenna in HFSS?

[Admin 2578]

,,,you show how the antenna should be and for what frequencies??!!

[Alonso 0]

23 hours ago, Alonso said:

Hello friends, somebody knows how to simulate an N wire loop antenna in HFSS?

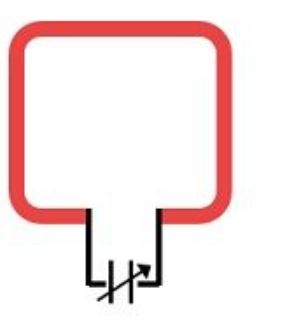

I'm trying to make a VLF antenna for frequencies 10 kHz - 30 kHz, attached the model below. I'm a beginner in this area but I guess that maybe it will need 100 turns or something like that. If someone could help me, thanks a lot. (Sorry for my english btw)



[Alonso 0]

6 hours ago, Admin said:

,,,you show how the antenna should be and for what frequencies??!!

Sorry, I'm a beginner in this. I've already attached what you said.

[clanon 258]

Loop antenna (antena de Lazo) should be straight away design in CST...

Lots of WIRE wounds and a Port at the ends...

10-30khz...i'll give it a TRY in CST LOTS of wire for that LOW...

Alonso para que uso la vas a usar...(What use you're planning for this...?)

https://stormwise.com/page28-VLF.htm



Edited September 13, 2023 by clanon

[Alonso 0]

Thanks. Estoy planeando captar señales de la ionósfera (I'm planning to capture signals from the ionosphere).

[Admin 2578]

,,,this site may be of more help...!!!

http://www.b-kainka.de/bastel95.htm

[clanon 258]

17 hours ago, Alonso said:

Thanks. Estoy planeando captar señales de la ionósfera (I'm planning to capture signals from the ionosphere).

12.3 inch long x 1.02 inch diameter ferrite rod core for maximum reception

31 cms x 2.6 cms

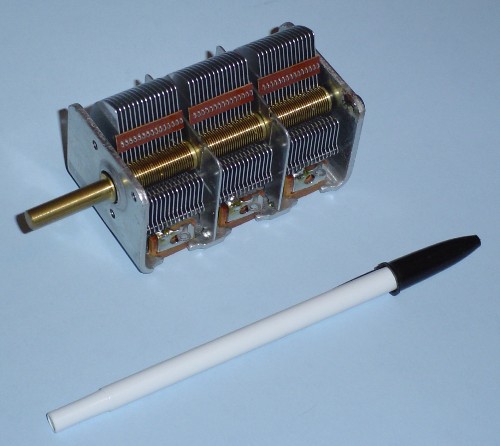

OLD AM radio variable cap



i'll try in the next days and post if GOOD..,.

Edited September 15, 2023 by clanon
