bejonet

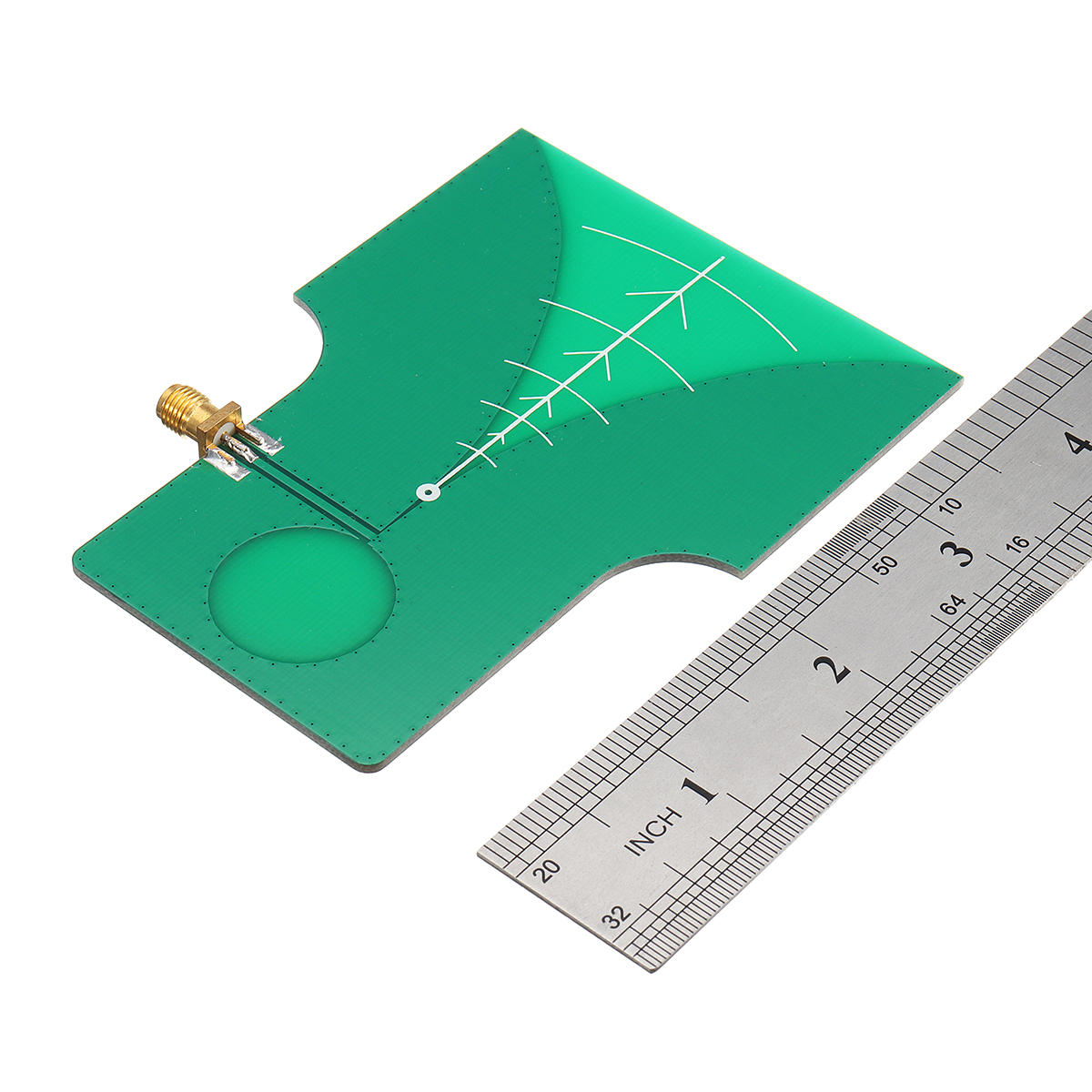

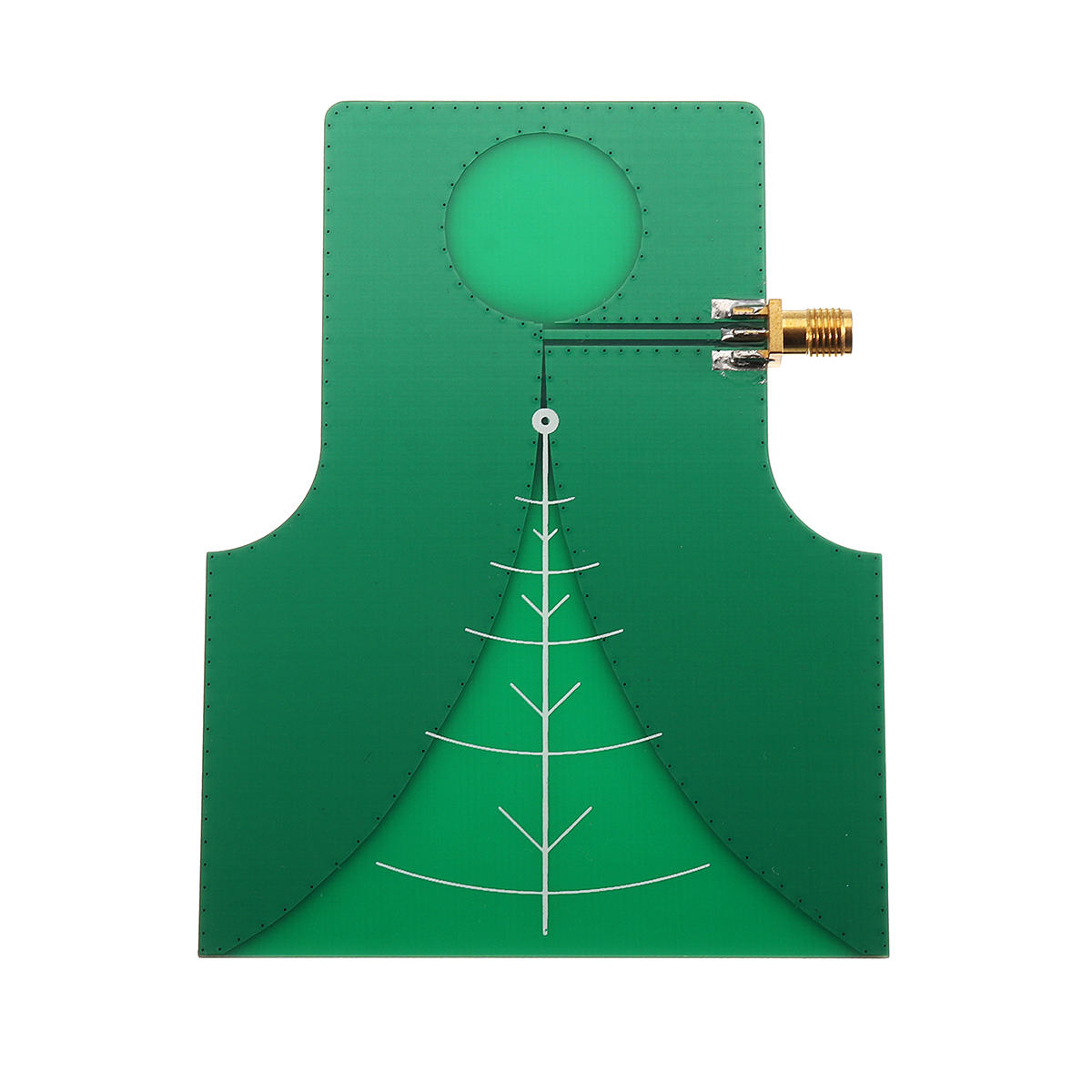

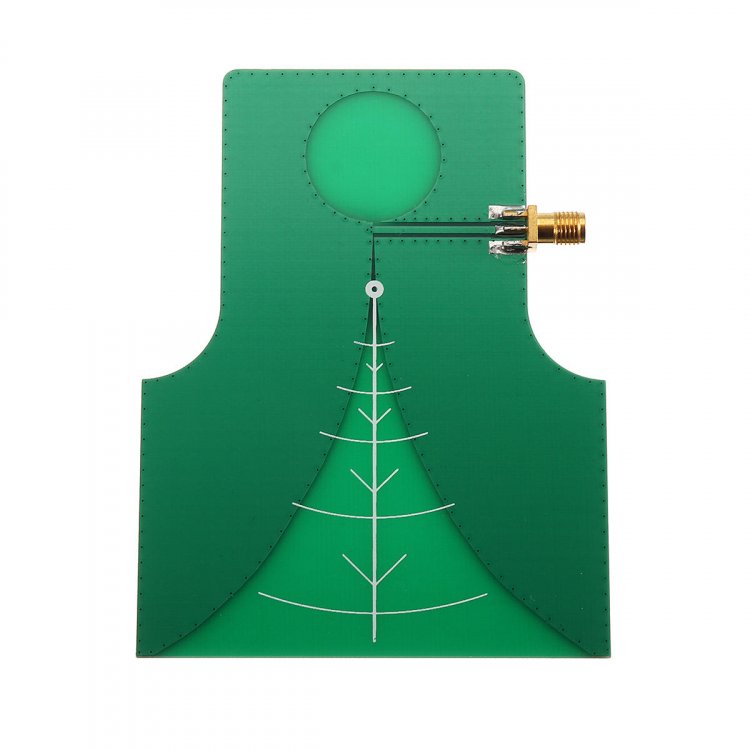

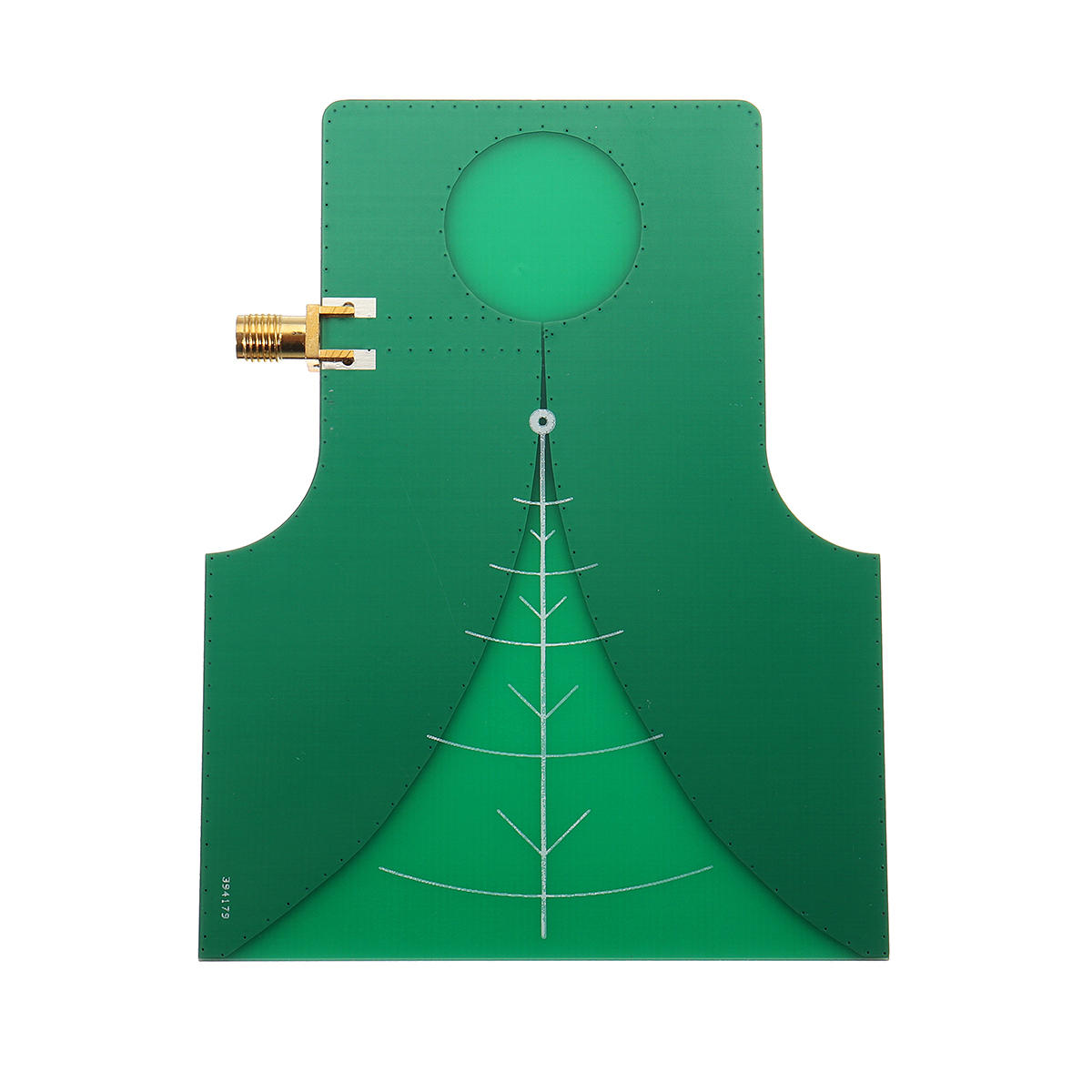

2.4-10.5GHz UWB Directional High Gain Wideband TEM Antenna

Started by bejonet,

Posted

Description:

The high gain directional wideband antenna is suitable for directional radio signal transmission and reception, signal source reconnaissance and direction finding, broadband signal testing and the like.
The antenna is suitable for UWB positioning module, Wifi2.4G and 5.8GHz and other common frequencies.

Antenna indicators:

Frequency range: 2.4GHZz-10.5GHz
Dimensions: 100mm*85mm
Polarization mode: linear polarization
Rated gain: 7dBi
Return loss: 10dB
Power capacity: 8W

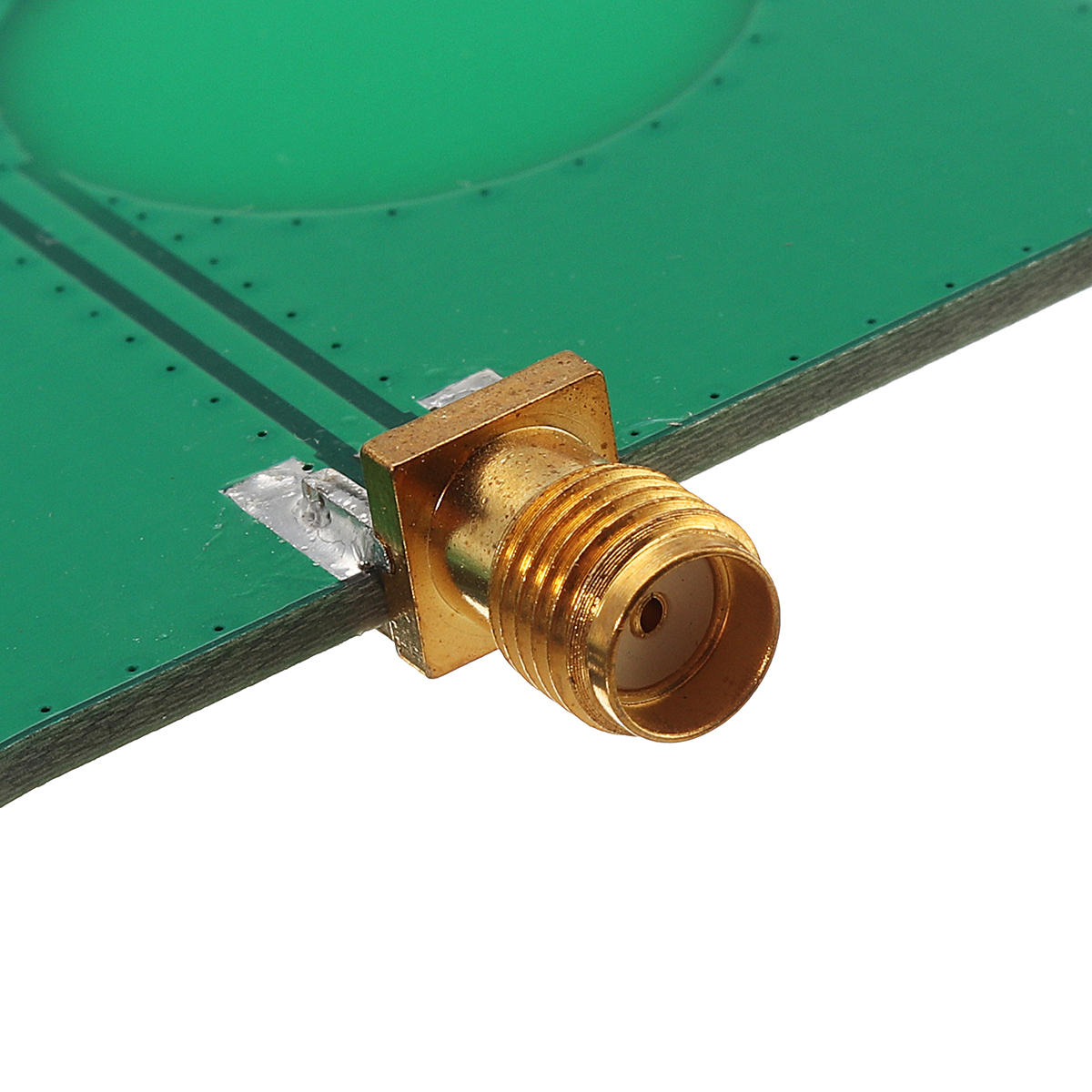

Interface form: SMA female head (outer screw inner hole)





1 person likes this

Share this post

Link to post
Share on other sites

Posted

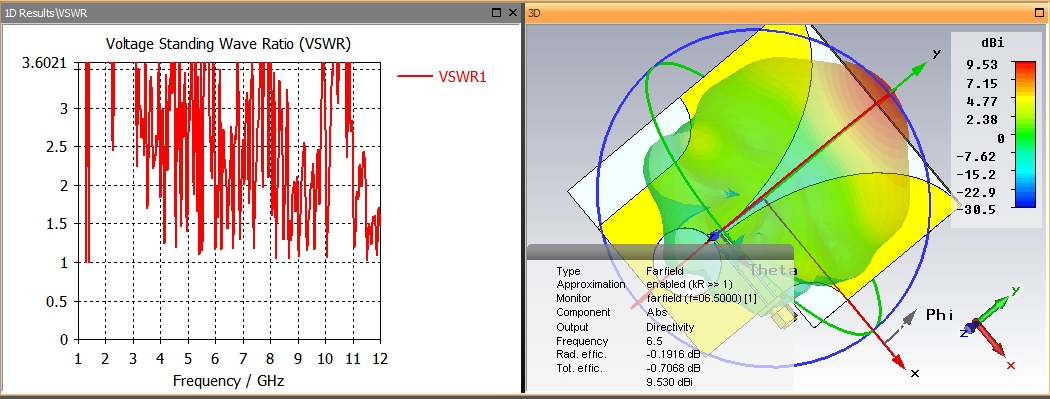

,,,well, but the gain in directivity is too low...!!!!
