miloudsatdz

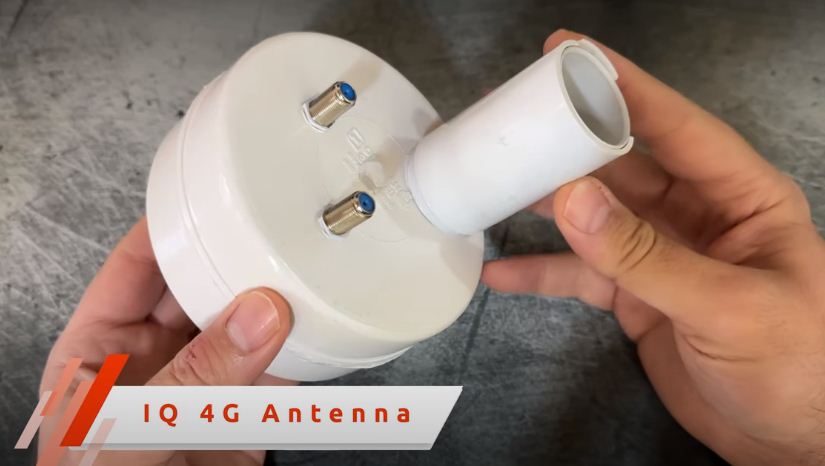

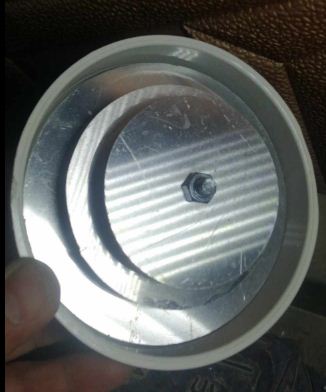

IQ 4G Antenna 1800 Mhz

The 4G antenna is most widely used in Iraq

what do you think








1 person likes this

Share this post


Link to post
Share on other sites

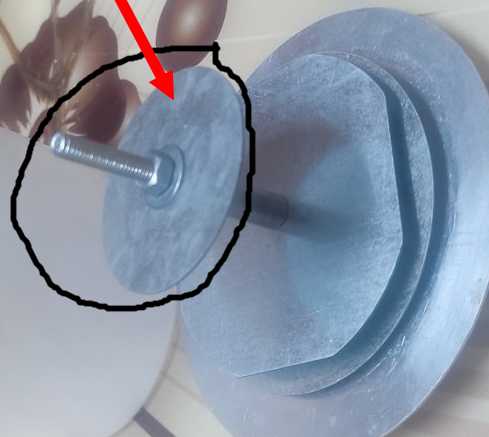

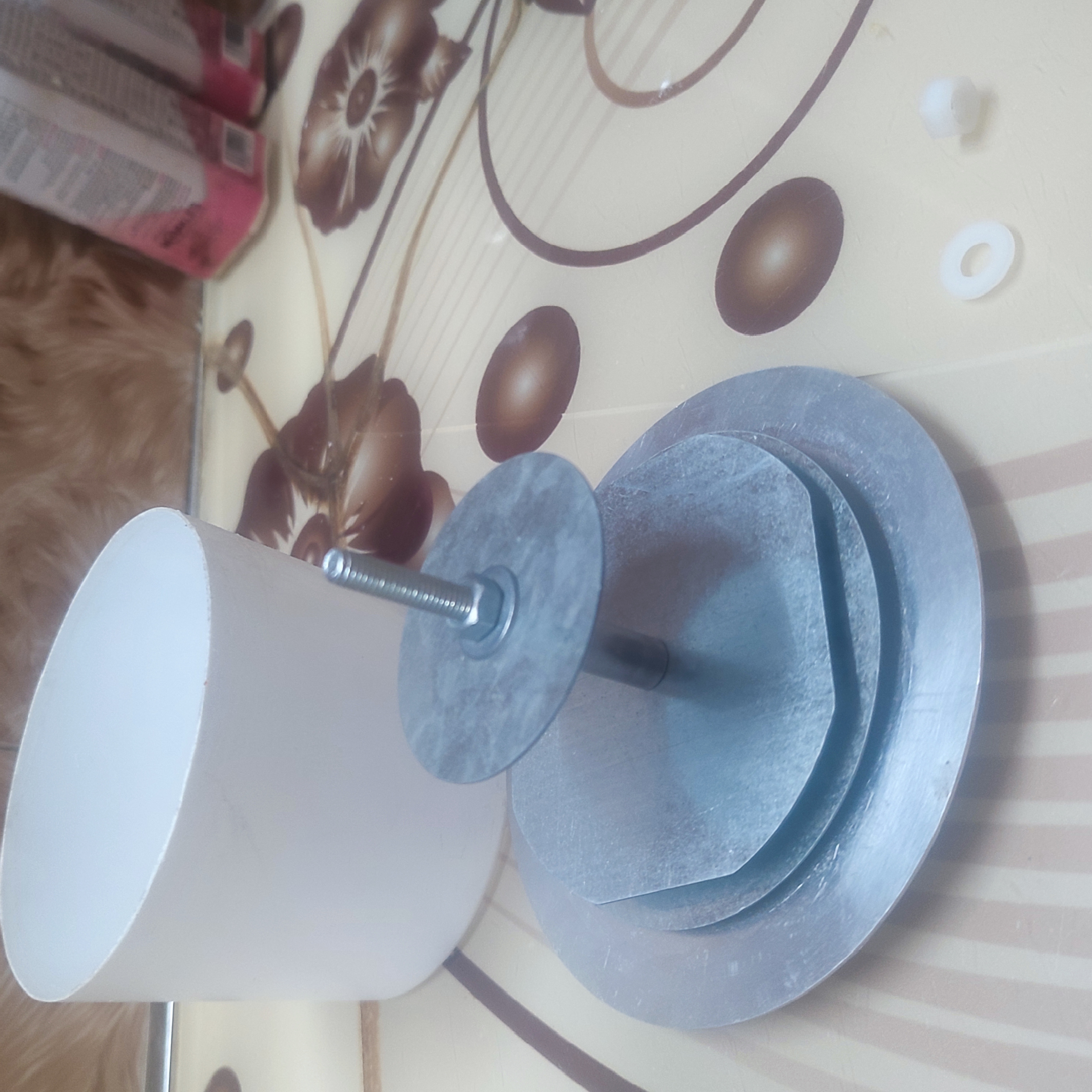

,,, as seen on YOU TUBE, the antenna has 4 elements...!!!




1 person likes this

Share this post


Link to post
Share on other sites
17 minutes ago, Admin said:

,,, as seen on YOU TUBE, the antenna has 4 elements...!!!




This is another type and imitates the first antenna

Share this post


Link to post
Share on other sites

Admin,

Please can you simulate this antenna on a 90cm dish if possible?

Share this post


Link to post
Share on other sites

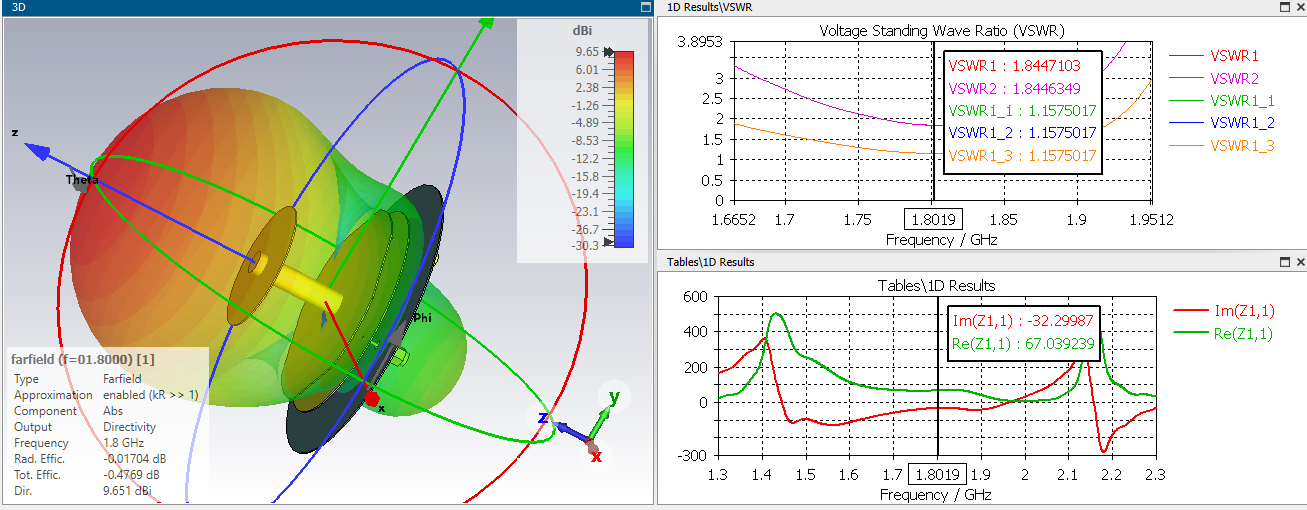

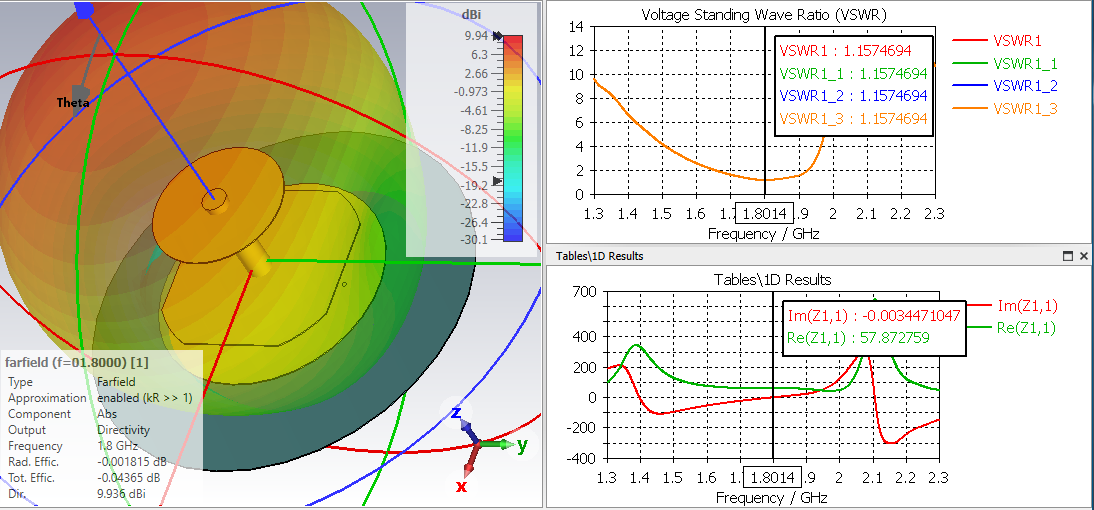

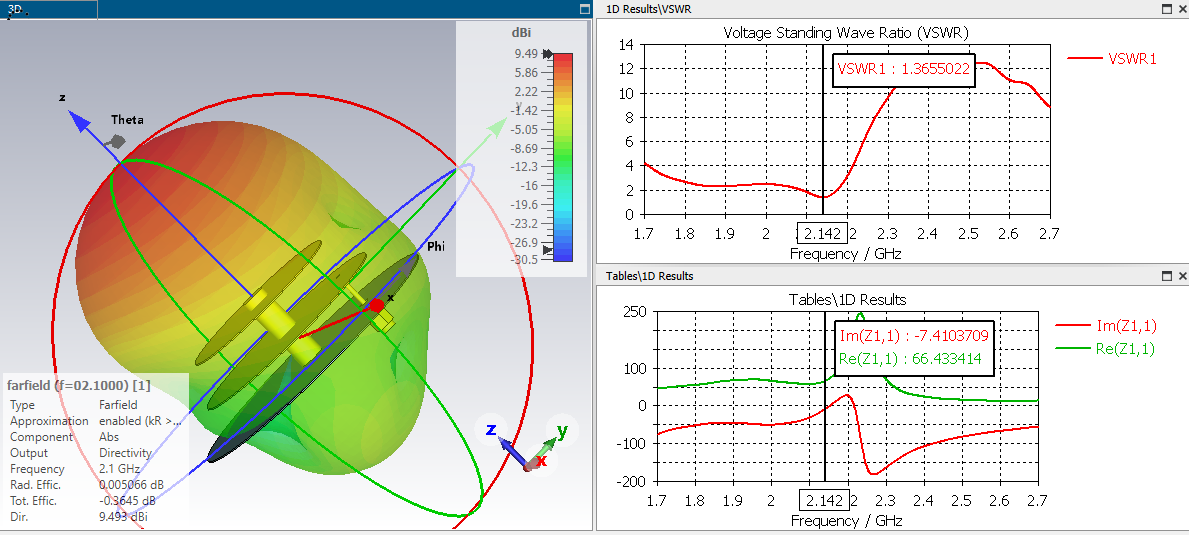

miloudsatdz,,, these would be the results of your antenna...


,,,by the way, for which frequency do you want the antenna to work...???

1 person likes this

Share this post


Link to post
Share on other sites

,,,congratulations....!!!

,,,can you also give some dimensions...???!!!

Share this post


Link to post
Share on other sites

Hamza .test the antenna with out this élément  and compare the différent

whene you use dish parabol


Share this post


Link to post
Share on other sites

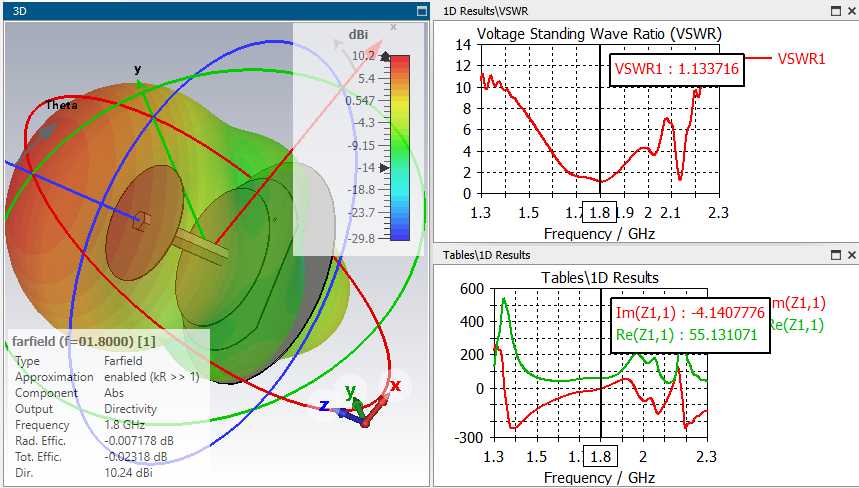

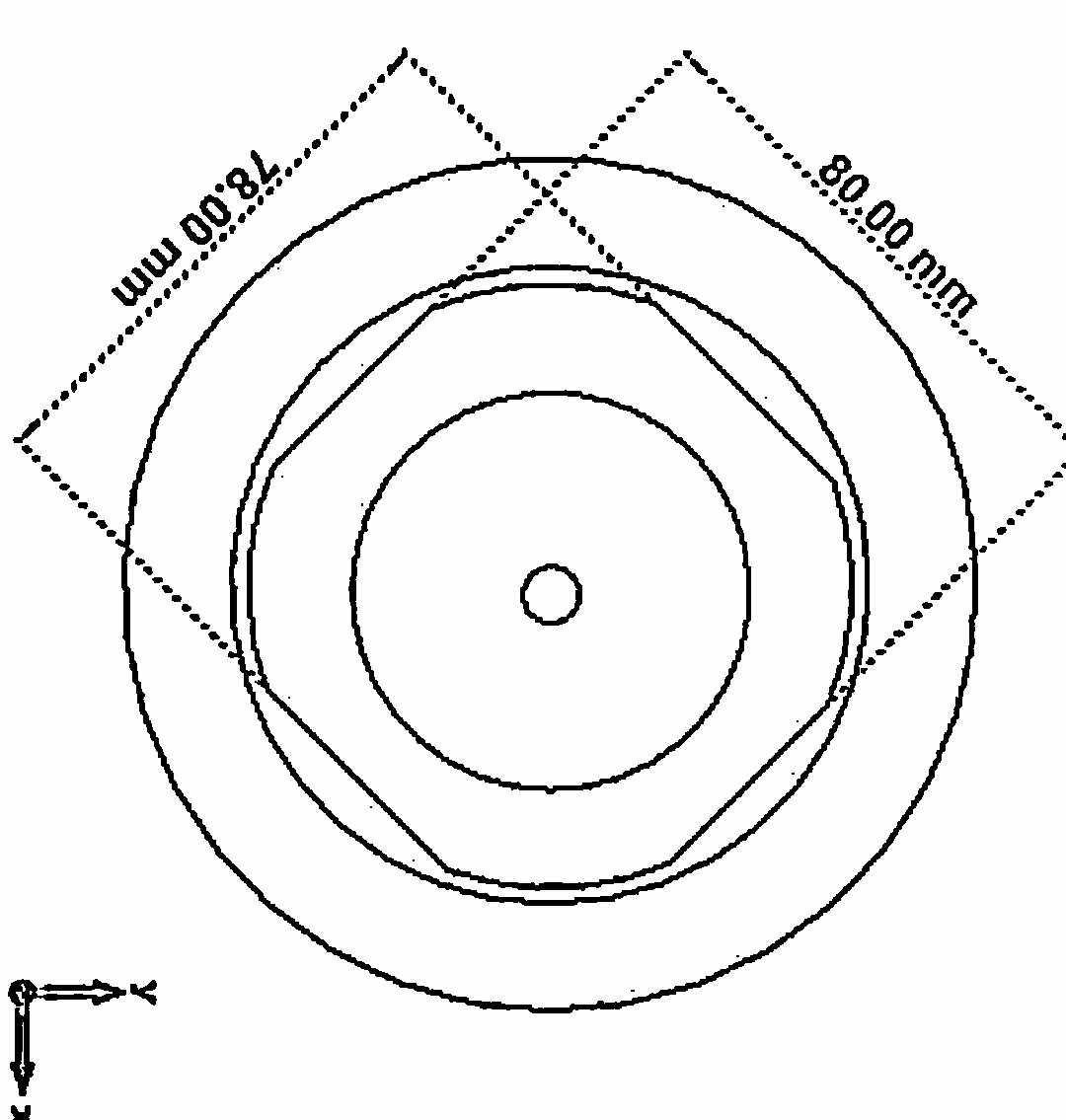

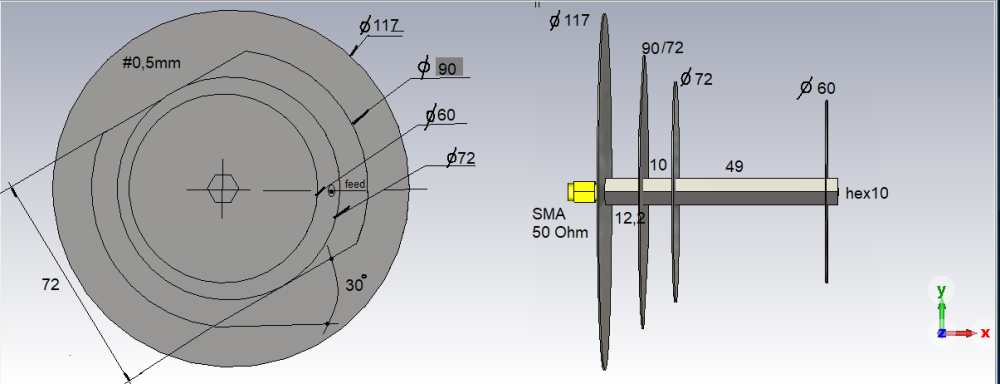

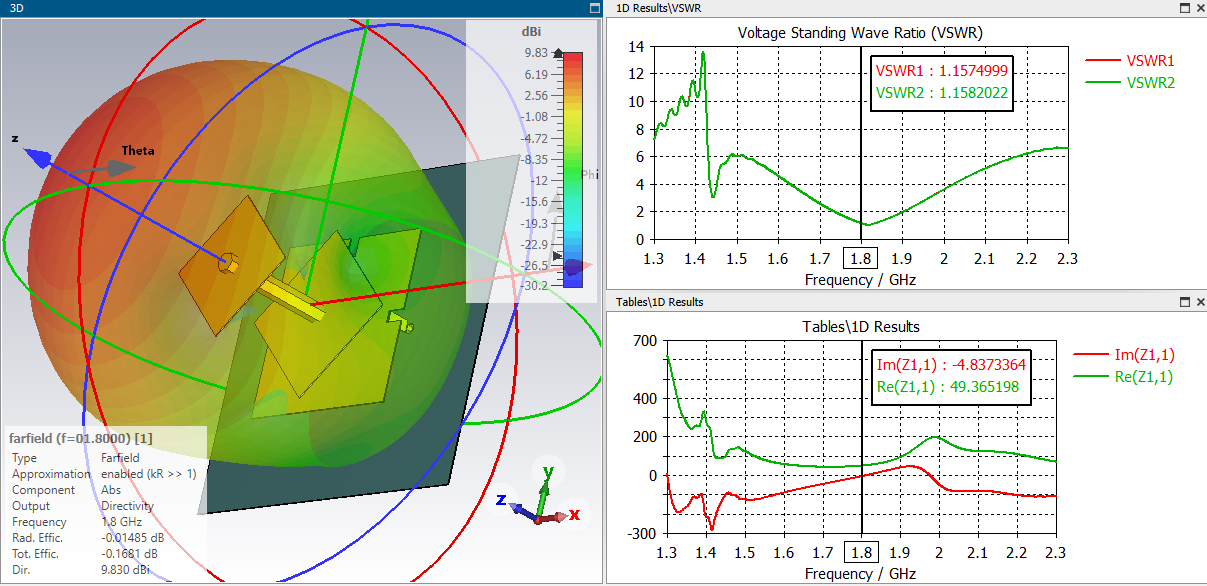

,,,this would be the simulation...follow the dimensions....!!!







,,,and as 'miloudsatdz' wants...


3 people like this

Share this post


Link to post
Share on other sites

Greetings  JOMY   very excellent job. i m so curious to know the level of isolation of 2 ports (crossports)  in your antenna design.  being so busy i will post the dimensions as you asked









2 people like this

Share this post


Link to post
Share on other sites

Hamza, what do you mean by asymmetrical cuts(-3,-4)...???

2 people like this

Share this post


Link to post
Share on other sites

,,,,and where is the feed point located...???

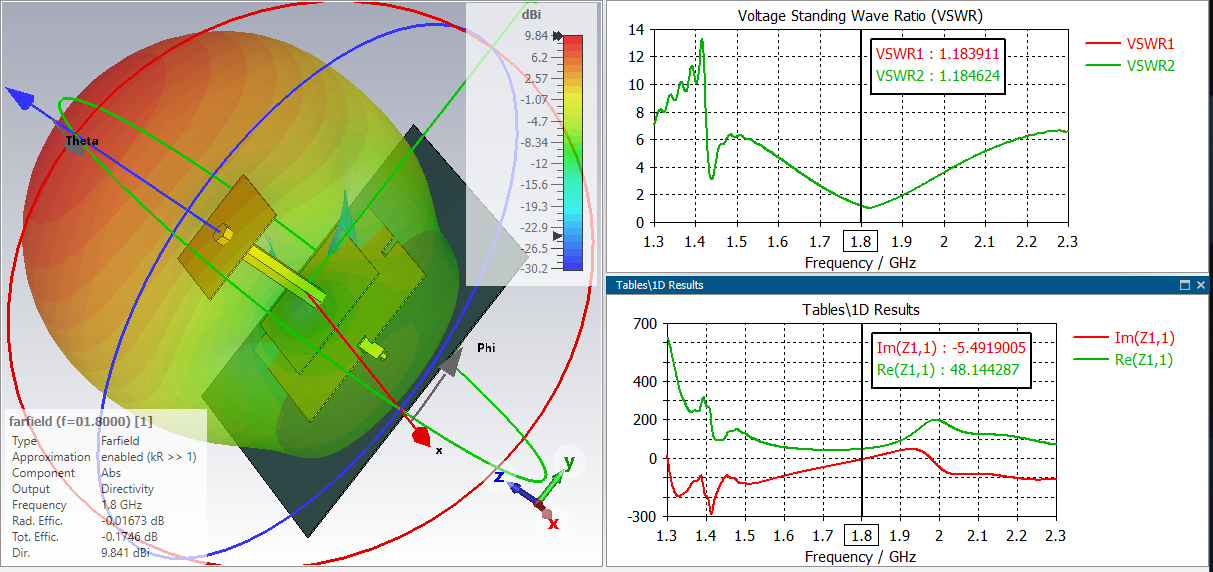

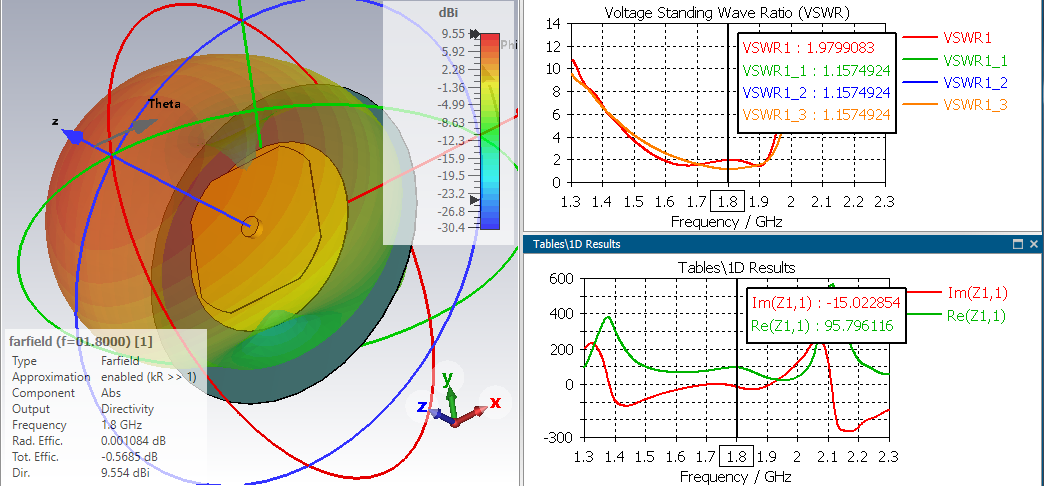

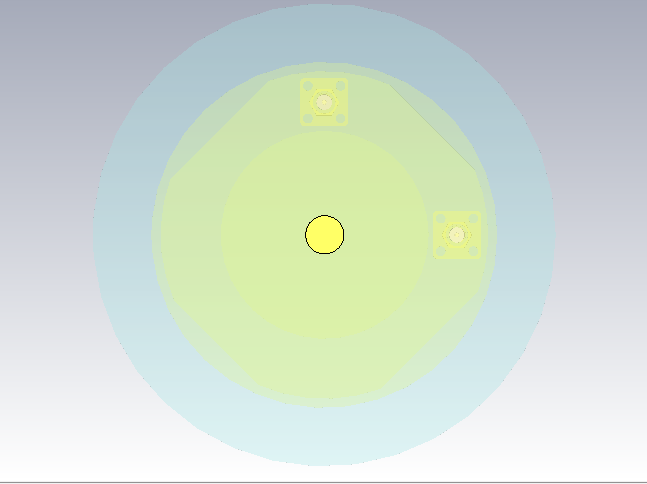

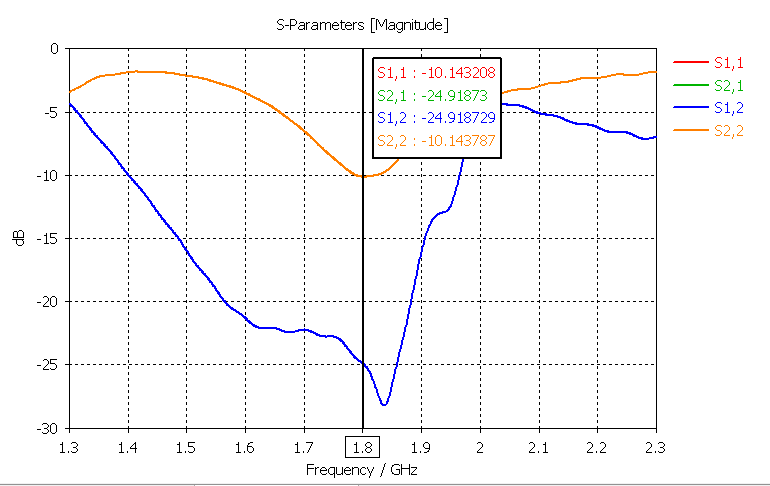

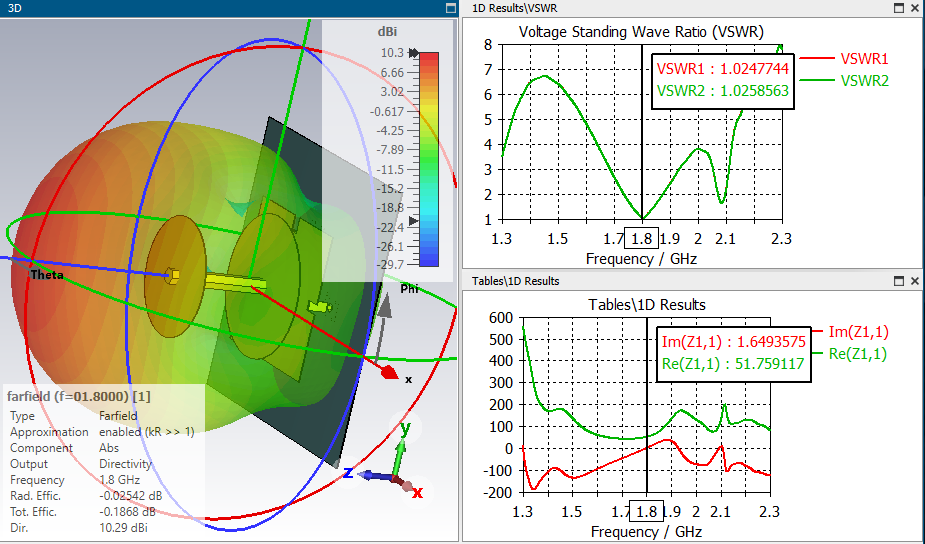

,,, these would be the results with feeding points at 90 degrees...





,,,it seems that the isolation between the ports is quite good...


2 people like this

Share this post


Link to post
Share on other sites

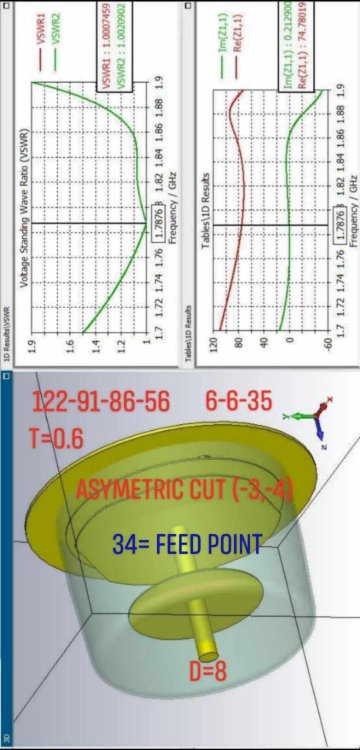

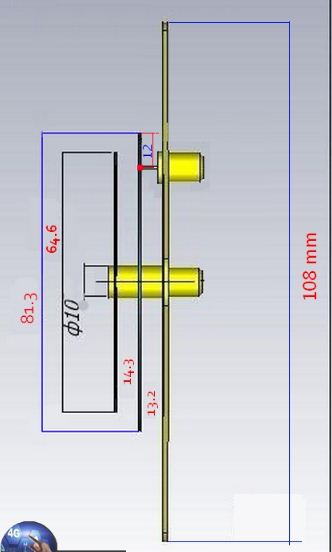

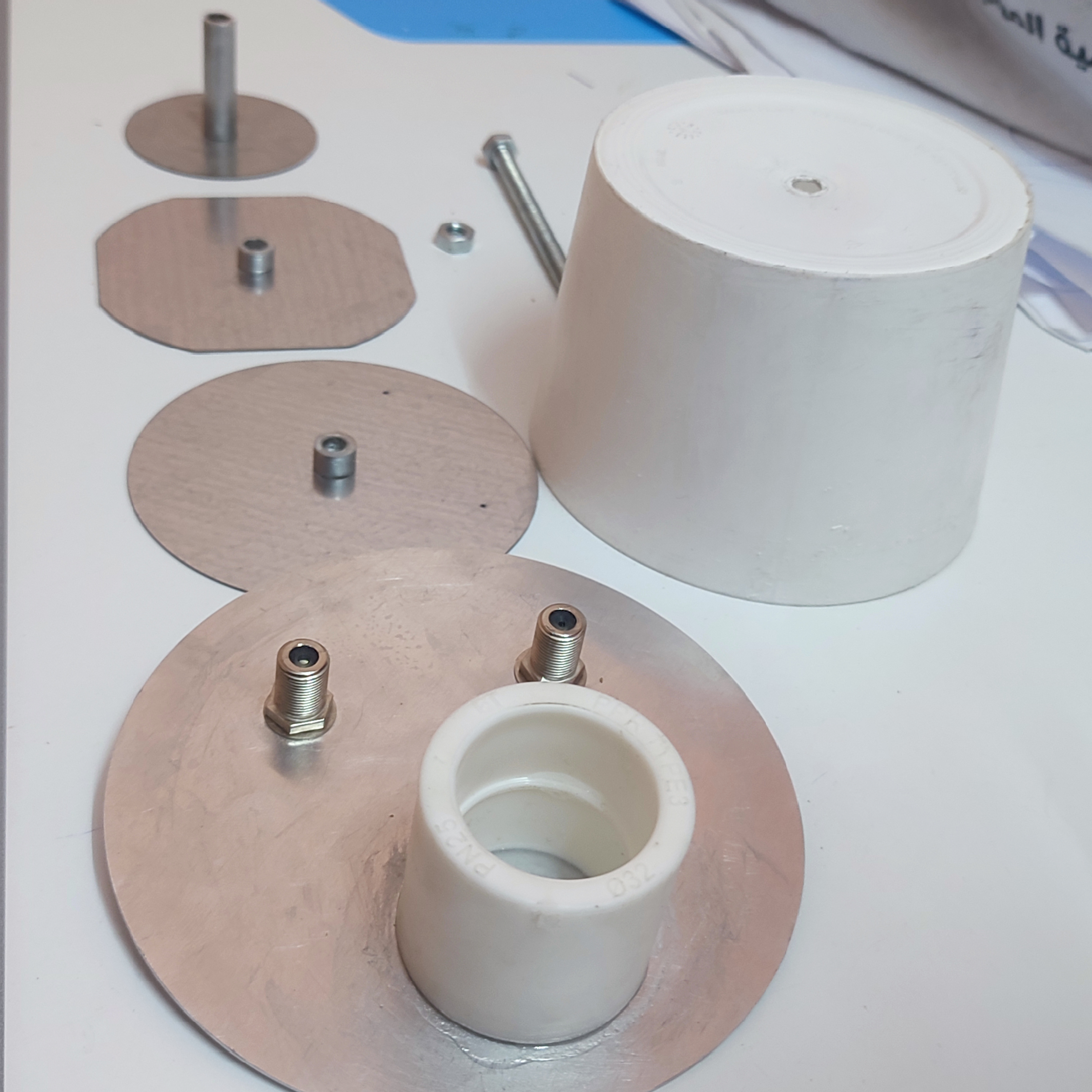

i love your work  my  friend   its  writen  in blue   the feed point  34 mm  from the  center  the antenna  is  made for 75 ohm









1 person likes this

Share this post


Link to post
Share on other sites

Two ports are well isolated because two orthogonal modes are being exited with this configuration. Bandwidth at S11 -10dB is reduced.

Share this post


Link to post
Share on other sites
On 1/26/2024 at 8:19 AM, Admin said:

miloudsatdz,,, ce seraient les résultats de votre antenne...


,,,au fait, pour quelle fréquence voulez-vous que l'antenne fonctionne...???

On 1/26/2024 at 8:19 AM, Admin said:

miloudsatdz,,, ce seraient les résultats de votre antenne...


,,,au fait, pour quelle fréquence voulez-vous que l'antenne fonctionne...???

Bonjour Admin

- est ce que on peut avoir les dimensions pour la fréquence de 1800 Mhz et le résultat d'une simulation?!

- aussi  quel serait le débit pour cette la fréquence de 1800mhz.

merci bien





Share this post


Link to post
Share on other sites

,,,bonjour et bienvenue sur ce forum...!!!
Je travaille sur ce que tu voudrais..!!!




Share this post


Link to post
Share on other sites

,,, c'est encore possible...






1 person likes this

Share this post


Link to post
Share on other sites

Bonjour Administrateur

je vous remercie pour vos  propositions  schématiques .

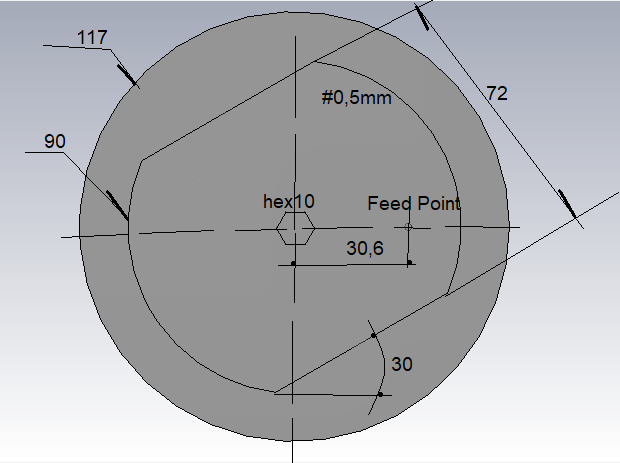

1- A la lecture du premier schéma, je vois qu'il y a une coupe de 90/72, la coupe de 72 est elle nécessaire ?

2- chez nous , nous ne disposons pas d'un câble coaxial de 50Ohm , le seul disponible sur le marche est le 75 Ohm

3- est t'il possible de rajouter un deuxième feed point 2 (alimentation), si c'est oui(possible) , bien sûr s'il y a gain supplémentaire.

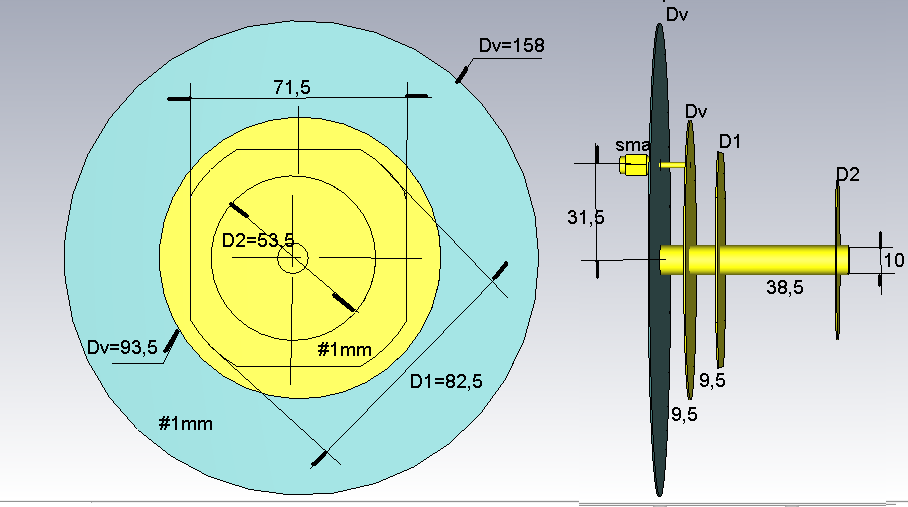

4-  je souhaite avoir les autres dimensions des autres trois autres structure données .

merci bien





Share this post


Link to post
Share on other sites

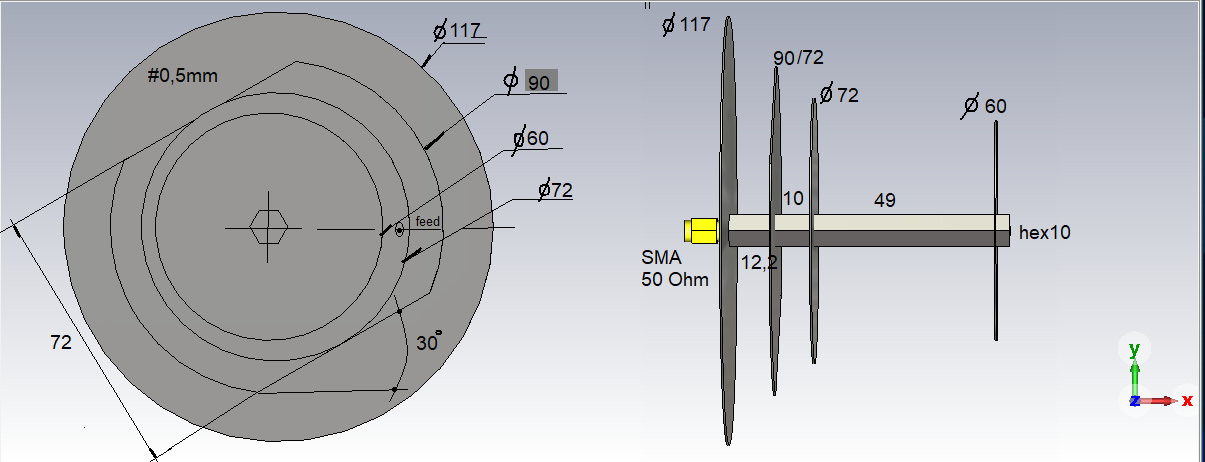

1. oui, c'est nécessaire,
2. Je travaille uniquement avec des impédances de 50 Ohm, mais c'est également possible pour du câble de 75 Ohm avec d'autres dimensions de l'antenne.
3. oui, c'est possible.
4. dès que possible.

Share this post


Link to post
Share on other sites

Bonjour

malheureument, les câbles de 50 Ohm ne sont disponible sur notre marché, Pouvez-vous ajuster la taille de l'antenne pour qu'elle convienne à un câble coaxial de 75 ohms avec deux (02) feed (deux point d'alimentation ).

Salutations

Share this post


Link to post
Share on other sites
