V-shaped flat antenna

Started by Admin,

Posted

Two long arms are connected in the shape of V to make a V-antenna. The two long arms are excited with 180˚ out of phase. As the length of these arms increases, the gain and directivity also increases.

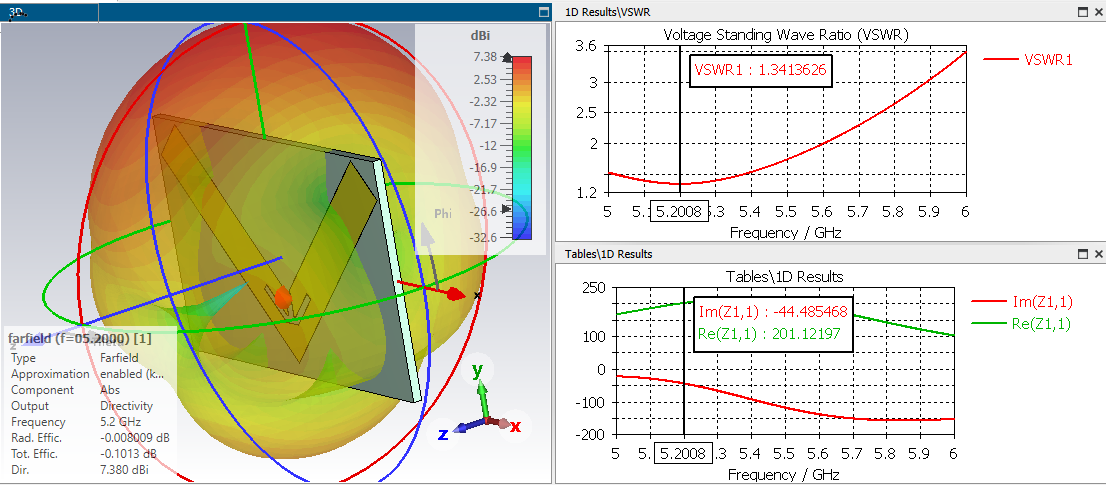

The following figure shows a V-antenna with the transmission line impedance z=200 Ohm and the lengh of the arm 0,8*lambda, making an angle Φm with the axis, which is called as apex angle.material-FR4 #1.5mm.


The main advantage of a V-shaped antenna is its relatively small vertical radiation angle, which is especially important for establishing long-distance communications.

1 person likes this

Share this post

Link to post
Share on other sites

Posted

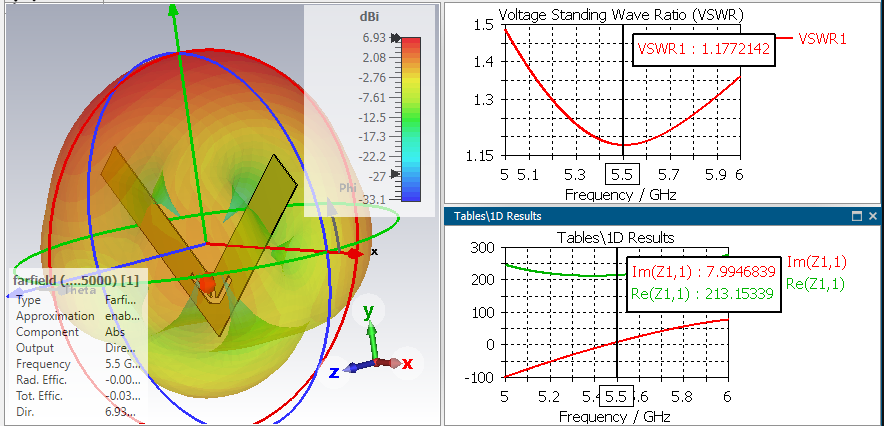

V-shaped antenna in the air, without dielectric support...
