Broadband VIvaldi antenna

Hi everyone!
I am looking for formula (or model) for calculation this type of Vivaldi antenna for broadband applications (3 GHz to 6 GHz)
The feeding of this type of antenna is very suitable for flat shield mounting
Thanks in advance

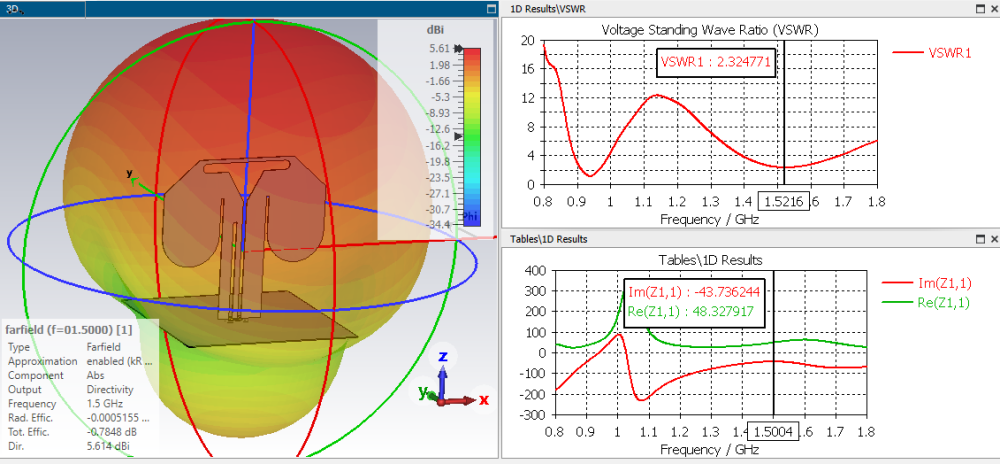

Vivaldi antenna S-parameters.png

Vivaldi antenna.png

Share this post


Link to post
Share on other sites

Posted (edited)

Hi!
I found this construction in a one publication and it seemed to me suitable for my task. Now I am going to find the design method or formulas /
Thank you for the link. It is really useful!

Edited by Rus

Share this post


Link to post
Share on other sites

I don't think this so-called Vivaldi dipole is very good...


Share this post


Link to post
Share on other sites

Posted (edited)

The model looks pretty nice!
Could you please share the .cst file or dimensions? I would like to scale this model for another band

Edited by Rus

Share this post


Link to post
Share on other sites

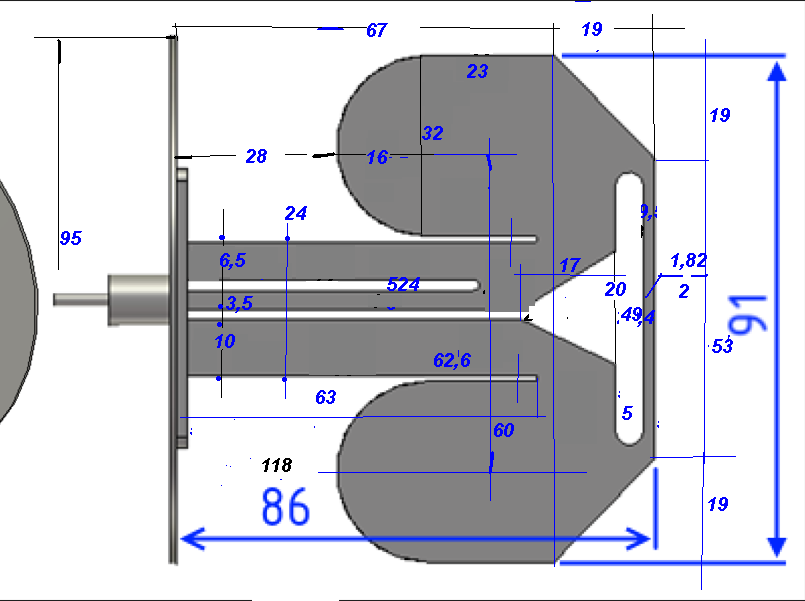

,,, these would be the dimensions...






,,,and this is the CST file....!!!

vivaldi rus.cst
