inside Sectoral 5Ghz MIMO RB921GS-5HPacD-15S (mANTBox-15s)

[acri 24]

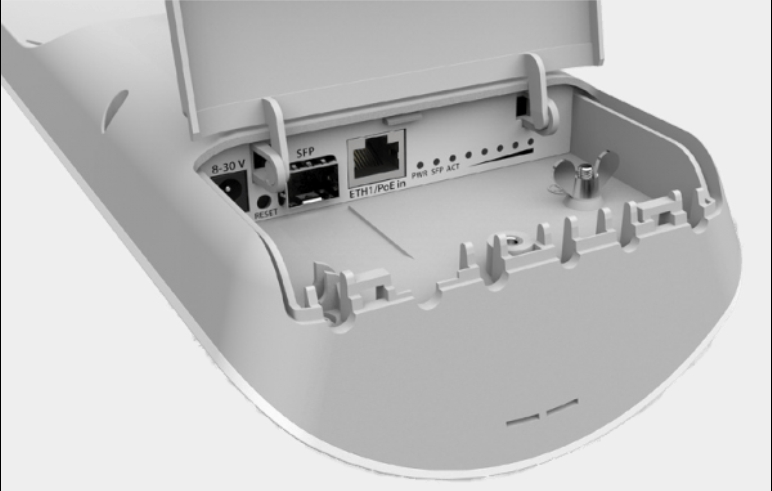

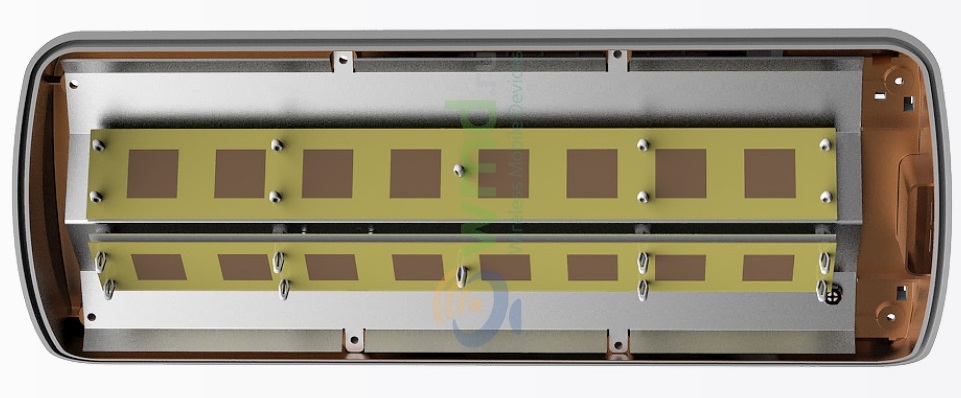

review inside RB921GS-5HPacD-15S (mANTBox-15s) 15dbi 120 degree from my friend



Edited December 4, 2018 by acri

[DC13th 19]

7 hours ago, acri said:

review inside RB921GS-5HPacD-15S (mANTBox-15s) 15dbi 120 degree from my friend



mantBox Antennas

[Admin 2545]

,,,yes,mantBox Antennas...

[acri 24]

1 hour ago, Admin said:

,,,yes,mantBox Antennas...

its real 120 dbi
how to create antena model mantbox 15s

[Admin 2545]

it"s real 120 dbi...????????????????????/

,,,maybe 120 degrees...!!!

[acri 24]

mantbox 15s is 15dbi mimo dual polarization 120 degree

well, we see there are two separate antennas but dual polarization ...
1. The question is whether the 2 antennas are arranged in series or arranged in parallel?
2. the second question, can 1 mimo model router be installed with the same antenna model as the mantbox?

[Admin 2545]

[acri 24]

I think that this mantbox 15s antenna is arranged in parallel
because it can be seen from the video that there are 16 patches ... 8 on the right and 8 on the left, so that the resulting angle is greater


what do you think of my brother?

[Admin 2545]

,,,if you have this device, why not dissect it, to see exactly ...???

[acri 24]

4 minutes ago, Admin said:

,,,if you have this device, why not dissect it, to see exactly ...???

I don't have this device because it's very expensive ...

the device I have is only an indoor router that I modified into an outdoor router

[Admin 2545]

,,, the antenna inside looks so...???



[acri 24]

7 hours ago, Admin said:

,,, the antenna inside looks so...???



maybe yes, maybe no .....because the design has a design from a VJJT antenna from chinese

[DC13th 19]

i think VJJT is copied from mantbox, but different  dimension and size

acri don't worry mantbox is more than 120degree in the real beam, but vendor says 120degree

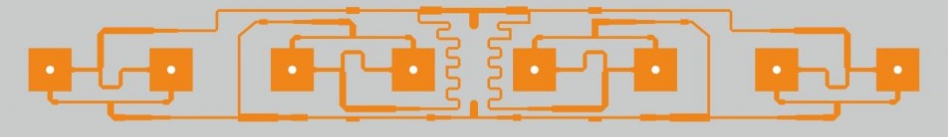

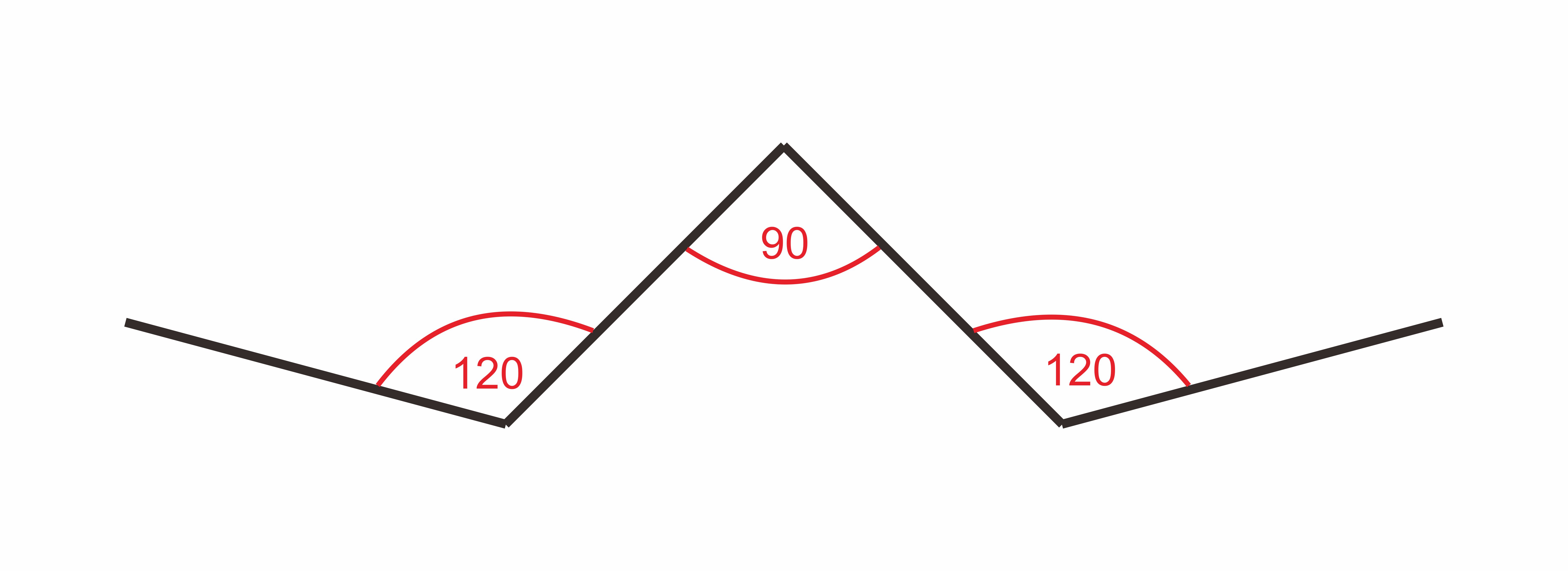

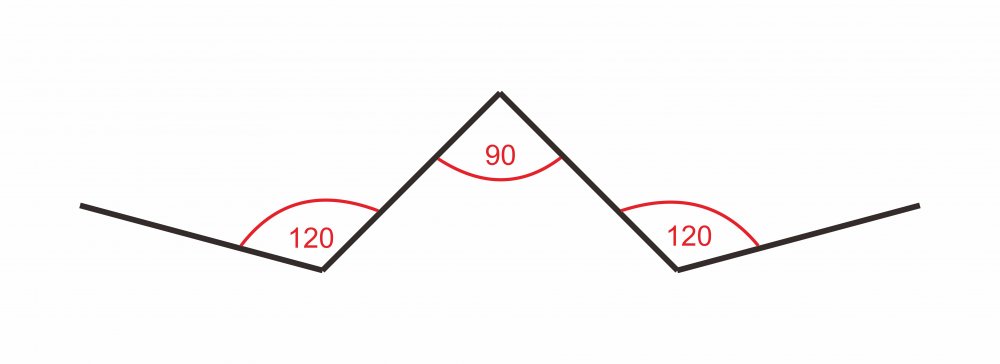

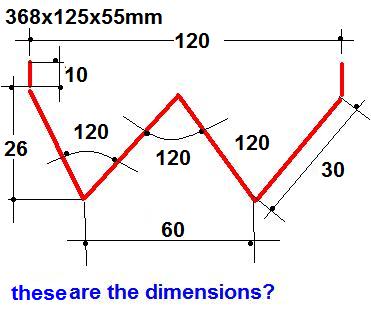

this is Mant reflektor

[rafiq 0]

On 12/5/2018 at 9:38 AM, Admin said:

it"s real 120 dbi...????????????????????/

,,,maybe 120 degrees...!!!

try to create a scheme for mantboxs 15s in cdr format
