AX-2020P BOX Antenna

[Admin 2545]

The  AX-2020P  panel antenna with a sealed box for a USB 3G modem is a ready-made solution for amplifying the UMTS2100 signal (WCDMA, HSPA, etc.).

Electrical characteristics of the antenna

Operating frequency range, MHz1900÷2180

Gain factor, dBi 19÷20

Bottom width in the H-plane, deg-16÷18

Bottom width in the E-plane, deg-16÷18

Side lobe level, dB max-13

Forward / backward ratio, dB24

Input impedance, Ohms-50

SWR in the operating frequency range, max.1,5

Permissible power, W50

Polarisationvertical/horizontal/inclined

Mechanical characteristics

Weight of antenna, mount, box, extension cable g-4480

Overall dimensions without mounting, m 0.45x0.45x0.105

Internal dimensions of the sealed box, mm not less 184x135x60

Connector SMA-male

Antenna Material steel, galvanized steel

Protective coating-powdered polymer paint

Antenna protection box and box material-polycarbonate



[Admin 2545]

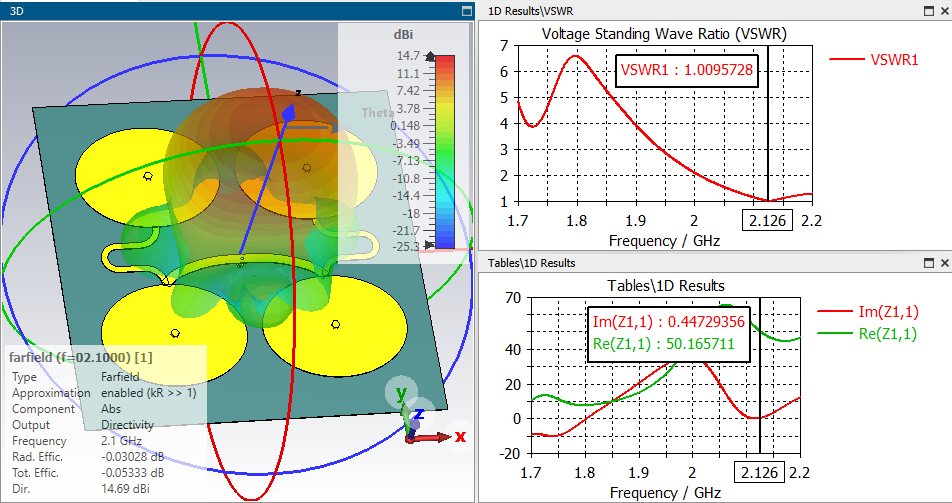

,,,yes, it seems that this antenna works, but it is still narrowband...
