BACKFIRE YAGI ANTENNA

Started by Admin,

Posted

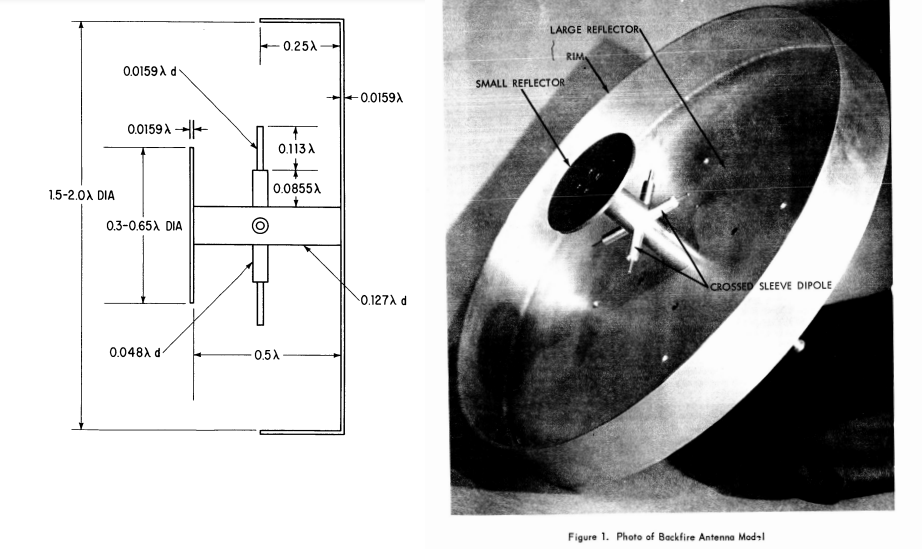

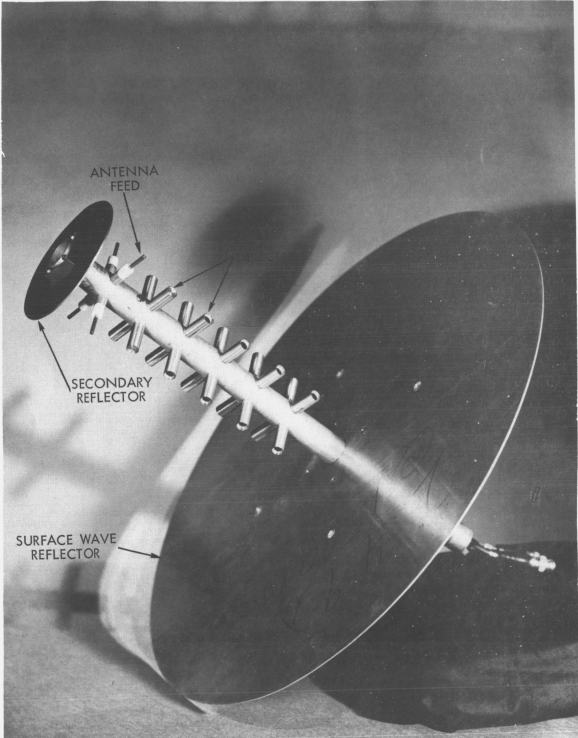

Radiation patterns and gain measurements on 1.0, 1.5, and 2.0 lambda backfire Yagi antennas are given. The backfire antenna was tested for two dipole feed locations, and variations in the diameters of the two planar reflectors forming the backfire cavity. The optimum dimensions of the three test antennas are tabulated. The frequency bandwidth of the backfire antenna is limited to several percent due to impedance matching. The backfire antenna should find application in broadside arrays where conventional endfire antennas are presently used.




19680012807.pdf

2 people like this

Share this post

Link to post
Share on other sites

Posted

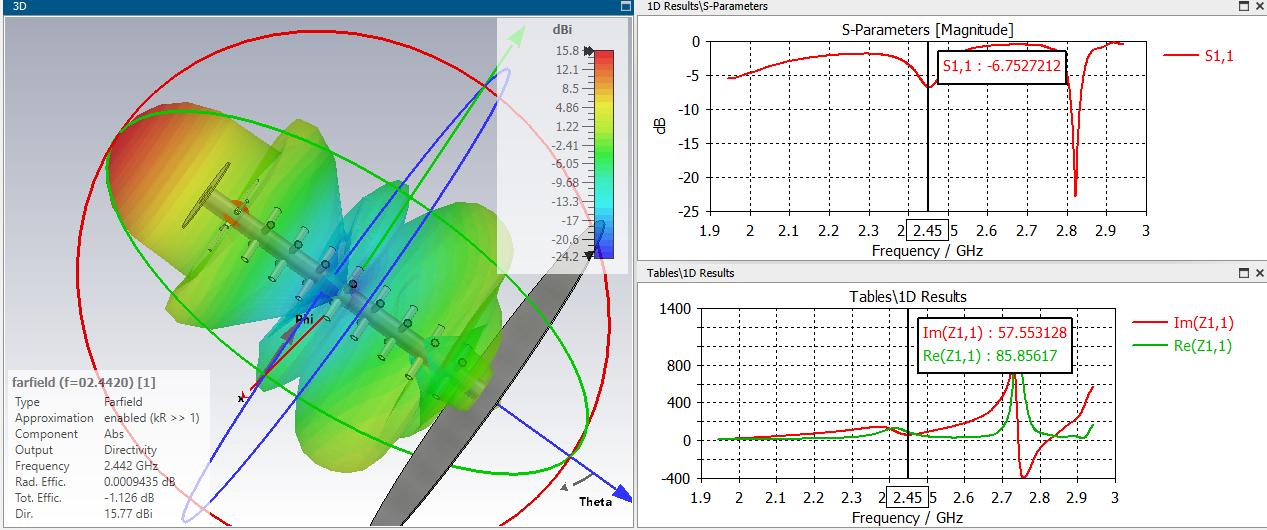

,,,a first simulation attempt, optimization follows...


Share this post

Link to post
Share on other sites

Posted

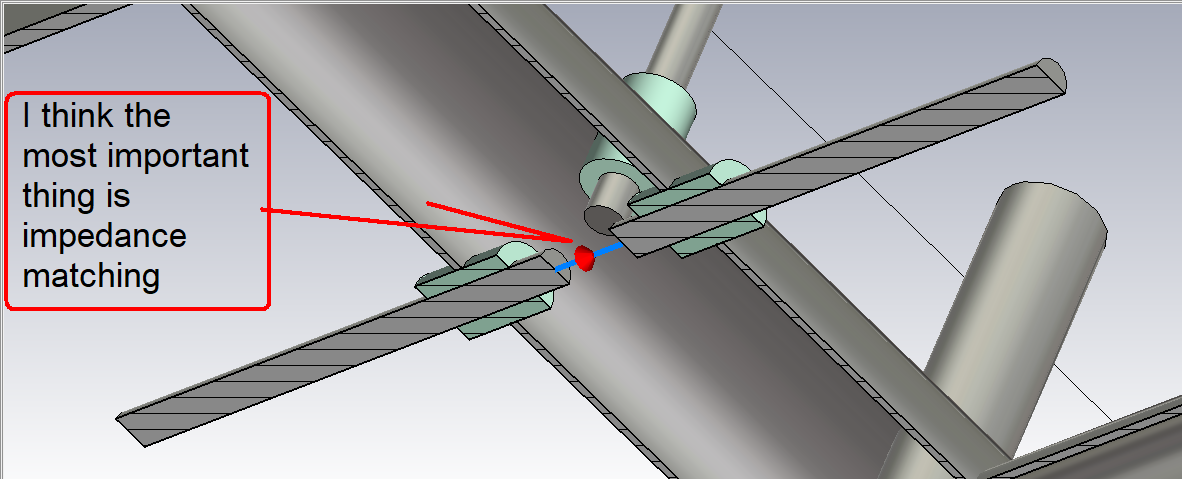

Looks like you have a resonance , DEEP, at 2.8... try making the whole Yagi 1.16 times bigger...

Share this post

Link to post
Share on other sites

Posted

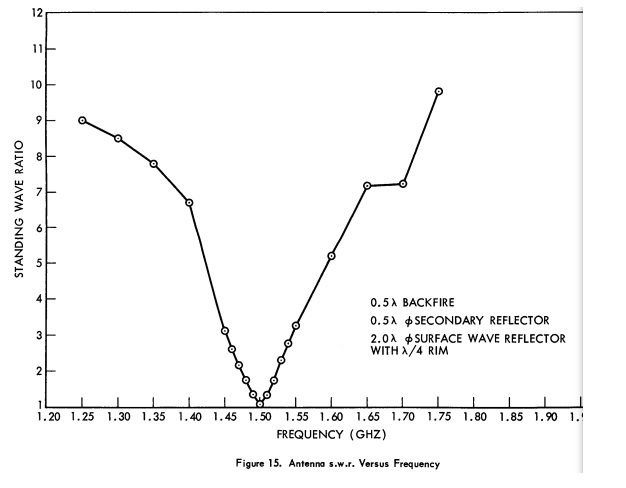

narrow band apparently

Sin título.jpg

Sin título.png

1 person likes this

Share this post

Link to post
Share on other sites

Posted

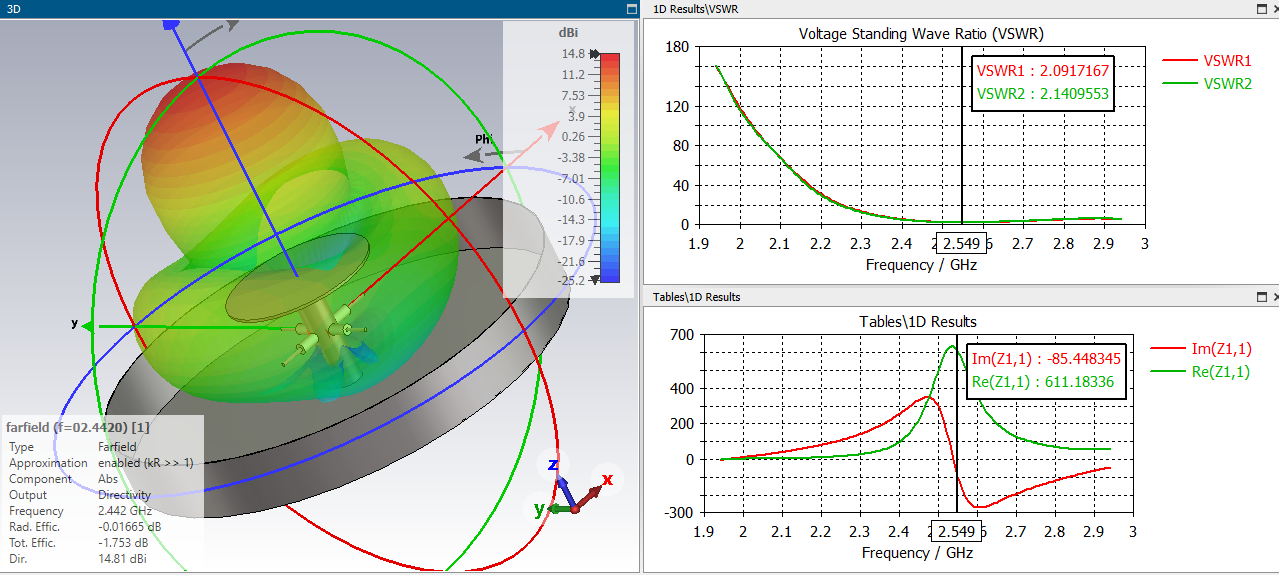

,,,yes, it seems so, the antenna is narrow band...!!!


2 people like this

Share this post

Link to post
Share on other sites
