PETRA-9 MIMO 4x4

[Admin 2822]

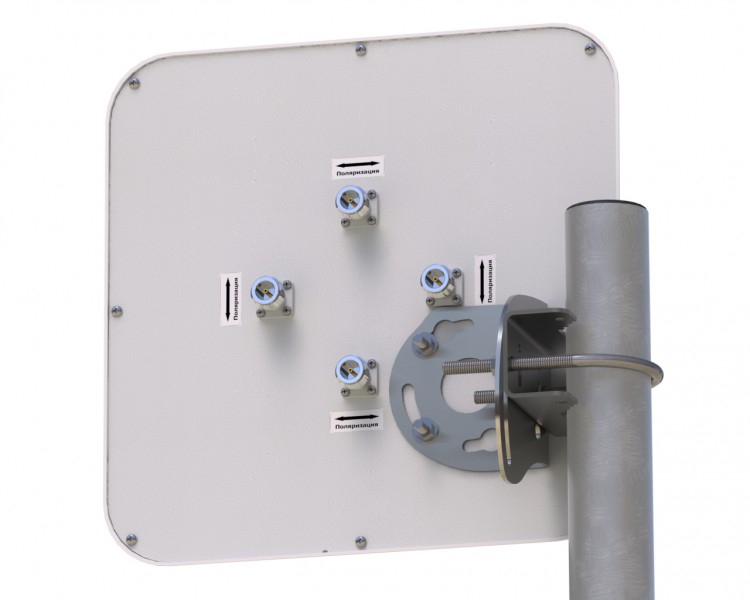

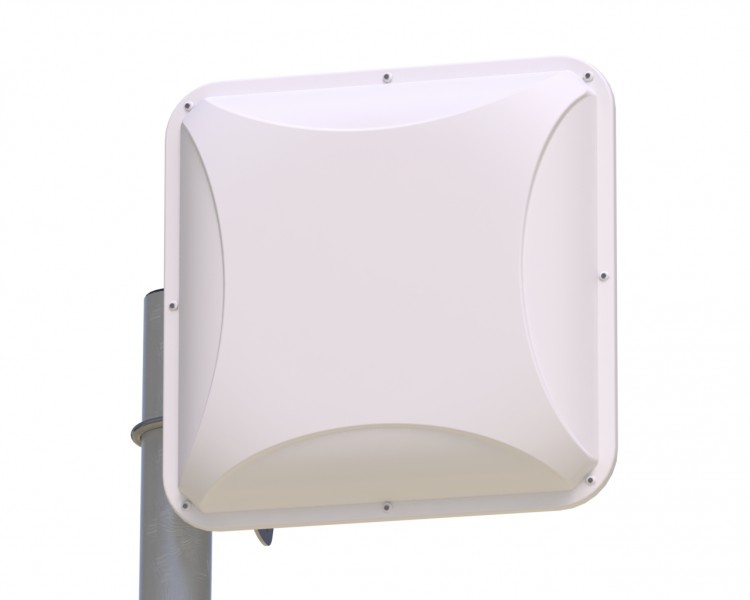

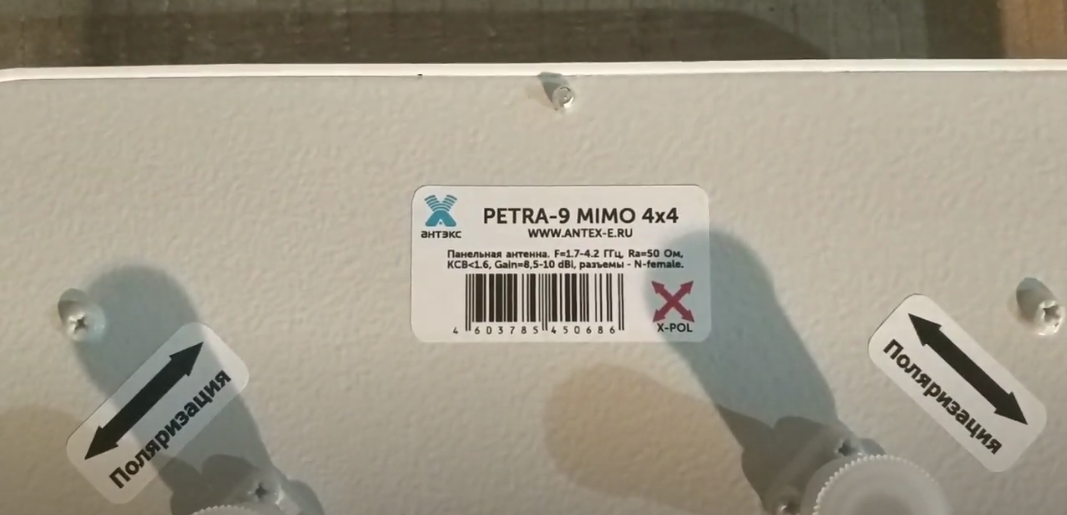

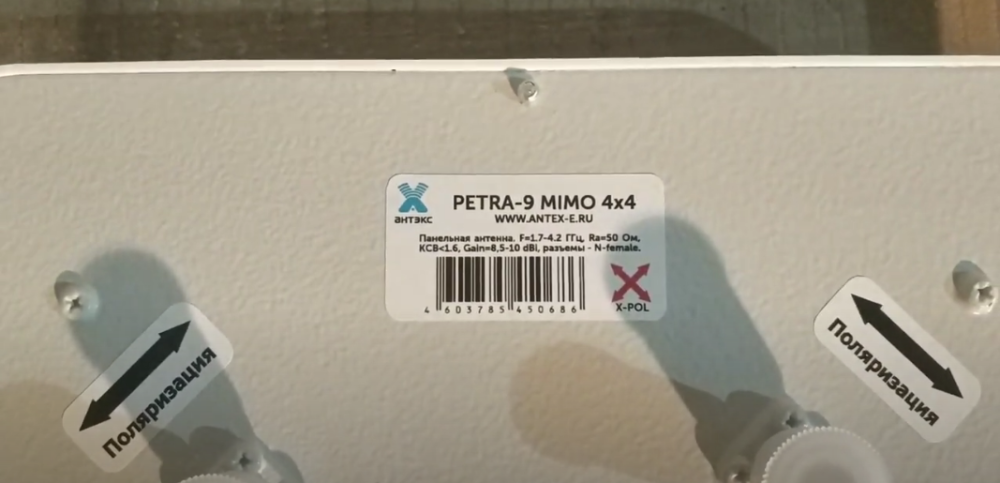

Professional panel antenna for modems and routers that support MIMO 4x4 technology. F=1700-4200MHz, CU=9dBi, 4 x N-female connectors, vertical+horizontal polarization, decoupling between channels of more than 25dB.

Electrical characteristics of the PETRA-9 MIMO 4x4 antenna

Operating frequency range, MHz 1700÷2700

Gain factor, dBi 8,5÷10

Bottom width in the H-plane, deg 59÷82

Bottom width in the E-plane, deg 35÷57

Side lobe level, max -7 dB

Decoupling between ports in the operating range, not less than 25 dB

Input impedance, Ohms 50

SWR in the operating frequency range at the inputs, max. 1,6

Permissible power, W 10

Slope of polarization of received / emitted waves -45°/+45°(X-pol)

Mechanical characteristics

Antenna weight, g 820

Bracing mast diameter 20-52mm

Operating temperature range -60°C to +80°C

Overall dimensions without mounting, m 0, 24x0, 24x0, 1

Permissible wind speed, m / sec 25

Connectors 4 x N-fe male

Material of the protective cover Polycarbonate

Antenna Material Galvanized steel, brass

Mounting material steel / Polycarbonate+ABS



[Admin 2822]

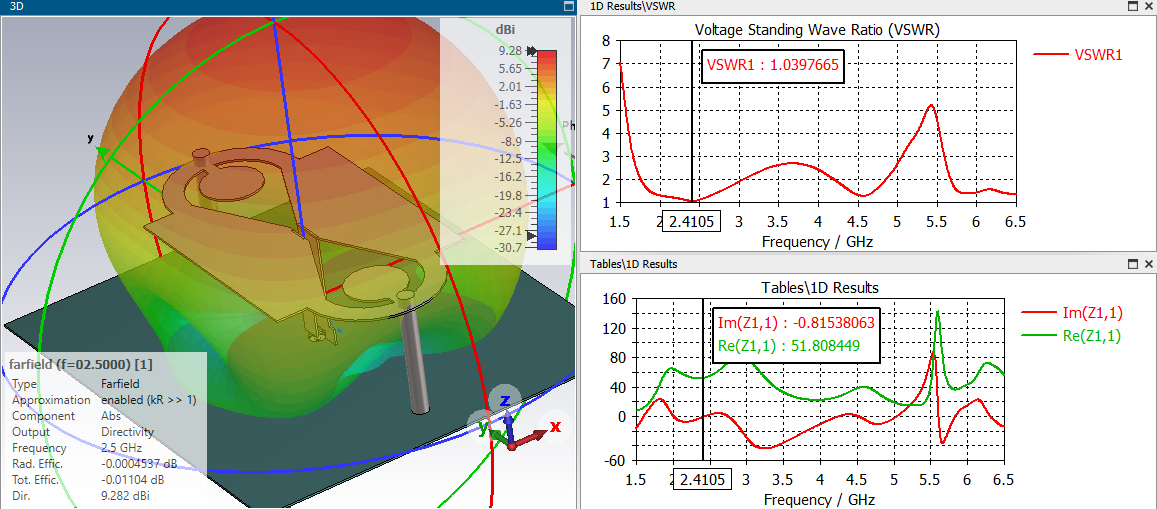

I tried to make a simulation but I think there is still work to be done on it...

[fjaxo 0]

This can really work from 1.7-4.2? Show pattern at 3.3-4.2.

[fjaxo 0]

This antenna max 1700-2700.



[Admin 2822]

15 hours ago, fjaxo said:

This antenna max 1700-2700.



,,, the frequency of 4.5 GHz is not visible...???

[fjaxo 0]

I contact ANTEKS via email, read response.

Hello, for some time this antenna really worked in
the extended range and was manufactured that way. Now this antenna works in
the range of 1700-2700 MHz.
Now we have another position for this range:

https://antex-e.ru/store/5g-antenny/petra-10-mimo-4x4---universalnaya-4g5g-panelnaya-napravlennay-1/

[Admin 2822]

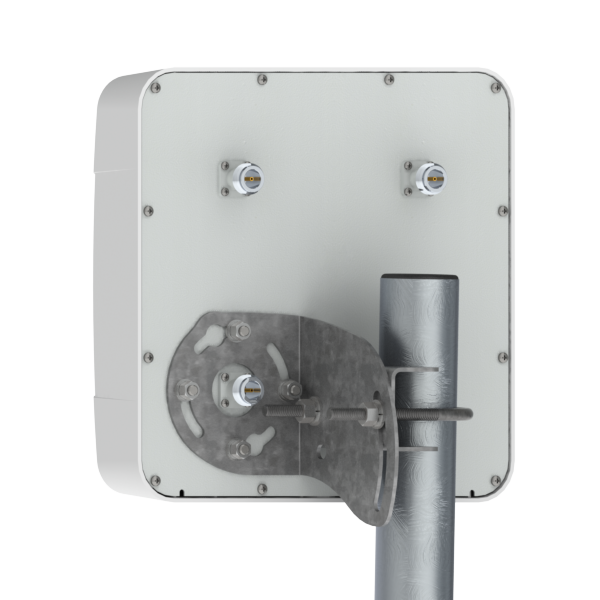

,,,why this difference in the location of the ports...???



[fjaxo 0]

On 8/14/2024 at 6:40 PM, Admin said:

I tried to make a simulation but I think there is still work to be done on it...

post cst

[Admin 2822]

"I don't think I have this file anymore...!!!

Maybe only if I bring this topic up again.

[fjaxo 0]

[clanon 325]

On 12/17/2025 at 0:26 PM, Admin said:

"I don't think I have this file anymore...!!!

Maybe only if I bring this topic up again.

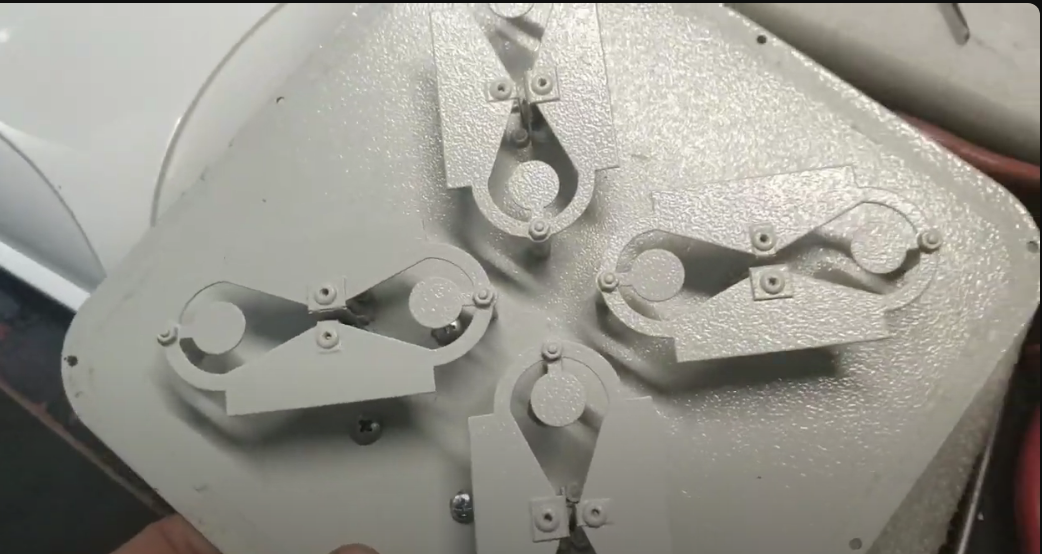

Jomy , These BALUN details might be IMPORTANT to know (3-4 feeding STRIPS) do you have a drawing with Dimensions...(Russians use it all the  time)

Edited December 22 by clanon

[Admin 2822]

Clanon, can you show me this details...





[clanon 325]

I was hoping YOU have the drawings...i never draw any of those antennas...Is on the Petras and others a 3 strip balun from reflector to antenna...

[Admin 2822]

This adaptation doesn't work very well...

[clanon 325]

maybe something like this

[Admin 2822]

17 hours ago, clanon said:

maybe something like this

I don't understand anything anymore, I'm in a different location and I can't see some previous posts and some pictures ...like this....

[clanon 325]

On 12/26/2025 at 5:16 AM, Admin said:

I don't understand anything anymore, I'm in a different location and I can't see some previous posts and some pictures ...like this....

is a link to your OWN site...
