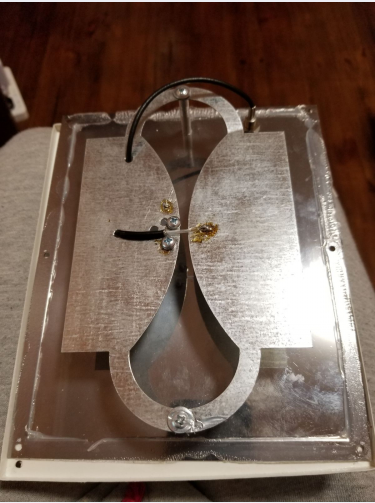

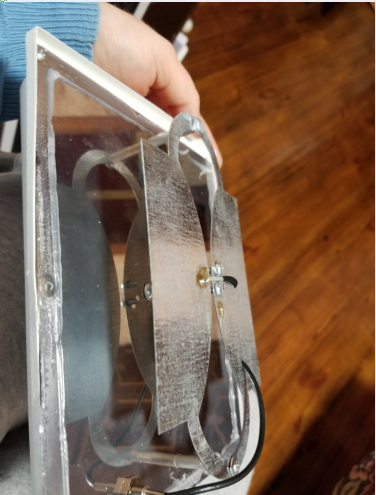

Universal GSM antenna 3G / 4G "Razor"

[Admin 2545]

GSM antenna "Razor" is designed to amplify, stabilize the signal and provide high-speed Internet for modems and routers. If the signal in your area is not as good as you would like, the 3G/4G "Razor" GSM antenna will improve the quality of signal reception at a distance of up to 20 km. from the base tower!

The operating frequency range is 1700-2200MHz (3G-2100MHz, 4G LTE-1800MHz).

The antenna can be installed outdoors, on a pipe, or just on the wall on the side of the base station. If the Internet speed does not suit you, you need to change the antenna mounting location. It attaches quickly and easily. The kit includes step-by-step instructions on how to install the antenna correctly.

 Technical characteristics of GSM antenna 3G / 4G "Razor" 15 DB:
Antenna type Streel, panel
Support for standards 3G ,4G (LTE)
Gain 15 Db
Operating frequency range 1700-2200 MHz
Type of polarization Vertical, Horizontal
Interface F connector
KVS no more than 2,0
Operating temperature range -45 to +60 Seconds
Network range Up to 20 km
Wave resistance 50 ohms
Sizes 225x175x45 mm
Weight 445 g

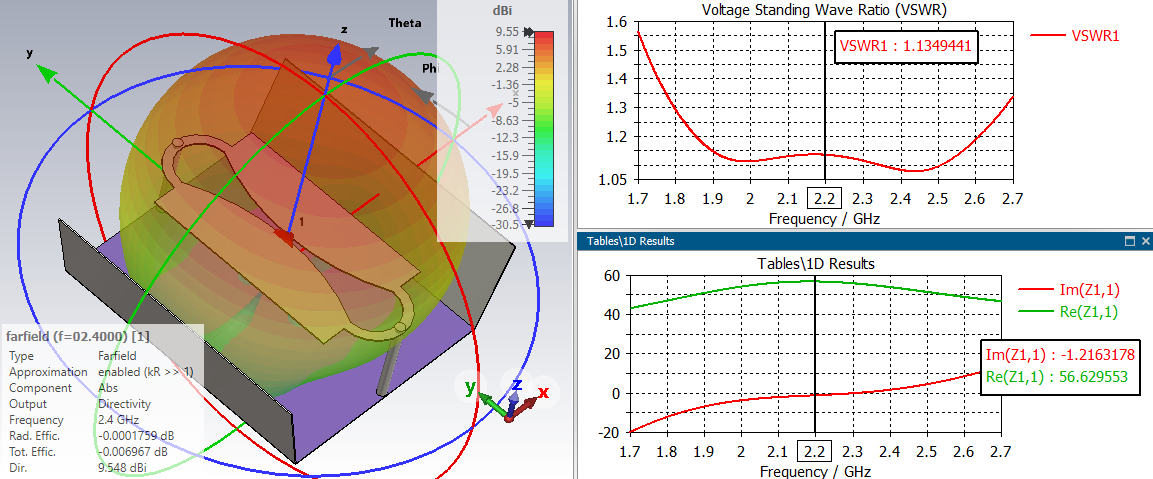

,,,and an attempt to simulate the antenna...

[eco32 27]

Actually ..... it is a biquad, very modified and more wideband.
