biquad antenna digital TV

[Admin 2545]

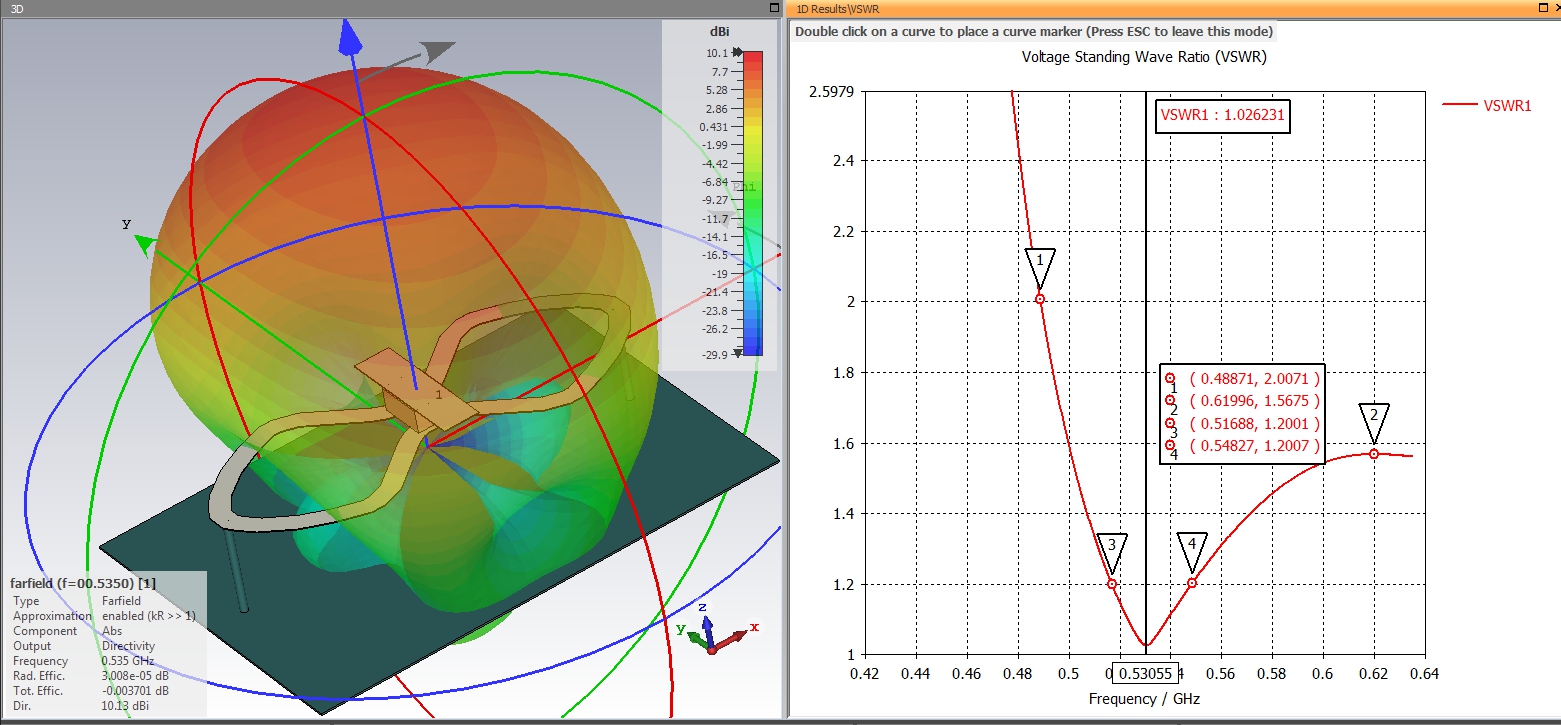

,,,,and generally, this antenna is better .... ??

[vova.gumerov 23]

Приветствую тебя! Да, антенна super! В городе показала себя на 100% . За городом не испытывал, но думаю нужно будет ставить малошумный усилитель. в любом случае - благодарю.Если появиться что-то интересное, пиши, сделаем!

Greetings! Yes, the antenna is super! The city has shown itself to be 100%. Outside the city did not feel, but I think it will be necessary to put a low-noise amplifier. in any case - thank you. If there is something interesting, write, we will do it!

[Admin 2545]

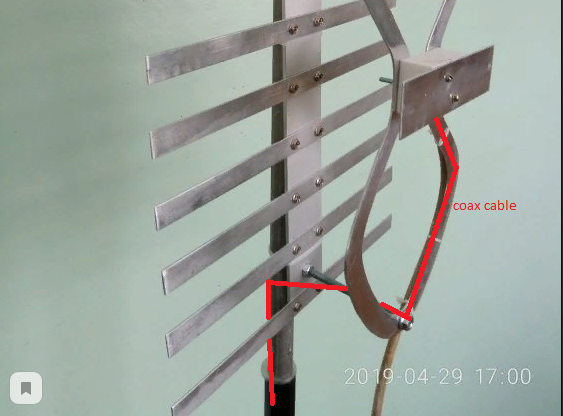

,,,yes, very good, but be careful that the coaxial cable must pass through the back of the reflector...!!1



[vova.gumerov 23]

Приветствую тебя.При установке на мачту сделаю как надо. То,что на фото, пробный вариант,чтобы показать работу.Как твои дела, как настроение?! У нас начались майские праздники - длинные выходные!!!!

I welcome you. When installed on the mast, I will do it right. What is in the photo, a trial version to show the work. How are you doing, how is your mood ?! We started the May holidays - long weekend !!!!

[Admin 2545]

,,,well, thank you...!!!
,,,,yes, we have been the holy pastas, now they have passed...!!!!

[tcl32 2]

i'd like to build this antenna for TV channel  UHF 25 (500 - 550 mhz)...if some one has PDF  scale 1:1 file for biquad antenna would be greAt....



tnx a lot admin...

[vova.gumerov 23]

Привет. Свяжись с админом .Он поможет с расчётами.удачи.

Hey. Contact the admin. He will help with the calculations. Good luck.

[Admin 2545]

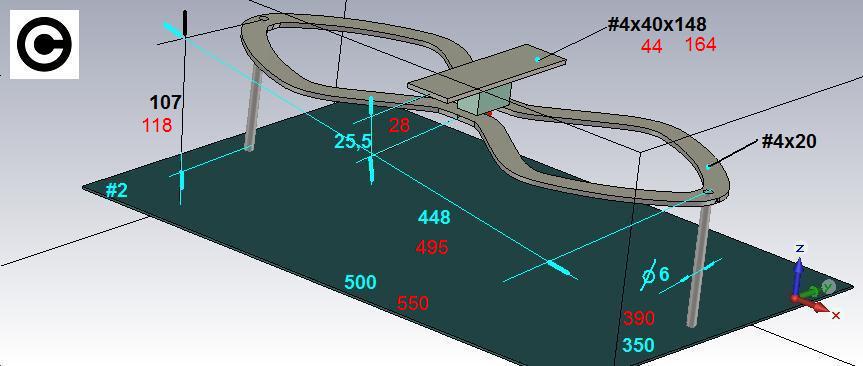

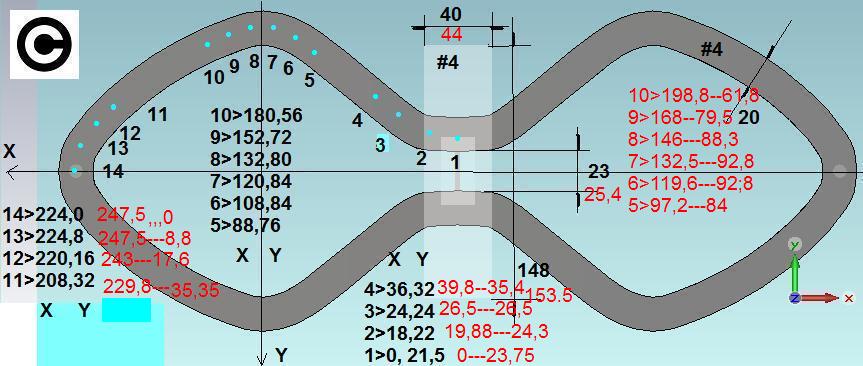

,,,for tcl32...dimensions in red...



[tcl32 2]

many thanks admin....i will build soon ..after find I the software to print it such drawing...

[Admin 2545]

,,,,ooohh  TCL32 ,,,, stop, stop, stop ... it looks like the dimensions that I gave you before are not good ,,,, expect to do a simulation....!SORRY!  OKAY....??/

[Admin 2545]

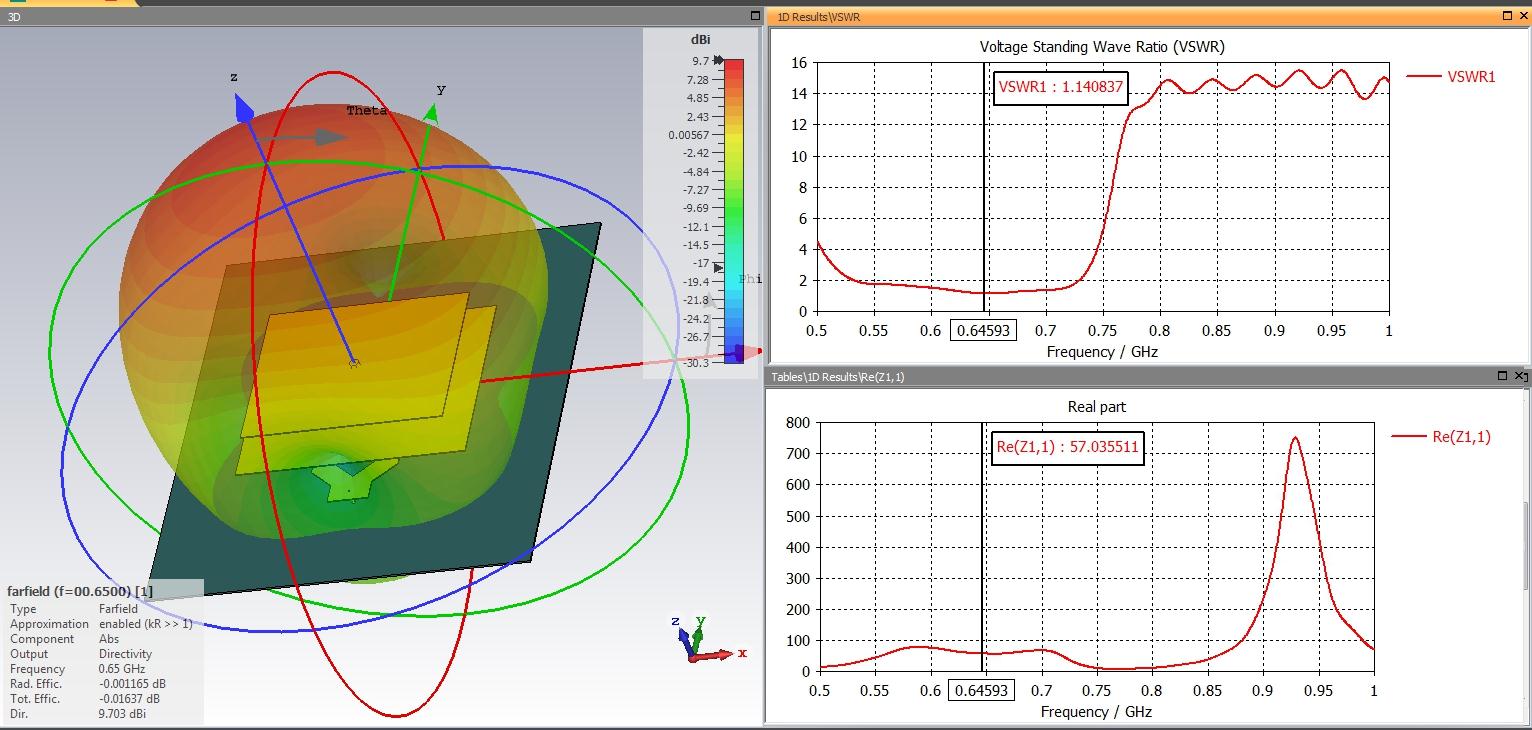

Yes, I think this is the best one...



[tcl32 2]

7 hours ago, Admin said:

,,,,ooohh  TCL32 ,,,, stop, stop, stop ... it looks like the dimensions that I gave you before are not good ,,,, expect to do a simulation....!SORRY!  OKAY....??/

its..Okay Admin......tnx a lot for correction....i have draw the biquad in COREL DRAW....

[tcl32 2]

On 5/17/2019 at 3:13 PM, Admin said:

Yes, I think this is the best one...



1.  admin...i just realize that the bandwith is narrow compared to the first design that bejonet build..

2. how long the distance between supporting bolt ??

3. plan to build the antenna with 0.3mm galvanized sheet...

[Admin 2545]

Well, then make Bejonet's antenna...!!!

[Admin 2545]

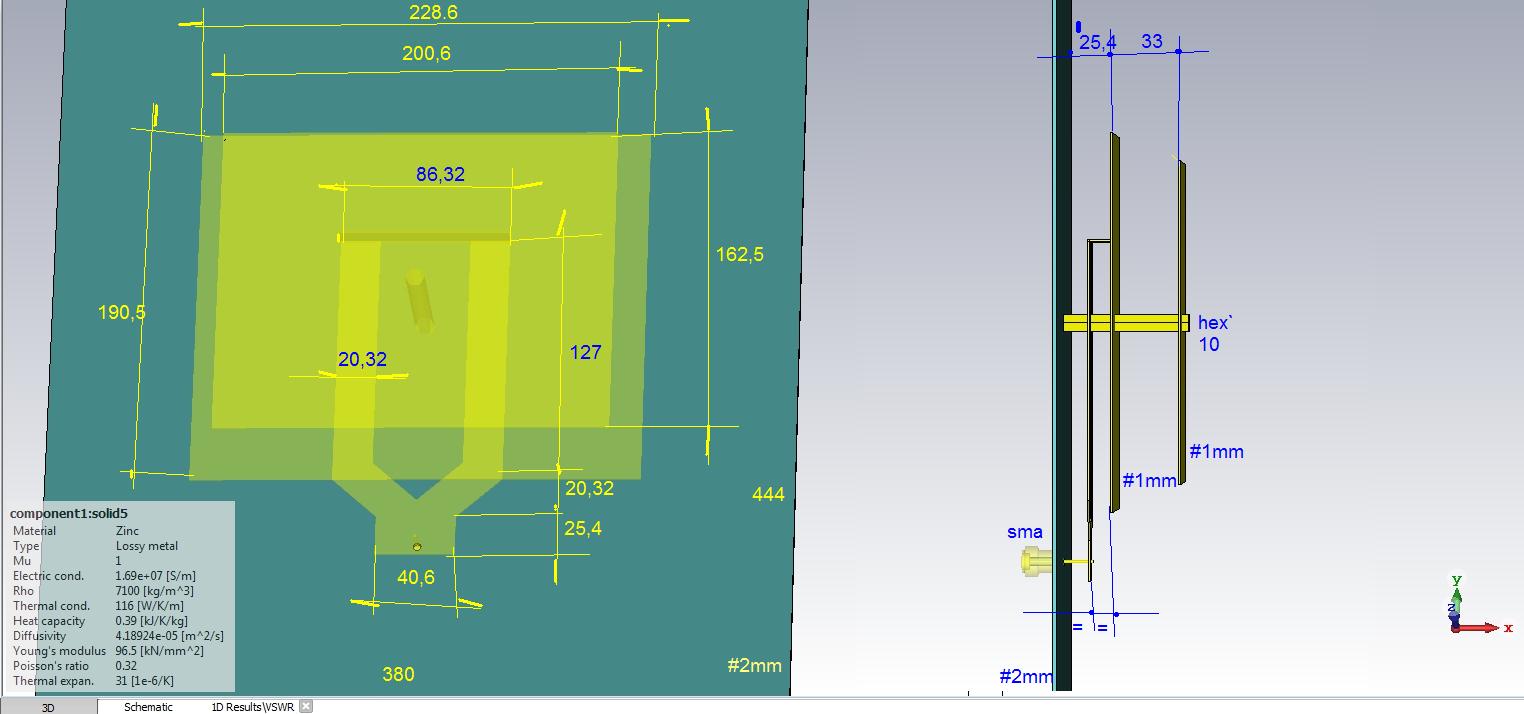

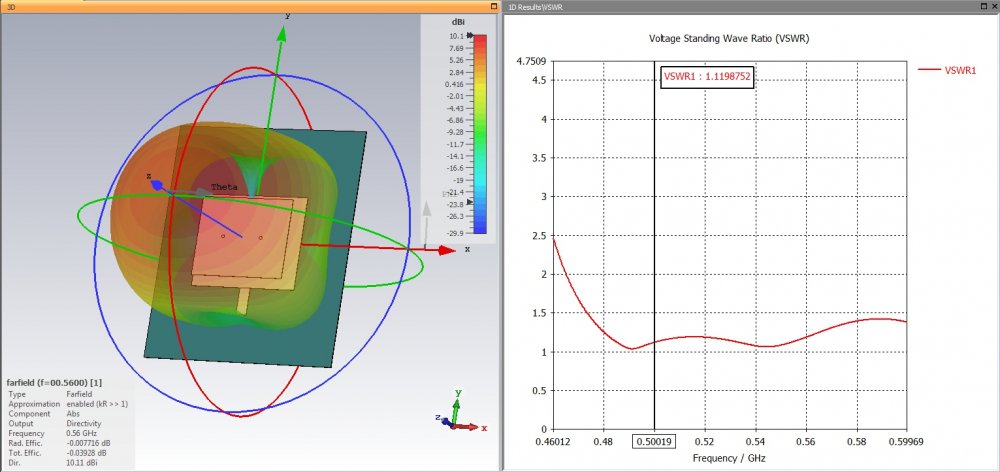

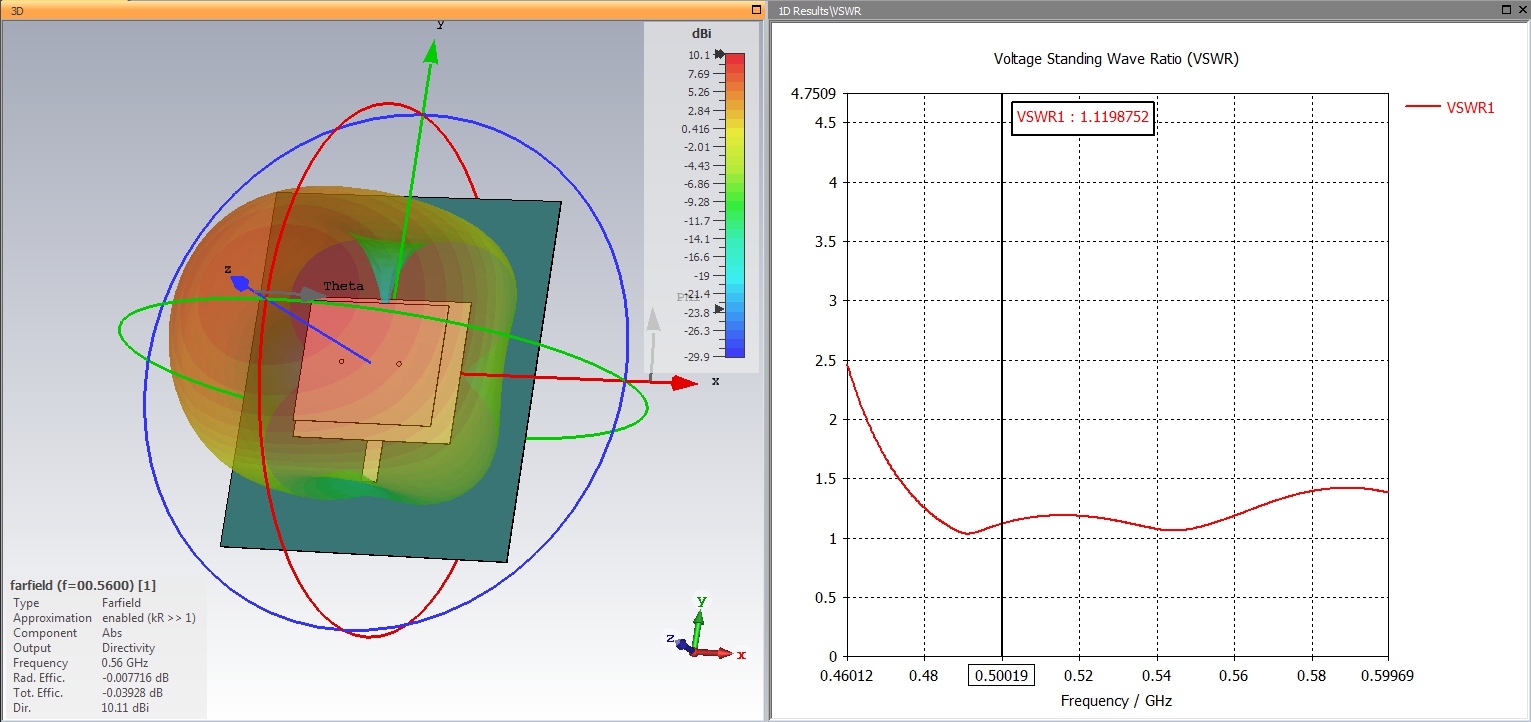

,,, or maybe it"s better something like that ... !!!



,,,but there is not a biquad antenna...!!!

[bejonet 58]

works at what frequency range



[Admin 2545]

,,,UWB digital TV...!!!

,,,you want it...???

[bejonet 58]

yes,, of course

[Admin 2545]

,,,wait a moment...!!!

[Admin 2545]

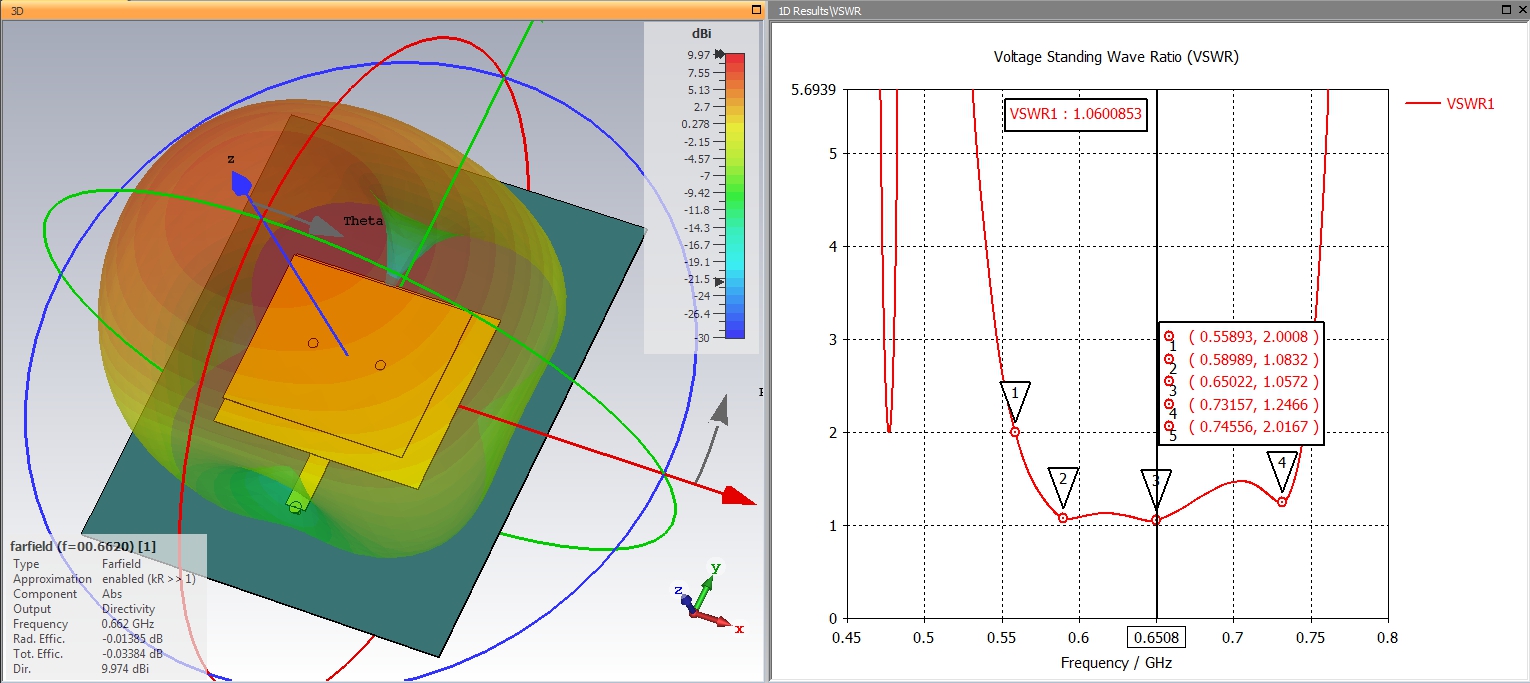

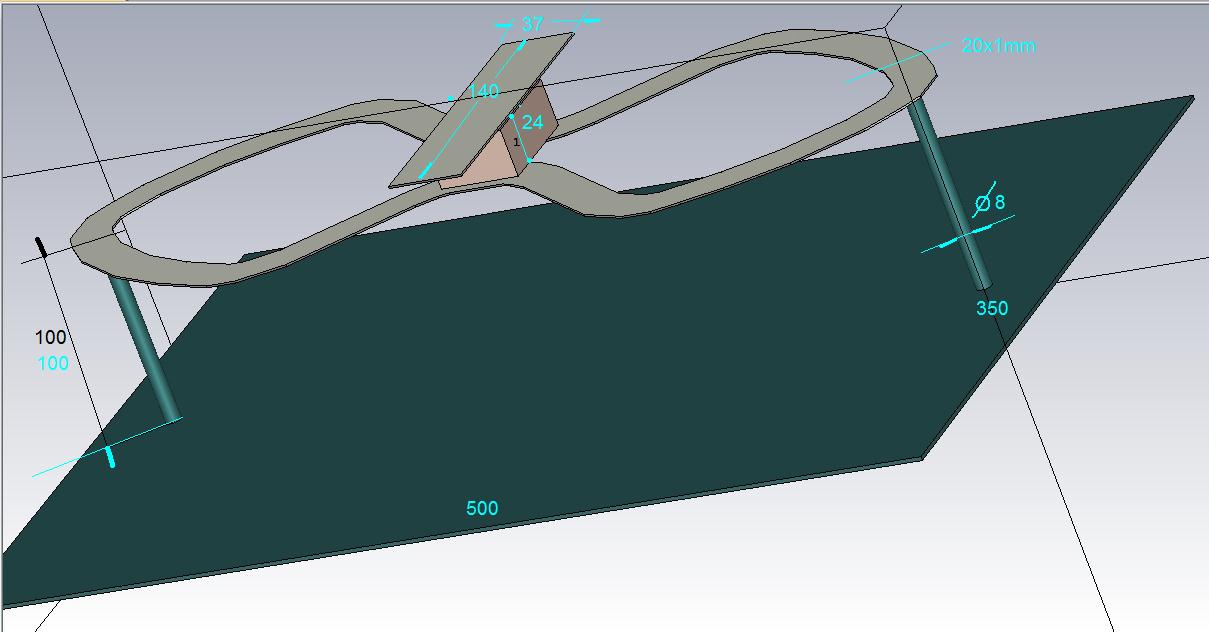

,,,it is good like this...??

[bejonet 58]

dimension of this antenna...???

[Admin 2545]

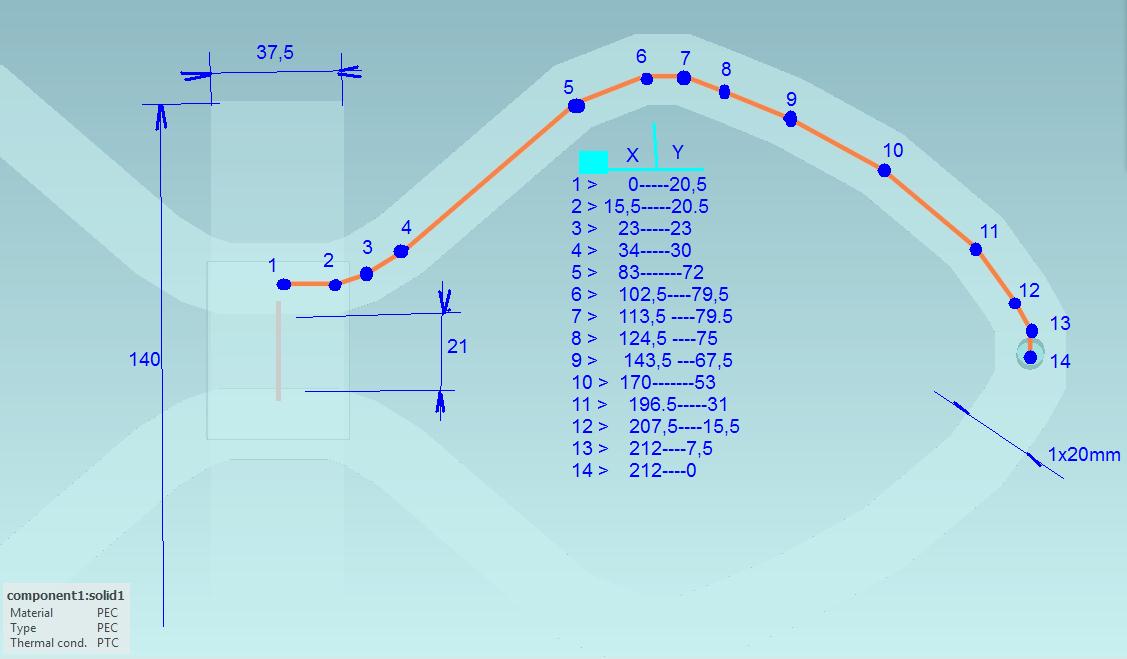

I have adopted a new line of adaptation,,,,

[tcl32 2]

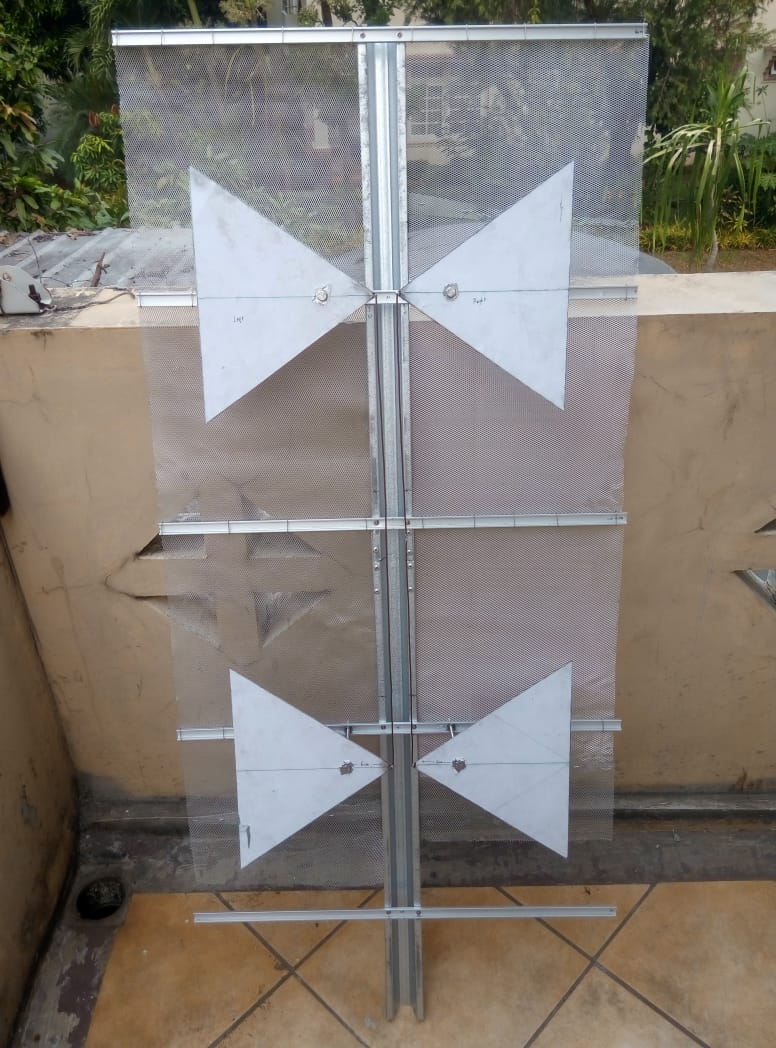

i finally build this UHF TV antenna...

perform quite good....design based on rothamnel antenna book....



[Admin 2545]

,,, good, put the dimensions if you can ... !!!

[tcl32 2]

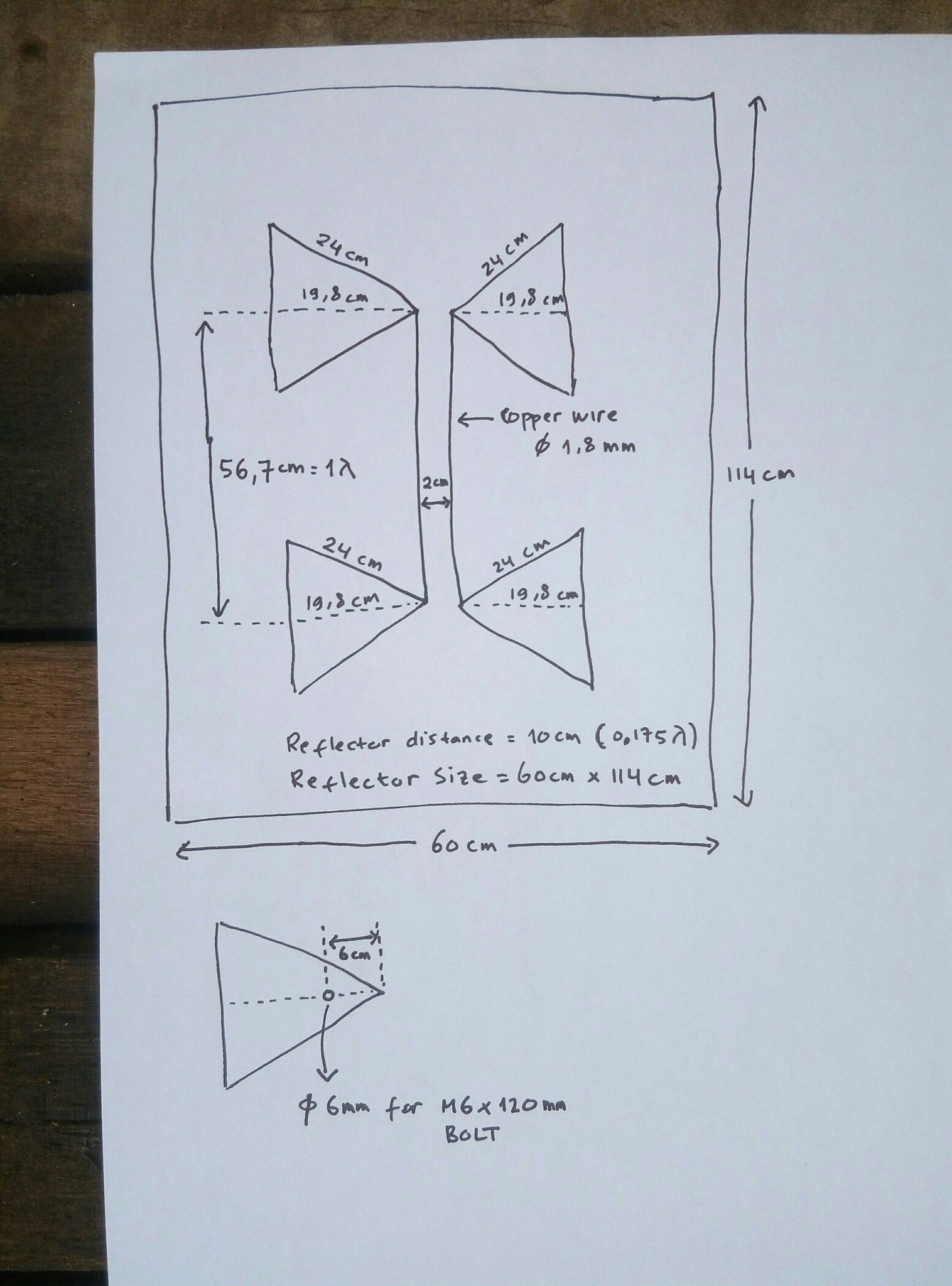

sorry for BAD hand drawing of the antenna...
