Petra-12 MIMO 4x4 Unibox-2

[Admin 2578]

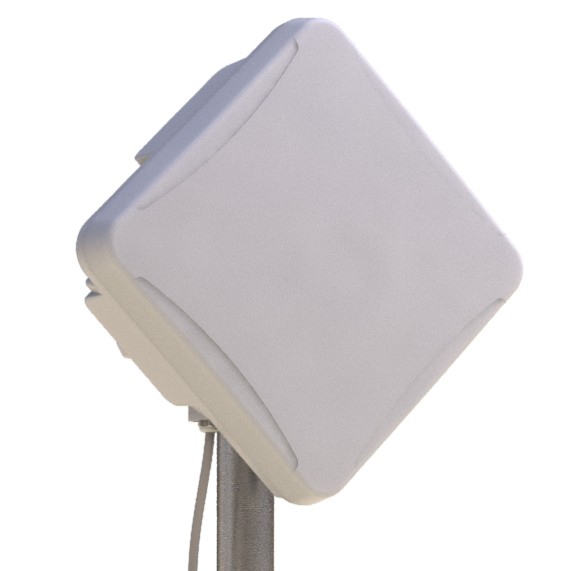

Universal panel antenna 9-12dBi (1.7-2.7 GHz) for modems with support for MIMO 4x4 technology + hermobox for modem

Electrical characteristics of the PETRA-12 MIMO 4x4 Unibox-2 antenna

Operating frequency range, MHz 1700-2700

Gain factor, dBi 9÷12

Bottom width in the H-plane, deg 28÷45

Bottom width in the E-plane, deg 55÷89

Forward / backward ratio, dB 15÷25

Decoupling between ports, at least 18 dB

Input impedance, Ohms 50

SWR in the operating frequency range at the inputs, max. 1,7

Permissible power, W 10

Polarization of received / emitted waves vertical + horizontal

Mechanical characteristics

Antenna weight with extension cable, g

Bracing mast with a diameter of 20-52 mm (depending on the diameter of the worm clamp)

Operating temperature range -40°C to +80°C

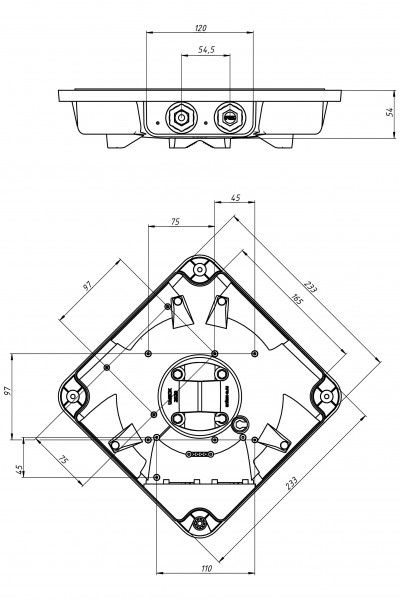

Overall dimensions, m 0, 24x0, 24x0, 1

Permissible wind speed, m / sec 25

Connectors 4 x SMA-male

Material of the protective cover Polycarbonate

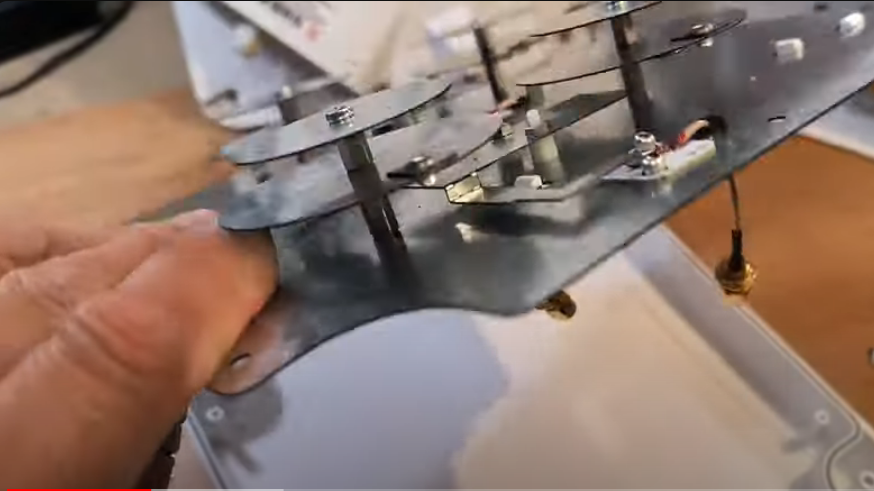

Antenna Material Galvanized steel

Mounting material steel / Polycarbonate+ABS

Protection class IP 67






[Admin 2578]

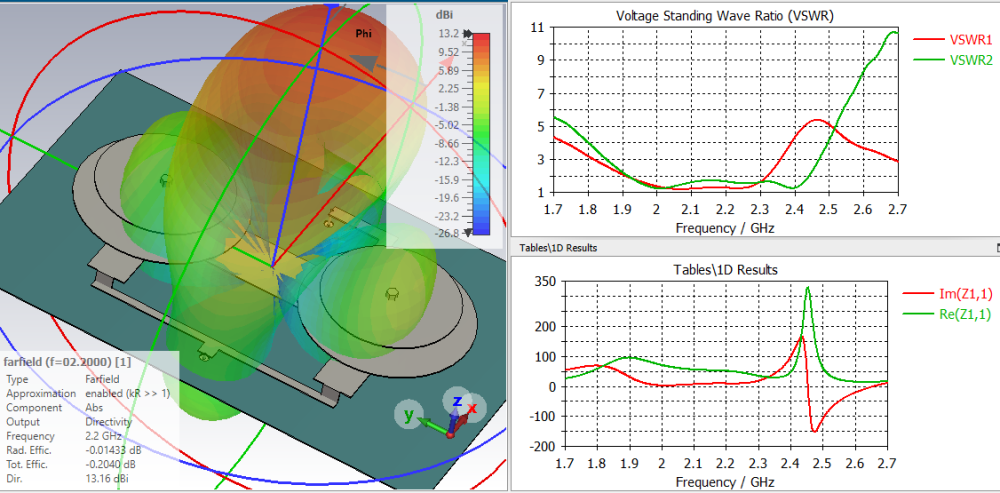

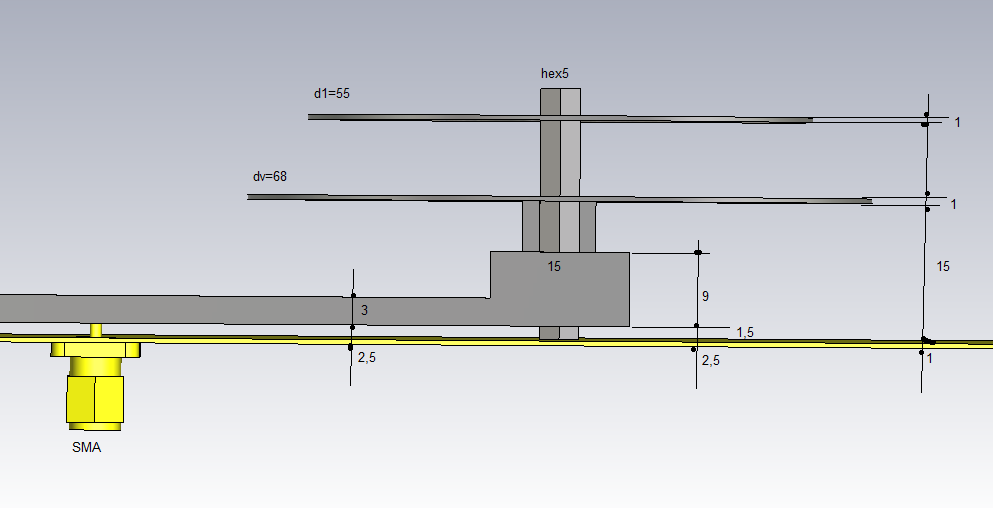

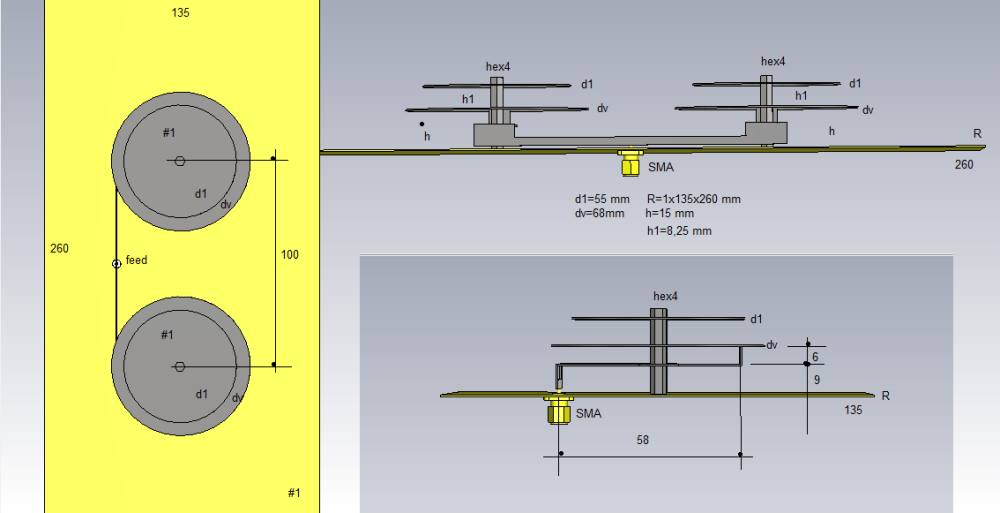

,,,after a simple experiment it seems that the results are quite good...!!!!
