Tunable Dual-Band Antenna-2,4 GHz;5,5 GHz

[Admin 2578]

In this paper, we design and analyze a dual-band rectangular patch antenna with slotted patch,patch and ground plane for 2.5 GHz and 5.2 GHz communications.

[Harry36 145]

hi! try to move to LTE. low band to 800-900 and let's see where the high one will be...

[Admin 2578]

11 minutes ago, Harry36 said:

hi! try to move to LTE. low band to 800-900 and let's see where the high one will be...

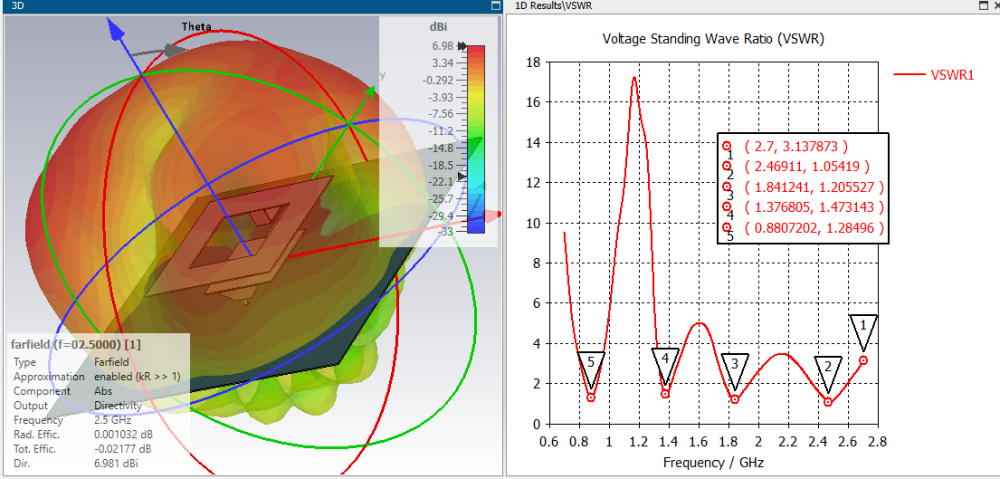

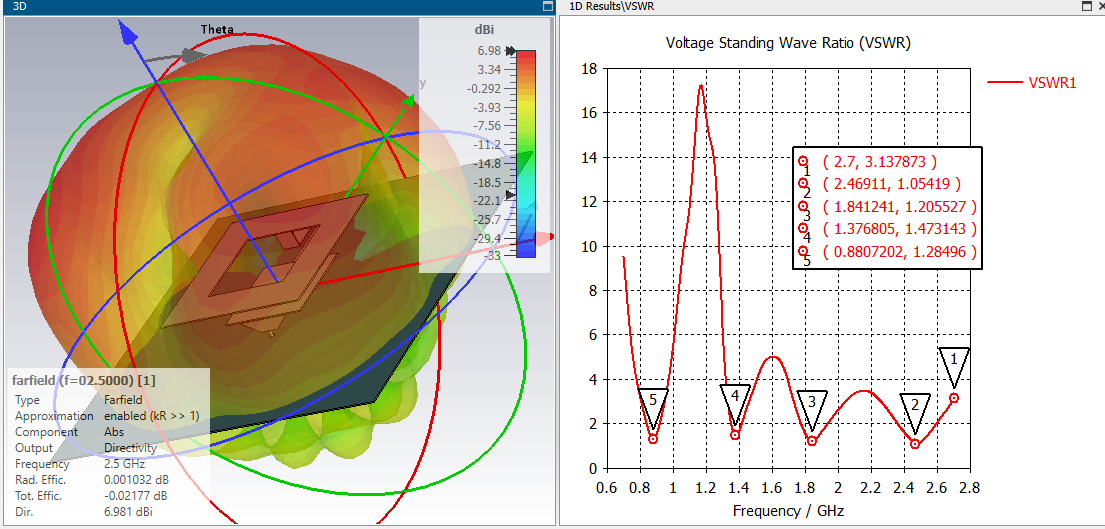

,,,maybe 1800-2100 MHz...!!!

[Harry36 145]

1 minute ago, Admin said:

,,,maybe 1800-2100 MHz...!!!

or 1700-2600 )

[clanon 258]

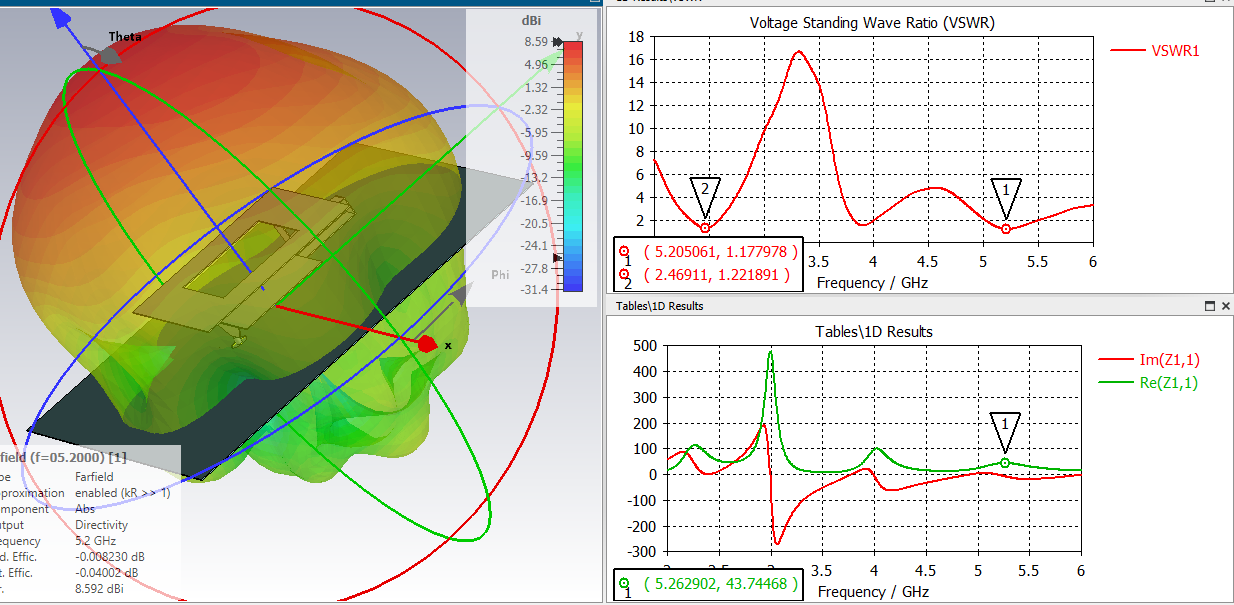

THIS dual band could be easier...FR4 moderate gain is for 2.4 and 5.2 but could be TWEAKED i think...

Edited December 10 by clanon

[Harry36 145]

[Admin 2578]

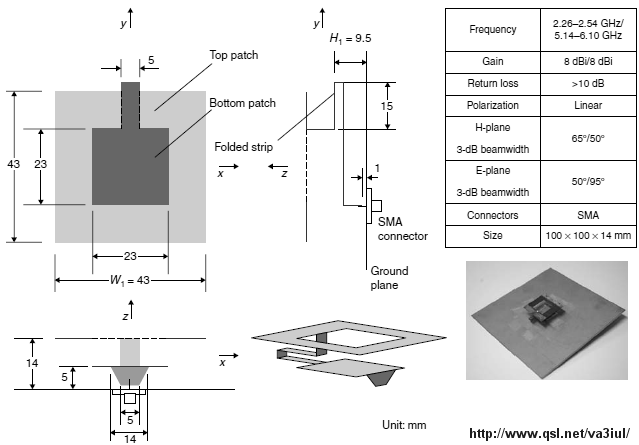

,,,,yes, there are many types of antennas here...https://qsl.net/va3iul/Antenna/Printed_and_Microstrip_Antennas/Design_Ideas_for_Printed_and_Microstrip_Antennas.htm

[Admin 2578]

,,,,and this would be a wider band antenna with overall dimensions of 240x240 mm

[Harry36 145]

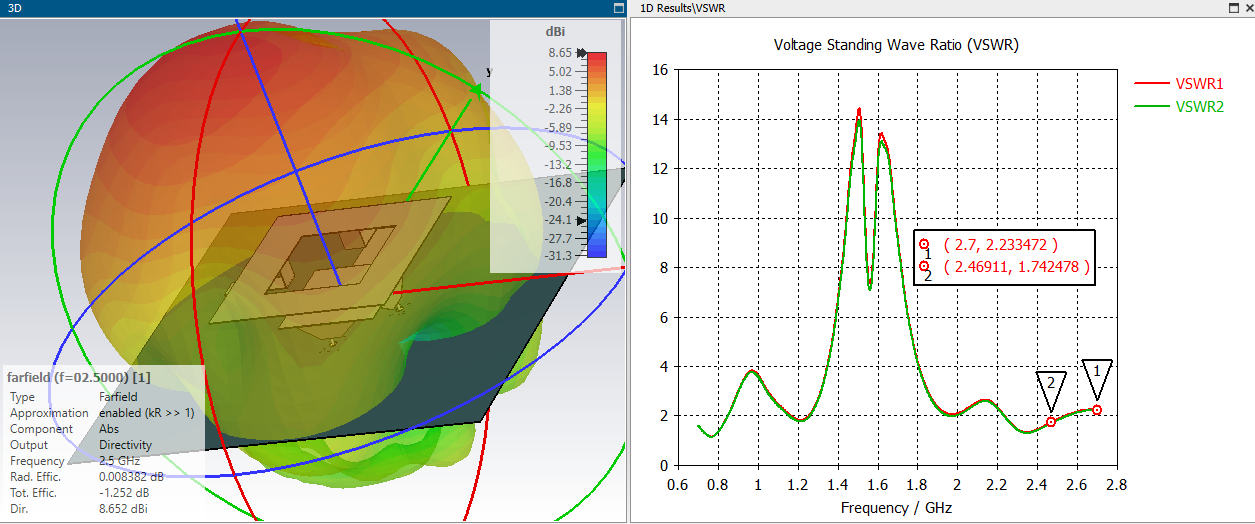

that's what I was talking about It's quite possible to stretch it to 1700-2700. I think a parasitic element should be made above the lower patch for better matching. or this tipe patch



Edited December 10 by Harry36

[Harry36 145]

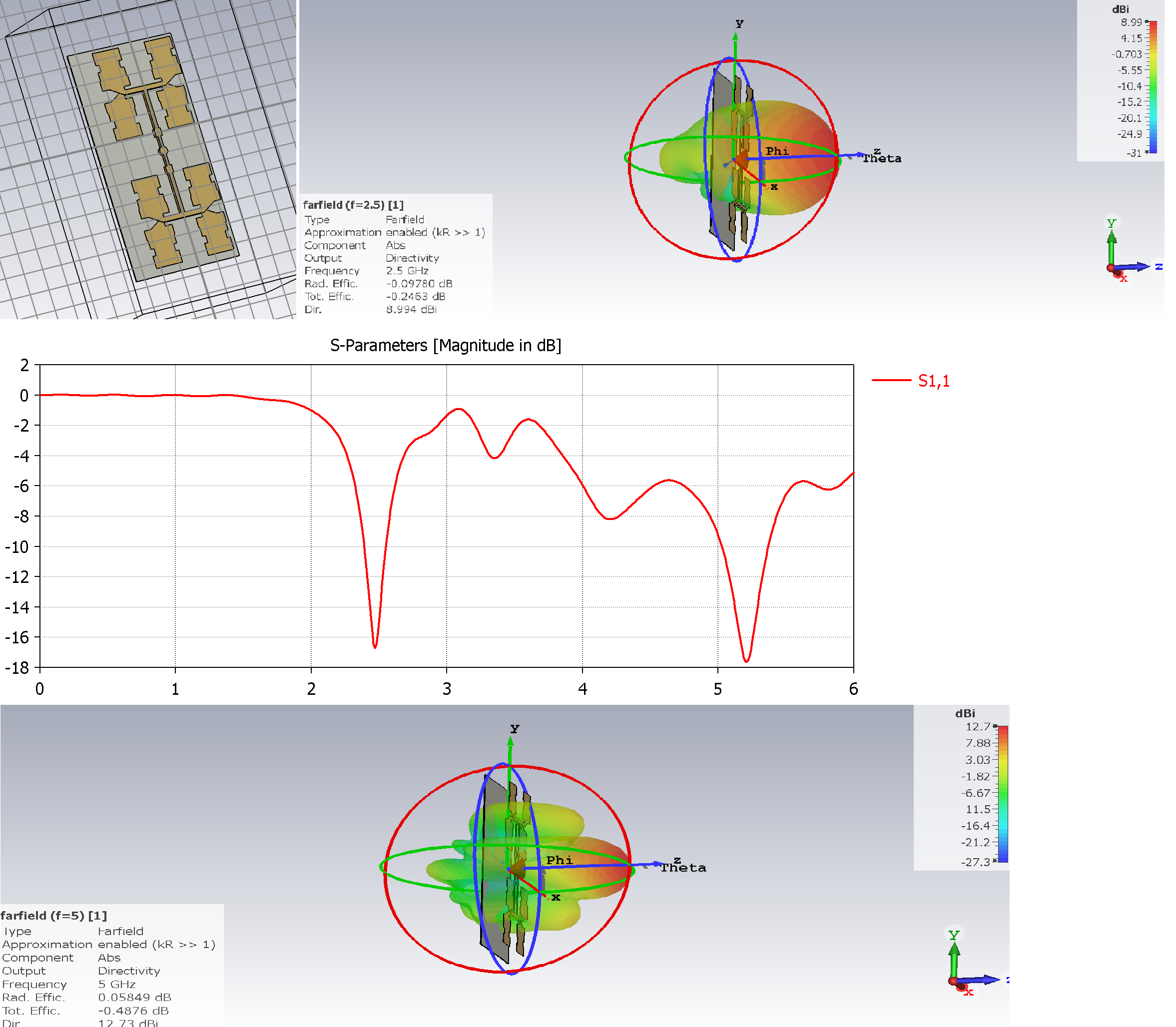

you can try to do the trick with mimo. copy all the elements and rotate the copy by 90 degrees. it seems to me that the polarization decoupling should be good.

[Admin 2578]

,,,like this...
