1800MHz MiMo Patch Antenna

Started by Admin,

Posted

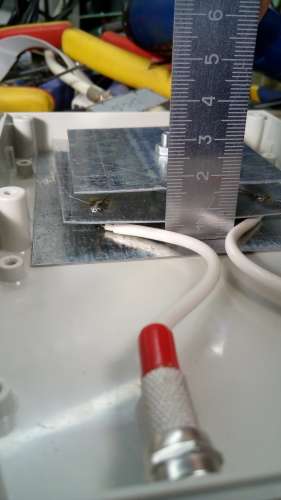

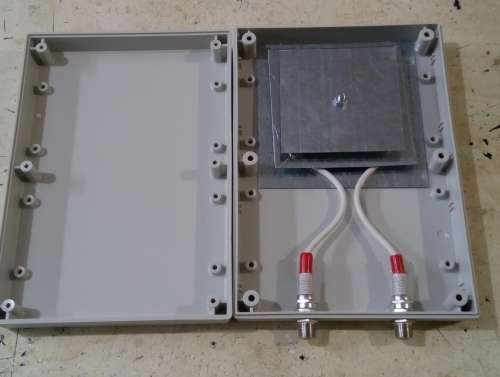

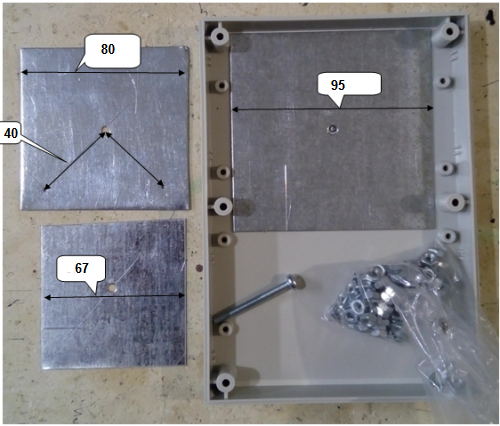

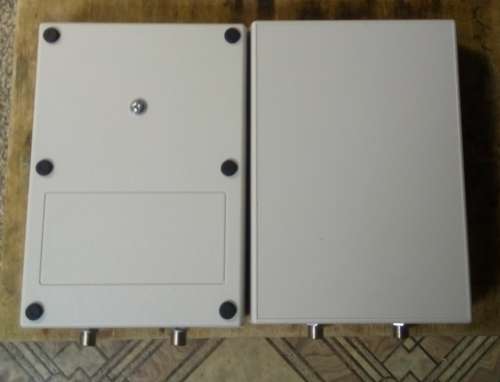

This MiMo antenna was made by the user "com666" and has a circular polarization(RHCP+LHCP)...

14680277 (1).jpg

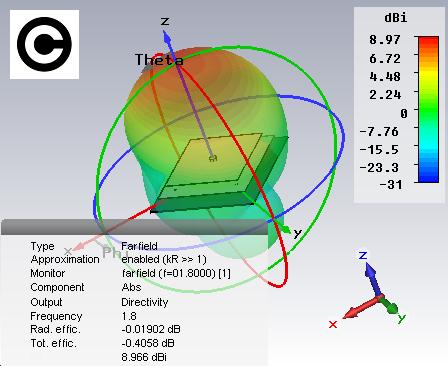

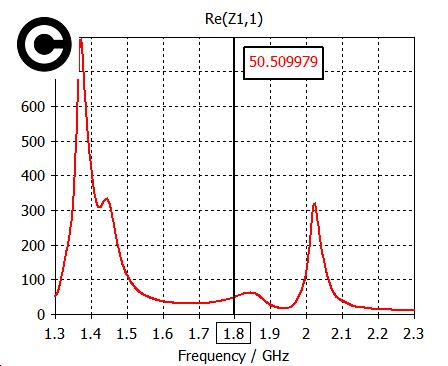

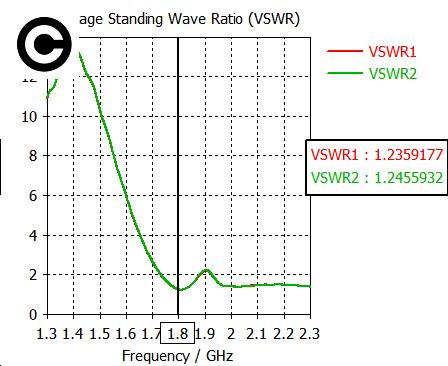

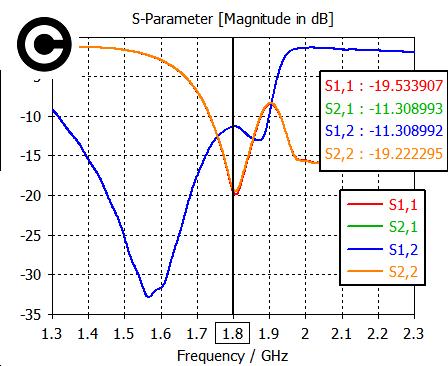

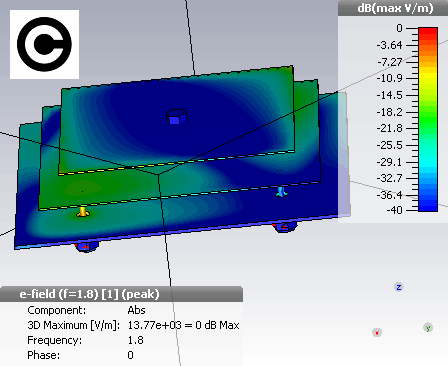

According to simulation the antenna is good, but isolation between ports is not the best...!!!








3 people like this

Share this post

Link to post
Share on other sites

Posted

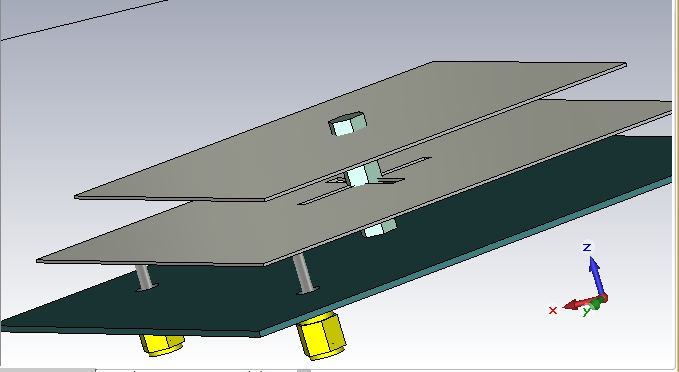

,,,to solve the problem with isolation between ports, it is necessary to execute a cross-cut to the vibrator and to place an insulating spacer...





5 people like this

Share this post

Link to post
Share on other sites

Posted

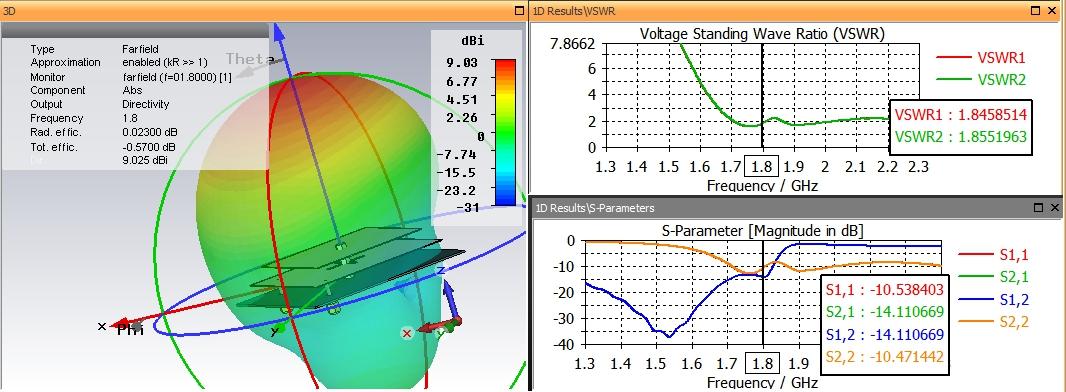

VSWR still not so good  but you did good job to reduce the coupling of 2 ports ( high isolation)
