Grids and parabolic antennas with feed

[eco32 44]

In Australia, they have a strong tradition of using high-gain antennas, with versions available that are rarely seen. For starters, a factory 1300Mhz grid (I made one similar) and a 3.6HGz, in addition to the 2.4GHz 5.6GHz available in Europe.

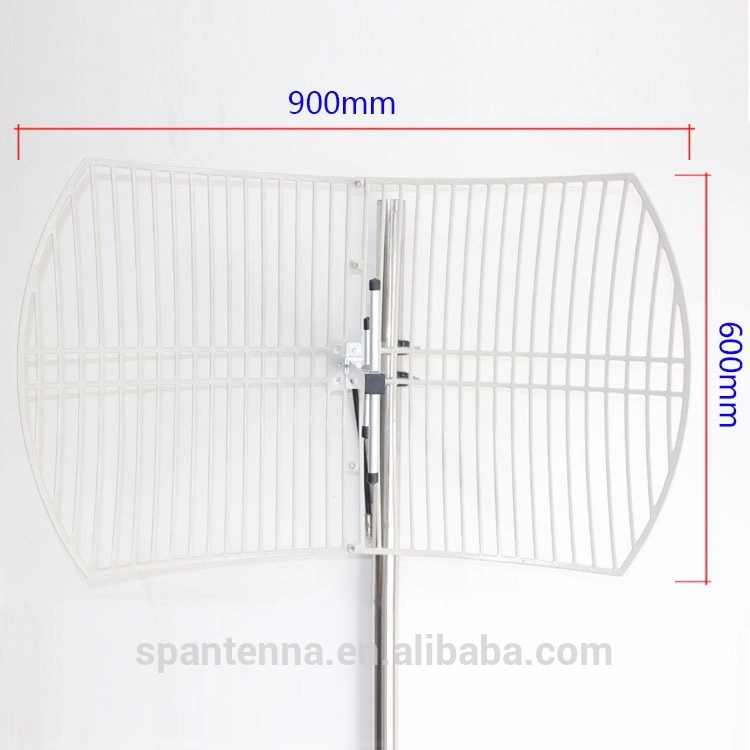

900x600 Grids:

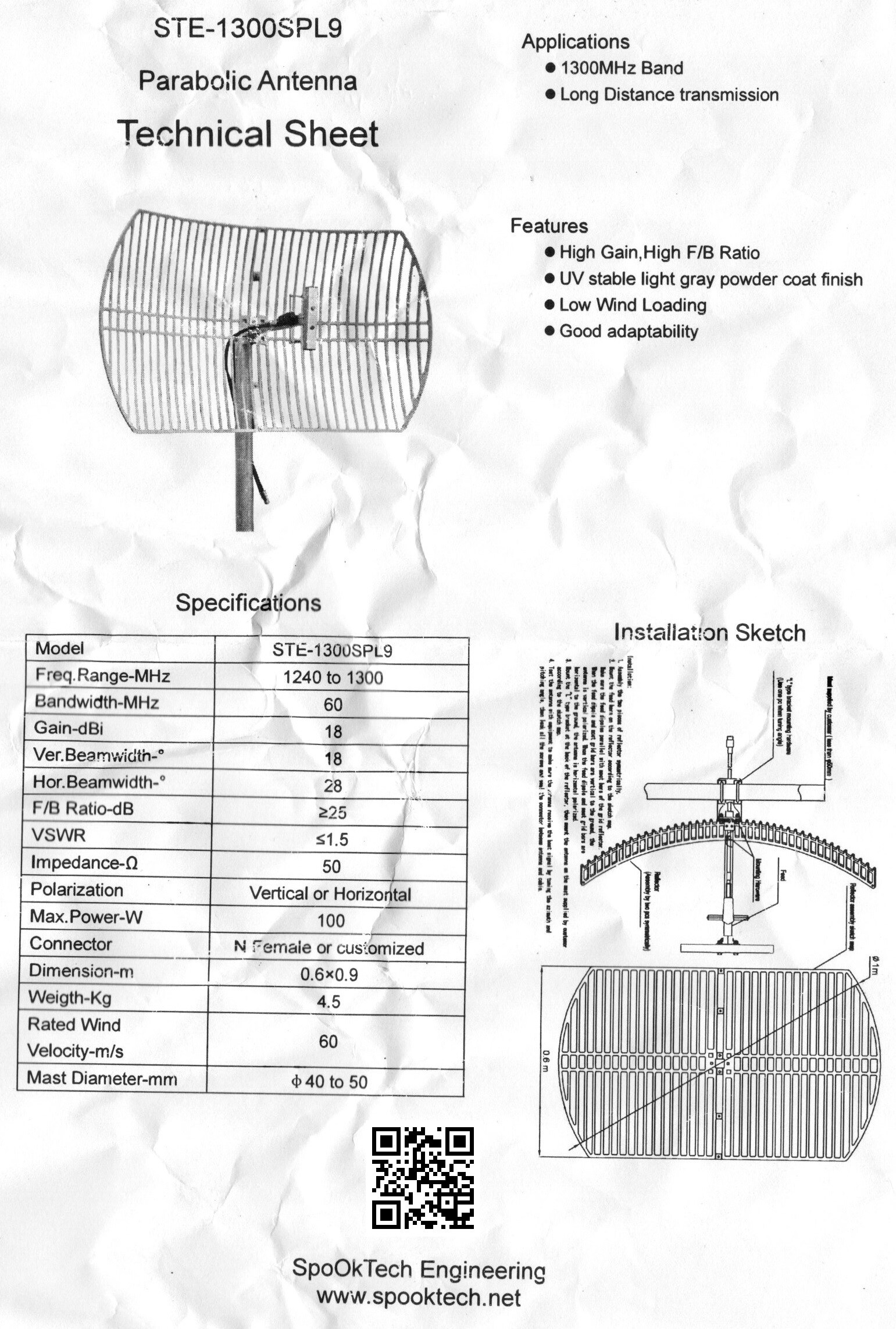

1.3  18dBi

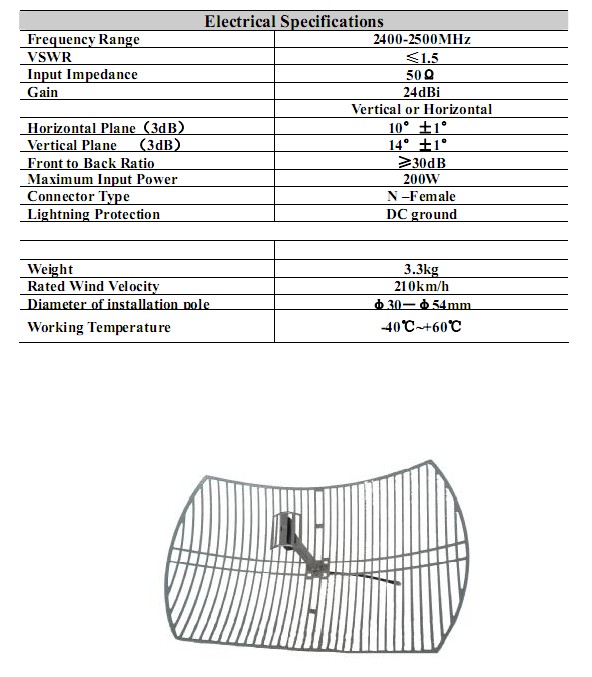

 2.4 GHz 24dBi

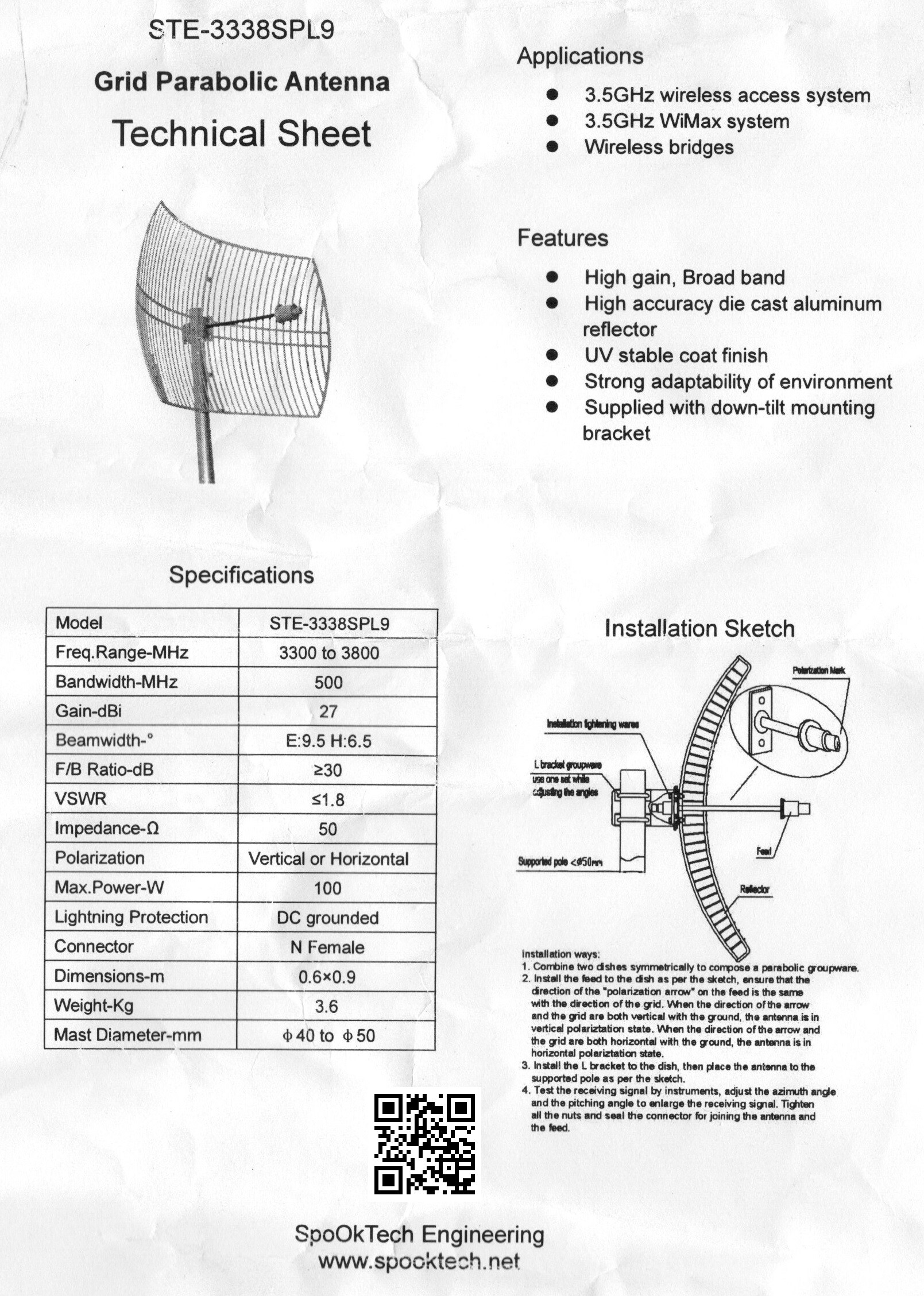

3.5 GHz 27dBi

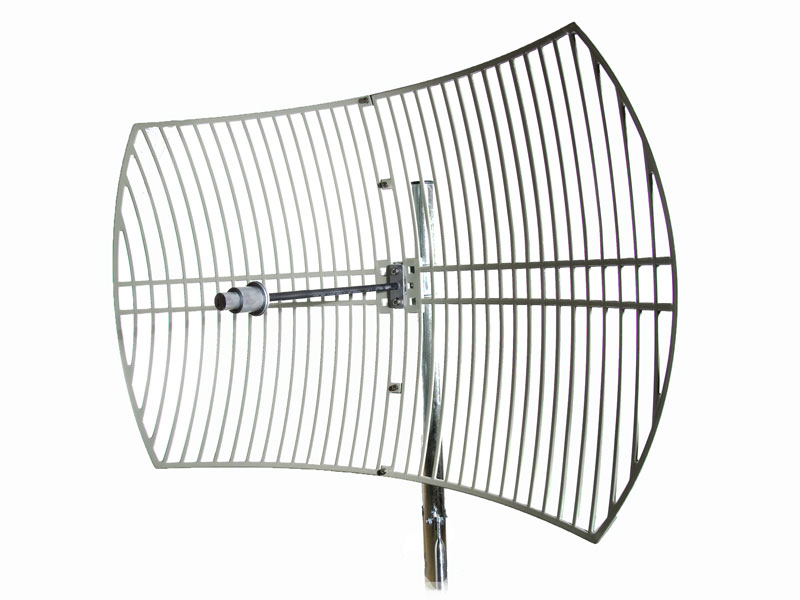

5.6 GHz

868MHz GHz Antenna



some feeds  were explained here : "Siple Dipole"  (which is no longer a simple dipole)



[Admin 2640]

It would be good if the focal length(F/D) was also shown for each antenna grid...!!!

[eco32 44]

4 hours ago, Admin said:

It would be good if the focal length(F/D) was also shown for each antenna grid...!!!

917 x 720 welded iron bars   (Pacific Grid) 917mmx720mm and 150mm deep  f/d = 0.38
900 x 600 split die-cast magnesium f/d = TBD
600 x 400 split die-cast magnesium f/d = TBD
400 x 300 split die-cast magnesium f/d = TBD

I happen to have all sizes, i will update

additionally something from Czech republic, not in production, but still available:
Sito MMDS 175 AL http://www.satelit-tv.sk/obchod/sito-mmd...4502.xhtml Sito MMDS 175 cm kvalitne Hlinikove sito zložené z dvoch kusovParabolicke duralové sito, výška 175 cm, zisk 34dB, cena aj zo zadnym držiakom F/D = 0.41  34dBm

Edited February 26 by eco32

[eco32 44]

Update

917 x 720 welded iron bars   (Pacific Grid) 917mmx720mm and 150mm deep  f/d = 0.38
900 x 600 split die-cast magnesium f/d = TBD
600 x 400 split die-cast magnesium f/d = 0.35
400 x 300 split die-cast magnesium f/d = 0.38

[Admin 2640]

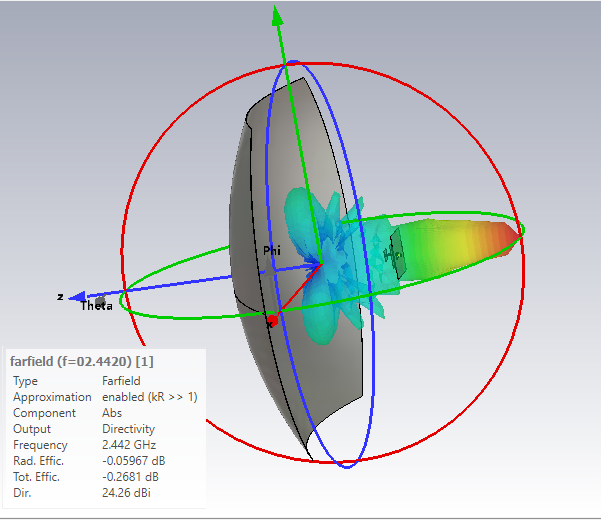

,,,model...

917 x 720 welded iron bars   (Pacific Grid) 917mmx720mm and 150mm deep  f/d = 0.38

grid parabola.cst
