LTE Ring Antenna

[Admin 2545]

Wireless electronic devices may include a ground plane, a double ring antenna and non-cellular antennas integrated within the double ring antenna.
The double ring antenna may comprise first and second metal rings around the perimeter of a ground plane to operate as MIMO cellular antennas.
At least one non-cellular antenna, such as a MIMO Wi-Fi antenna, may be integrated between the first and second metals rings on one or more sides of the wireless electronic device

[yeam 7]

Hi, may I know the working frequency and the design dimension?

[Admin 2545]

4 hours ago, yeam said:

Hi, may I know the working frequency and the design dimension?

,,, for which frequency do you want .... ??? !!!!

[yeam 7]

1 hour ago, Admin said:

,,, for which frequency do you want .... ??? !!!!

I am thinking of making biquad or ring antenna for parabolic feed and I am looking for 700-2700 or 1700-2700Mhz. but i curious about that is it possible to make such a big bandwidth antenna using biquad or ring antenna design

[Admin 2545]

,,, this ring antenna cannot be broadband...!!!

,,,look...

[yeam 7]

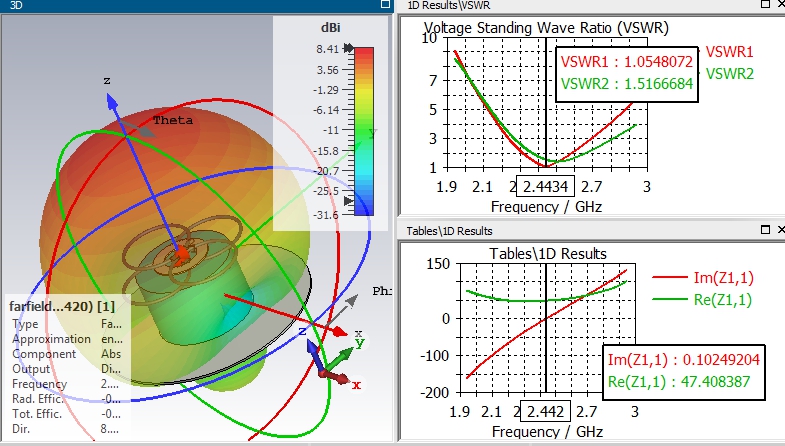

Thx for your info. May i know what software are you using? FEKO?

[Admin 2545]

,,,no,cst...!!!
