Admin

Antenna with wire elements

125 posts in this topic

The biquad antenna is center fed and symmetric about its origin...!!!


Share this post


Link to post
Share on other sites
On 8/11/2016 at 7:09 PM, Admin said:

Amos Inverted Antenna

InvAmos5








I did built it...It's amazing...APs keep poping up...and isn't critical to point it...My Best antenna so far...(Adapted an minipci wlan card to it) it digs up more Routers than my wn722n...

2 people like this

Share this post


Link to post
Share on other sites

Hi

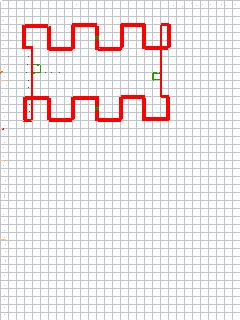

How to connect 4 zigZag elements

i have crazy idea!

Is there image of feed point conections for alredy made 4 zigzag with 4 elements ?

thanks




Share this post


Link to post
Share on other sites

What Mike said.

To achieve the same inductance with a LOT more wire requires wider spacing.

Then why not just use a small cylinder coil?
capture area because the loop is not just the inductor but also the antenna.

73
kb0lxy

Share this post


Link to post
Share on other sites
On 9/2/2019 at 11:12 PM, Charlesopisp said:

What Mike said.

To achieve the same inductance with a LOT more wire requires wider spacing.

Then why not just use a small cylinder coil?
capture area because the loop is not just the inductor but also the antenna.

73
kb0lxy

,,,,, who is Mike ... ???





1 person likes this

Share this post


Link to post
Share on other sites

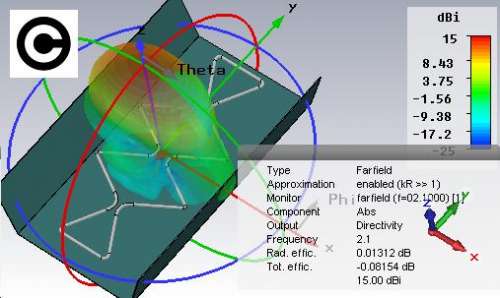

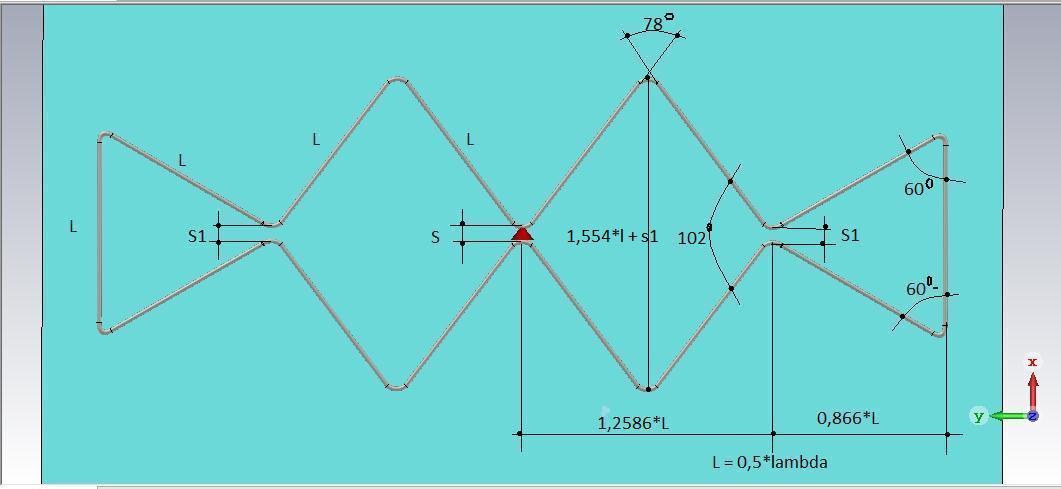

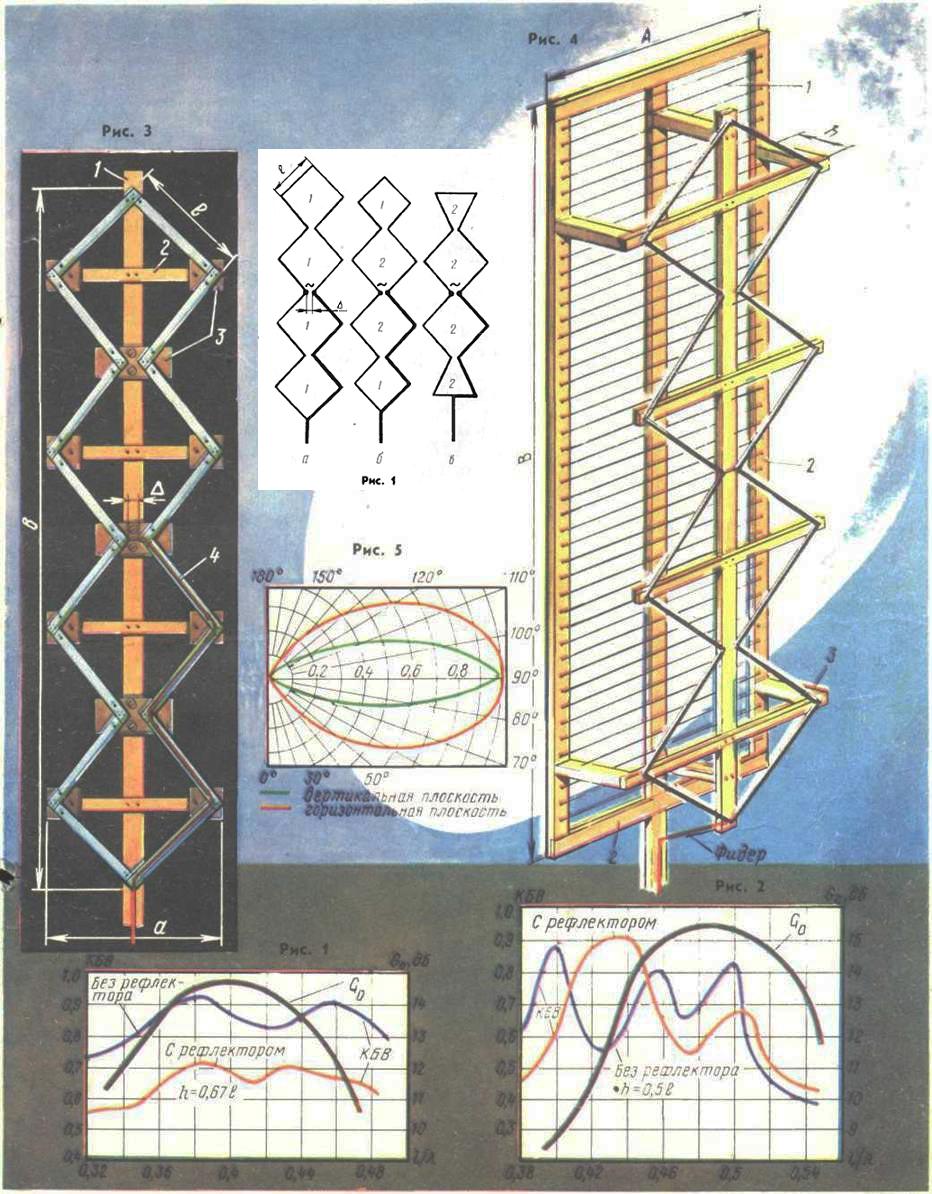

,,,for this antenna...

fig1a-side rhombus1 = 0.25 * lambda
fig1b-side rhombus1 = 0.25 * lambda
        -side rhombus 2 = 0.5 * lambda
fig1c-side rhombus 2 = 0.5 * lambda


,,,it would seem that a diminished form would be so....

(this is my idea...!!!!)


,,,for fig1c, it must be tried this...!!!




Share this post


Link to post
Share on other sites

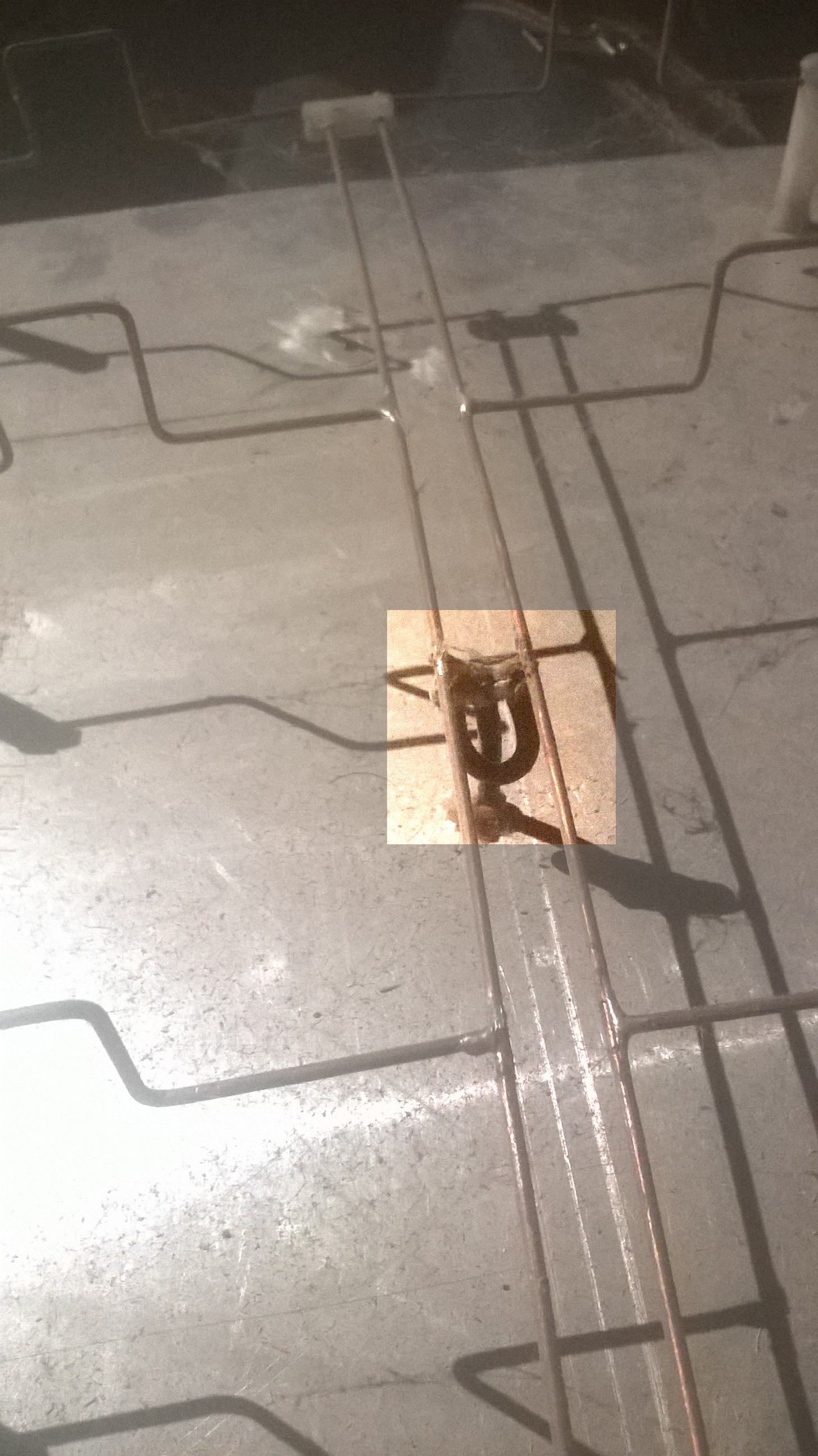

On 08/03/2019 at 2:04 AM, clanon said:

I did built it...It's amazing...APs keep poping up...and isn't critical to point it...My Best antenna so far...(Adapted an minipci wlan card to it) it digs up more Routers than my wn722n...

Wich type of balun  for this antenna!?

Share this post


Link to post
Share on other sites
On 07/08/2020 at 1:10 PM, Hamza said:

Wich type of balun  for this antenna!?

So no need to shorten the  coax to the reflecter with this balun?

On 07/08/2020 at 3:52 PM, clanon said:

4:1 (four 200 ohms to 1 50 ohms)

PS: Fundamental to get right the coaxial Velocity factor Coaxial length...(polyurethane , polyethilene dielectric )

THIS ONE NOT the former link

https://www.qsl.net//ANT_VHF/Amos_Ant/InvAmosArray.pdfso

Share this post


Link to post
Share on other sites
14 hours ago, Hamza said:

So no need to shorten the  coax to the reflecter with this balun?

i think it was 41 mm with PE insulator...

The GOO is silicone insulation...(if i build it agai i WOULDN'T put it...you know losses)


Edited by clanon

Share this post


Link to post
Share on other sites

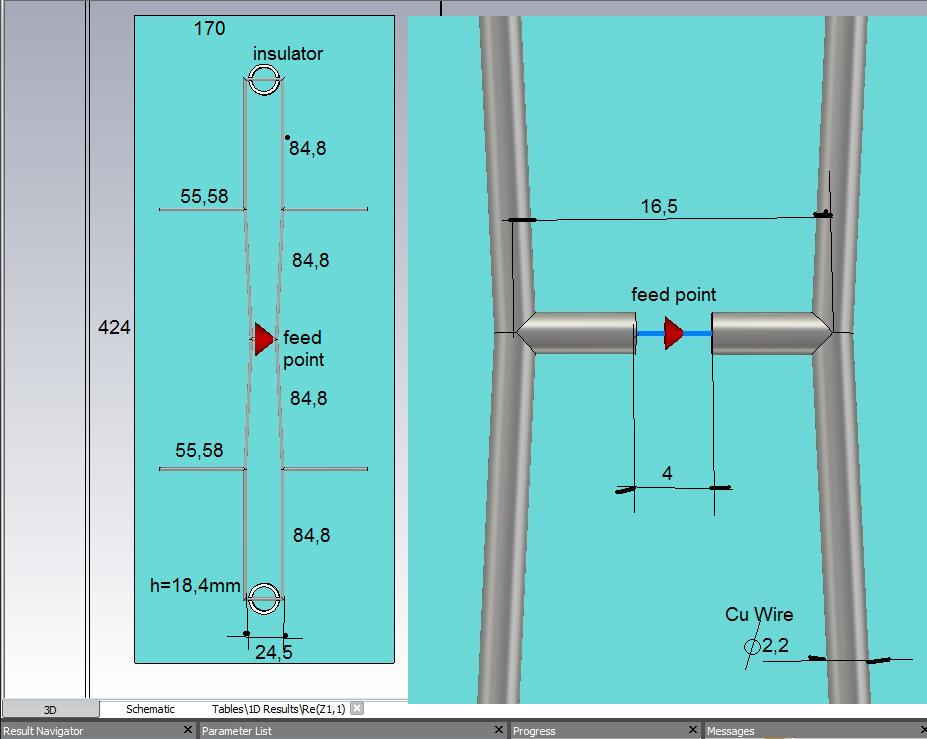

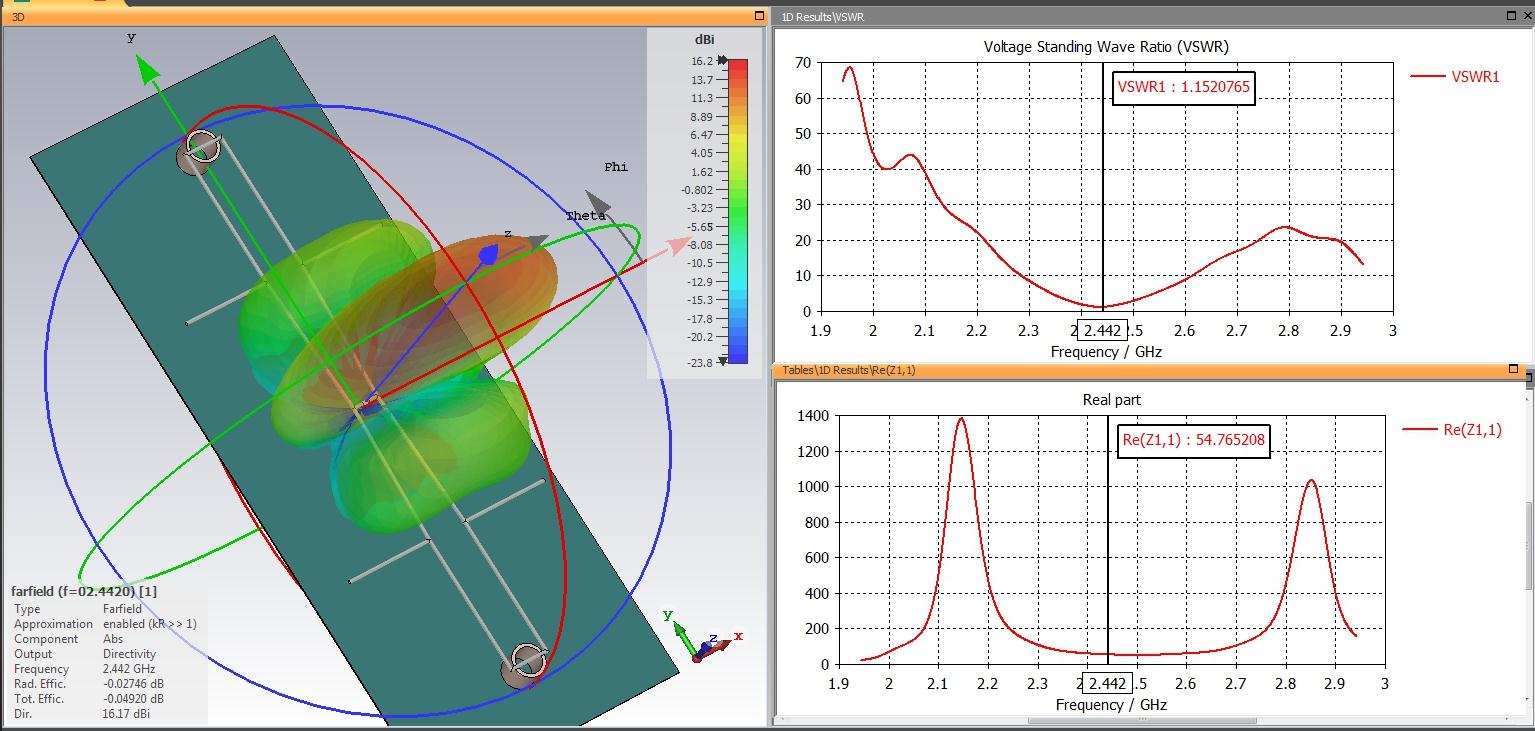

On 08/11/2016 at 11:09 PM, Admin said:

Amos Inverted Antenna

InvAmos5








in other sites  antenna array  inverted amos 5   A is different 33mm??!

Share this post


Link to post
Share on other sites

most critical is parallel feed line (9 to 10mm depending on wire diameter) thicker wire bigger distances...i used 1.5mm and it works like a CHARM ,

distance to reflector is NOT that critical (it's a very forgiving antenna) around 3 cm...

less distance MORE GAIN and VSWR

More distance LOWER gain and vswr

BALUN is MOST CRITICAL

USE the MINIMUN possible ISOLATORS Polystyrene foam (styrofoam low density could be used to replace insulators)



Edited by clanon
2 people like this

Share this post


Link to post
Share on other sites

Thanks  clanon....what if I use  lambda /4  balun  it's easy and  make the antenna more solid ( stronger ). Becuz this antenna looks so fragile  and.  I m asking if I have to shorten the coax cable to reflecter if I make 4:1 balun ?

Share this post


Link to post
Share on other sites

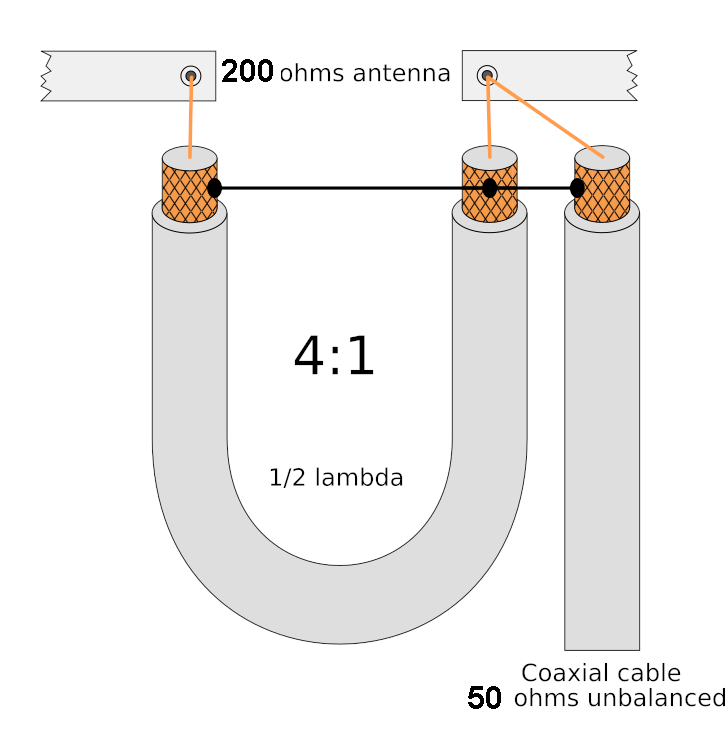

it NEEDs to be

4 (200ohms twin feed line Z)

to

1 (50ohms cable and radio)

CAN'T use a 1:1 like on dipole...

It is just a piece of coax with 2 solder points (lead)...and the shields alltogether (3)

Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

I  had read that lambda/4  bazouka balun it's possible too ( 31 mm )   and if I use strong thick support (isolater )  fixed with screw and adjustable distance  ?  It's miss the performance?;


Share this post


Link to post
Share on other sites

That's 1:1 balun  ...NO IMPEDANCE transformation AFAIK...you need a 4:1


1 person likes this

Share this post


Link to post
Share on other sites
3 hours ago, clanon said:

What coax are you gonna use...RG...



I think Rg 59  it's available for now    51mm balun

5 hours ago, Hamza said:

I  had read that lambda/4  bazouka balun it's possible too ( 31 mm )   and if I use strong thick support (isolater )  fixed with screw and adjustable distance  ?  It's miss the performance?;




Share this post


Link to post
Share on other sites

75ohms/50ohms= 1.5 VSWR +

200ohms/50ohms= VSWR...

2 people like this

Share this post


Link to post
Share on other sites
On 09/08/2020 at 3:53 PM, clanon said:

i think it was 41 mm with PE insulator...

The GOO is silicone insulation...(if i build it agai i WOULDN'T put it...you know losses)

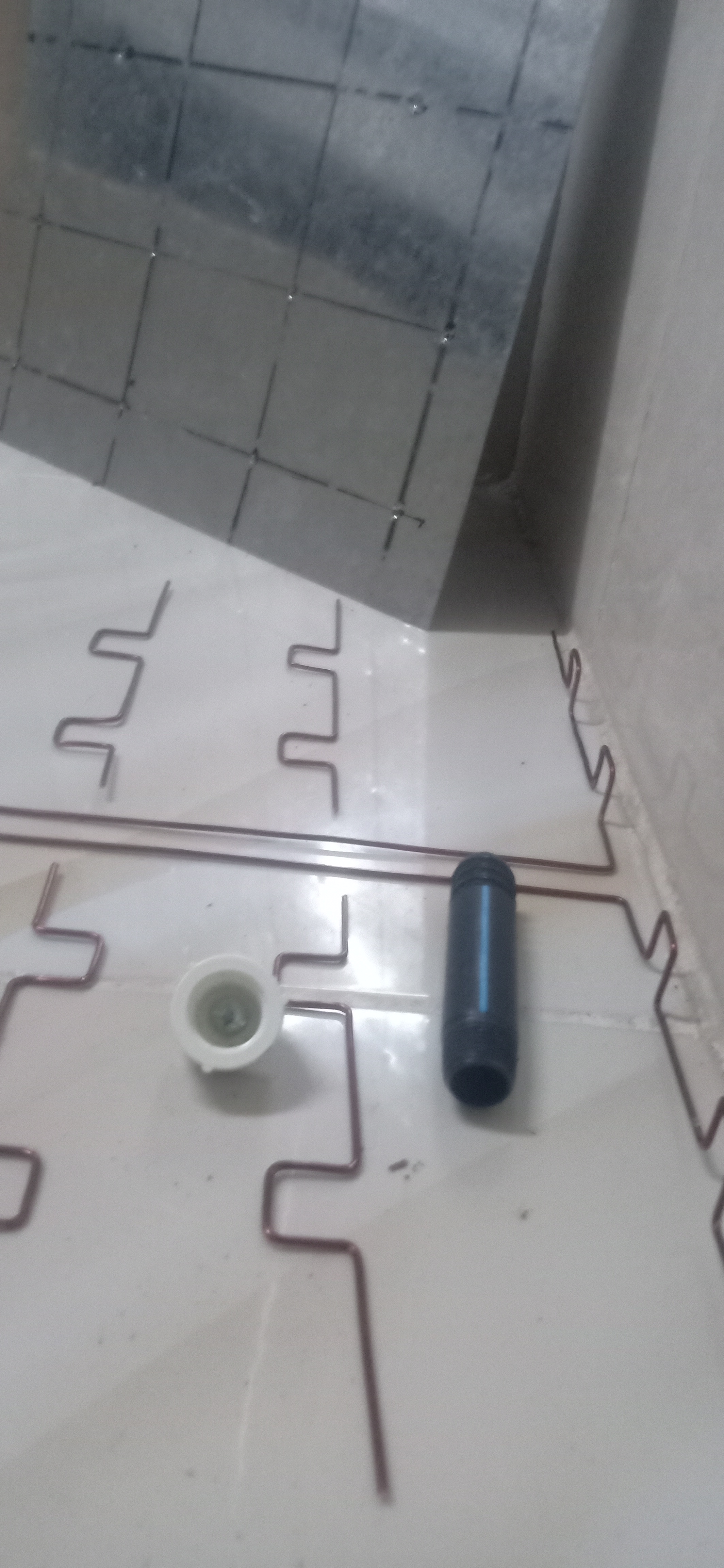

silicne is  so week and  cannot  resist  to hot temperature  it will melt  and lose its lenght..... i willing to make  strong antenna

Share this post


Link to post
Share on other sites

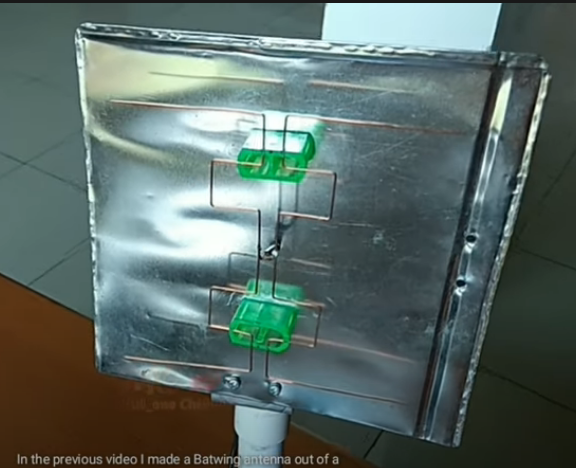

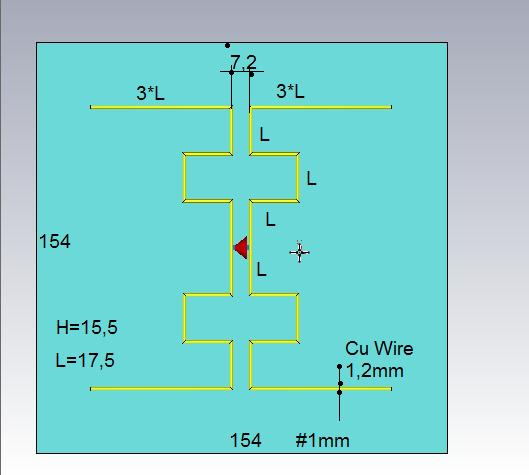

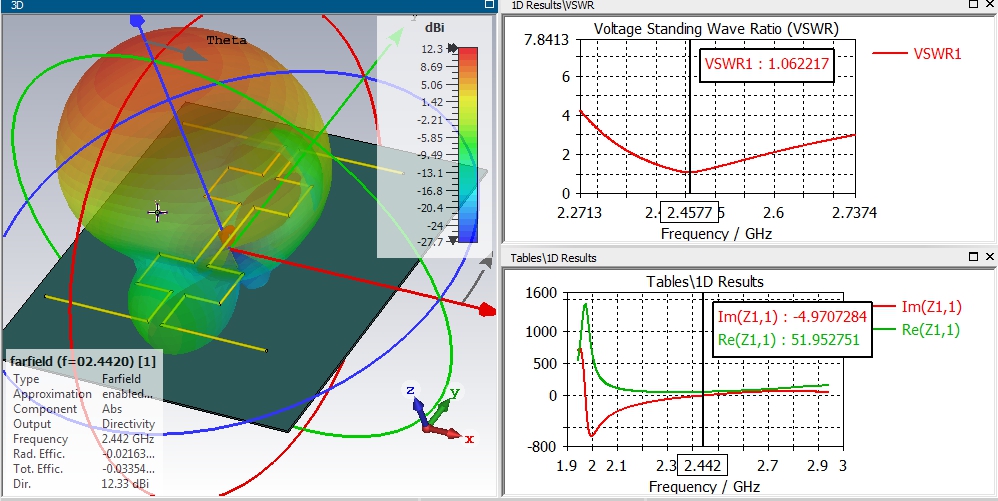

Another form of copper wire antenna...by Mul_ono Chanel on YouTube




1 person likes this

Share this post


Link to post
Share on other sites
On 26/10/2020 at 11:09 AM, Admin said:

Another form of copper wire antenna...



great   easy to make  does it need balan ???

Share this post


Link to post
Share on other sites

,, no, no balloon is needed for the 2442 MHz frequency...!!!

1 person likes this

Share this post


Link to post
Share on other sites
