Backfire WiFi Antenna

[eco32 38]

On 8.07.2020 at 2:02 PM, clanon said:

The more dielectrics the more LOSSes...



What about dieletric as a microwave lens? It's probably the only chance to get more than 17dBi.

[clanon 266]

6 hours ago, eco32 said:

What about dieletric as a microwave lens? It's probably the only chance to get more than 17dBi.

PES (Styrofoam) low density...1.075-1.1 Dielectric Constant (almost NO LOSSES)

[clanon 266]

add a rim and ring...

[eco32 38]

I can only use dipole with reflector with out  circle and without ring in Matlab, i got 15,4dBi on this moment and optymalisation is in progress,
Radius 47cm
Heightt 21cm
Spacing ~50cm

freq 1296MHz

Edited February 14 by eco32

[Admin 2615]

diameter=940 mm...it's very large...!!!

[eco32 38]

47 minutes ago, Admin said:

diameter=940 mm...it's very large...!!!

47cm

[clanon 266]

@eco32 you NEED to try CST...is very intuitive and fast...and better results...

backfiring CIRCULAR PATCH should have better shape...LOBE

Edited February 14 by clanon

[eco32 38]

On 14.02.2025 at 5:02 PM, clanon said:

@eco32 you NEED to try CST...is very intuitive and fast...and better results...

backfiring CIRCULAR PATCH should have better shape...LOBE

I've had CST installed for over a year, just haven't had time to switch. How to get started? Colleagues, if you can help me get started, it will be full  of benefit for everyone's in the community.

[Admin 2615]

1 minute ago, eco32 said:

I've had CST installed for over a year, just haven't had time to switch. How to get started? Colleagues, if you can help me get started, it will be full  of benefit for everyone's in the community.

,,,watch this...



[eco32 38]

11 minutes ago, Admin said:

,,,watch this...



I have no more excuses

[eco32 38]

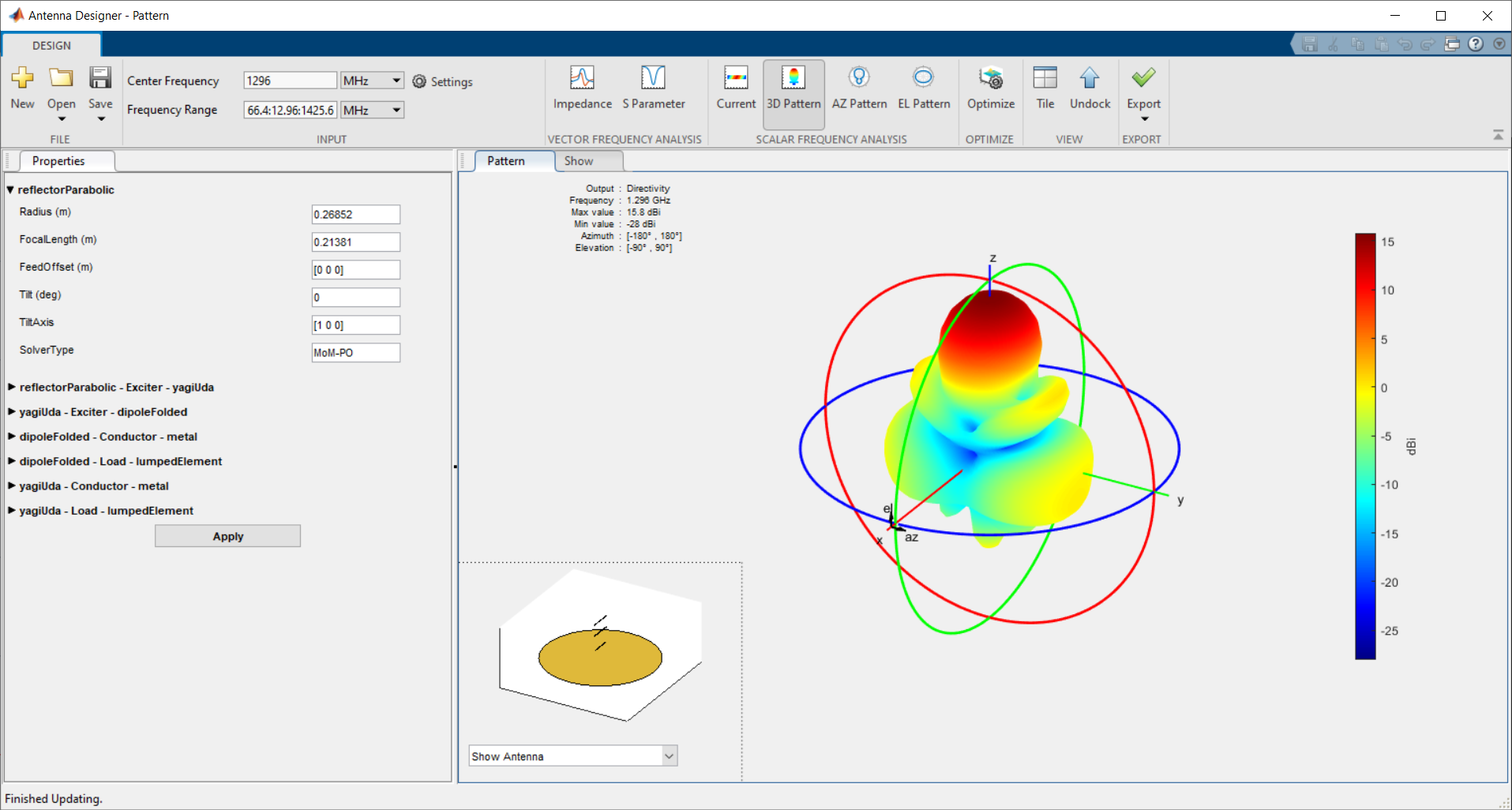

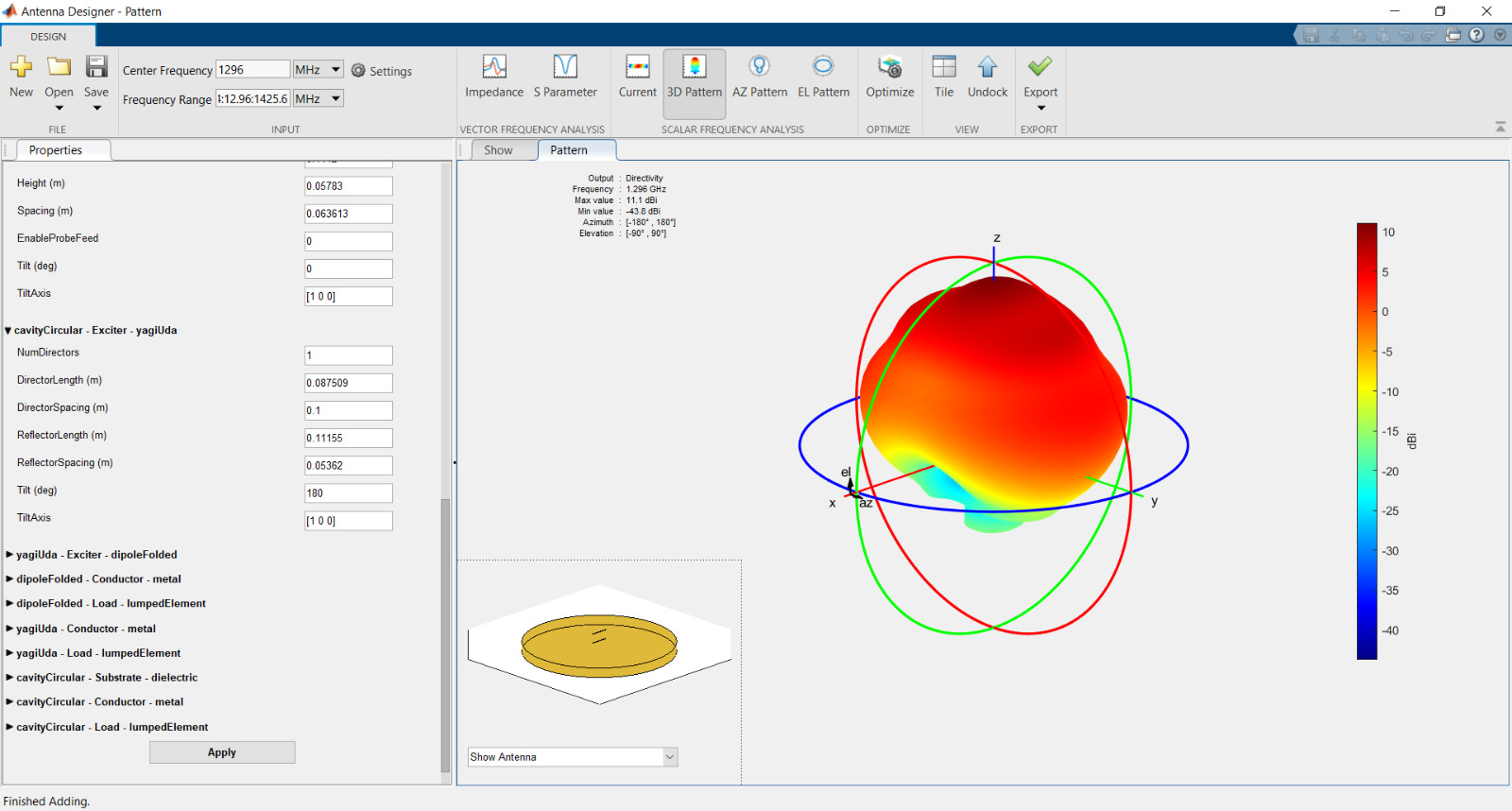

bacfire VS dish

1296MHz similar diameters,  after long optimalisation  in Matlab (end usage of thos tool soooooon)

[Admin 2615]

I wonder why you make a radiator with a diameter of 537 mm, when you better use a parable from the trade....???!!!

,,, a lot of work for nothing....!!!

[eco32 38]

5 hours ago, Admin said:

I wonder why you make a radiator with a diameter of 537 mm, when you better use a parable from the trade....???!!!

,,, a lot of work for nothing....!!!



To know what to do ot not to do, It is not always possible to buy what you want.

5 hours ago, Admin said:

,,, a lot of work for nothing....!!!



RND and learning
