hi double biquad antena

[vodkaman 1]

Yes, that’s what i said in other words

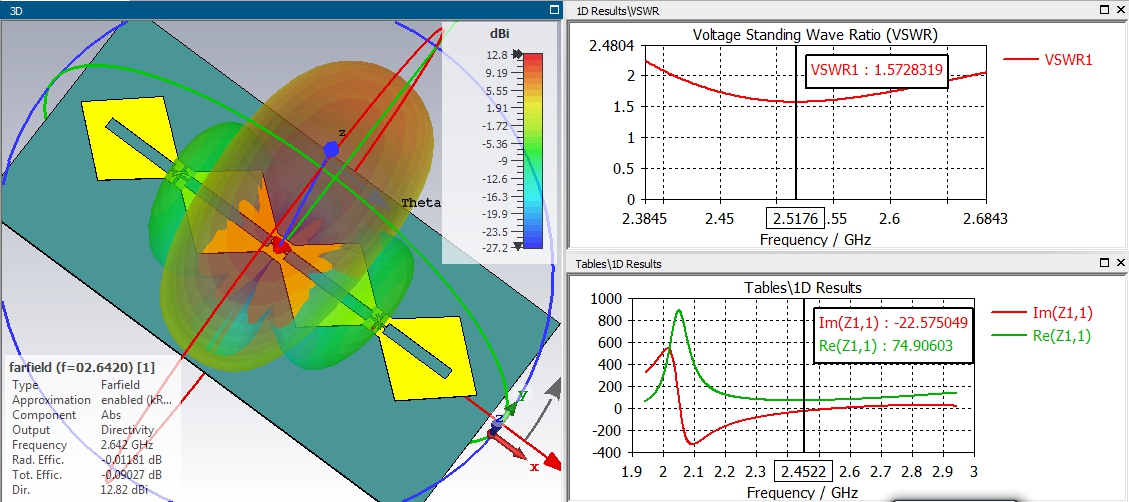

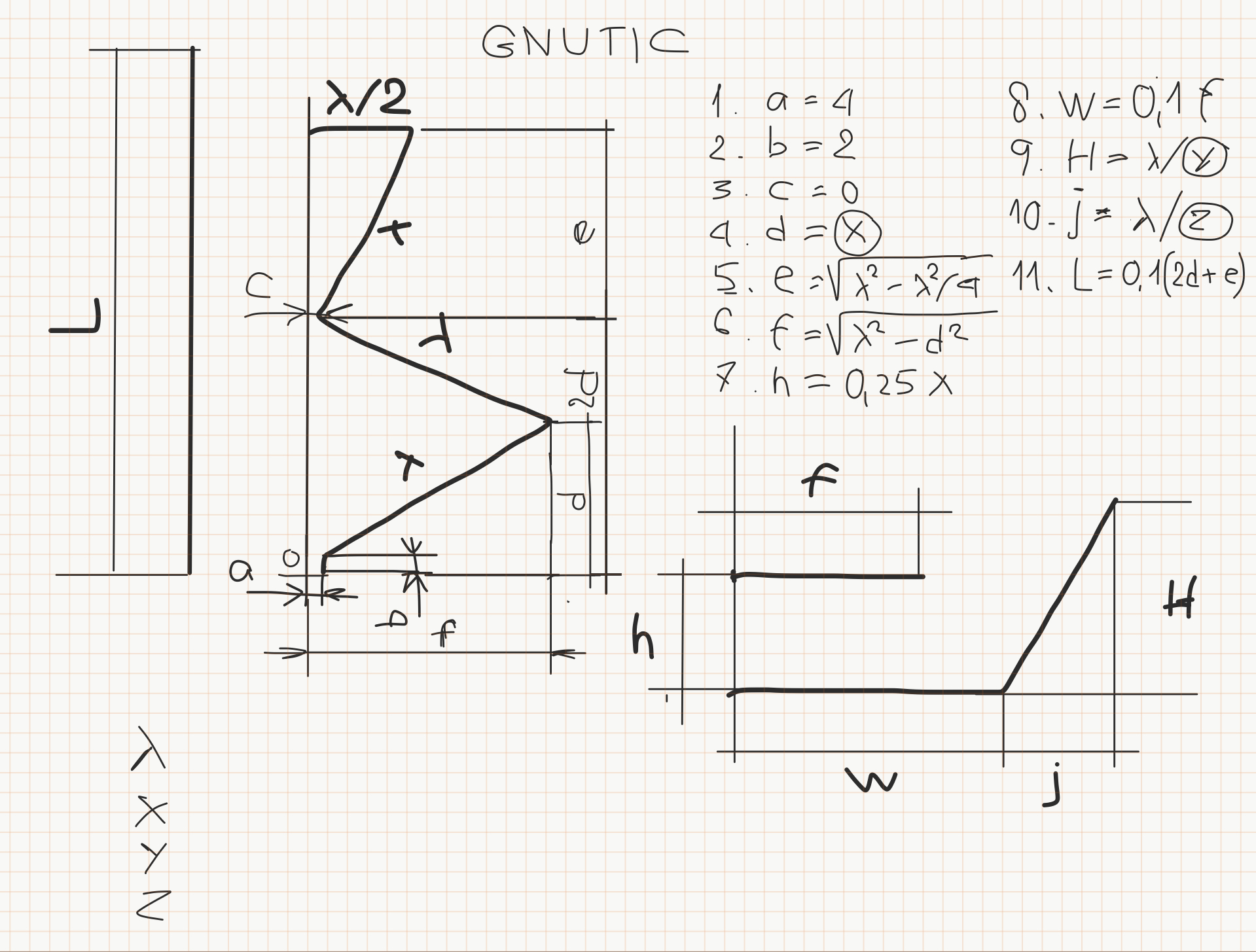

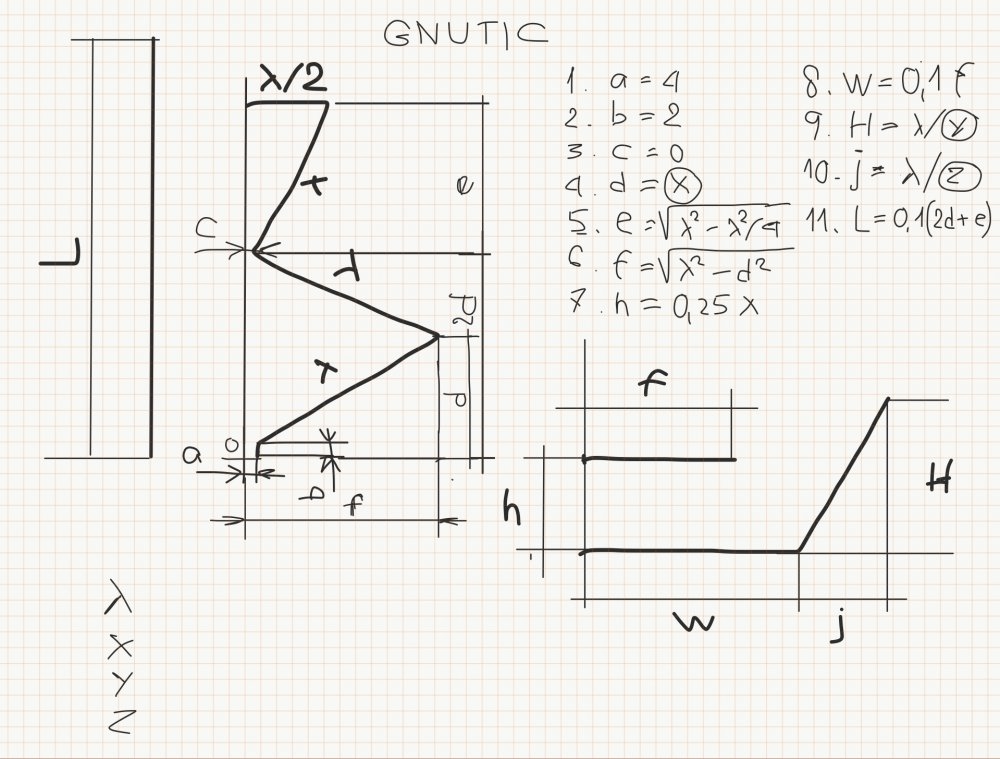

Admin, can you help me to set parametric polygons for this antenna? Here is diagram, correct me, if you please.

[Admin 2545]

I'll try to see what you want, but try and this....

[vodkaman 1]

I saw history list, and there are too many elements for this simple structure. The idea is to simplify model up to 2 sweepcurves.

[Admin 2545]

I think it is more correct so ... !!!

[vodkaman 1]

Admin, can you make polygon sample for me, so i can sweep it to wire?

[Admin 2545]

,,,oh, it's not that complicated, I'm going to do a tutorial with this on the .."Simulation of antenna in CST Microwave:"  post.!!!

[Admin 2545]

,,, but, it can still be so .... !!!

[adeden 0]

On 1/31/2020 at 8:44 AM, Admin said:

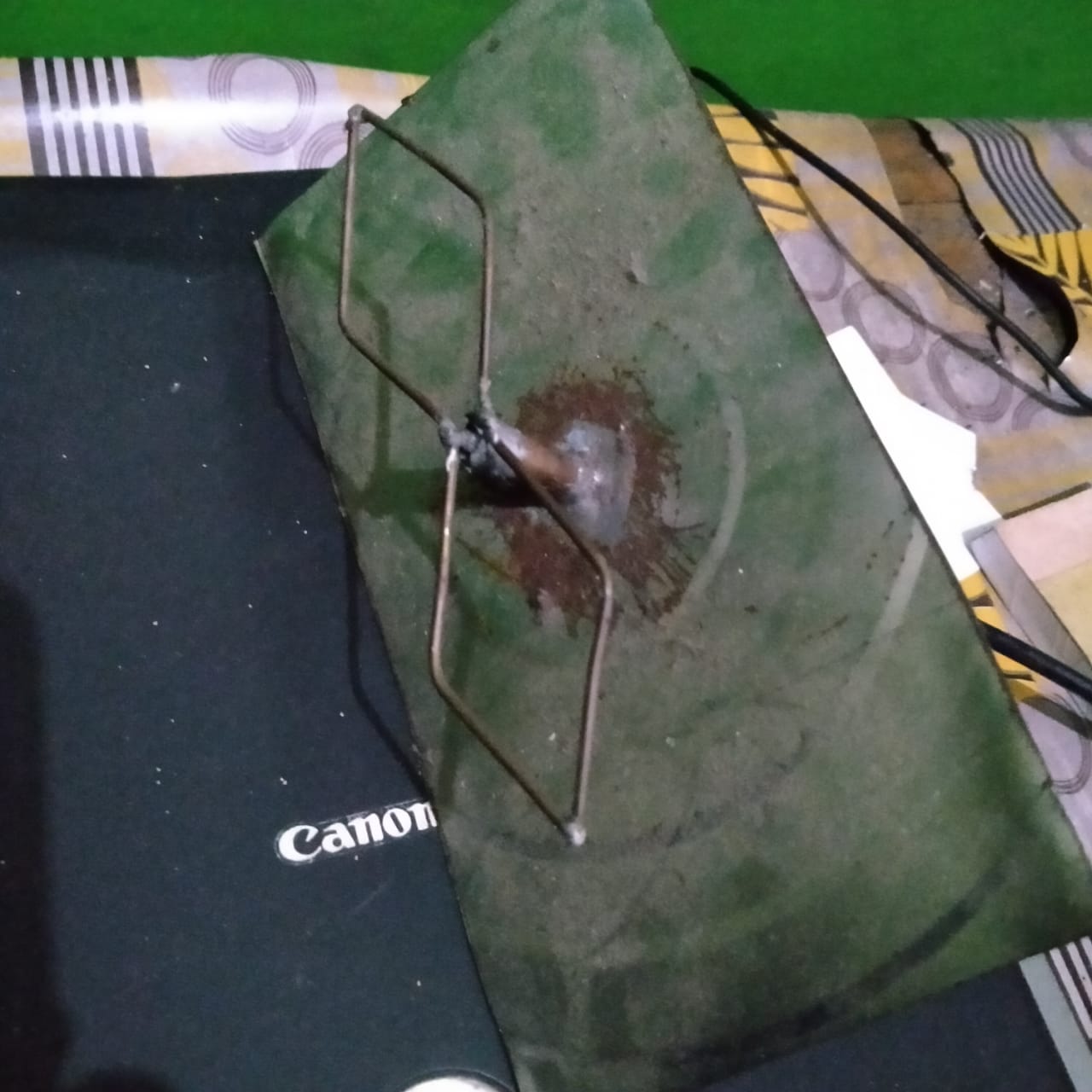

Sebelumnya saya pernah membuat antena jenis ini, namun kemudian saya sangat tertarik untuk membuat model antena ini. terlihat sederhana tetapi memiliki kekuatan 15 dbi. di mana saya harus mulai karena saya tidak melihat ukuran saya buta tentang cst studio. Bisakah Anda membimbing saya sehingga saya bisa mewujudkannya. Terima kasih.

Previously I had made this type of antenna, but then I was very interested in making this antenna model. looks simple but has a power of 15 dbi. where should i start because i don't see my size blind about cst studio. Can you guide me so I can make it happen. Thank you.

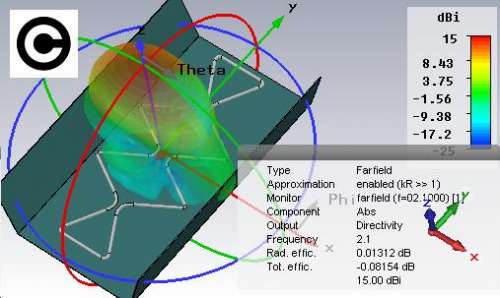

On 1/7/2019 at 5:41 PM, Admin said:

Ya, benar-benar keuntungan dalam directivity ini...!!

"Tapi bisa jadi...



tuan



On 1/29/2020 at 10:31 PM, vodkaman said:

Admin, apakah Anda memiliki plot lain dari antena ini, dan ukurannya jika memungkinkan?



[Admin 2545]

,,,,adeden,speak in English please...!!!

[adeden 0]

Sir, I really want to try to make this antenna model, but there I don't see the size. please sir help me to put the size down so i can try it. thank you.



for the frequency of 2.4 ghz...!!!

[Admin 2545]

,,,,this is the 2442 MHz antenna...

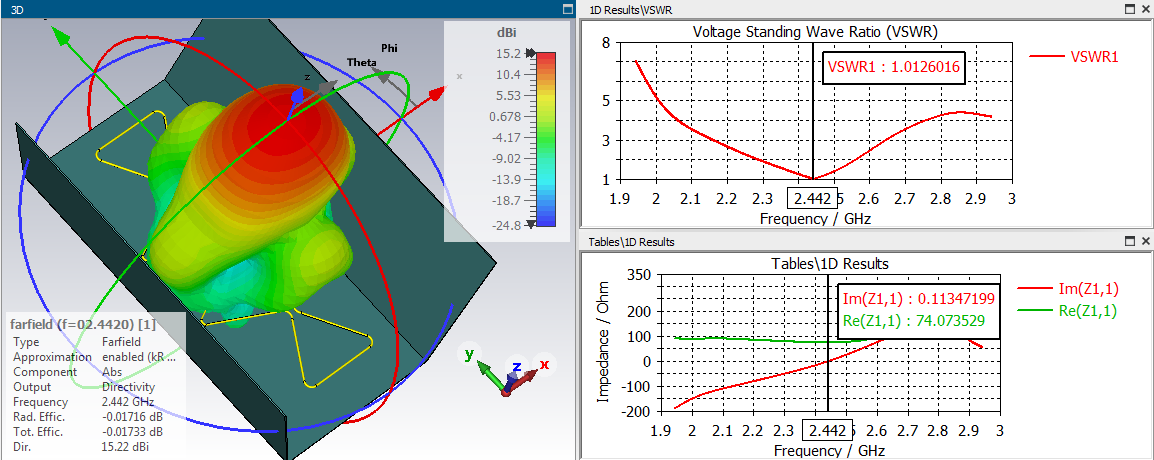

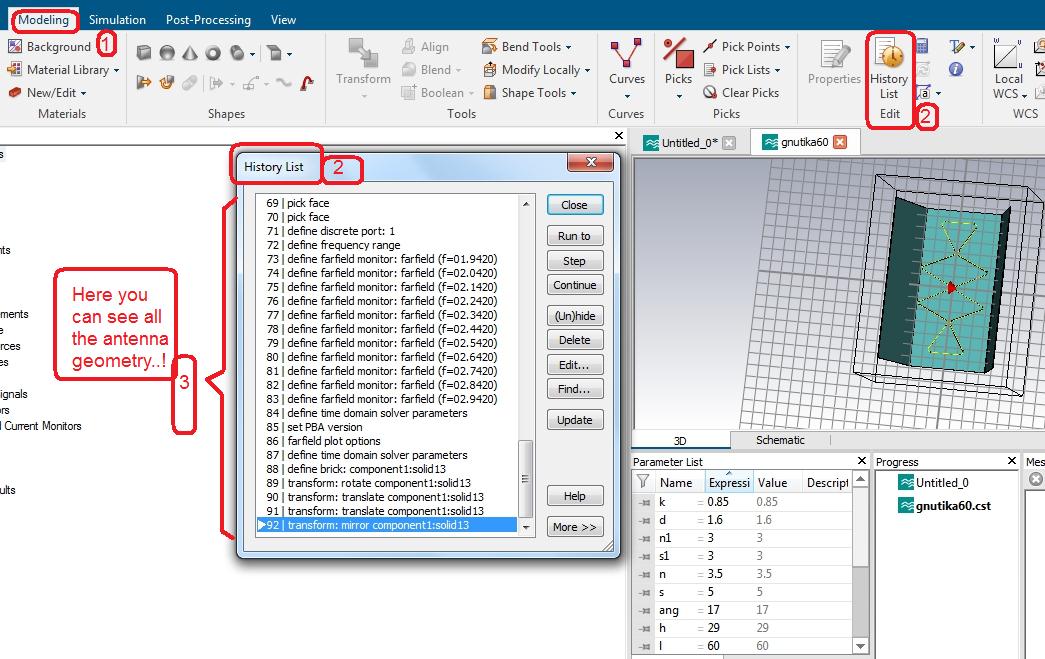

gnutika60.cst

[adeden 0]

too bad I can not make this model antenna for 2.4 ghz frequency.

[Admin 2545]

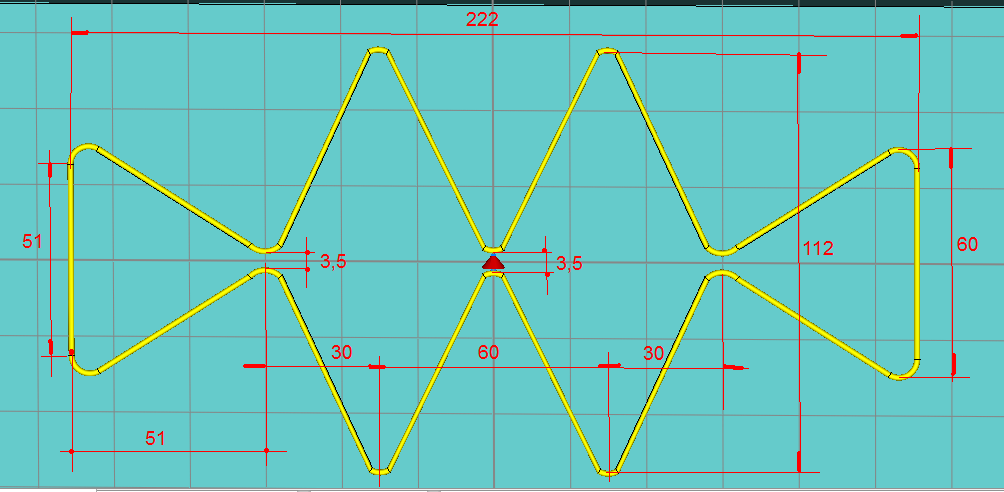

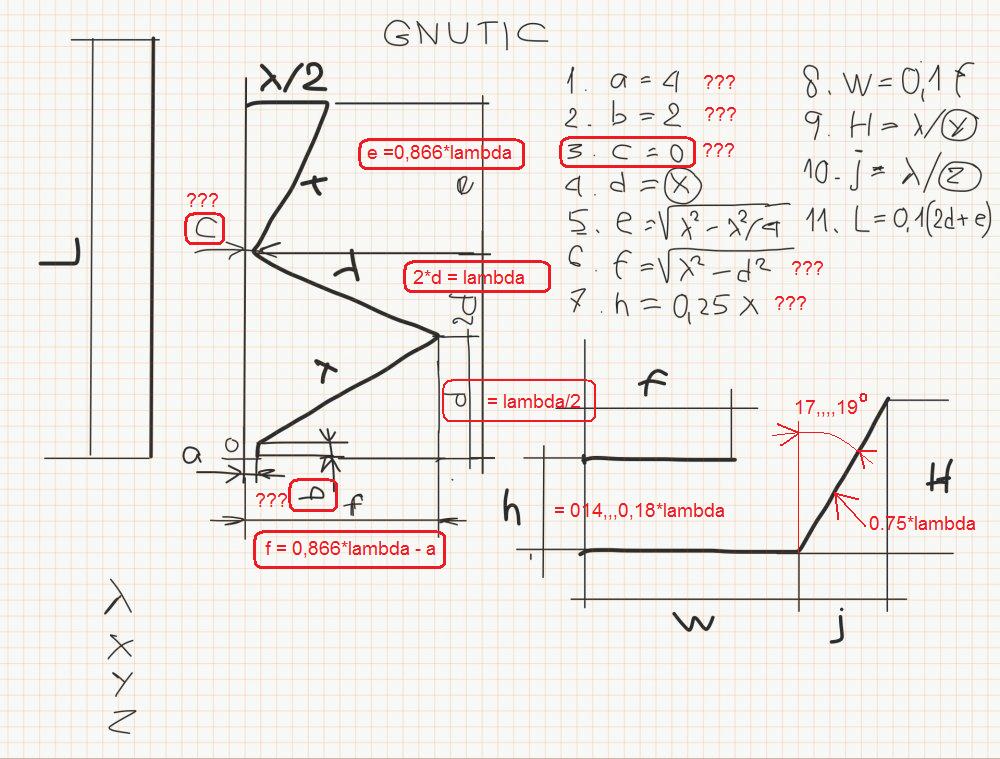

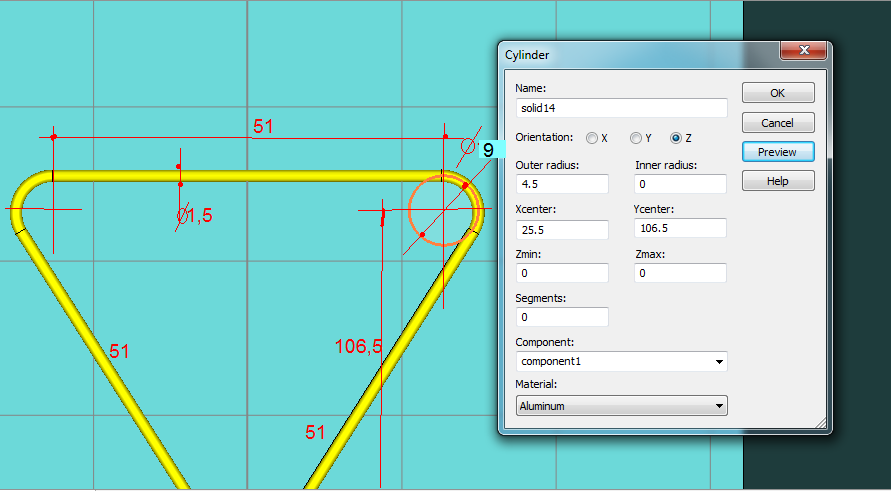

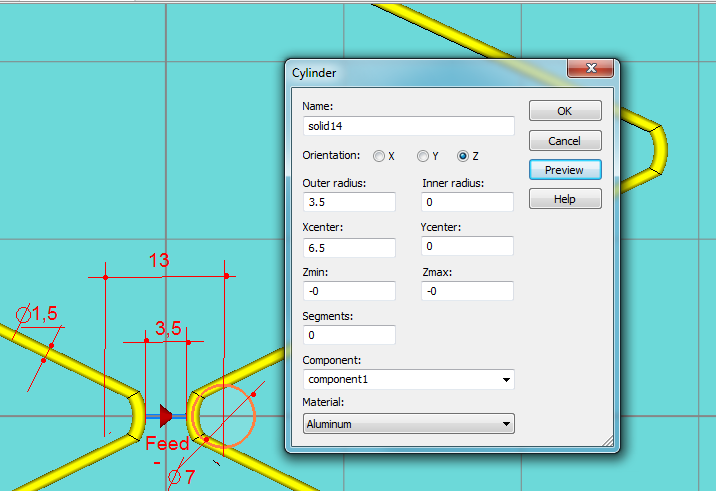

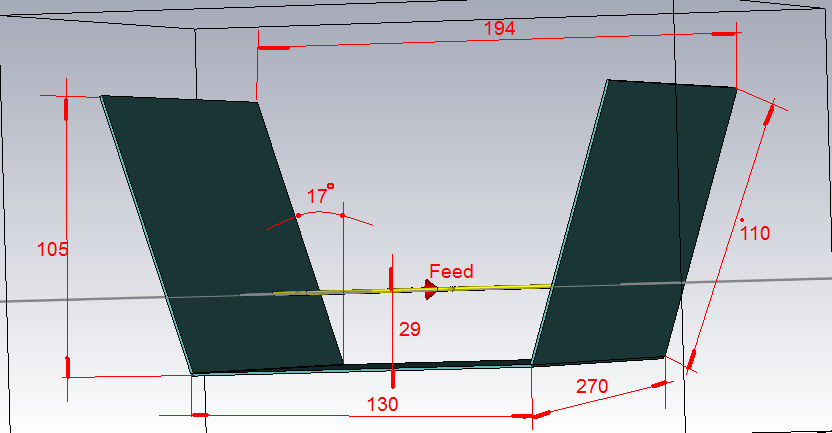

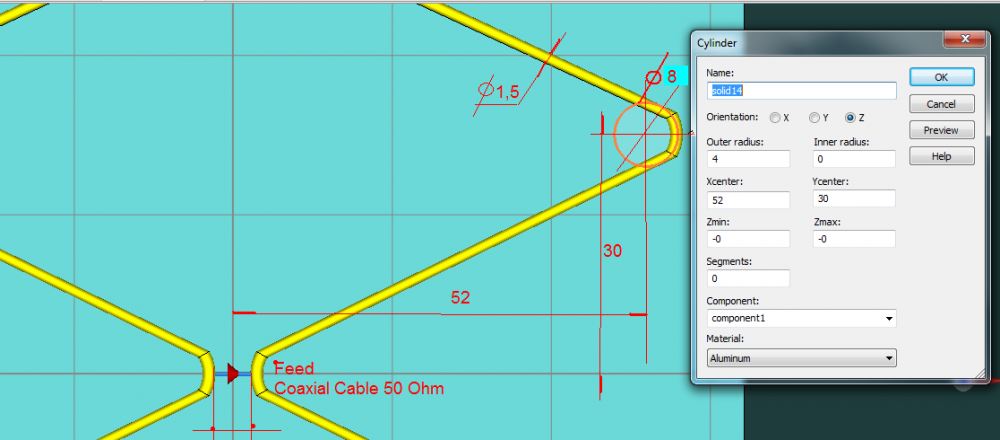

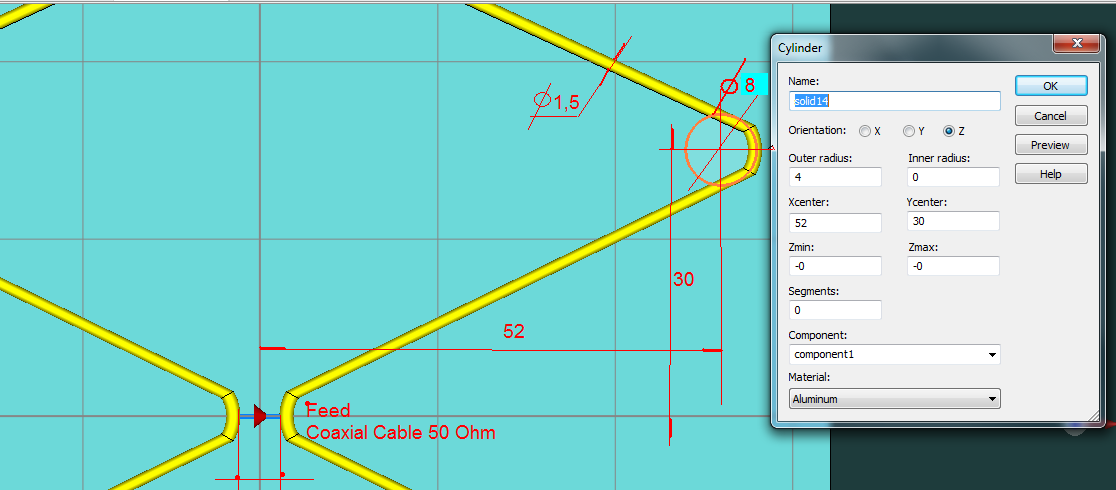

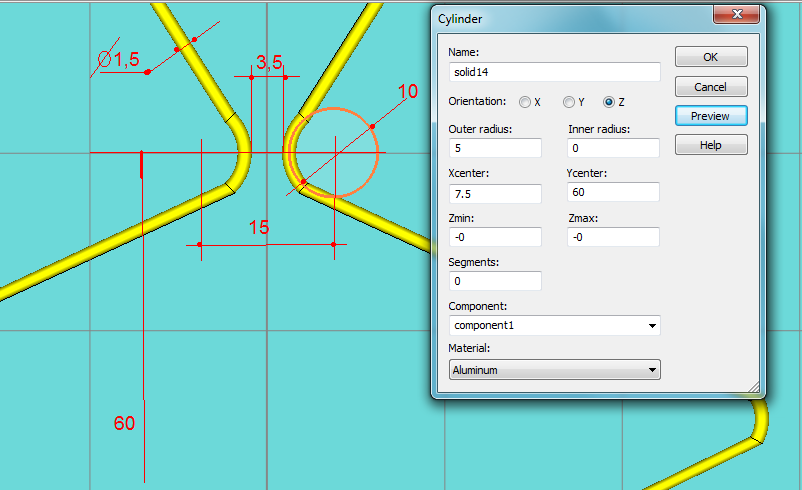

,,, adenden, these are the dimensions...

[adeden 0]

 Happy heart, the next few days I will try to make it hopefully I can do it. as soon as I'll let you know after I've done it. Thank you very much for being kind, hopefully it can be useful. once again thank you very much.
