Simulation of antenna in CST Microwave

[Admin 2561]

Not right now, but you can solve it yourself...!!!

[vodkaman 1]

I did, unfortunately.

[Admin 2561]

Unfortunately, you did nothing....!!!!

[vodkaman 1]

What do you mean? You think I’m lying?

[Admin 2561]

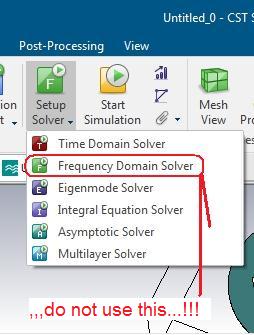

[vodkaman 1]

Results, Admin, results!!! Were are they?

[Admin 2561]



Vman, try to see this...



[vars-cat 12]

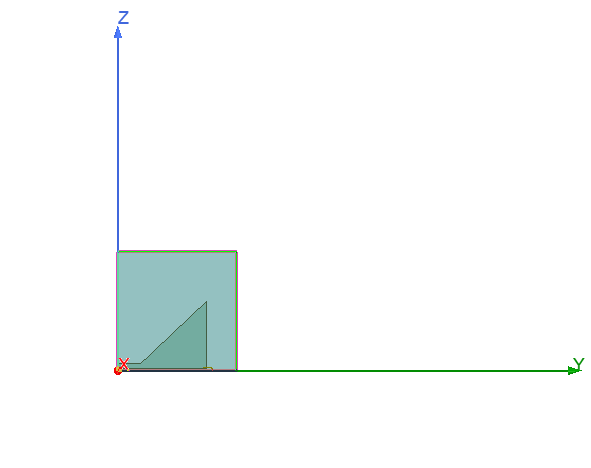

How can I divide Batwing into 4 parts in CST Studio?

[clanon 248]

30 minutes ago, vars-cat said:

How can I divide Batwing into 4 parts in CST Studio?

if you already have the cuts (VACUUM cuts) insert 'em in the metal (delete the vacuum solids )and SEPARATE SHAPE...(it should give you the individual parts that were BOOLEAN ADDed before)

[erossutrisno 11]

What changes should I make to the antenna? (mechanically) when my simulation results are slightly higher off from the center of frequency. thanks.

Edited February 21, 2021 by erossutrisno
grammatically incorrect

[erossutrisno 11]

I take the model from this topic

and I change the materials to Al with some modification.

antena_ns2 on Al.cst

[n00bkali91 1]

hi, all of masters !! .. greeting from n00b .. i want to learn about RF  .. so excited join here..

[Admin 2561]

,,,n00bkali91,WELCOME...!!!

[mompmop 2]

Hello Administrator,

I'm newbie, Is there a way to force use "Hardware Acceleration" ?

I already tried add to Windows Environment Variables the "CSTHWACCALLOWUNVERIFIEDHARDWARE" Value=1 , like the manual said.

But my GTX 1060 is not use by CST.

Cheers.

[Admin 2561]

,,,hi buddy...!!!!

,,, read this, maybe it will help you ... !!!

GPU_Computing_Guide_2019.pdf

[mompmop 2]

2 hours ago, Admin said:

,,,hi buddy...!!!!

,,, read this, maybe it will help you ... !!!

GPU_Computing_Guide_2019.pdf

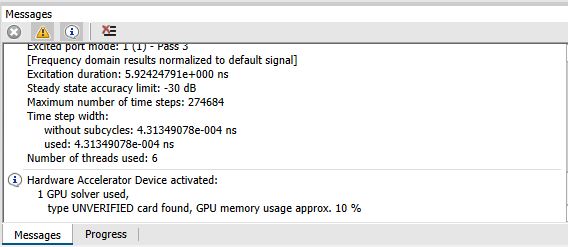

Silly, I copy pasted the text from the manual to environment variables and they miss the "_" character.....

Now the simulation running faster...........





[Admin 2561]

,,, which manual? ,,, and where is "-"...??/

[mompmop 2]

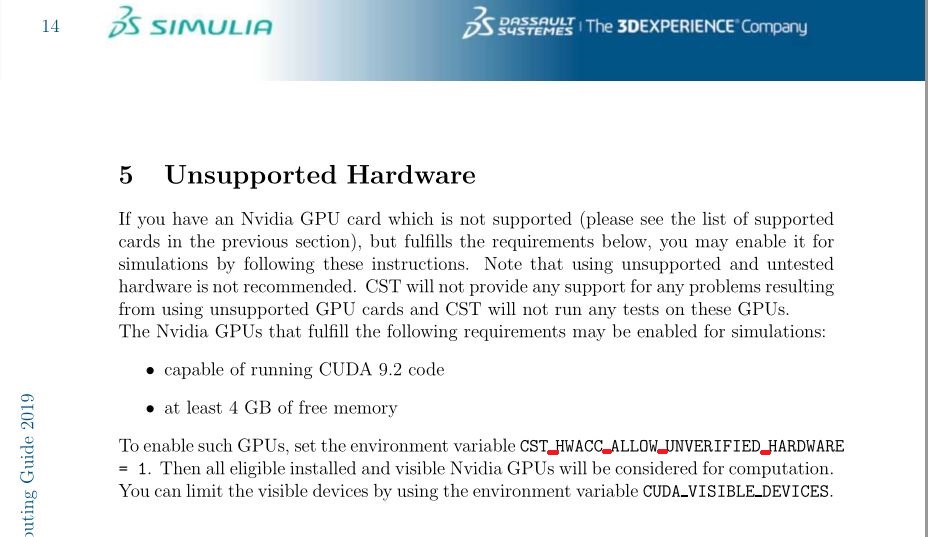

GPU Computing Guide.pdf page 14

This Character:

[Admin 2561]

,,,okay,thanks...!!!

[mompmop 2]

Where is the S-Parameter (0D) option?

[clanon 248]

4 hours ago, mompmop said:

Where is the S-Parameter (0D) option?

0D option ...what is it ?

[mompmop 2]

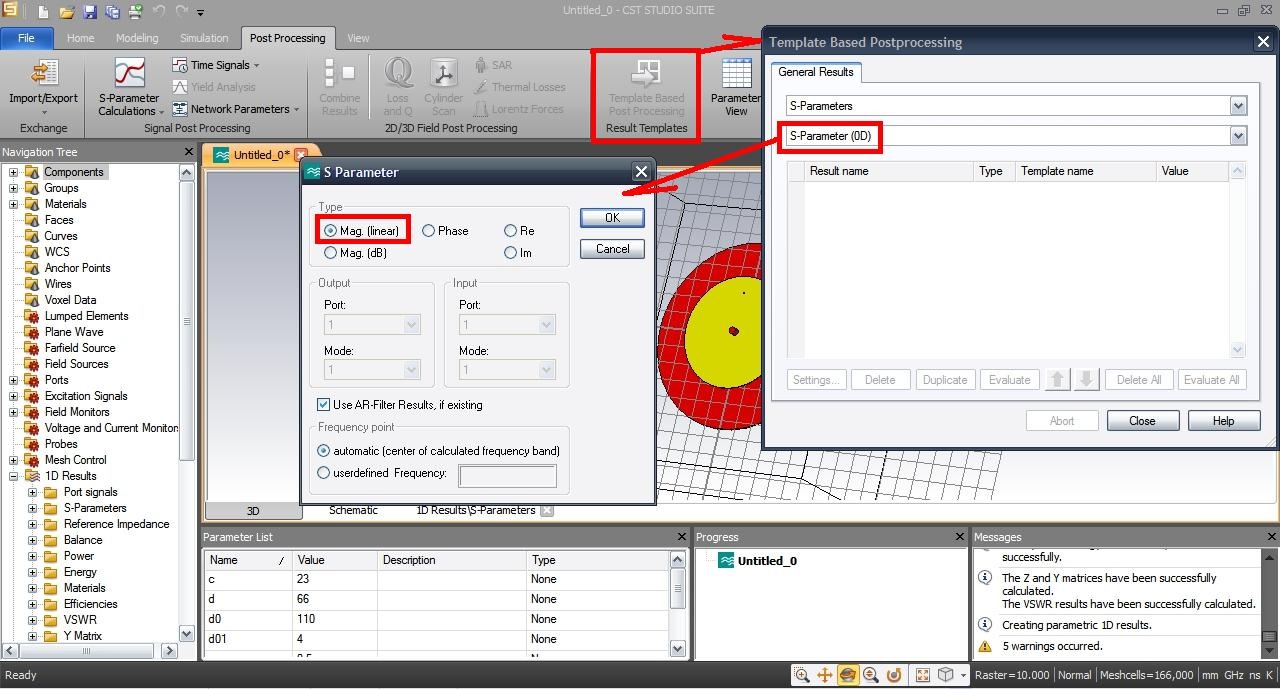

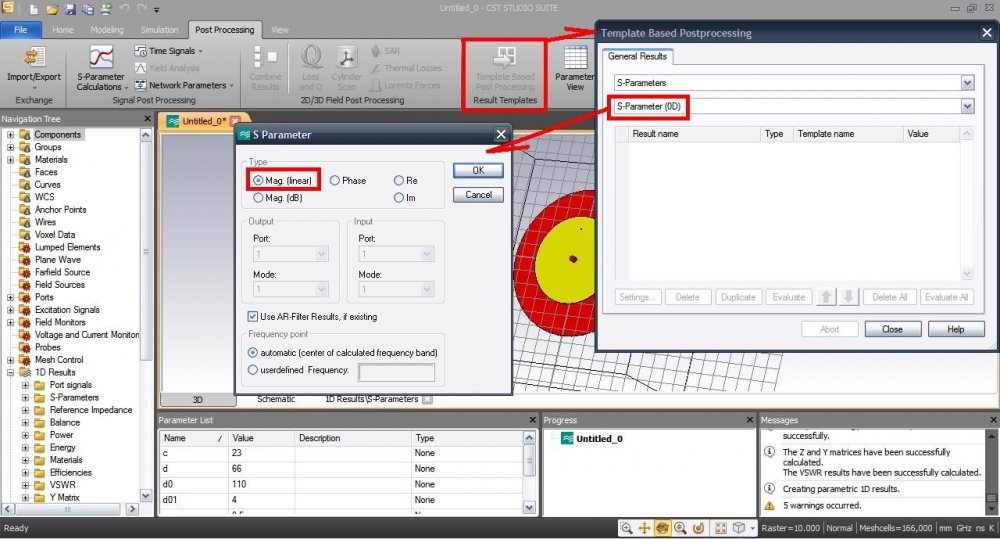

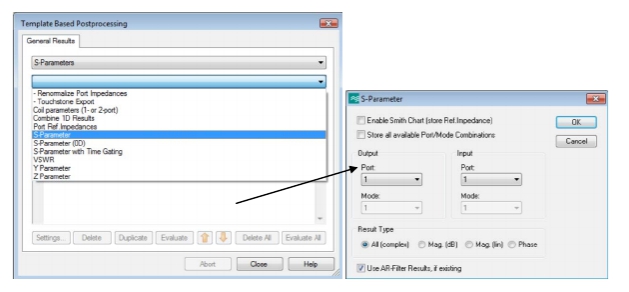

I tried to follow admin tutor ----> Optimize in CST.doc

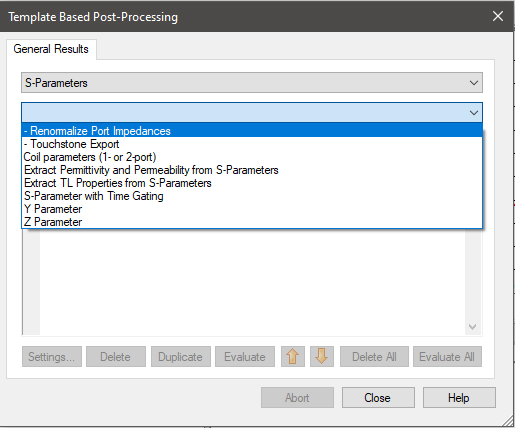

But could not find this in CST 2019:



[Admin 2561]

,,, yes, that's right, it exists in older versions (CST2015)

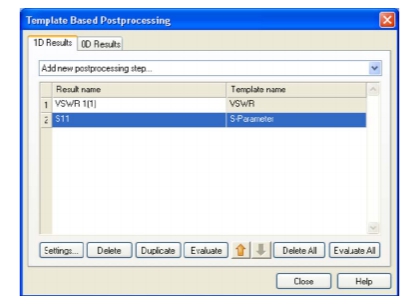

The post-processing template results are split as follows:
• One-dimensional plots (1D) are displayed in the project tree in the Tables |1D Results
• Scalar values (0D) are displayed in the project tree in the Tables |0D Results. In addition, the most recently calculated value is displayed in
the Value column of the post-processing templates window.
• Templates with a "-" (minus) symbol at the beginning of the name do not save the calculation results to
the Tables section of the project tree. This data is stored elsewhere. For
for more information refer to the reference description
corresponding template.



[mompmop 2]

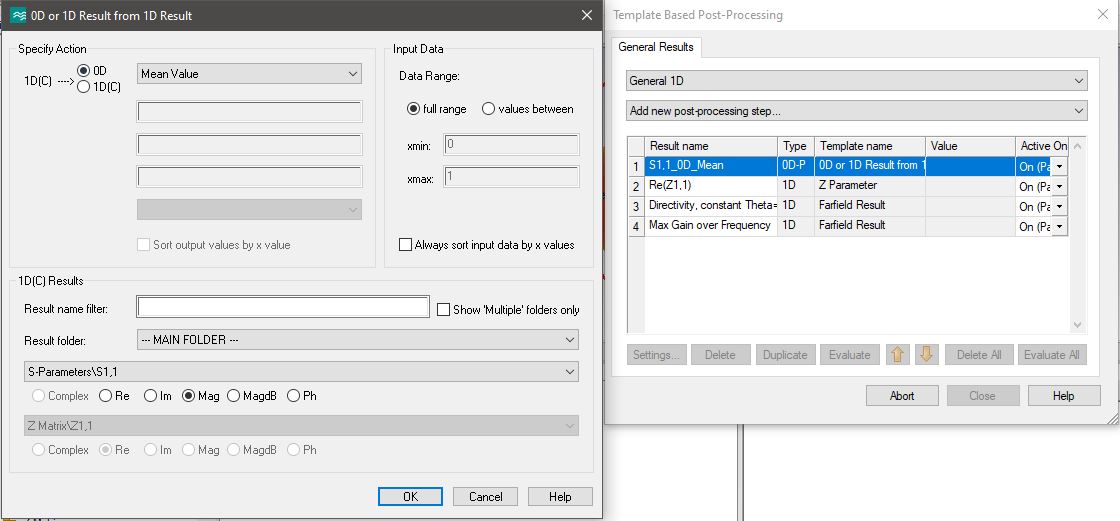

Possibly this in 2019 ?

[mompmop 2]

...and Optimizer gets error:
