4G Panel Antenna

Started by Admin,

Posted

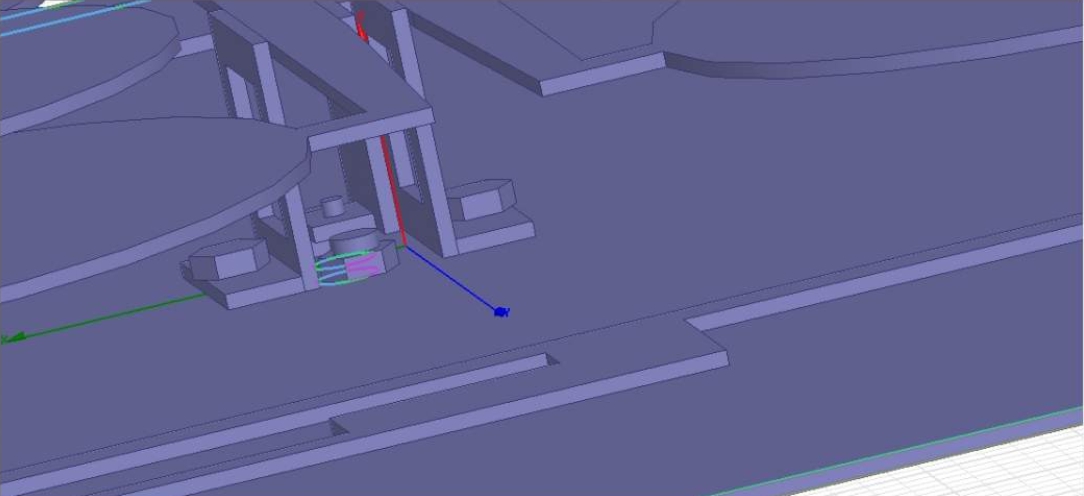

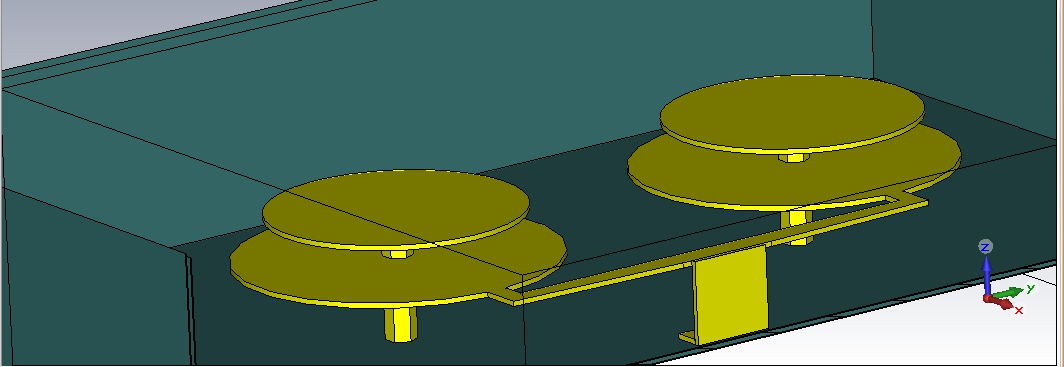

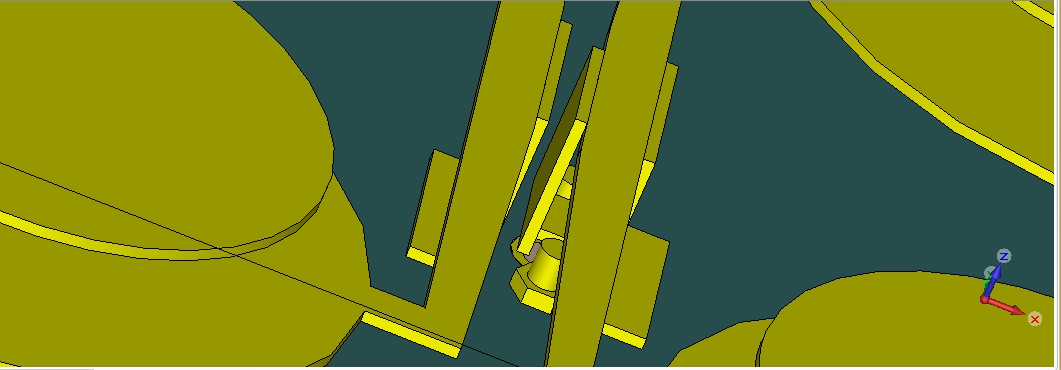

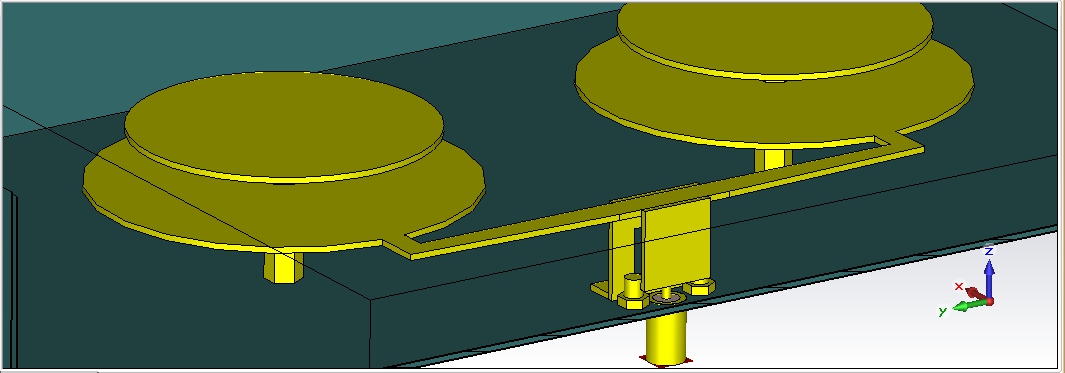

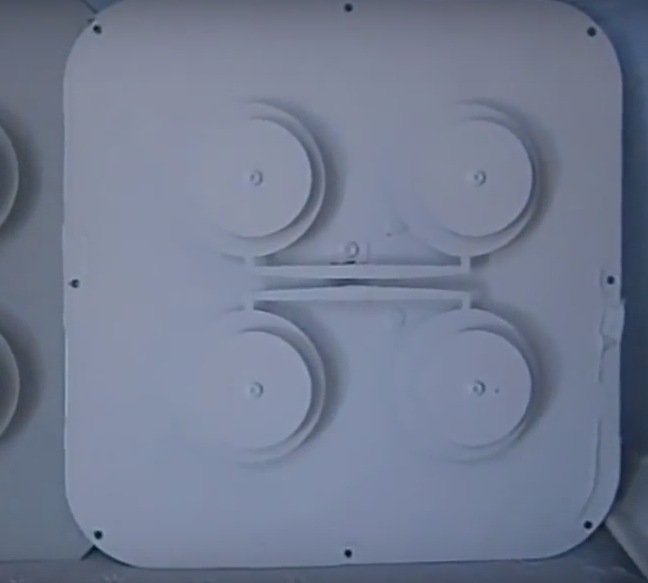

The kit is equipped with a broadband antenna AX-2014P (by Anteks)(works in 3G, GPRS, EDGE, GSM1800. GAIN=14dBi. F=1700-2180МHz ) , low level of VSWR in the working frequency band. Antenna flat has a secure mounting, the radiators are protected from precipitation.

Electrical characteristics

Operating frequency range, MHz 1700-2180

Gain, dBi 13-15

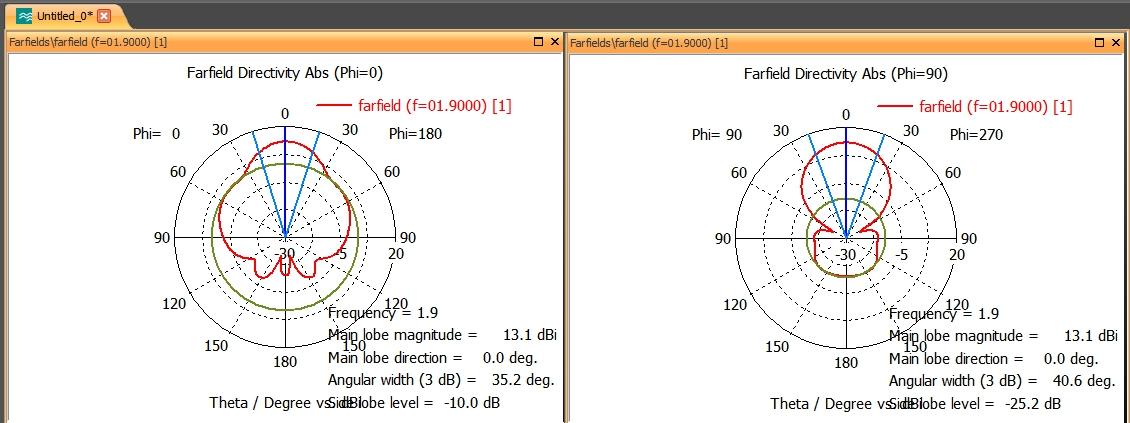

The width of the days in H-plane, degrees 30-35

Days width in E-plane, degrees 30-35

The sidelobe level, dB, not more -13

The level of spurious polarization,dB, not more -25

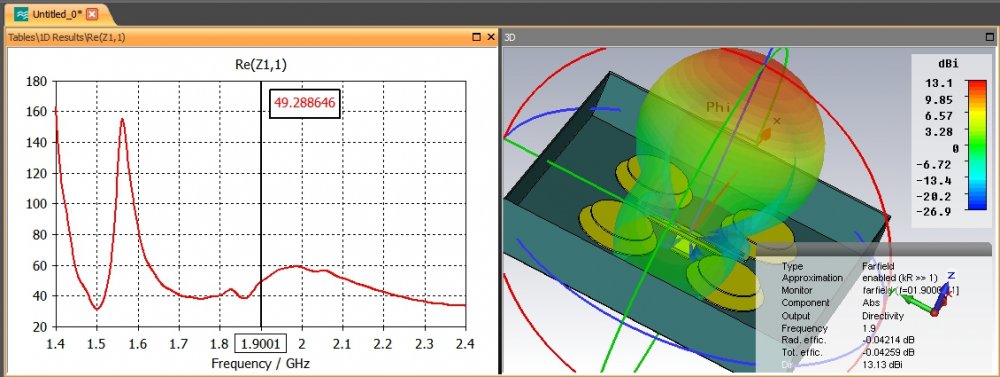

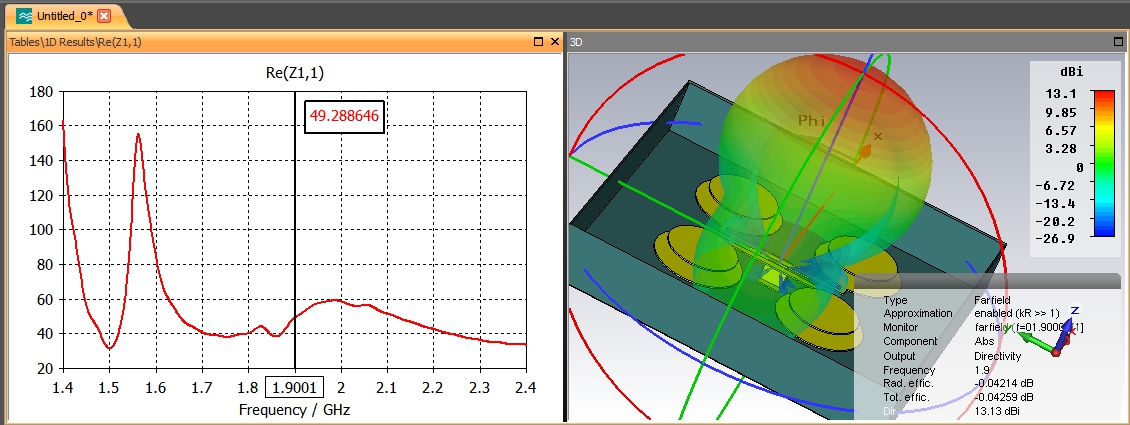

Input impedance, Ohm 50

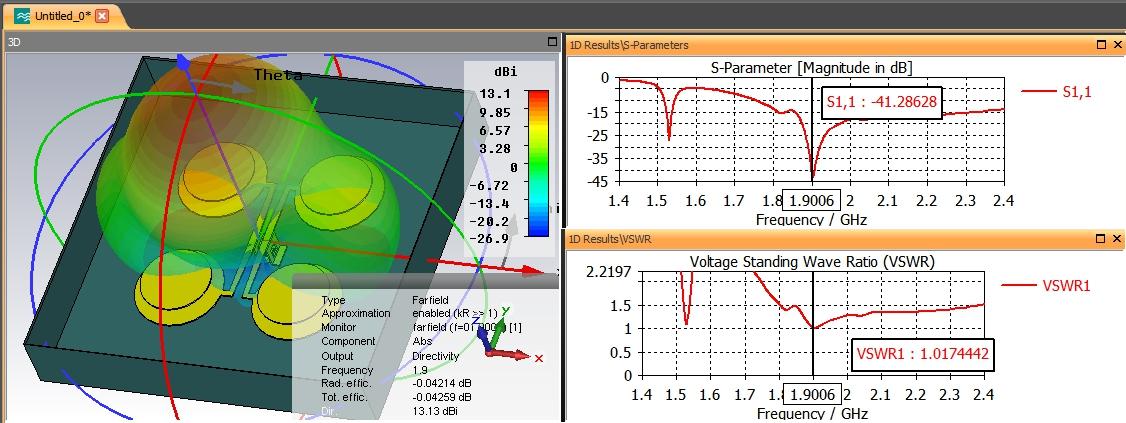

SWR in the frequency range, not more 1,5

Permissible power watts 10

Polarization vertical/horizontal

Wireless antennas can improve the reception to your 3G or 4G USB Adapter, Hotspot, WiFi or Router
