16dbi patch FR4

Clanon, in the picture above you are ... ???

1 person likes this

Share this post


Link to post
Share on other sites

,,,so this antenna is easier to build ... ???








2 people like this

Share this post


Link to post
Share on other sites
On 15/2/2019 at 4:00 PM, clanon said:

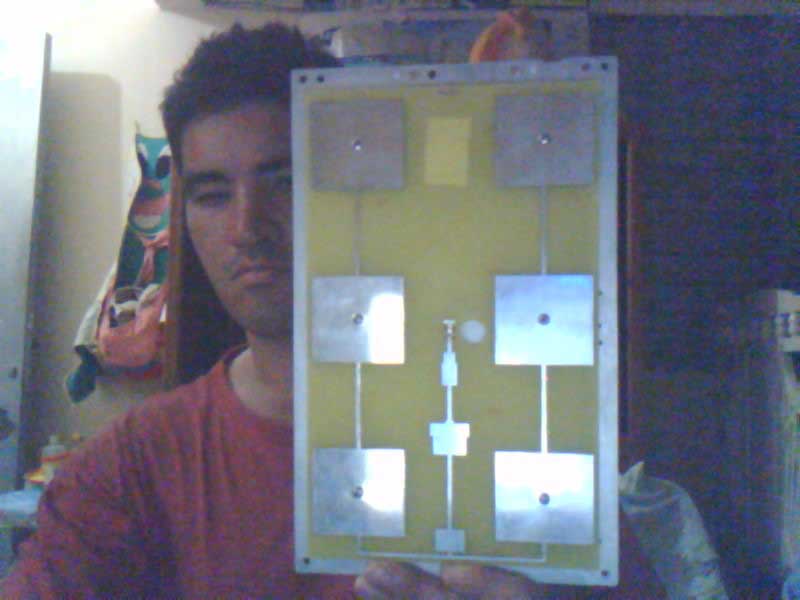

WIN_20161022_1057422 222.jpg

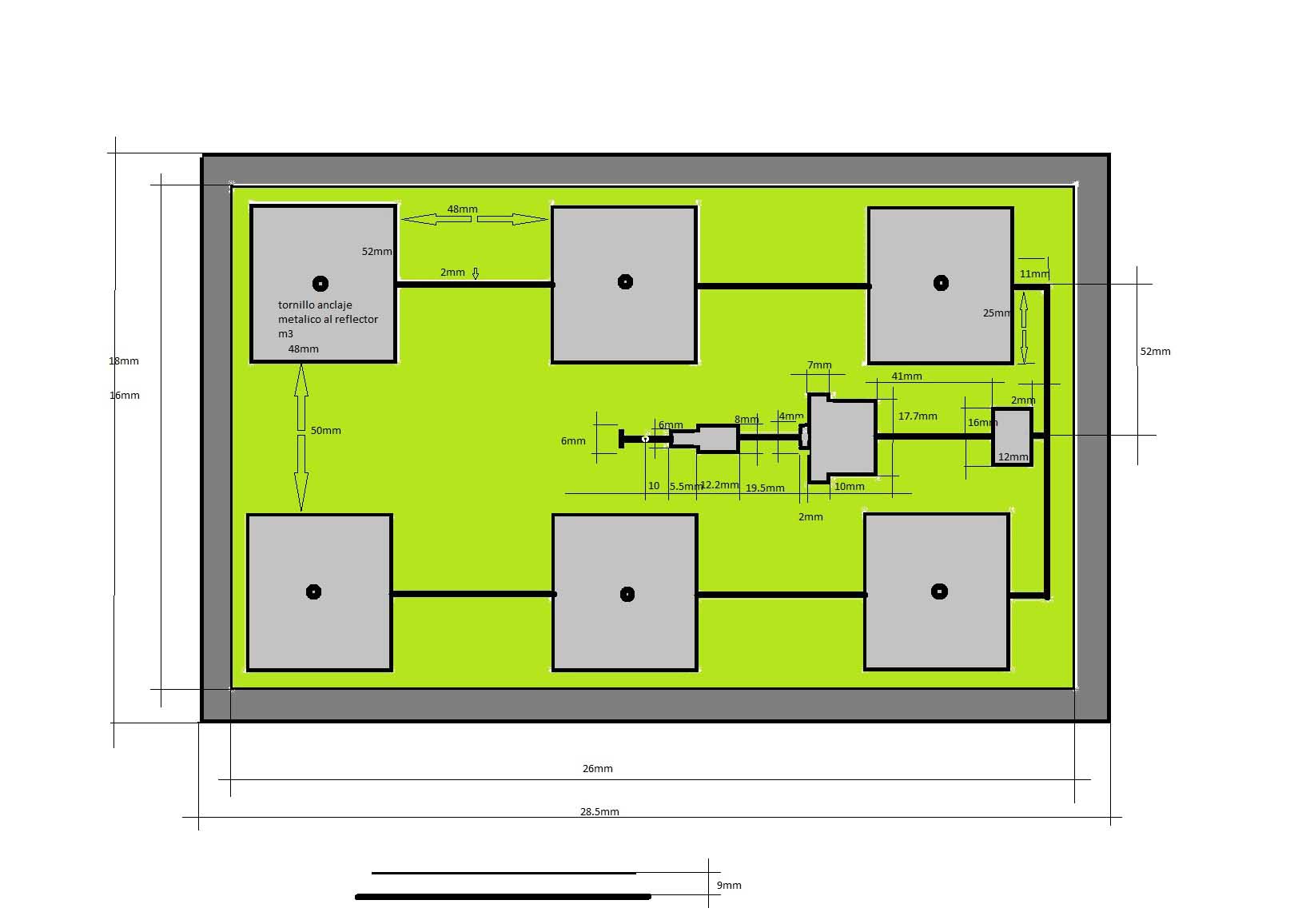

panel 16dB FAO 222.jpg

Here is the MODEL if you wanna give it a GO...



(Didn't work for me)

6 patchs.cst

Share this post


Link to post
Share on other sites

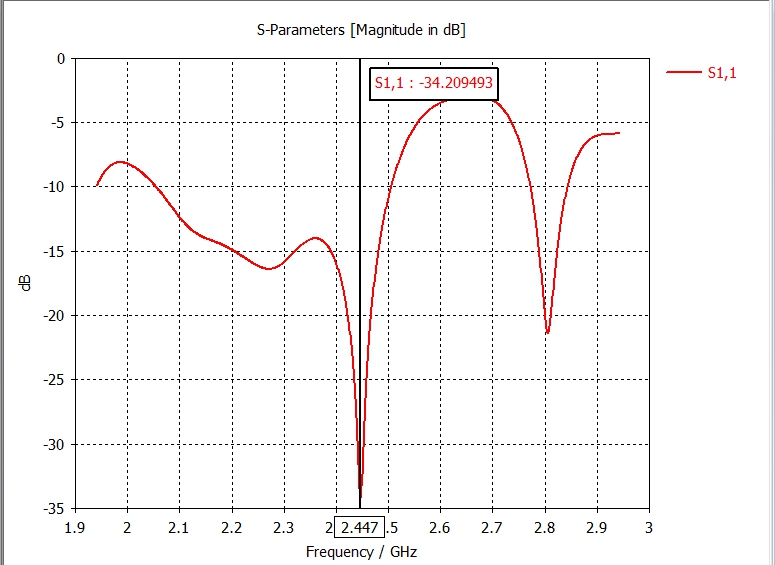

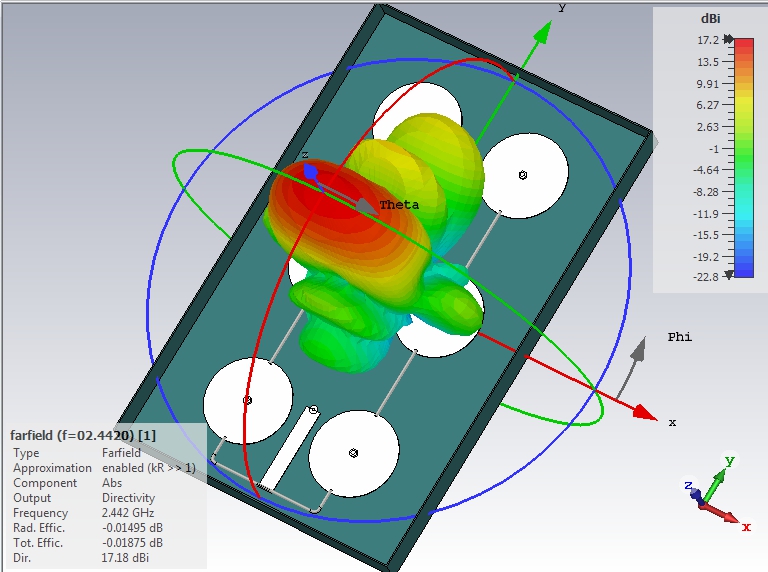

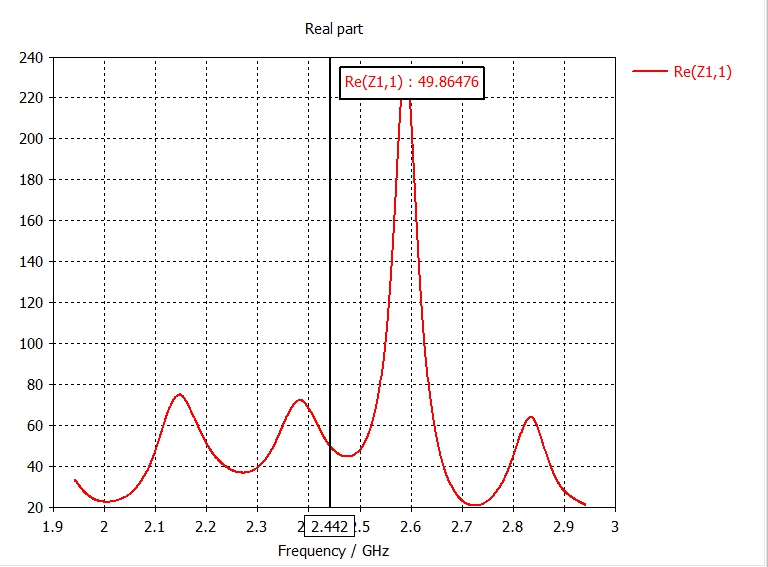

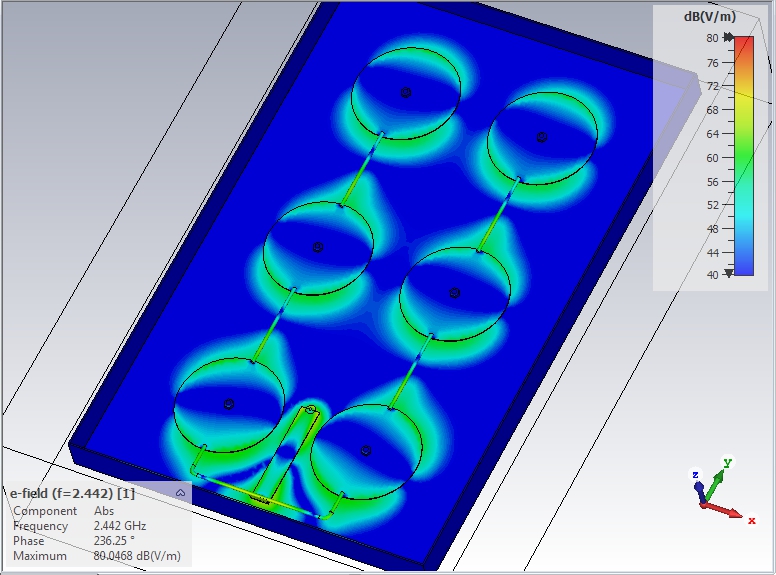

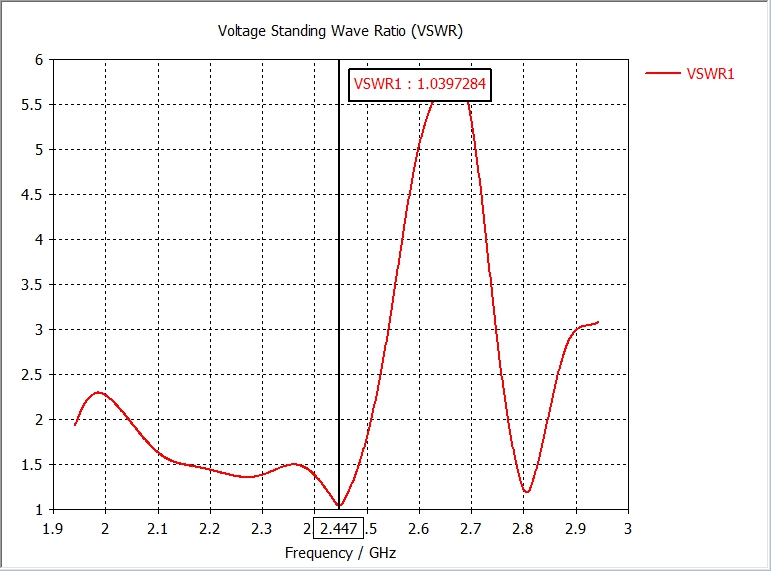

Finally...lots of LOSSES on the FR4...



6 patchs ok_02.gif

Edited by clanon

Share this post


Link to post
Share on other sites

The patch disk is easier to build .. I want the measurements of this antenna jomy
