MikroTik MTAO-LTE-5D-SQ mANT LTE Omni

[Admin 2578]

A directional antenna 699 - 2690 MHz, 2x2 MIMO SMA

MikroTik mANT LTE 5o is a Omni-directional antenna, designed especially for use in radio and television LTE. Perfect for wAP devices-LTE and LtAP. Is characterized by a profit of 5 dBi has been fully adapted for use outdoors. This will improve the quality of the LTE connection (hanging the antenna outside of the building eliminates additional interference, which bring in the wall). The operating frequency range is from 699 MHz to 2690.

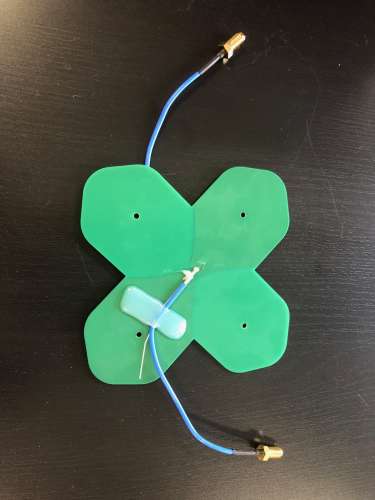

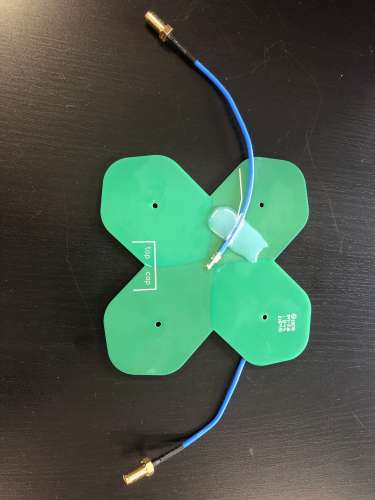

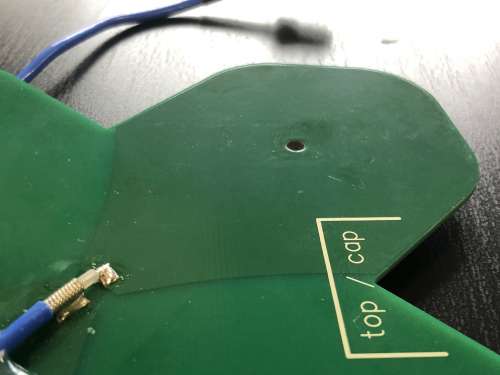

The offered product uses a double polarization, thus, full use of 2x2 MIMO transceivers (such as the R11E-LTE). Due to the fact that the used antenna is Omni-directional it should not cause problems even to those people who are not familiar with similar technology (you do not need wizować antenna). The kit includes the clamp for mounting on a pole.

Specification:

Product code: MTAO-LTE-5D-SQ
Antenna type: Omni
Wireless band: 699 - 2690 MHz
Number of chains: 2
Antenna gain: 5 dBi
Antenna beam width: 360°

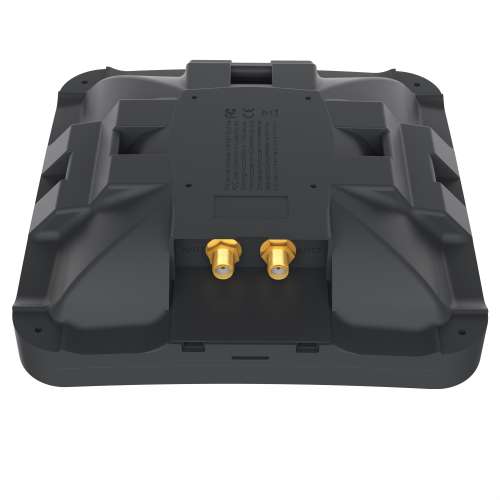

Connectors: 2 SMA Female
Dimensions: 129 x 129 x 34 mm
Operating temperature: -40°C .. +70°C tested



[alhaba.production 7]

anyone have the size detail on this antenna?



[alhaba.production 7]

Up

[Admin 2578]

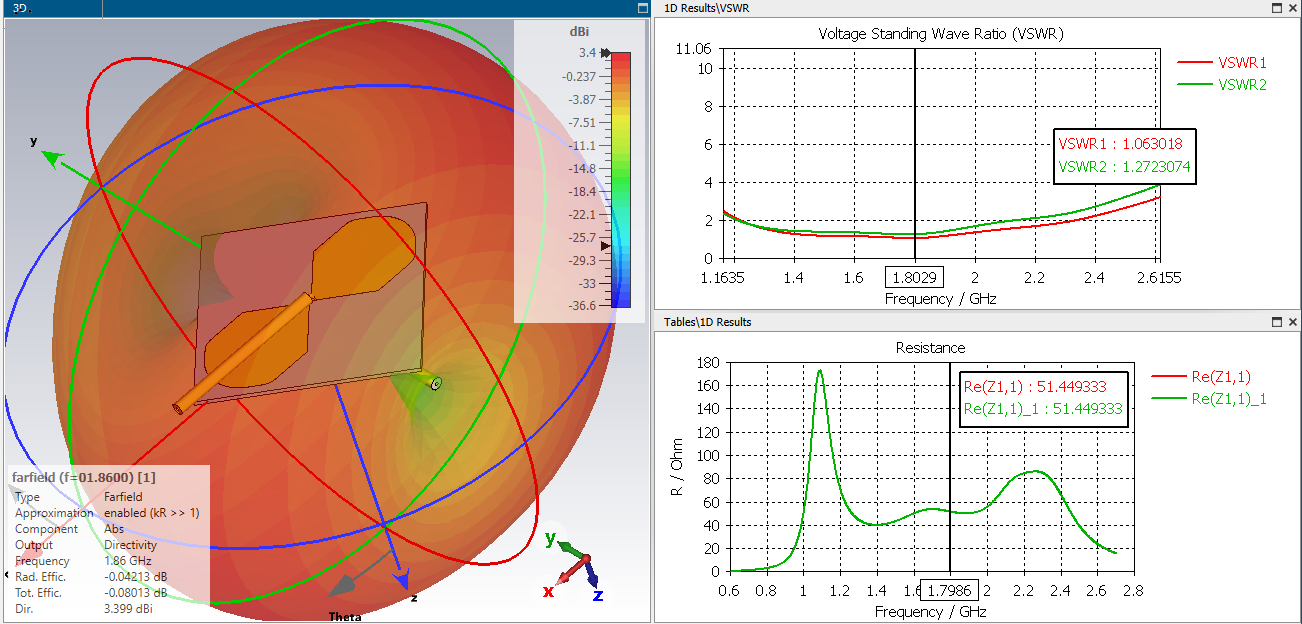

,,,for those who want to improve this type of antenna...

microtik.cst



[jonirak 0]

I know it's old post but could I have the dimensions in a sketch file?

I'd like to copy it using a double side pcb like the original.

What other designs would you suggest for 4G 1800MHz to build easily using pcb, copper wire or sheet metal? I have build this for 1800MHz and it's decent but I'm looking for a better one.

[Admin 2578]

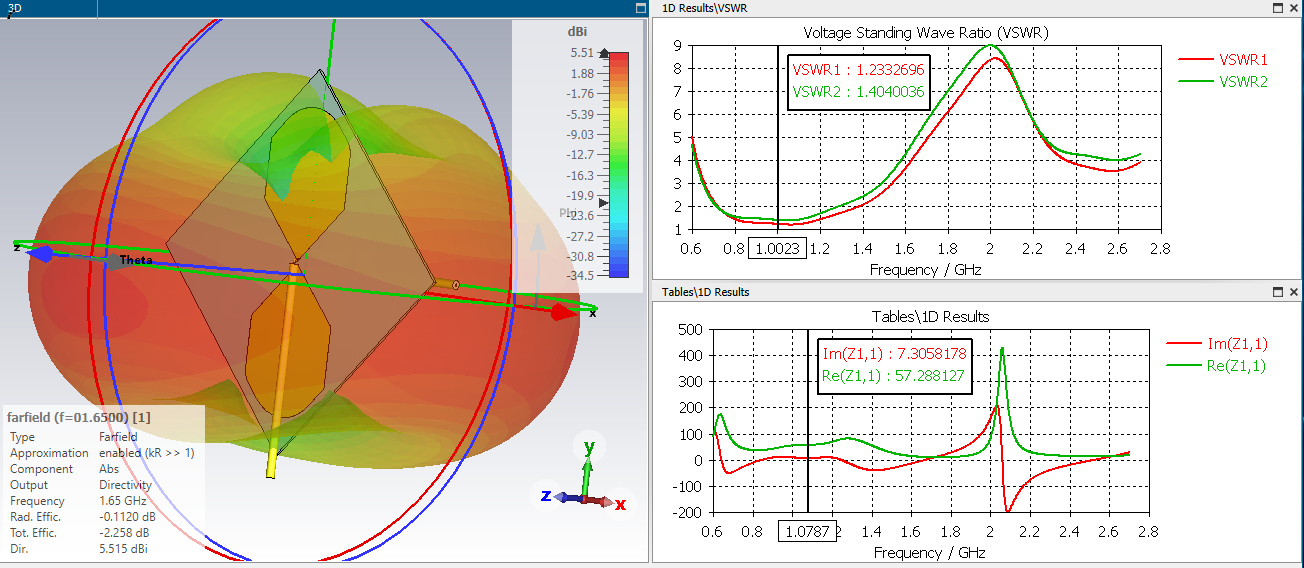

,,, for the frequency of 1800 MHz, this is...



microtik.cst

[Jayakumaran S 0]

On 2/27/2019 at 5:56 PM, Admin said:

A directional antenna 699 - 2690 MHz, 2x2 MIMO SMA

MikroTik mANT LTE 5o is a Omni-directional antenna, designed especially for use in radio and television LTE. Perfect for wAP devices-LTE and LtAP. Is characterized by a profit of 5 dBi has been fully adapted for use outdoors. This will improve the quality of the LTE connection (hanging the antenna outside of the building eliminates additional interference, which bring in the wall). The operating frequency range is from 699 MHz to 2690.

The offered product uses a double polarization, thus, full use of 2x2 MIMO transceivers (such as the R11E-LTE). Due to the fact that the used antenna is Omni-directional it should not cause problems even to those people who are not familiar with similar technology (you do not need wizować antenna). The kit includes the clamp for mounting on a pole.



Dear sir, is there any wifi omnidirectional antenna below 500MHz with high gain  in our page?
